Officezone 3905, 3905U Operation Manual
1
1-800-543-5454
Office Zone
1-800-543-5454
(801) 927-3026
IDEAL CUTTERS
Model 3905
Model 3905 U

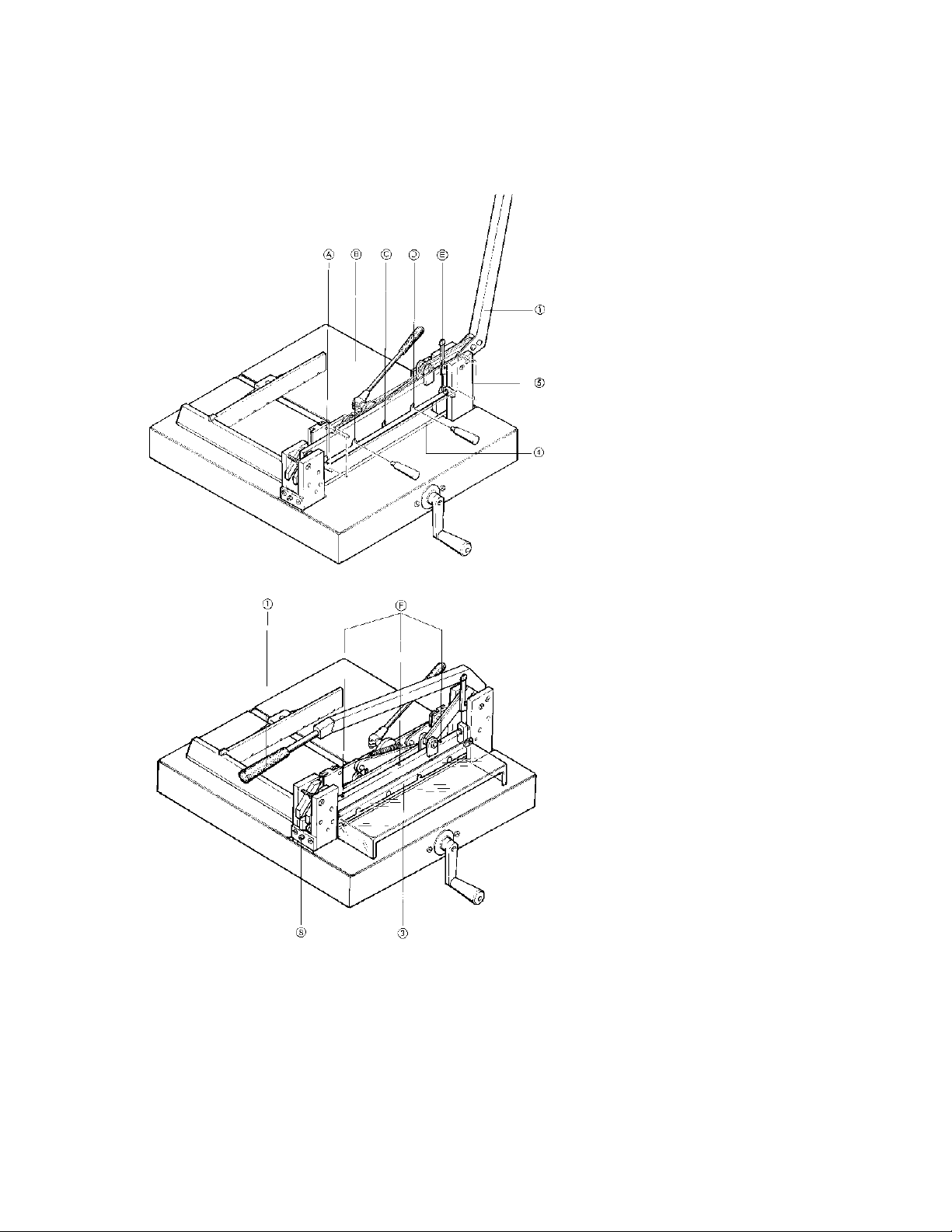

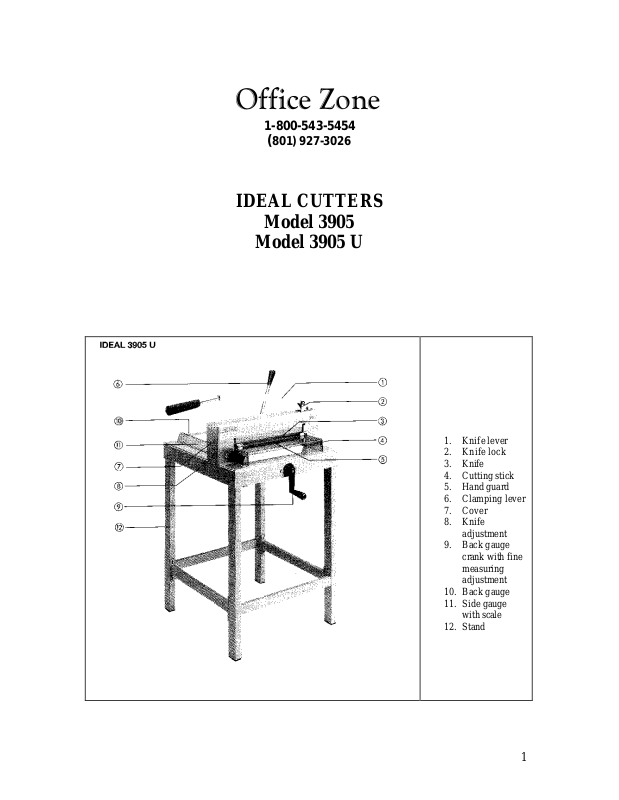

1. Knife lever
2. Knife lock
3. Knife
4. Cutting stick
5. Hand guard
6. Clamping lever
7. Cover
8. Knife
adjustment
9. Back gauge
crank with fine
measuring
adjustment
10. Back gauge
11. Side gauge
with scale
12. Stand
2
Safety Rules
Please make sure that the following safety rules are strictly observed:
• Instruct the person working at the machine how to operate it.
• Take care that not more than one person is working at the machine at a time.
• The knife lever is moved down with both hands.
• After each cutting operation the knife lever is moved back to the starting position until the knife is
locked.
• Do not disassemble the hand guard.
• Do not grasp underneath the hand guard.
• When changing the knife, strictly adhere to the instructions and use knife holders.
Installation
The grip of the knife lever (#1) and the back gauge crank with screw (#9) are packed separately in
a box with the machine. Please install these items immediately.
IDEAL 3905 U
Top part and stand of the machine have to connected as follows:
• Set up the stand in a way that the 4 threaded pins point upwards.
• On each threaded pin there is a washer and a hexagonal nut which has to be removed.
• Place the cutter correctly onto the machine stand.
• Fit the washers and tighten the hexagonal nut with wrench (size 13).
Performance
You can cut many varieties of paper and light cardboard up to 200 g/m².
Maximum Cutting Length ------------- 390 mm
Maximum Cutting Height-------------- 40 mm
Please be sure that the paper is free of metal parts such as clips and staples.
Description of Operating Controls
1. Knife Lever
Due to the optimal lever action, the IDEAL 3905 (15-1/2”) manual enables cutting without effort.
A sharp knife is important for best performance.
After each cutting operation the knife lever has to be returned to its top position until the knife
lever is locked.
2. Knife Locking Device
