Page 1

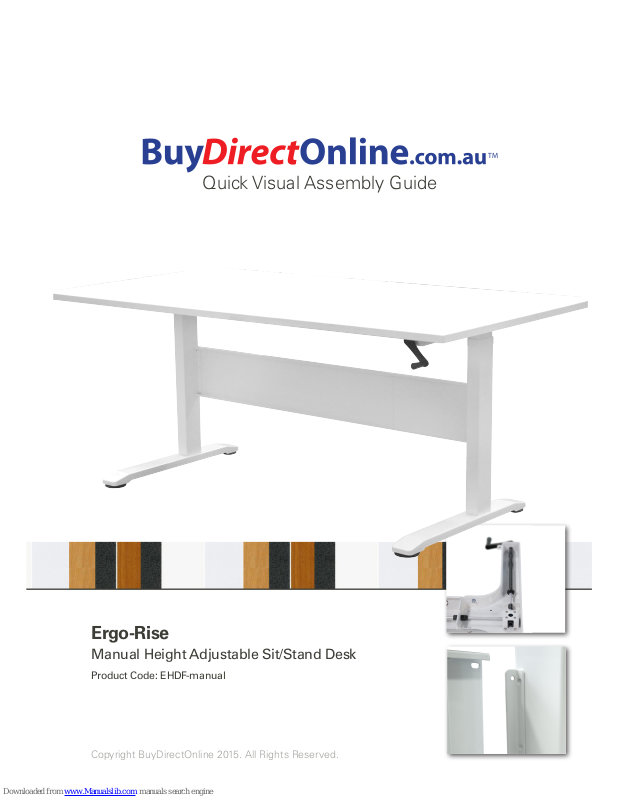

Ergo-Rise

Manual Height Adjustable Sit/Stand Desk

Product Code: EHDF-manual

Quick Visual Assembly Guide

Page 2

1. Unpack all parts out of the box and remove protective bubble wrapping. Layout the parts prior to assembly.

2. Place both legs to face forward with brackets for modesty panel facing inwards.

Ergo-Rise Manual Height Adjustable Sit/Stand Desk

Quick Visual Assembly Guide

Page 3

3. Attach two sides together using the cable tray.

4. Bring the tray to the leg and line up screw holes. Secure one side.

Leave the other leg off for now.

Page 4

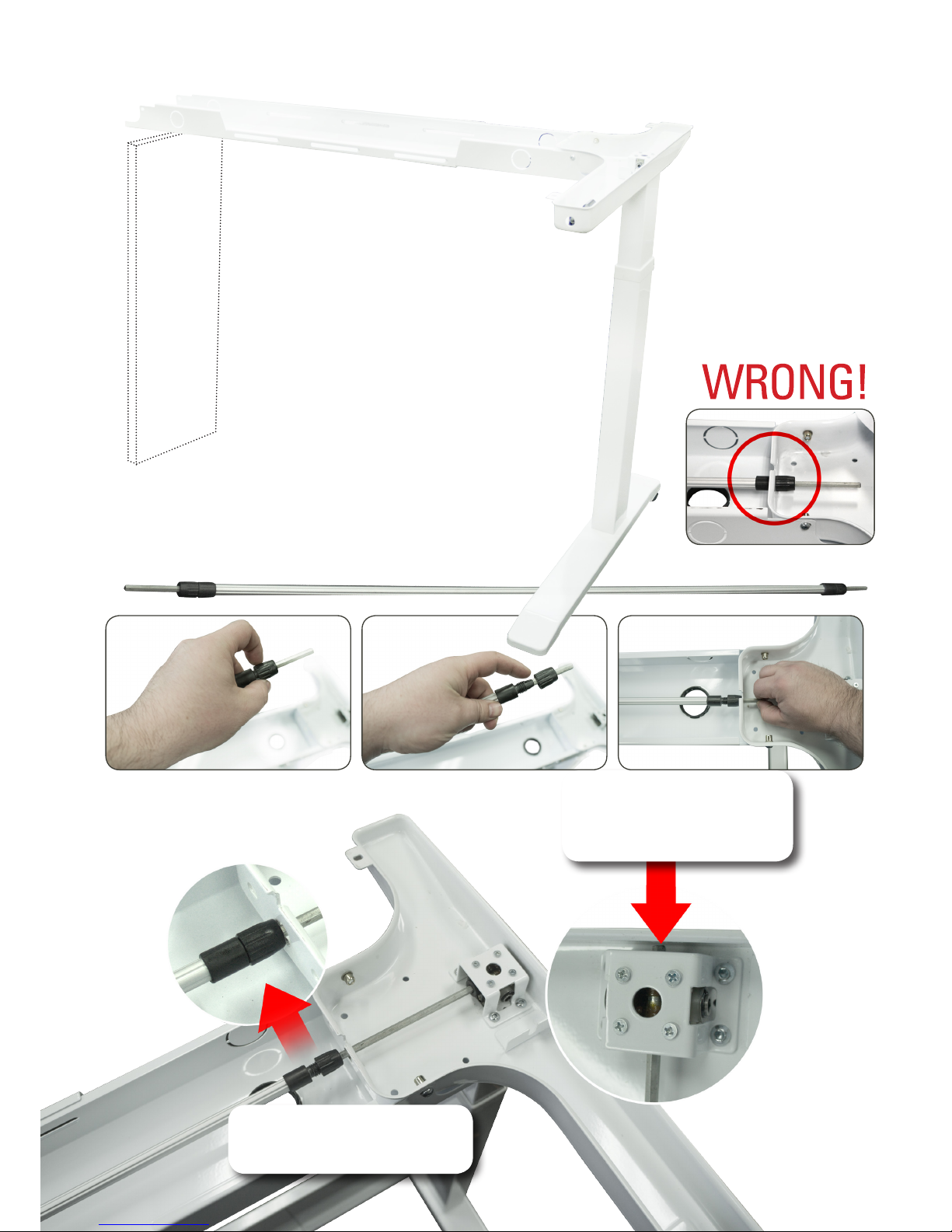

5. When you assemble one side you can rest the cable tray on another desk for stability while you install the height adjustment bar.

6. Undo height adjustment bar cap. When loosened it will be easy to pull out expendable portion.

7. Keep pulling the bar until it is half way between mechanism and table leg side.

8. Rotate clockwise to tighten height adjustment bar.

Page 5

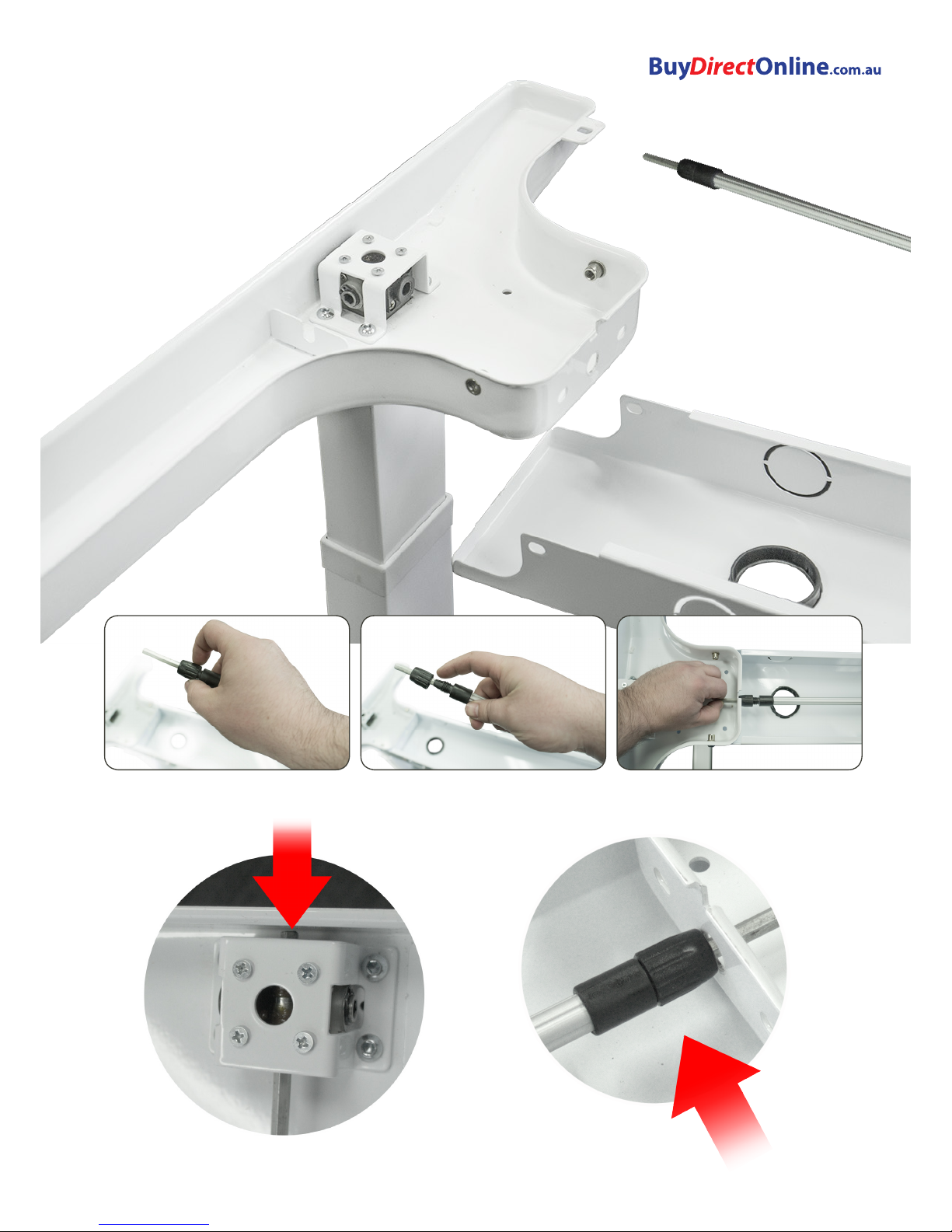

9. Attach the second leg while threading height adjustment bar in to leg adjustment mechanism. Ensure both legs are adequately tightened.

10. Thread height adjustment bar in to second leg height adjustment mechanism.

11. Make sure to thread through leg mechanism. 12. Tighten to secure height adjustment mechanism

Page 6

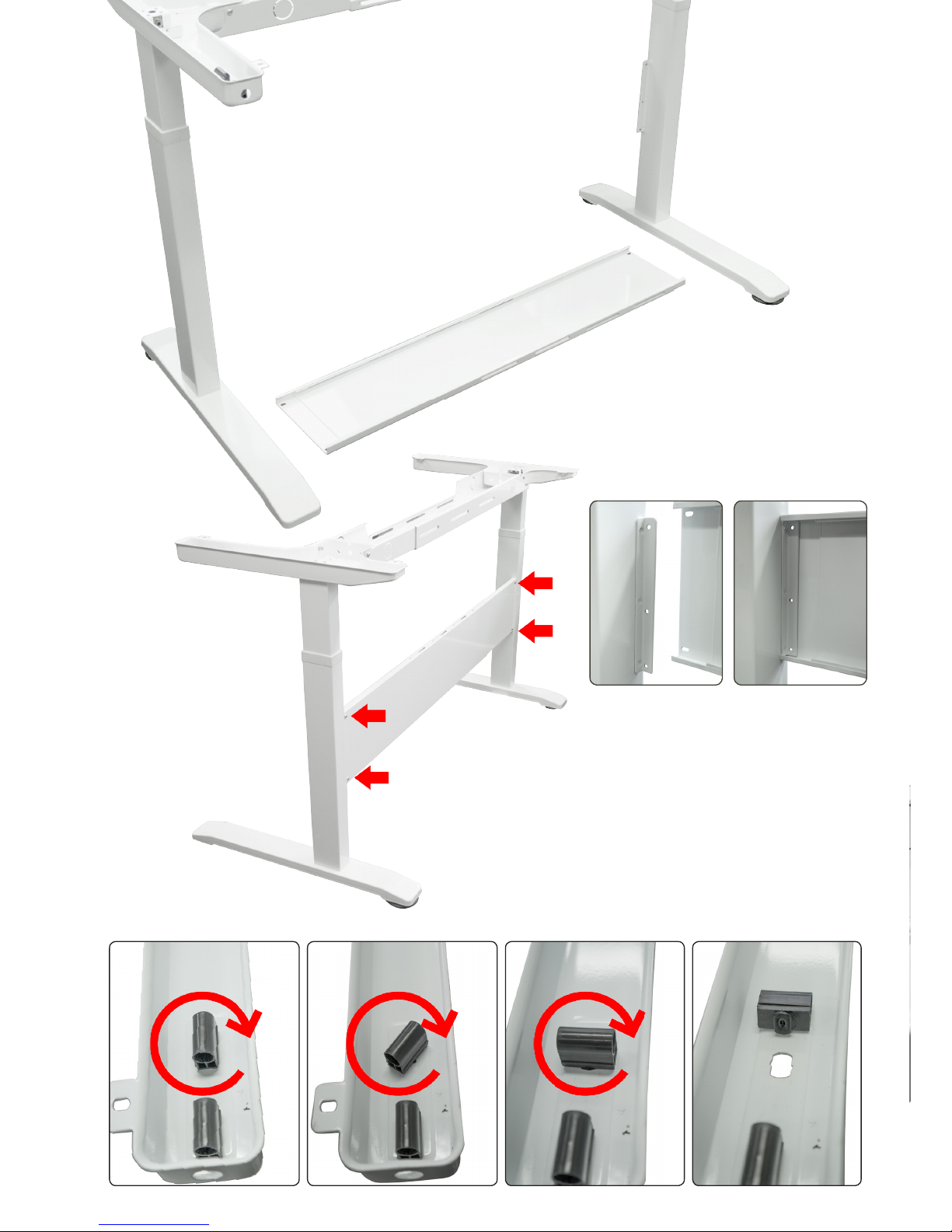

13. Attach modesty panel to table legs. Place modesty panel on one modesty panel tab and with opposite hand extend the panel until it meets the opposite tab.

14. Screws are attached from reverse side. (left image with arrows)

15. Choose a side for the height adjustable handle on either right or left side.

16. Which ever side is chosen you need to have height adjustment handle support brackets there. Use the guide below if they need to be moved or replaced.

Handle Bracket Detachment Step by Step

Page 7

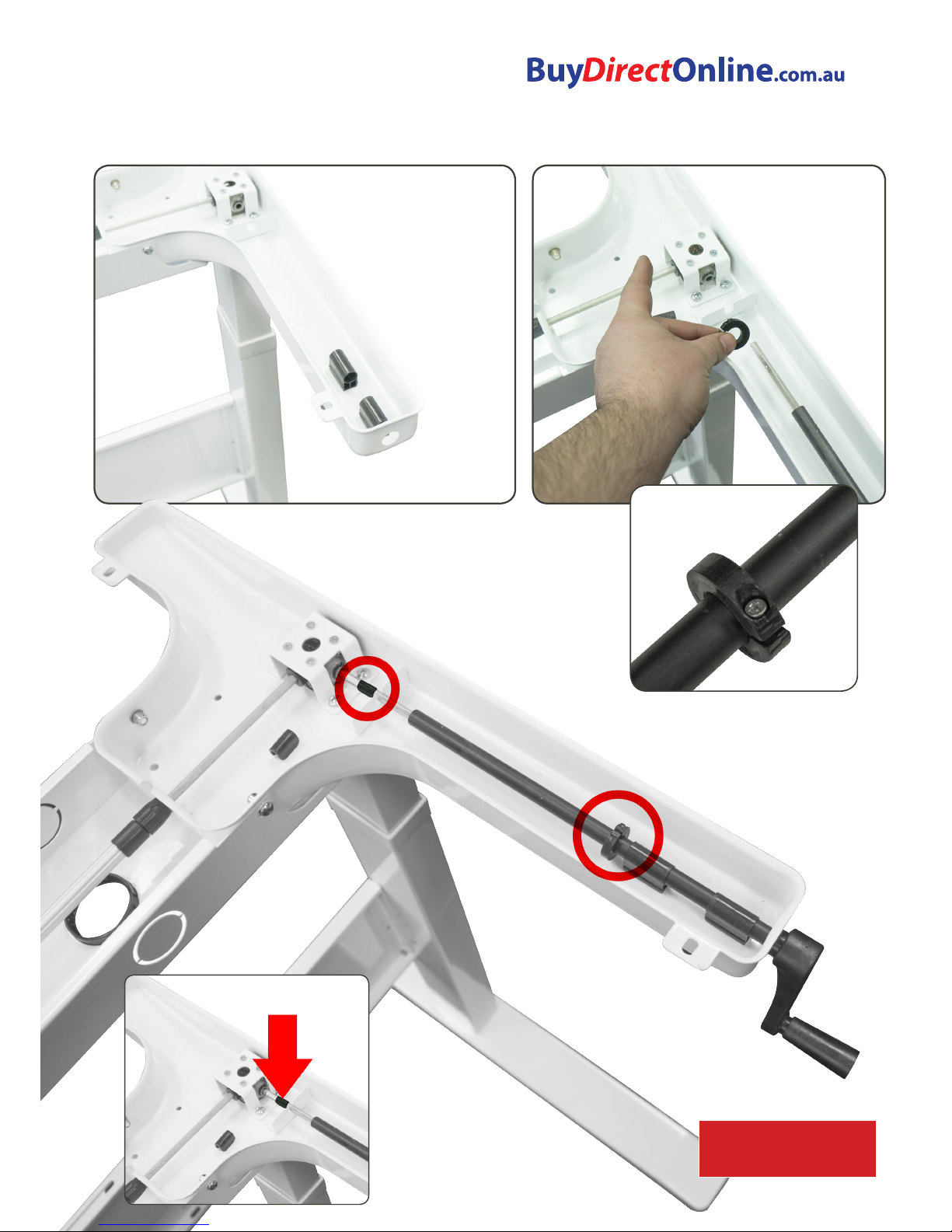

17. Thread handle through two brackets and attach handle locking piece. Use a Phillips head screw driver to loosen or tighten locking piece as needed to adjust retractable handle length as required.

18. (below) Retractable handle locked with short conguration.

19. (Left) Attach second locking piece that is closer to leg mechanism.

This stops the handle from being pulled out while staying retractable.

PLEASE NOTE Handle may come tted.

Page 8

Short handle conguration.

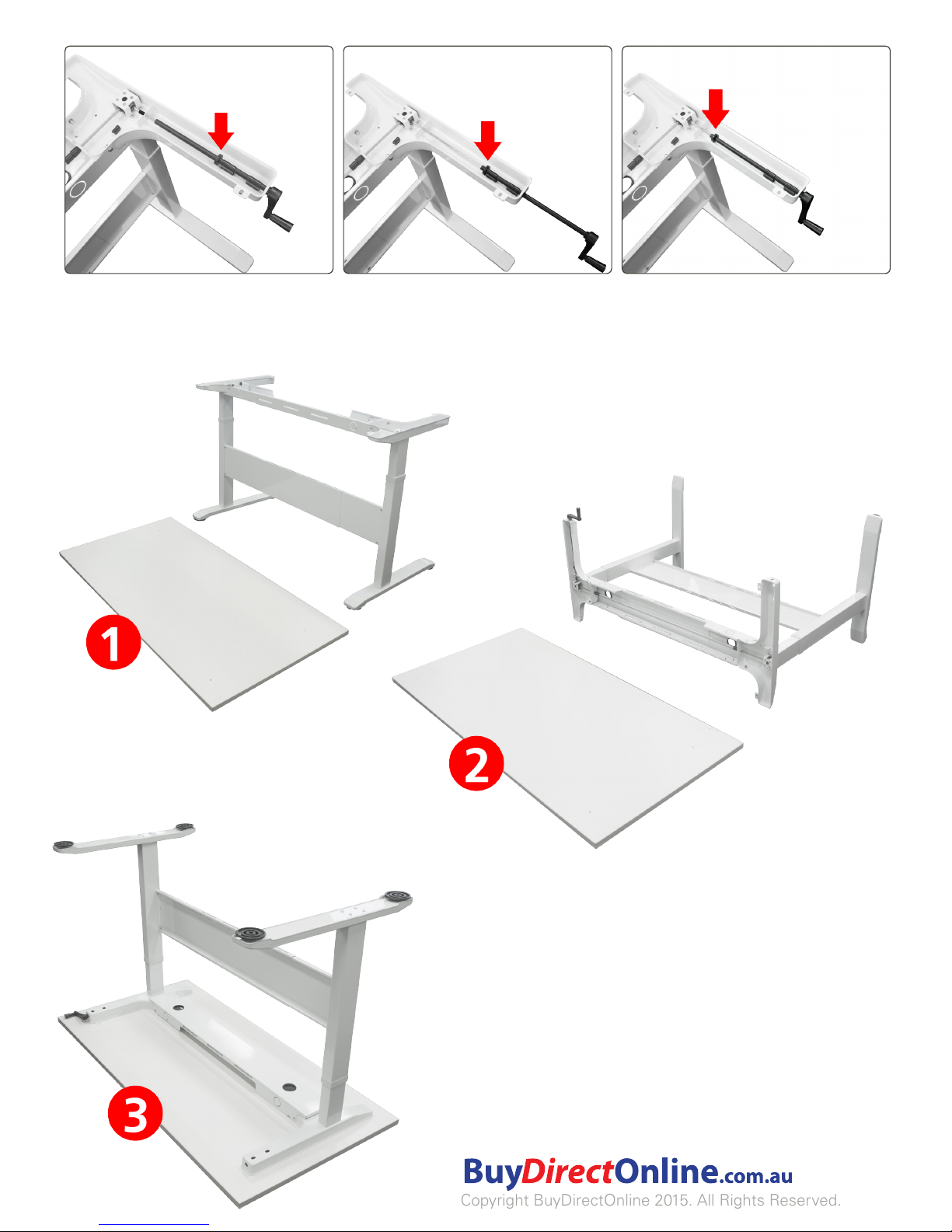

Attaching a Table Top

Easiest way to attach the table top is to turn Ergo-Rise frame upside down.

Note If you are unable to rotated the table without wobbling the frame you will need assitance.

Now you can secure the frame to the top using self-tapping wood screws. Center frame to table top with same gap on each end it can be secured.

IMPORTANT Observe handle. It needs to clear the table top when extended to be functional. If it can’t clear the table top it won’t be able to be adjusted.

Long handle conguration. Long handle retracted.

Assembly Complete!
