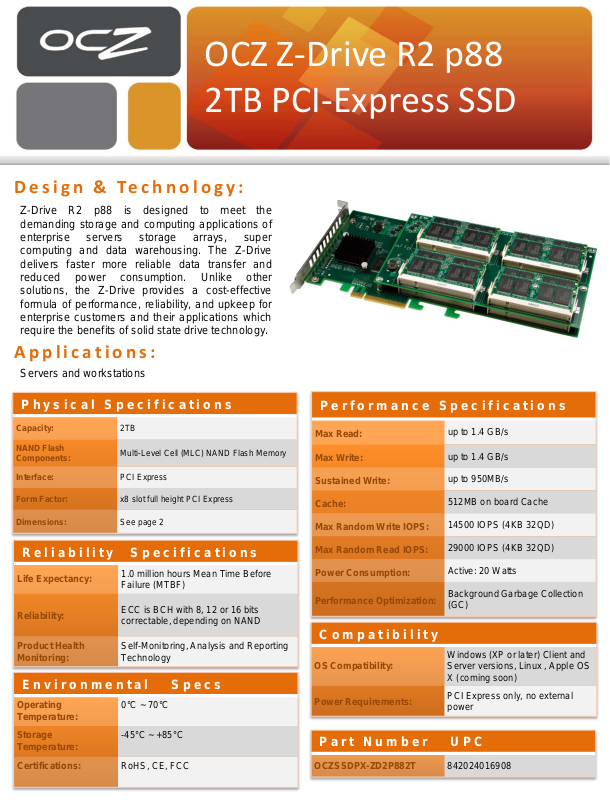

Ocz Z-DRIVE R2 P88 2T DATASHEET

OCZ Z-Drive R2 p88
2TB PCI-Express SSD

Design & Technology:

Z-Drive R2 p88 is designed to meet the
demanding storage and computing applications of
enterprise servers storage arrays, super
computing and data warehousing. The Z-Drive
delivers faster more reliable data transfer and
reduced power consumption. Unlike other
solutions, the Z-Drive provides a cost-effective
formula of performance, reliability, and upkeep for
enterprise customers and their applications which
require the benefits of solid state drive technology.

Applications:

Servers and workstations

Physical Specifications

Capacity: 2TB

NAND Flash
Components:

Interface: PCI Express

Form Factor: x8 slot full height PCI Express

Dimensions: See page 2

Multi-Level Cell (MLC) NAND Flash Memory

Reliability Specifications

Life Expectancy:

Reliability:

Product Health
Monitoring:

1.0 million hours Mean Time Before
Failure (MTBF)

ECC is BCH with 8, 12 or 16 bits
correctable, depending on NAND

Self-Monitoring, Analysis and Reporting
Technology

Environmental Specs

Operating
Temperature:

0°C ~ 70°C

Performance Specifications

Max Read:

Max Write:

Sustained Write:

Cache:

Max Random Write IOPS:

Max Random Read IOPS:

Power Consumption:

Performance Optimization:

up to 1.4 GB/s

up to 1.4 GB/s
up to 950MB/s
512MB on board Cache
14500 IOPS (4KB 32QD)
29000 IOPS (4KB 32QD)
Active: 20 Watts
Background Garbage Collection

(GC)

Compatibility

Windows (XP or later) Client and

OS Compatibility:

Power Requirements:

Server versions, Linux , Apple OS
X (coming soon)

PCI Express only, no external
power

Storage
Temperature:

Certifications: RoHS, CE, FCC

-45°C ~ +85°C

Part Number UPC

OCZSSDPX-ZD2P882T 842024016908

OCZ Z-Drive R2 p88
2TB PCI-Express SSD

Mechanical Information:
