Page 1
Physical Specifications
Capacity: 1TB
NAND Flash
Components:
Multi-Level Cell (MLC) NAND Flash Memory
Interface: PCI Express
Form Factor: x8 slot full height PCI Express
Dimensions: See page 2
Performance Specifications
Max Read:
up to 1.4GB/s
Max Write:
up to 1.4GB/s
Sustained Write:
up to 950MB/s
Cache:
512MB on board Cache
Max Random Write IOPS:
14500 IOPS (4KB 32QD)
Max Random Read IOPS:
29000 IOPS (4KB 32QD)
Power Consumption:
Active: 20 Watts
Performance Optimization:
Background Garbage C ollection
(GC)
Reliability Specifications
Life Expectancy :
1.0 million hours Mean Time Before
Failure (MTBF)
Reliability:
ECC is BCH with 8, 12 or 16 bits
correctable, depending on NAND
Product Health
Monitoring:
Self-Monitoring, Analysis and Reporting
Technology
Environmental Specs
Operating
Temperature:
0°C ~ 70°C
Storage
Temperature:
-45°C ~ +85°C
Certifications: RoHS, CE, FCC
Compatibility
OS Compatibility:
Windows (XP or later) Client and
Server versions, Linux , Apple OS
X (coming soon)
Power Requirements:
PCI Express only, no external
power
Z-Drive R2 p88 is designed to meet the
demanding storage and computing applications of
enterprise servers storage arrays, super
computing and data warehousing. The Z-Drive
delivers faster more reliable data transfer and
reduced power consumption. Unlike other
solutions, the Z-Drive provides a cost-effective
formula of performance, reliability, and upkeep for
enterprise customers and their applications which
require the benefits of solid state drive technology.
Design & Technology:
Applications:
Servers and workstations
OCZ Z-Drive R2 p88
1TB PCI-Express SSD
Part Number UPC
OCZSSDPX-ZD2P881T 842024016984
Page 2

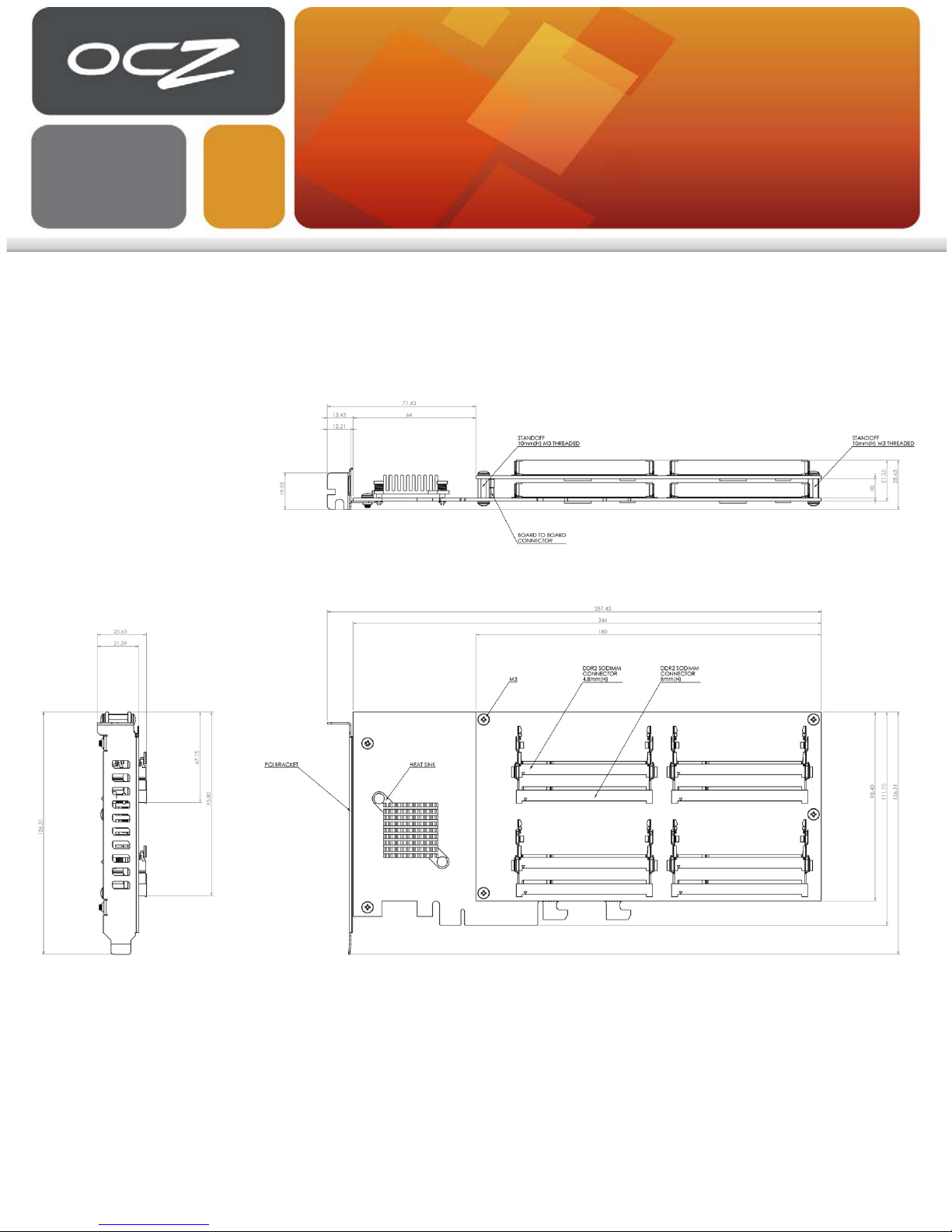

Mechanical Information:
OCZ Z-Drive R2 p88
1TB PCI-Express SSD
