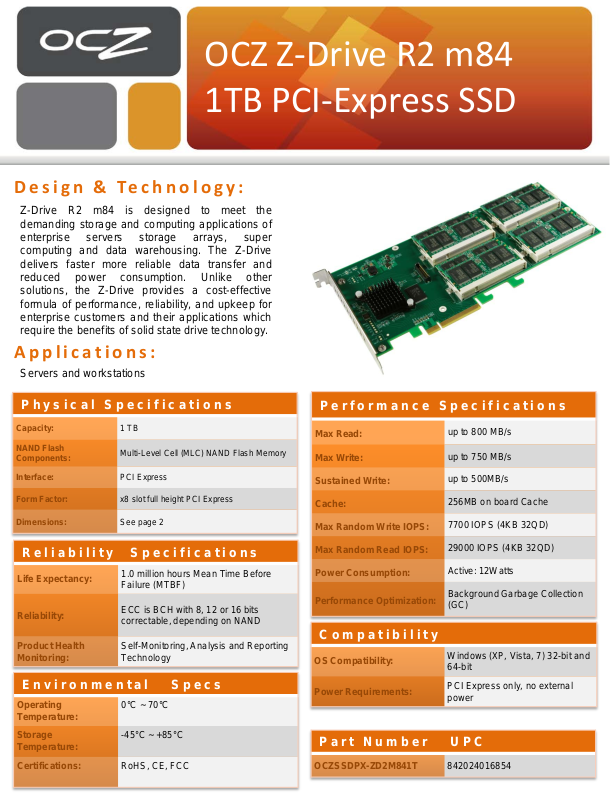

OCZ Z-Drive R2 m84
1TB PCI-Express SSD

Design & Technology:

Z-Drive R2 m84 is designed to meet the
demanding storage and computing applications of
enterprise servers storage arrays, super
computing and data warehousing. The Z-Drive
delivers faster more reliable data transfer and
reduced power consumption. Unlike other
solutions, the Z-Drive provides a cost-effective
formula of performance, reliability, and upkeep for
enterprise customers and their applications which
require the benefits of solid state drive technology.

Applications:

Servers and workstations

Physical Specifications

Capacity: 1 TB

NAND Flash
Components:

Interface: PCI Express

Form Factor: x8 slot full height PCI Express

Dimensions: See page 2

Multi-Level Cell (MLC) NAND Flash Memory

Reliability Specifications

Life Expectancy:

Reliability:

Product Health
Monitoring:

1.0 million hours Mean Time Before
Failure (MTBF)

ECC is BCH with 8, 12 or 16 bits
correctable, depending on NAND

Self-Monitoring, Analysis and Reporting
Technology

Performance Specifications

Max Read:

Max Write:

Sustained Write:

Cache:

Max Random Write IOPS:

Max Random Read IOPS:

Power Consumption:

Performance Optimization:

up to 800 MB/s

up to 750 MB/s
up to 500MB/s
256MB on board Cache
7700 IOPS (4KB 32QD)
29000 IOPS (4KB 32QD)
Active: 12Watts
Background Garbage Collection

(GC)

Compatibility

OS Compatibility:

Windows (XP, Vista, 7) 32-bit and
64-bit

Environmental Specs

Operating
Temperature:

Storage
Temperature:

Certifications: RoHS, CE, FCC

0°C ~ 70°C

-45°C ~ +85°C

Power Requirements:

PCI Express only, no external
power

Part Number UPC

OCZSSDPX-ZD2M841T 842024016854

OCZ Z-Drive R2 m84
1TB PCI-Express SSD

Mechanical Information:
