Ocz VERTEX 2 EX DATASHEET
Part Numbers
UPC
Vertex 2 EX 50GB
OCZSSD2-2VTXEX50G
842024017387
Vertex 2 EX 100GB
OCZSSD2-2VTXEX100G
842024017394
Vertex 2 EX 200GB
OCZSSD2-2VTXEX200G
842024018766

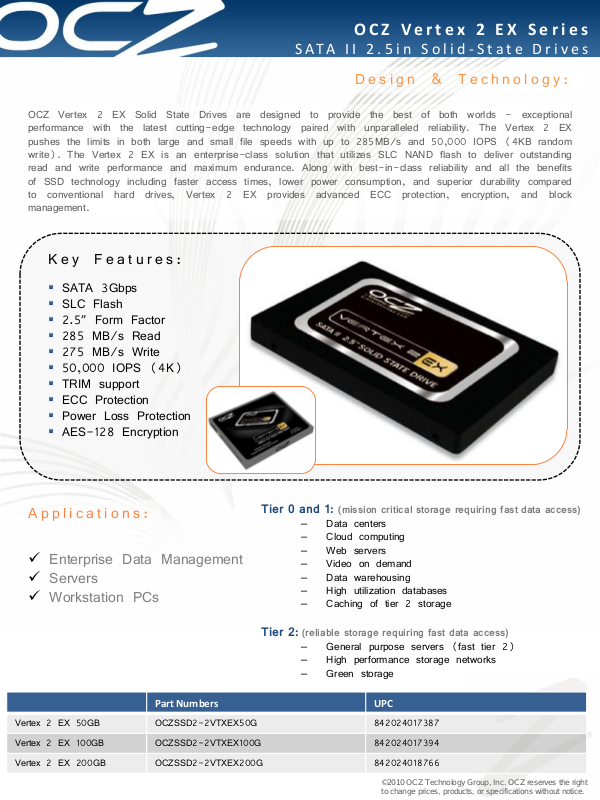

O C Z V e r t e x 2 E X S e r i e s
S A TA I I 2 . 5 i n S o l i d - S t a t e D r i v e s
D e s i g n & T e c h n o l o g y :
OCZ Vertex 2 EX Solid State Drives are designed to provide the best of both worlds - exceptional
performance with the latest cutting-edge technology paired with unparalleled reliability. The Vertex 2 EX
pushes the limits in both large and small file speeds with up to 285MB/s and 50,000 IOPS (4KB random
write). The Vertex 2 EX is an enterprise-class solution that utilizes SLC NAND flash to deliver outstanding
read and write performance and maximum endurance. Along with best-in-class reliability and all the benefits
of SSD technology including faster access times, lower power consumption, and superior durability compared
to conventional hard drives, Vertex 2 EX provides advanced ECC protection, encryption, and block
management.
K e y F e a t u r e s :
SATA 3Gbps
SLC Flash
2.5” Form Factor
285 MB/s Read
275 MB/s Write
50,000 IOPS (4K)
TRIM support
ECC Protection
Power Loss Protection
AES-128 Encryption
A p p l i c a t i o n s :
Enterprise Data Management
Servers
Workstation PCs
Tier 0 and 1: (mission critical storage requiring fast data access)
– Data centers
– Cloud computing
– Web servers
– Video on demand
– Data warehousing
– High utilization databases
– Caching of tier 2 storage
Tier 2: (reliable storage requiring fast data access)
– General purpose servers (fast tier 2)
– High performance storage networks
– Green storage
©2010 OCZ Technology Group, Inc. OCZ reserves the right
to change prices, products, or specifications without notice.
S p e c i f i c a t i o n s :
P E R F O R M A N C E
Max Read¹
up to 285 MB/s
Max Write¹
up to 275 MB/s
Sustained Write²
up to 250 MB/s
4KB Random Write³
50,000 IOPS
Seek Time
0.1 ms
P H Y S I C A L
Usable Capacities (IDEMA)
50GB, 100GB, 200GB
NAND Components
Single-Level Cell (SLC)
Interface
SATA II / 3Gbps
Form Factor
2.5 Inch
Controller
SandForce 1500

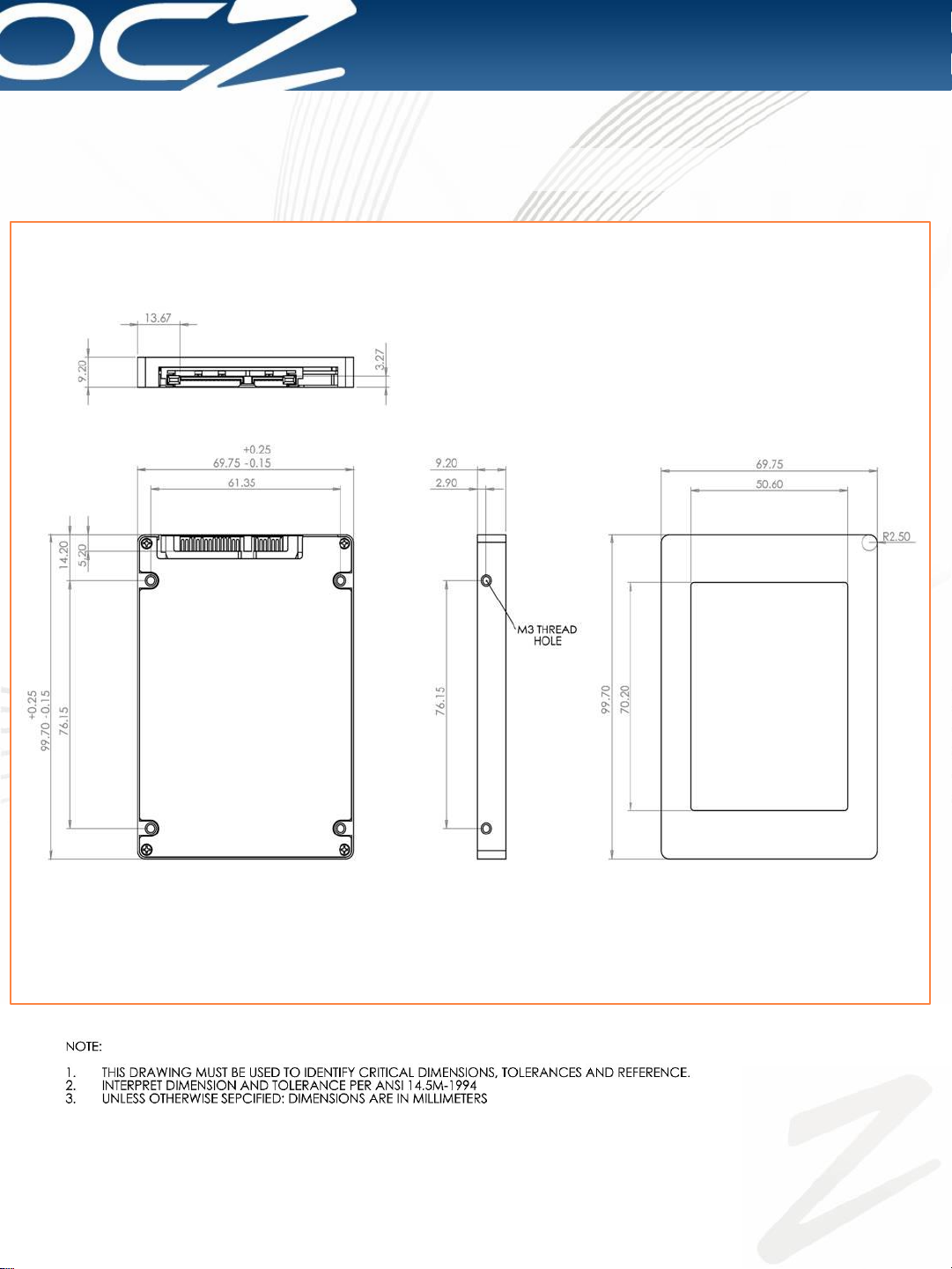

Dimensions (L x W x H)
99.8 x 69.63 x 9.3 mm
Weight
77g
E N V I R O N M E N T A L
Power Consumption
Idle: 0.5 Watts Active: 2 Watts
Operating Temperature
0°C ~ +70°C
Storage Temperature
-45°C ~ +85°C
Shock Resistance
1500G
Certifications
RoHS, CE, FCC
R E L I A B I L I T Y / P R O T E C T I O N / S E C U R I T Y
MTBF
10 million hours
Power Loss Protection
Built-In Super Capacitor
ECC Recovery
Up to 24 bytes correctable per 512-byte sector
Unrecoverable Read Errors
Read unrecoverable bit error rate (UBER) 10e-17
Data Encryption
128-bit AES-compliant
Product Health Monitoring
Self-Monitoring, Analysis and Reporting Technology (SMART) w/ enterprise attributes
C O M P A T I B I L I T Y
Serial ATA (SATA)
Fully compliant with Serial ATA International Organization: Serial ATA Revision 2.6. Fully compliant with
ATA/ATAPI-7 Standard Native Command Queuing (NCQ)
Operating System
Windows XP 32-Bit and 64-Bit; Windows Vista 32-Bit & 64 Bit; Windows 7 32-Bit and 64-Bit; Linux
Power Requirements
Standard SATA Power Connector
A D D I T I O N A L F E A T U R E S
Performance Optimization
TRIM (requires OS support)
System Integration
Bundled with 3.5" desktop adapter bracket
Service & Support
3-Year Warranty, Toll-Free Tech Support, 24 Hour Forum Support, Firmware Updates
O C Z V e r t e x 2 E X S e r i e s
S A TA I I 2 . 5 i n S o l i d - S t a t e D r i v e s
¹ Maximum Sequential Speeds are determined using ATTO
² Sustained transfer rate is measured using Iometer 2008, Queue Depth 32, 128KB
³ Small file I/O performance is measured using Iometer 2008, Queue Depth 32, 4KB Aligned
©2010 OCZ Technology Group, Inc. OCZ reserves the right
to change prices, products, or specifications without notice.
