Ocz STEALTHXSTREAM 400 MECHANICAL DRAWING Mechanical drawing

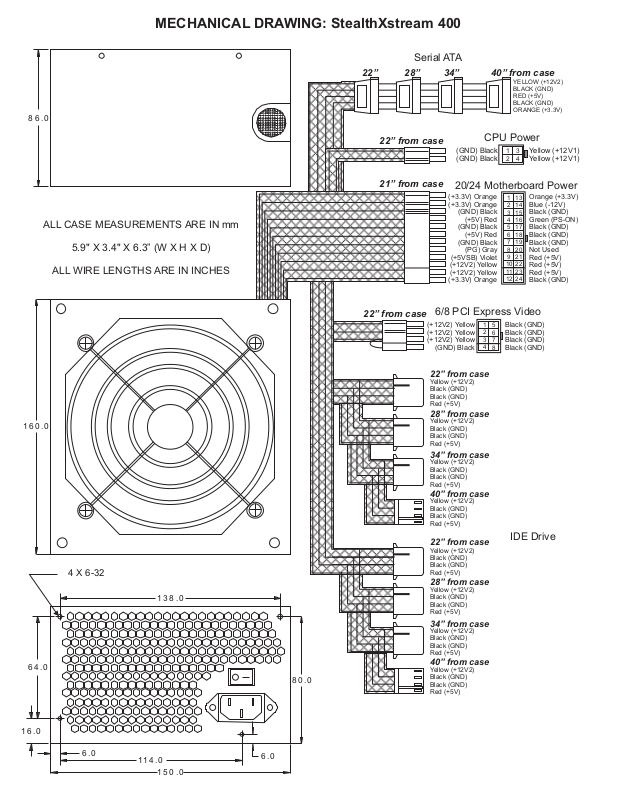

MECHANICAL DRAWING: StealthXstream 400
1 6 .0
6 4 .0
1 3 8 .0
8 6 .0
6 .0
11 4 .0
6 .0
1 5 0 .0
8 0 .0
1 6 0 .0
Serial ATA
22” 28” 34” 40” from case
YELLOW (+12V2)
BLACK (GND)
RED (+5V)
BLACK (GND)
ORANGE (+3.3V)
ALL CASE MEASUREMENTS ARE IN mm
5.9" X 3.4" X 6.3” (W X H X D)
ALL WIRE LENGTHS ARE IN INCHES
4 X 6-32
22” from case
21” from case
22” from case
CPU Power
(GND) Black
(GND) Black
3
1
4
2
20/24 Motherboard Power
(+3.3V) Orange
(+3.3V) Orange
(GND) Black
(+5V) Red
(GND) Black
(+5V) Red
(GND) Black
(PG) Gray
(+5VSB) Violet
(+12V2) Yellow
(+12V2) Yellow
(+3.3V) Orange
13
1
14
2
15
3
16
4
17
5
18
6
19
7
20
8
21
9
22
10
23
11
24
12
6/8 PCI Express Video
(+12V2) Yellow
(+12V2) Yellow
(+12V2) Yellow
(GND) Black
22” from case
Yellow (+12V2)
Black (GND)
Black (GND)
Red (+5V)
28” from case
Yellow (+12V2)
Black (GND)
Black (GND)
Red (+5V)
34” from case
Yellow (+12V2)
Black (GND)
Black (GND)
Red (+5V)
40” from case
Yellow (+12V2)
Black (GND)
Black (GND)
Red (+5V)
22” from case
Yellow (+12V2)
Black (GND)
Black (GND)
Red (+5V)
28” from case
Yellow (+12V2)
Black (GND)
Black (GND)
Red (+5V)
34” from case
Yellow (+12V2)
Black (GND)
Black (GND)
Red (+5V)
40” from case
Yellow (+12V2)
Black (GND)
Black (GND)
Red (+5V)
1
5
2
6
3
7
4
8
Black (GND)
Black (GND)
Black (GND)
Black (GND)
IDE Drive
Yellow (+12V1)
Yellow (+12V1)
Orange (+3.3V)
Blue (-12V)
Black (GND)
Green (PS-ON)
Black (GND)
Black (GND)
Black (GND)
Not Used
Red (+5V)
Red (+5V)
Red (+5V)
Black (GND)
