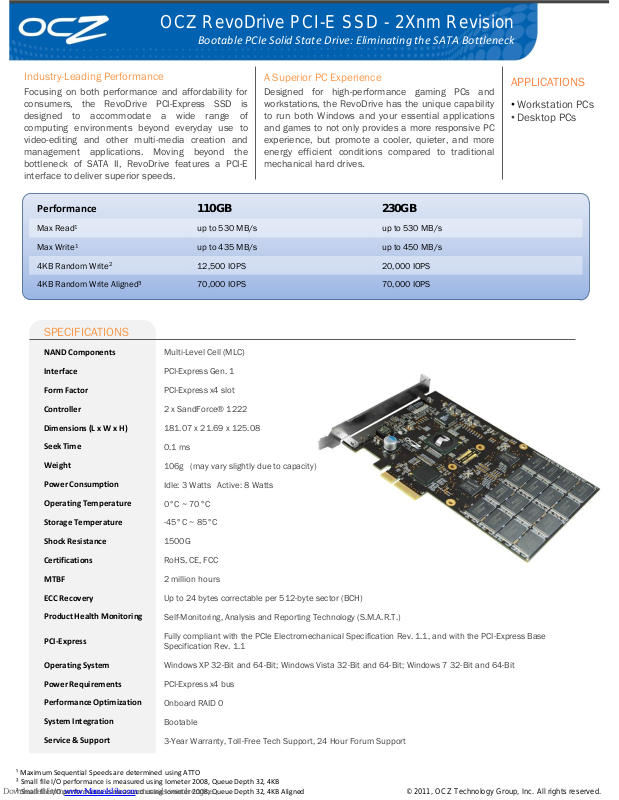

OCZ 2Xnm Revision, RevoDrive PCI-E SSD Specifications

© 2011, OCZ Technology Group, Inc. All rights reserved.

SPECIFICATIONS

NAND Components

Multi-Level Cell (MLC)

Interface

PCI-Express Gen. 1

Form Factor

PCI-Express x4 slot

Controller

2 x SandForce® 1222

Dimensions (L x W x H)

181.07 x 21.69 x 125.08

Seek Time

0.1 ms

Weight

106g (may vary slightly due to capacity)

Power Consumption

Idle: 3 Watts Active: 8 Watts

Operating Temperature

0°C ~ 70°C

Storage Temperature

-45°C ~ 85°C

Shock Resistance

1500G

Certifications

RoHS, CE, FCC

MTBF

2 million hours

ECC Recovery

Up to 24 bytes correctable per 512-byte sector (BCH)

Product Health Monitoring

Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.)

PCI-Express

Fully compliant with the PCIe Electromechanical Specification Rev. 1.1, and with the PCI-Express Base
Specification Rev. 1.1

Operating System

Windows XP 32-Bit and 64-Bit; Windows Vista 32-Bit and 64-Bit; Windows 7 32-Bit and 64-Bit

Power Requirements

PCI-Express x4 bus

Performance Optimization

Onboard RAID 0

System Integration

Bootable

Service & Support

3-Year Warranty, Toll-Free Tech Support, 24 Hour Forum Support

Performance

110GB

230GB

Max Read¹

up to 530 MB/s

up to 530 MB/s
Max Write¹

up to 435 MB/s

up to 450 MB/s

4KB Random Write

2

12,500 IOPS

20,000 IOPS

4KB Random Write Aligned³

70,000 IOPS

70,000 IOPS

Focusing on both performance and affordability for

consumers, the RevoDrive PCI-Express SSD is
designed to accommodate a wide range of
computing environments beyond everyday use to
video-editing and other multi-media creation and
management applications. Moving beyond the
bottleneck of SATA II, RevoDrive features a PCI-E
interface to deliver superior speeds.

APPLICATIONS

• Workstation PCs

• Desktop PCs

Industry-Leading Performance

Designed for high-performance gaming PCs and

workstations, the RevoDrive has the unique capability
to run both Windows and your essential applications
and games to not only provides a more responsive PC
experience, but promote a cooler, quieter, and more
energy efficient conditions compared to traditional
mechanical hard drives.

A Superior PC Experience

¹ Maximum Sequential Speeds are determined using ATTO
² Small file I/O performance is measured using Iometer 2008, Queue Depth 32, 4KB
³ Small file I/O performance is measured using Iometer 2008, Queue Depth 32, 4KB Aligned

OCZ RevoDrive PCI-E SSD - 2Xnm Revision

Bootable PCIe Solid State Drive: Eliminating the SATA Bottleneck

© 2011, OCZ Technology Group, Inc. All rights reserved.

PRODUCT

RAW CAPACITY

IDEMA CAPACITY
PART NUMBER

UPC

RevoDrive PCI-E SSD

128GB

110GB

OCZSSDPX-1RVD0110
842024025399

RevoDrive PCI-E SSD

256GB

230GB

OCZSSDPX-1RVD0230

842024025405

ORDERING INFORMATION

MECHANICAL SPECIFICATIONS

OCZ RevoDrive PCI-E SSD - 2Xnm Revision

Bootable PCIe Solid State Drive: Eliminating the SATA Bottleneck

Box Dimensions:

27.6 x 17 x 4.96cm
