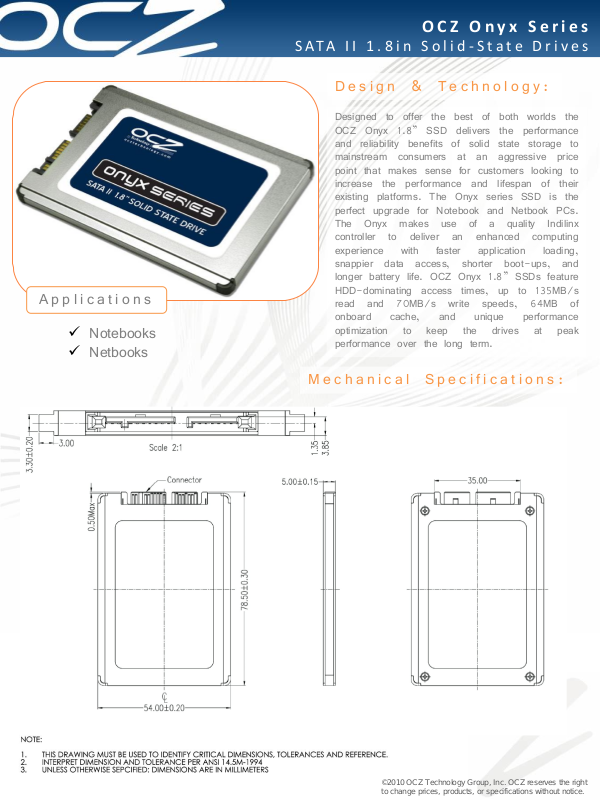

Ocz ONYX DATASHEET
A p p l i c a t i o n s
Notebooks
Netbooks
O C Z O n y x S e r i e s
S A TA I I 1 . 8 i n S o l i d - S t a t e D r i v e s
D e s i g n & T e c h n o l o g y :
Designed to offer the best of both worlds the
OCZ Onyx 1.8” SSD delivers the performance
and reliability benefits of solid state storage to
mainstream consumers at an aggressive price
point that makes sense for customers looking to
increase the performance and lifespan of their
existing platforms. The Onyx series SSD is the
perfect upgrade for Notebook and Netbook PCs.
The Onyx makes use of a quality Indilinx
controller to deliver an enhanced computing
experience with faster application loading,
snappier data access, shorter boot-ups, and
longer battery life. OCZ Onyx 1.8” SSDs feature
HDD-dominating access times, up to 135MB/s
read and 70MB/s write speeds, 64MB of
onboard cache, and unique performance
optimization to keep the drives at peak
performance over the long term.
M e c h a n i c a l S p e c i f i c a t i o n s :
©2010 OCZ Technology Group, Inc. OCZ reserves the right
to change prices, products, or specifications without notice.
Onyx 32GB
Onyx 64GB
Max Read¹
up to 135 MB/s
up to 150 MB/s
Max Write¹
up to 70 MB/s
up to 120 MB/s
Sustained Write²
up to 35 MB/s
up to 80 MB/s
Max IOPS³
15,000
15,000
Seek Time
0.1 ms
0.1 ms
P H Y S I C A L
Usable Capacities (IDEMA)
32GB, 64GB
NAND Components
Multi-Level Cell (MLC)
Interface
SATA II / 3Gbps
Form Factor
1.8 Inch
Controller
Indilinx Amigos
Dimensions (L x W x H)
78.5 x 54 x 5 mm
Weight
29g (may vary slightly depending on capacity)
E N V I R O N M E N T A L
Power Consumption
Idle: 0.375 Watts Active: 1 Watt
Operating Temperature
0°C ~ +70°C
Storage Temperature
-45°C ~ +85°C
Shock Resistance
1500G
Certifications
RoHS, CE, FCC
R E L I A B I L I T Y
MTBF
1 million hours
Reliability
BCH: 8 or 12 bits/sector for 128 Bytes spare and 16 bits/sector for 128 Bytes spare
size read
Product Health Monitoring
Self-Monitoring, Analysis and Reporting Technology (SMART)
C O M P A T I B I L I T Y
Serial ATA (SATA)
Fully compliant with Serial ATA International Organization: Serial ATA Revision 2.6. Fully
compliant with ATA/ATAPI-7 Standard Native Command Queuing (NCQ)
Operating System
Windows XP 32-Bit and 64-Bit; Windows Vista 32-Bit & 64 Bit; Windows 7 32-Bit and
64-Bit; Linux, Mac OSX (Qualified at Apple Labs)
Power Requirements
Micro SATA Power Connector
A D D I T I O N A L F E A T U R E S
Performance Optimization
TRIM (requires OS support) and idle time garbage collection
Service & Support
2-Year Warranty, Toll-Free Tech Support, 24 Hour Forum Support, Firmware Updates
S p e c i f i c a t i o n s :
P A R T N U M B E R S
U P C
Onyx 32GB
OCZSSD1-1ONX32G
842024017875
Onyx 64GB
OCZSSD1-1ONX64G
842024017868
O C Z O n y x S e r i e s
S A TA I I 1 . 8 i n S o l i d - S t a t e D r i v e s
¹ Maximum Sequential Speeds are determined using ATTO
² Sustained transfer rate is measured using Iometer 2008, Queue Depth 32, 128KB
³ Small file random read performance is measured using Iometer 2008, Queue Depth 32, 4KB Aligned
©2010 OCZ Technology Group, Inc. OCZ reserves the right
to change prices, products, or specifications without notice.
