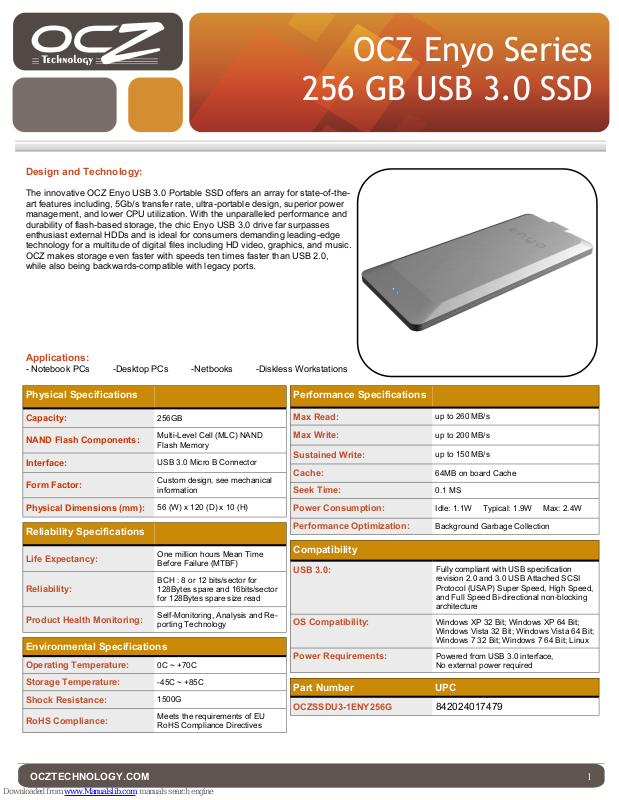

256 GB USB 3.0 SSD
Design and Technology:
The innovative OCZ Enyo USB 3.0 Portable SSD offers an array for state-of-theart features including, 5Gb/s transfer rate, ultra-portable design, superior power
management, and lower CPU utilization. With the unparalleled performance and
durability of flash-based storage, the chic Enyo USB 3.0 drive far surpasses
enthusiast external HDDs and is ideal for consumers demanding leading-edge
technology for a multitude of digital files including HD video, graphics, and music.
OCZ makes storage even faster with speeds ten times faster than USB 2.0,
while also being backwards-compatible with legacy ports.
Applications:
- Notebook PCs -Desktop PCs -Netbooks -Diskless Workstations
Physical Specifications
Performance Specifications
OCZ Enyo Series
Capacity:
NAND Flash Components:
Interface:
Form Factor:
Physical Dimensions (mm):
256GB
Multi-Level Cell (MLC) NAND
Flash Memory
USB 3.0 Micro B Connector
Custom design, see mechanical
information
56 (W) x 120 (D) x 10 (H)
Reliability Specifications
Life Expectancy:
Reliability:
Product Health Monitoring:
One million hours Mean Time
Before Failure (MTBF)
BCH : 8 or 12 bits/sector for
128Bytes spare and 16bits/sector
for 128Bytes spare size read
Self-Monitoring, Analysis and Reporting Technology
Environmental Specifications
Operating Temperature:
Storage Temperature:
Shock Resistance:
RoHS Compliance:
0C ~ +70C
-45C ~ +85C
1500G
Meets the requirements of EU
RoHS Compliance Directives
Max Read:
Max Write:
Sustained Write:
Cache:
Seek Time:
Power Consumption:
Performance Optimization:
up to 260 MB/s
up to 200 MB/s
up to 150 MB/s
64MB on board Cache
0.1 MS
Idle: 1.1W Typical: 1.9W Max: 2.4W
Background Garbage Collection
Compatibility
USB 3.0:
OS Compatibility:
Power Requirements:
Fully compliant with USB specification
revision 2.0 and 3.0 USB Attached SCSI
Protocol (USAP) Super Speed, High Speed,
and Full Speed Bi-directional non-blocking
architecture
Windows XP 32 Bit; Windows XP 64 Bit;
Windows Vista 32 Bit; Windows Vista 64 Bit;
Windows 7 32 Bit; Windows 7 64 Bit; Linux
Powered from USB 3.0 interface,
No external power required
Part Number UPC
OCZSSDU3-1ENY256G
842024017479
OCZTECHNOLOGY.COM
1
Page 2
Mechanical Specifications
OCZ Enyo Series
256 GB USB 3.0 SSD
OCZTECHNOLOGY.COM
2
