Octagon SF 1028P HD - Noblence User Manual

Full HD Digital Two Tuner Receiver
Digital Innovation Life

User's Manual

SF 1028P HD - Noblence

INDEX

INDEX ................................................................................................................................... 3

Precautions

1. Important Safety Instructions ...................................................................................................... 5

2. Notice ......................................................................................................................................... 5

3. Copyright .................................................................................................................................... 6

4. Disclaimer ................................................................................................................................... 6

5. Trademarks ................................................................................................................................ 6

Before You Begin

1. Main Features ............................................................................................................................ 7

2. Accessories ................................................................................................................................ 8

Hardware Description

1. Front Panel Configuration .......................................................................................................... 9

2. VFD(Vacuum Fluorescent Display) ............................................................................................ 9

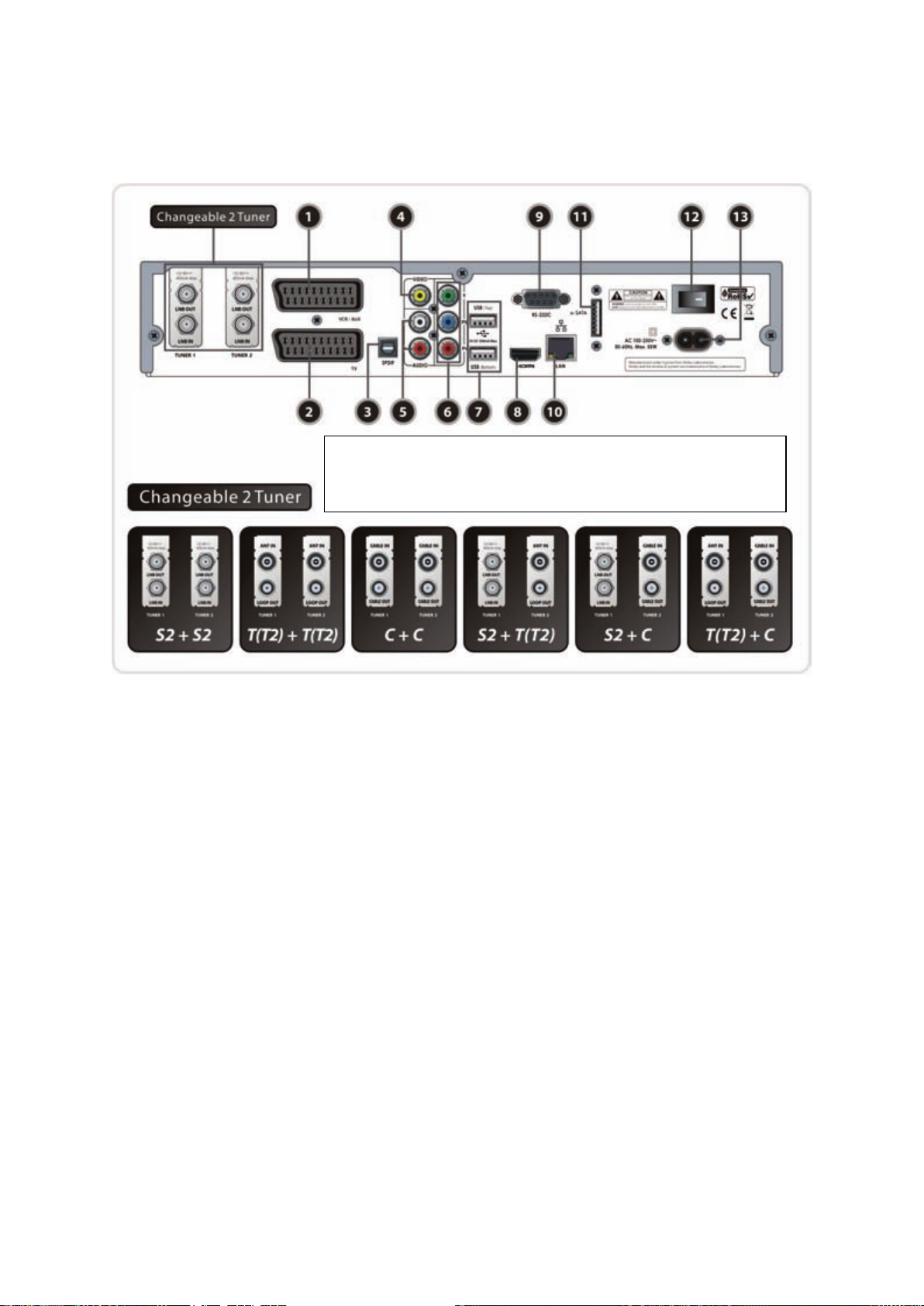

3. Rear Panel Configuration ......................................................................................................... 10

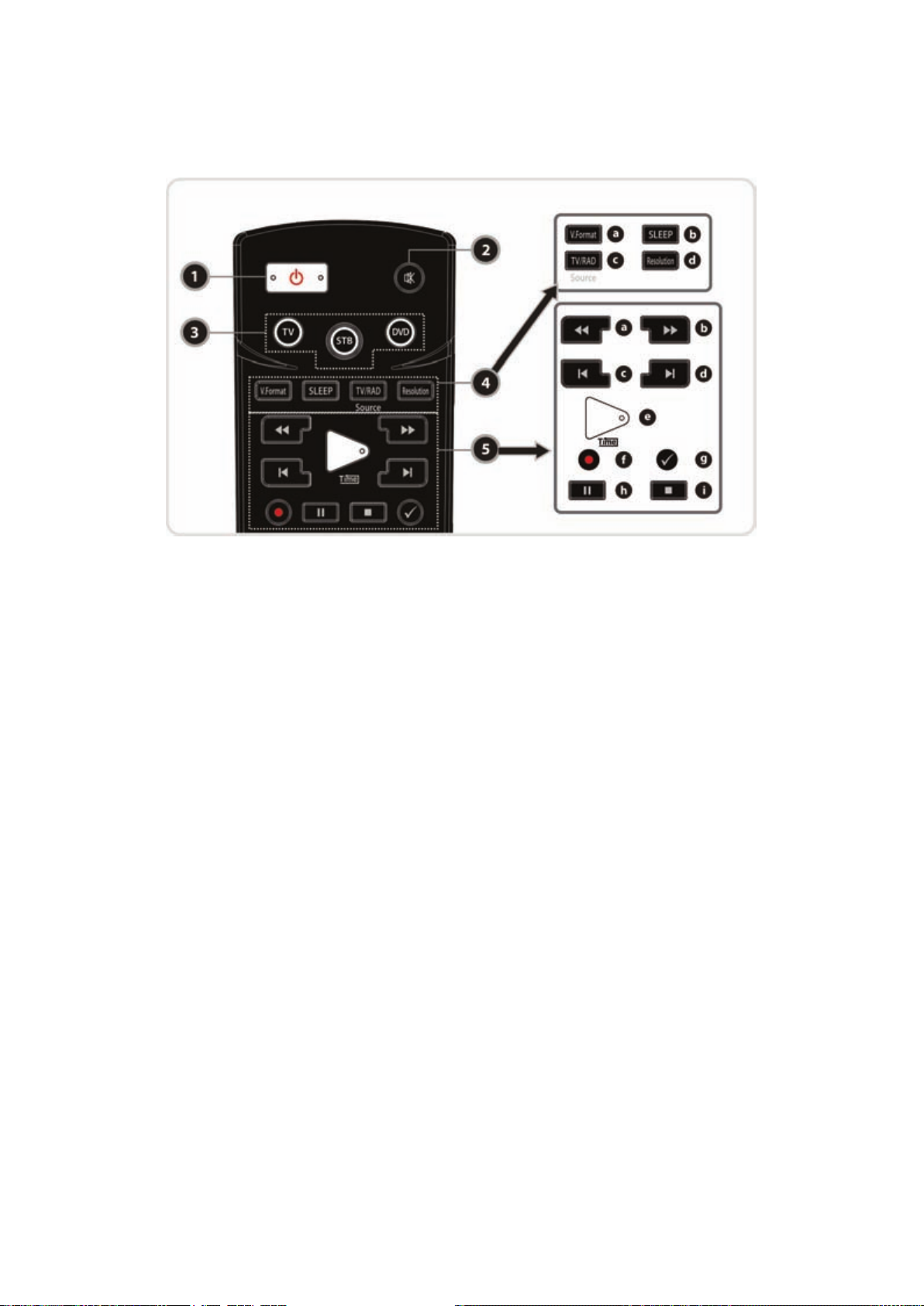

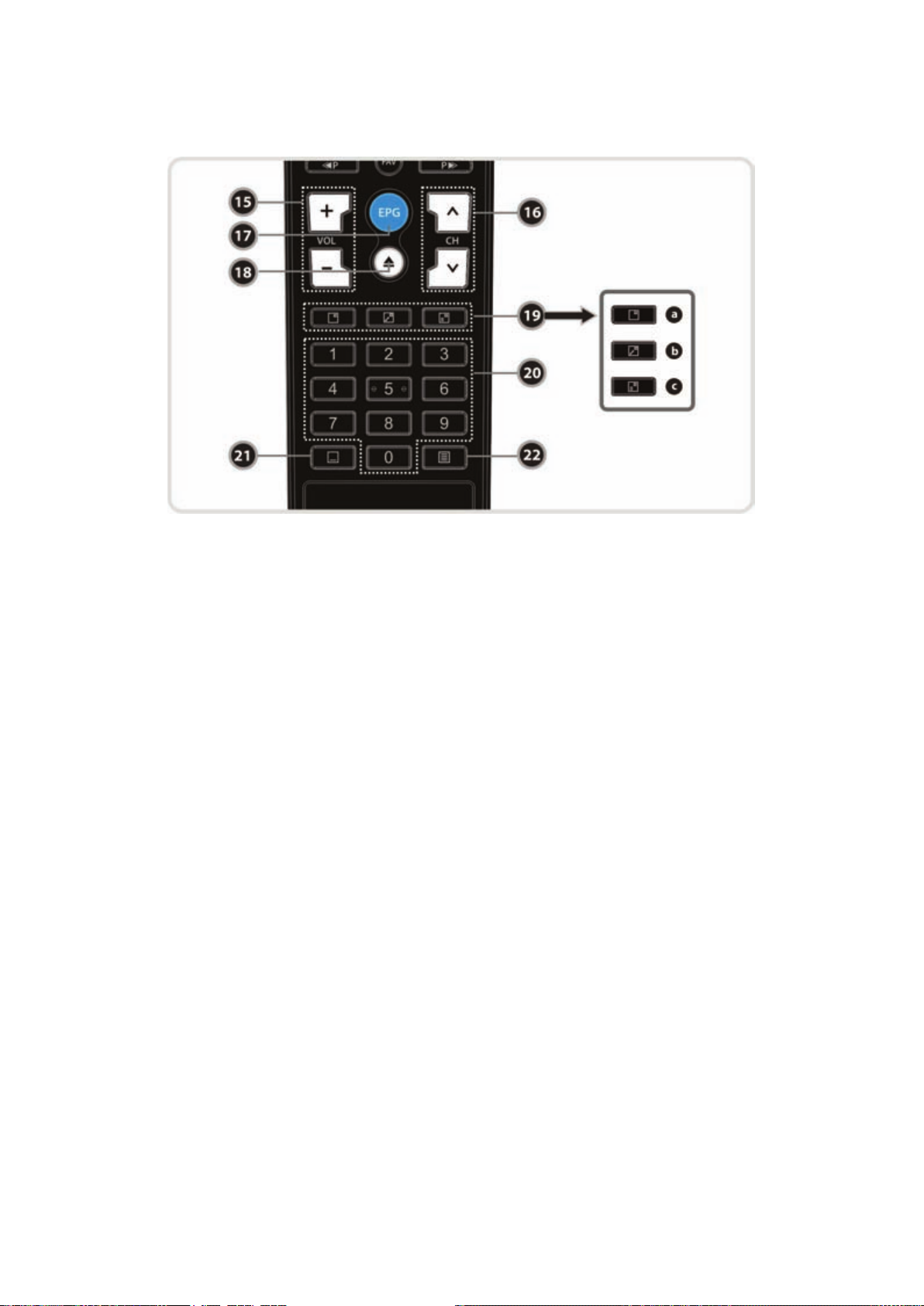

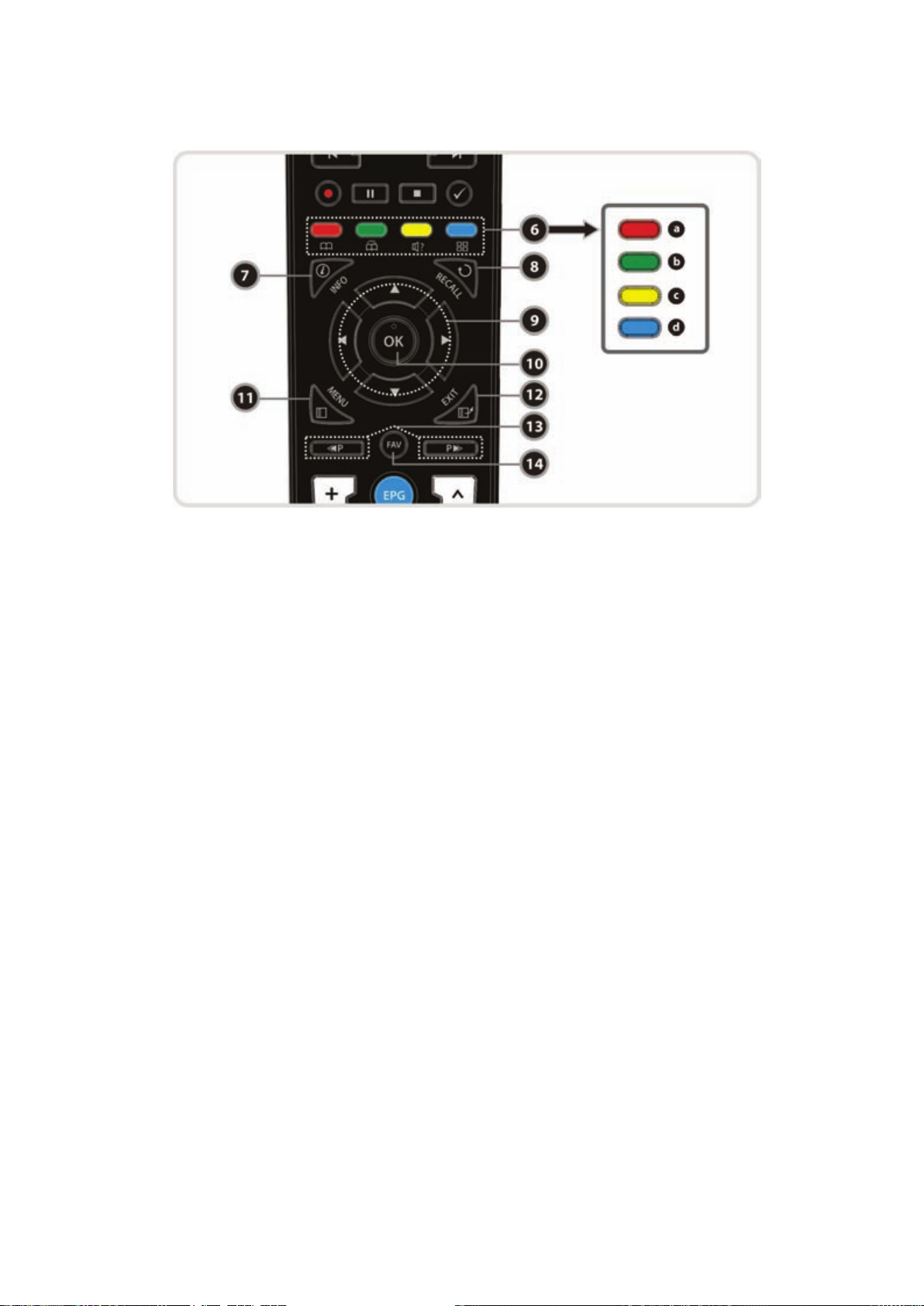

4. Remote Control Unit ................................................................................................................. 13

5. Multi-Brand IR Remote Controller Setting ................................................................................ 16

Connecting diagram

1. Receiver to A/C power .............................................................................................................. 17

2. Receiver to TV with Digital A/V Output ..................................................................................... 17

3. R

eceiver to TV with Analog A/V Output .................................................................................... 18

4. Receiver to TV and VCR .......................................................................................................... 19

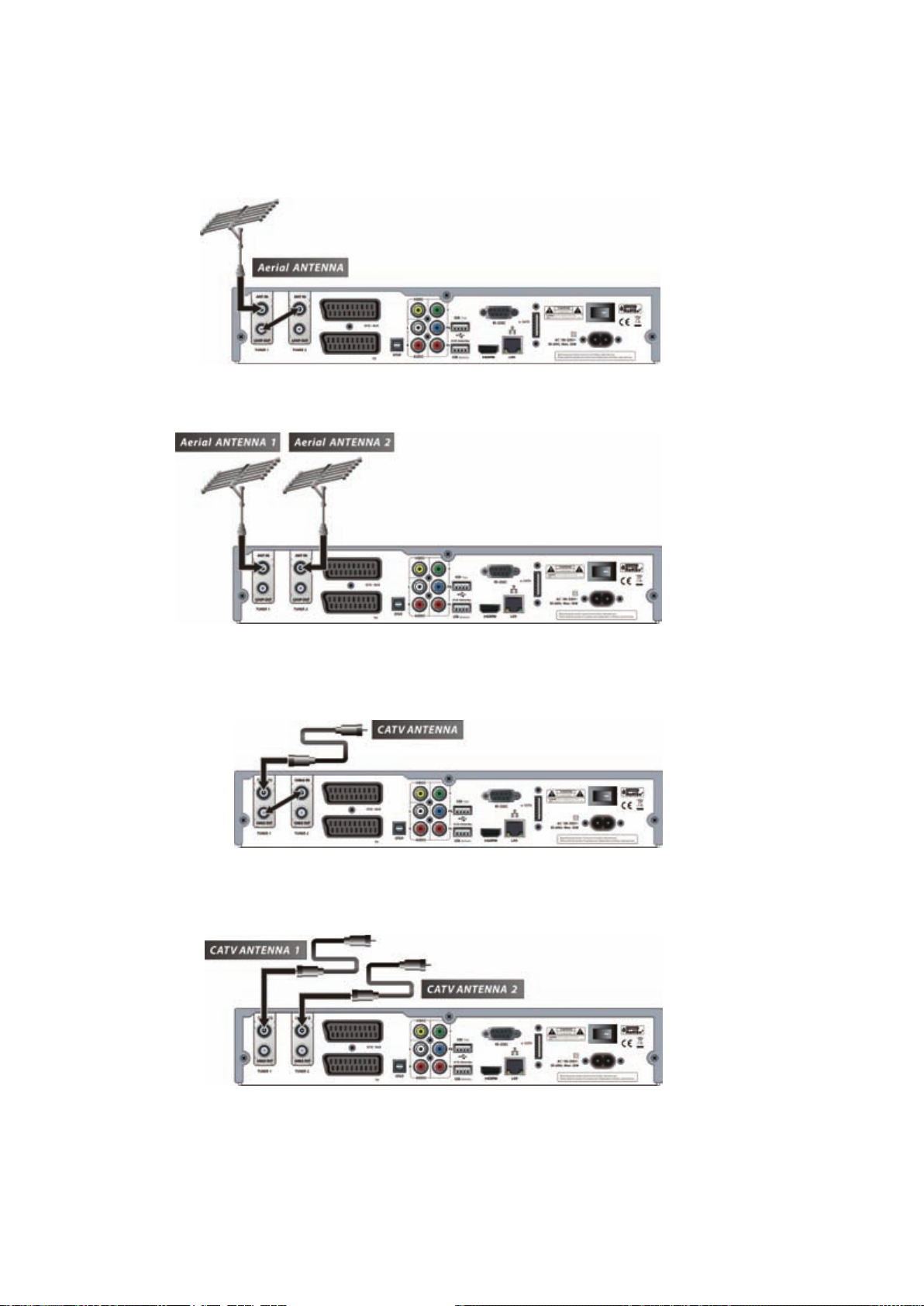

5. Connecting to Antenna Cable .................................................................................................. 20

5.1 In case of S2 + S2 (Satellite + Satellite) tuners ................................................................ 20

5.2 In case of T(T2) + T(T2) (Terrestrial + Terrestrial) tuners ................................................. 21

5.3 In case of C + C (Cable + Cable) tuners .......................................................................... 21

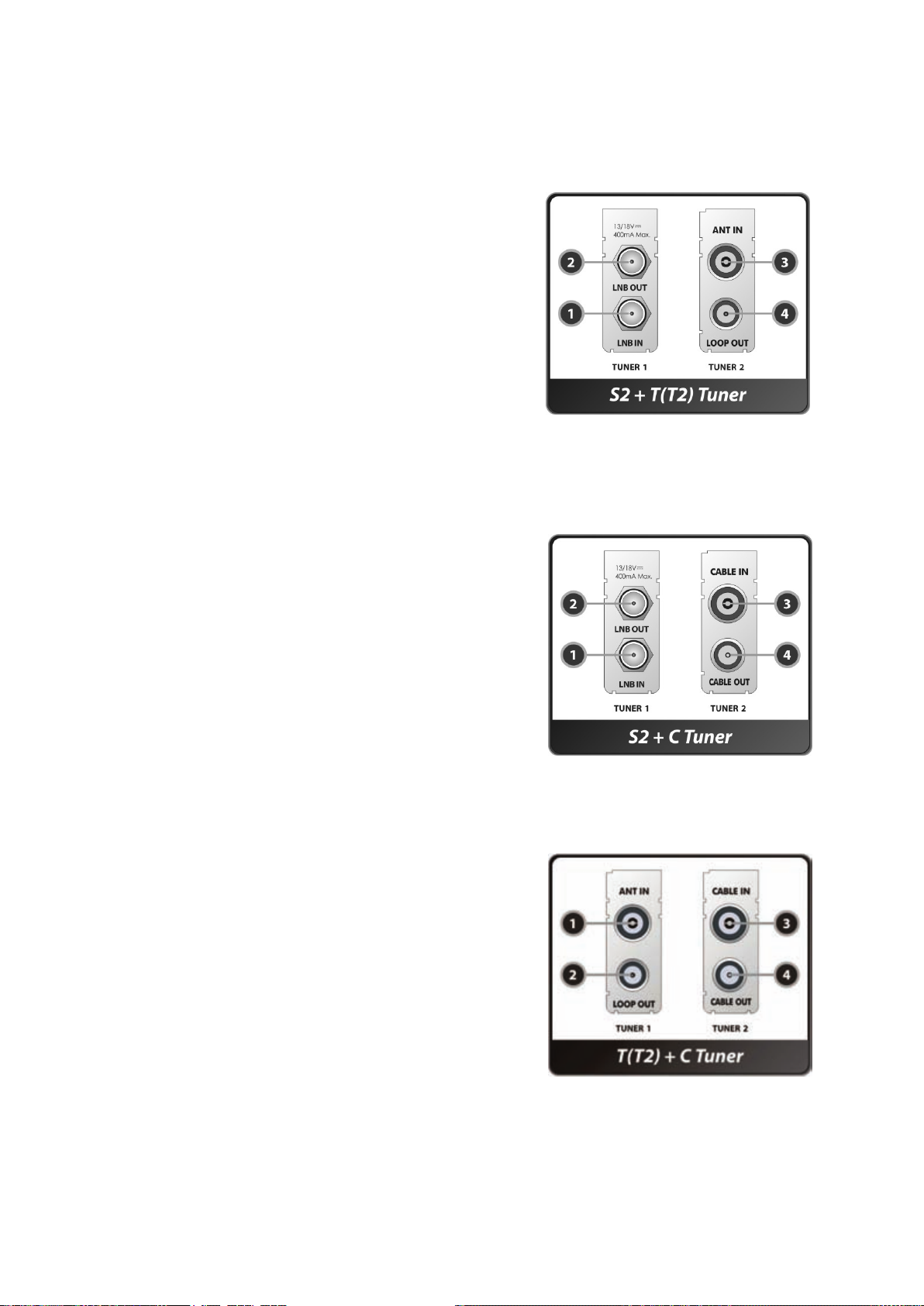

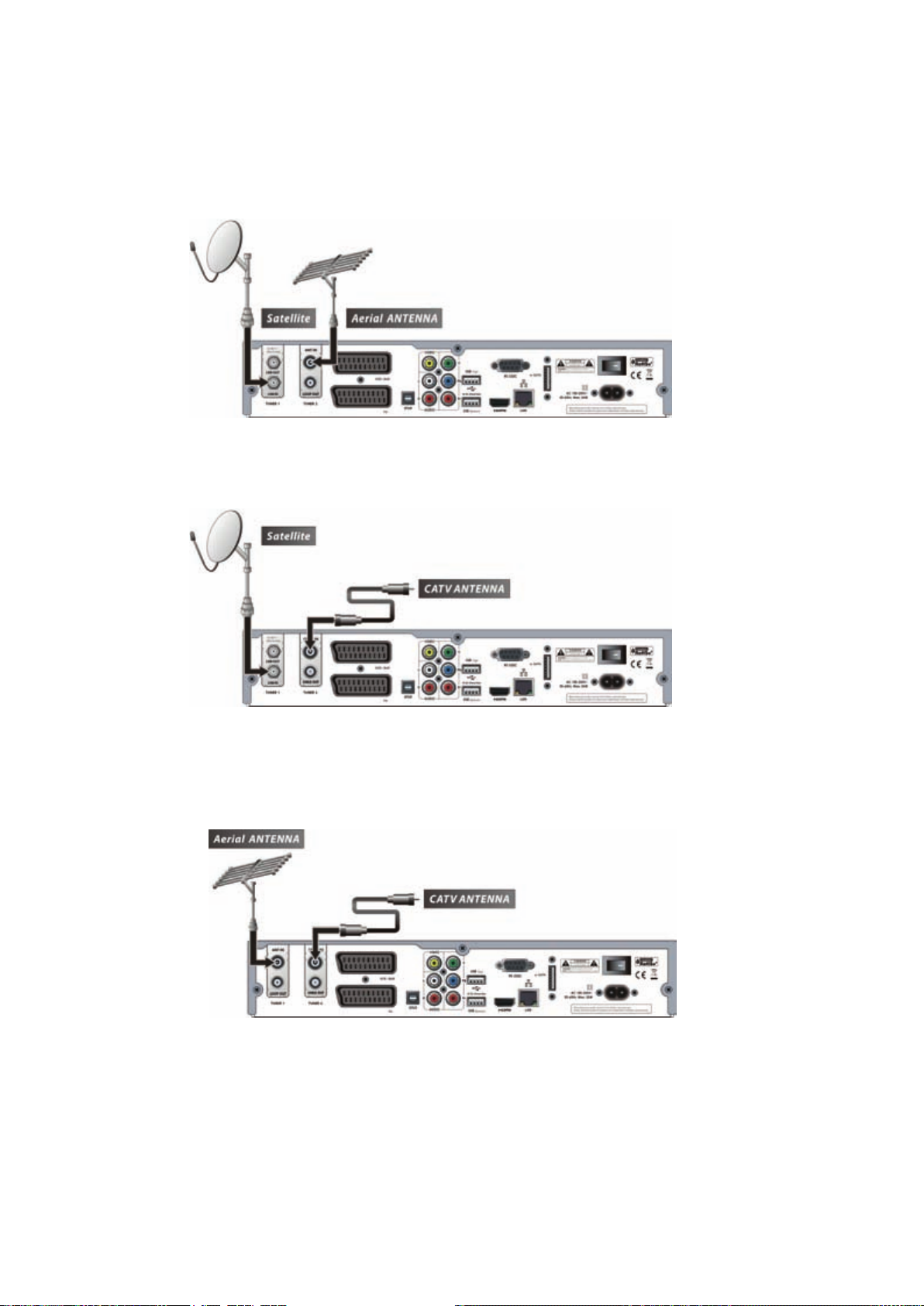

5.4 In case of S2 + T(T2) (Satellite + Terrestrial) tuners ........................................................ 22

5.5 In case of S2 + C (Satellite + Cable) tuners ..................................................................... 22

I

5.6

n case of T(T2) + C (Terrestrial + Cable) tuners ............................................................. 22

Guide of Functions

1. Selecting a Service ................................................................................................................... 23

1.1 Using CH UP/DOWN buttons .............................................................................................. 23

1.2 Using Service List ............................................................................................................... 23

1.3 Using Simple Service List ................................................................................................... 23

1.4 Using Recent Service List ................................................................................................... 24

2. Information Window .................................................................................................................. 24

3. Multi-Picture Display. ................................................................................................................ 24

4. Electronic Program Guide (EPG) ............................................................................................. 24

5. Favorite Group ......................................................................................................................... 25

6. Volume Control ......................................................................................................................... 25

7. P

ause ....................................................................................................................................... 25

8. Subtitle ...................................................................................................................................... 26

9. Audio Control ............................................................................................................................ 26

10. Teletext ..................................................................................................................................... 27

11. PIP (Picture in Picture) ............................................................................................................. 27

......................................................................................................................... 5

................................................................................................................ 7

......................................................................................................... 9

......................................................................................................... 17

........................................................................................................... 23

3

PVR (Personal Video Recorder) Function ....................................................................... 29

1. Recording ................................................................................................................................. 29

1.1 Recording methods ............................................................................................................. 29

1.2 Recording Edit ..................................................................................................................... 31

1.3 Long Time recording ........................................................................................................... 31

1.4 Pause during recording ....................................................................................................... 31

2. Time Shifting ............................................................................................................................. 33

3. Playback (Play List) .................................................................................................................. 34

3.1 Recorded Files .................................................................................................................... 34

3.2 Imported Files ..................................................................................................................... 35

3.3 Music ................................................................................................................................... 35

3.4 Photo ................................................................................................................................... 35

4. Bookmark ................................................................................................................................. 36

5. Trick mode ................................................................................................................................ 36

Menu Map .......................................................................................................................... 37

Main Menu of Guide .......................................................................................................... 38

1. System Tools ............................................................................................................................ 38

1.1 Storage Manager ................................................................................................................. 38

1.2 Timer Settings ..................................................................................................................... 39

1.3 Service List Manager .......................................................................................................... 39

1.4 Data Transfer....................................................................................................................... 41

2. Configuration ............................................................................................................................ 42

2.1 Recording Option ................................................................................................................ 42

2.2 Parental Control .................................................................................................................. 43

2.3 Display Setting .................................................................................................................... 43

2.4 Time Setting ........................................................................................................................ 44

2.

5 Language Setting ................................................................................................................ 44

2.6 A/V Output Setting .............................................................................................................. 45

3. Installation ................................................................................................................................ 46

3.1 Dish Setting ......................................................................................................................... 47

3.2 Positioner Setting ................................................................................................................ 48

3.3 Service Search .................................................................................................................... 49

3.4 Network Setting ................................................................................................................... 52

3.5 System Recovery ................................................................................................................ 53

3.6 System Information ............................................................................................................. 53

4. Utility ......................................................................................................................................... 54

4.1 Calculator ............................................................................................................................ 54

4.2 Calendar .............................................................................................................................. 54

4.3 CAS (Conditional Access System) ...................................................................................... 54

4.4 Plugin .................................................................................................................................. 55

4.5 YouTube .............................................................................................................................. 56

Troubleshooting ................................................................................................................ 58

Specifications .................................................................................................................... 59

Code Table for Universal Remote Control Unit ............................................................... 62

1. Key Table .................................................................................................................................. 62

2. TV Brands ................................................................................................................................ 64

3. VCR Brands ............................................................................................................................. 72

4. DVD Brands ............................................................................................................................. 77

4

Precautions

1. Important Safety Instructions

 Read these instructions.  Keep these instructions.  Heed all warnings.  Follow all instructions.  Do not use this apparatus near water.  Clean only with dry cloth.  Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.  Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

 Do not reverse the safety purpose of the polarized or grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or third prong is provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.

 Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

 Only use attachments/accessories specified by the manufacturer.  Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.

 Unplug this apparatus during lightning storms or when unused for long periods of time.  Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.

WARNING : To Prevent fire or shock hazard do not expose the set to rain or moisture.

2. Notice

 These servicing instructions are for use by qualified service personnel only. To reduce the risk of

electric shock, do not perform any servicing other than that contained in the operating instructions
unless you are qualified to do so.

 The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,

such as vases, shall be placed on the apparatus.

 The mains plug is used as the disconnect device. The disconnect device shall remain readily operable.

5

To reduce the risk of electric shock, do not remove
the cover (or back).
No user serviceable parts are inside.
Refer servicing to qualified service personnel.

The Lightning Flash with arrowhead symbol
within an equilateral triangle, is intended to
alert the user to the presence of un-insulated
"dangerous voltage" within the product
enclosure that may be of sufficient magnitude
to constitute a risk of shock to persons

The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the product

3. Copyright

This manual is protected by copyright laws.
Copy, use and reproduction of this manual in part or whole without Manufacturer’s prior written
approval are prohibited.

4. Disclaimer

The manufacturers, distributors and agents are not liable to any kind of damage caused by the
use of the information contained in this manual.
The instruction and descriptions which this manual contains are based on the time of this
manual's production.
The manufacturer constantly updates it with new functions and technology.
All the specifications are subject to change without prior notice.

5. Trademarks

HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC

Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.

6

Before You Begin

1. Main Features

For the feature of DVB-S/S2, Satellite tuner only

 Supports MPEG4 /MPEG2 - HD/SD and Fully DVB-S2 /DVB-S Compliant
 Intelligent Blind Scan for both SD and HD TV & Multi-Satellite Search
 Multi-LNB Controlled by DiSEqC Control Version 1.0, 1.1, 1.2 and USALS

For the feature of DVB-C, Cable tuner only

 Supports MPEG4 /MPEG2 - HD/SD and Fully DVB-C Compliant

For the feature of DVB-T, Terrestrial tuner only

 Supports MPEG4 /MPEG2 - HD/SD and Fully DVB-T Compliant

For the feature of DVB-T2, Terrestrial tuner only

 Supports MPEG4 /MPEG2 - HD/SD and Fully DVB-T2 Compliant

Common features for all types of DVB receivers

 Twin Tuner HDTV PVR Receiver ( H.264/ MPEG4 HD )  Embedded Linux OS  Time Shifting, Recording & Playback with Internal HDD (SATA) / External HDD (E-SATA or USB 2.0)  Simultaneously Records of 3 Services and allows Watching 2 others (PIP)  Powerful Extended EPG supports and Event Recording  Three USB 2.0 Host ports (MP3 Player & JPEG Viewer)  Xvid file play back supported  Ethernet port Supported  Premium Grade White VFD Display (12 Digit Alphanumeric)  Premium Grade Universal remote control unit  On-Screen Display with Full Color & Resolution  Favorite Groups  Powerful Service List Manager for Favorites, Lock, Skip, Move, Edit and Delete  Service Sorting by Alphabet, Transponder and CAS  User Friendly & Multi-language Supported (OSD & Menu)  Teletext / Subtitle Supported  Maximum 10,000 Services(TV & Radio) Programmable  Picture-in-Picture (PIP) & Multi-picture Display  Parental Lock / System Lock / Installation Lock  HDMI Video & Audio Output  Supports Y/Pb/Pr(component) Output in HD  CVBS(composite) Video & Audio Output via RCA  CVBS, RGB, Y/C Video & Audio Output via TV SCART  Optical Output for Digital Audio(SPDIF)  Software & Service channel Database upgrade via USB & RS-232C port  2 Smart card reader and 2 Common Interface Slots  1W Stand-by Power Consumption

(576i, 576p, 720p, 1080i, 1080p)

7

2. Accessories

User's Manual

Remote Control

AAA size Batteries X2

Loop through Cable

NOTE : If any accessories listed above are missing, contact the sales representative where you

purchased this unit.

HDMI Cable

AC Power Cord

8

Hardware Description

1. Front Panel Configuration

1. POWER BUTTON : Press to switch between STANDBY and POWER ON modes.

2. CH Up/Down BUTTON : Press to change services in normal mode, or to move highlighted-bar in

menu mode.

3. Vol Up/Down BUTTON : Press to change audio volume in normal mode or to navigate menu in
menu mode.

4. Remote Sensor : Receives signal from remote controller.

5. VFD Display : The VFD consists of 12-digit letter. These letters display the current status of receiver

such as service name, service information and so on.

6. USB (Front) : Use it when connecting to external USB storage device.

7. SMART CARD READER : Insert smart card for encrypted service access.

8. PCMCIA : To receive other pay-tv service you need a CA-Module(Viaccess, Irdeto, Nagravison, etc.)

and a smart card from the service provider.

2. VFD(Vacuum Fluorescent Display)

1. Remote Indication LED : The LED lights on when a

key on the Remote Controller is pressed.

2. Information : Display information including service
name and other information.

9

3. Rear Panel Configuration

Two tuners can be installed in different combination as follows.

For the professional installation of these tuners, please ask your local agent

or dealers for further assistance.

1. VCR SCART : Connects to the VCR or DVD using a VCR SCART cable.

2. TV SCART : Connects to the TV input using a TV SCART cable.

3. SPDIF : Connects to the audio system using a S/PDIF cable. (digital audio)

4. VIDEO : Connects to the TV or VCR using a RCA cable. (Composite video output / Yellow)

5. AUDIO L/R : Connects to the TV or VCR using a RCA cable. (Stereo audio output / White, Red)

6. Component : Connects to the TV or VCR using a component cable. ( YPbPr)

7. USB : Use it when connecting to external USB storage device.

8. HDMI : Connects to the TV by using a HDMI cable for the best quality picture and audio.

9. RS-232C : Serial port for firmware update and data transfer.

10. Ethernet : Local area network port for direct computer connection.

11. e-SATA : Connects to the external HDD via e-SATA cable.

12. A/C Switch : Power switch

13. A/C power cable socket : Connects to A/C power cord.

10

 In case of S2 + S2

[ TUNER 1 ]

1. LNB IN (Caution : Socket on the left bottom)
Satellite broadcasting signal input socket for the first tuner
(TUNER 1). Connects a satellite antenna LNB cable.

2. LNB OUT
Satellite broadcasting signal output socket through the
first tuner (TUNER 1). Connects to a second tuner (TUNER

2) for loop-through.

[ TUNER 2 ]

3. LNB IN (Caution : Socket on the right bottom)
Satellite broadcasting signal input socket for the second
tuner (TUNER 2). Connects a satellite antenna cable or from the first tuner (TUNER 1) LNB OUT
connector.

4. LNB OUT
Satellite broadcasting signal output socket through the second tuner (TUNER 2). Connects to another
STB for loop-through.

 In case of T(T2) + T(T2)

[ TUNER 1 ]

1. ANT IN
Terrestrial broadcasting signal input socket for the first
tuner (TUNER 1). Connects an aerial antenna.

2. LOOP OUT
Terrestrial broadcasting signal output socket through the
first tuner (TUNER 1). Connects to second tuner (TUNER 2)
for loop-through.

[ TUNER 2 ]

3. ANT IN
Terrestrial broadcasting signal input socket for the second
tuner (TUNER 2). Connects a aerial antenna cable or loop­through cable from the first tuner (TUNER 1).

4. LOOP OUT
Terrestrial broadcasting signal output socket through the second tuner (TUNER 2). Connects to
another STB for loop-through.

 In case of C + C

[ TUNER 1 ]

1. CABLE IN
Cable broadcasting signal input socket for the first tuner
(TUNER 1). Connects a cable antenna.

2. CABLE OUT
Cable broadcasting signal output socket through the first
tuner (TUNER 1). Connects to second tuner (TUNER 2) for
loop-through.

[ TUNER 2 ]

3. CABLE IN
Cable broadcasting signal input socket for the second
tuner (TUNER 2). Connects a cable antenna or loop-through cable from the first tuner (TUNER 1).

4.

CABLE OUT

Cable broadcasting signal output socket through the second tuner (TUNER 2). Connects to another
STB for loop-through.

11

 In case of S2 + T(T2)

[ TUNER 1 ]

1. LNB IN (Caution : Socket on the left bottom)
Satellite broadcasting signal input socket for the first
tuner (TUNER 1). Connects a satellite antenna LNB cable.

2. LNB OUT
Satellite broadcasting signal output socket through the
first tuner (TUNER 1). Connects to another STB for loop­through.

[ TUNER 2 ]

1. ANT IN
Terrestrial broadcasting signal input socket for the second
tuner (TUNER 2). Connects a aerial antenna cable.

2. LOOP OUT
Terrestrial broadcasting signal output socket through the second tuner (TUNER 2). Connects to
another STB for loop-through.

 In case of S2 + C

[ TUNER 1 ]

1. LNB IN (Caution : Socket on the left bottom)
Satellite broadcasting signal input socket for the first tuner
(TUNER 1). Connects a satellite antenna LNB cable.

2. LNB OUT
Satellite broadcasting signal output socket through the
first tuner (TUNER 1). Connects to another STB for loop­through.

[ TUNER 2 ]

3. CABLE IN
Cable broadcasting signal input socket for the second
tuner (TUNER 2). Connects a cable antenna.

4. CABLE OUT
Cable broadcasting signal output socket through the second tuner (TUNER 2). Connects to another
STB for loop-through.

 In case of T(T2) + C

[ TUNER 1 ]

1. ANT IN
Terrestrial broadcasting signal input socket for the first
tuner (TUNER 1). Connects a aerial antenna.

2. LOOP OUT
Terrestrial broadcasting signal output socket through the
first tuner. Connects to another STB for loop-through
signal.

[ TUNER 2 ]

3. CABLE IN
Cable broadcasting signal input socket for the second
tuner (TUNER 2). Connects a cable antenna.

4. CABLE OUT
Cable broadcasting signal output socket through the second tuner (TUNER 2). Connects to another
STB for loop-through.

12

4. Remote Control Unit

1. POWER : Turns the STB On/Off.

2. MUTE : Turns the sound On/Off.

3. Universal Buttons

a. Universal TV : Change the TV Remote Controller.
b. STB : Change the STB Remote Controller.
c. Universal DVD : Change the DVD Remote Controller.

4. MODE

a. V.Format : You can switch the Display Format (4:3 / 16:9)
b. Sleep : To adjust sleep timer.
c. TV/RADIO : Switches between TV and Radio.
d. Resolution : To select the resolution format. Each time you press the Resolution button, the

resolution changes in the following sequence: 576i > 576p > 720p > 1080i > 1080p

5. Playback Control Buttons

a. Rewind : Rewinds at high speed. Each time you press this button the rewind speed is increased.
b. Fast Forward : Fasts forward at high speed. Each time you press this button the speed is increased.
c. Previous File : To play the previous MP3 file in MP3 play mode. This button is also used to jump

back to beginning of recording during a playback.

d. Next File : To play the next file. This button is also used to jump to end of recording during a

playback.

e. Play / Time shift : Display the progress bar of playback when no progress bar is displayed. Start

playback with normal speed. Return to normal speed from trick mode..

f. Recording : To start Recording.
g. Repetition (*): This key is used to play back a recording repeatedly.
h. Pause : This key is used to pause the video. Press once more to resume the video.
i. STOP : To stop time shifting, play back or recording.

NOTE : (*) This button(Repetition) will be supported later, by new s/w version by upgrading.

Please refer to your local dealer / distributor.

13

6. Color Buttons

a. RED : Used for special function in menu. RED key is used to sort lists in service list or go to previous

day search in EPG or make/delete the current position as a bookmark.

b. GREEN : Used for special function in menu. GREEN key is used to set favorites setting in service list

or go to the next bookmark position.

c. YELLOW : Used for special function in menu. YELLOW key is used to find service in service list or

change the audio track.

d. BLUE : Used for special function in menu. BLUE key is used to set service list option in service list or

display Multi-Picture.

7. Information : Shows the information box of the current program. If you press one more time, a detail
information box will be shown.

8. Recall : Moves to previous service.

9. ARROW Buttons

a. Up & Down Key : To change the value of a selected item with preprogrammed values in menu.
b. Left & Right Buttons : To move the cursor left and right in menu.

10. OK or Service List : Show the service list in non-menu mode and select an item or confirm in menu
mode.

11. Menu : To enter the main menu or to move to the previous menu.

12. EXIT : Exit from the menu or pop-up window.

13. Page Up& Down : Move to the next or previous page if more than one page is available. This button

also is change the location of sub picture in PIP.

14. Favorite : To display the satellites programmed into the receiver and the favorite groups.

14

15. Volume Up & Down : To change the Volume.

16. Channel Up & Down: To change the TV or Radio service channel.

17. EPG(Electronic Program Guide) : Show the TV/Radio program guide.

18. Play List : To show the file list in the SATA HDD or USB Storage Device.

19. PIP Buttons

a. PIP(Picture in Picture) : To open the PIP window.
b. PIP Swap : Switching between main-picture and sub-picture
c. PIP(Picture in Picture) Service List : To shown the sub-picture service list.

20. Numeric : Controls the numerical operation and service numbers directly.

21. Subtitle : To show multilingual subtitle.

22. Teletext : To show the digital teletext.

15

5. Multi-Brand IR Remote Controller Setting

NOTE : When there is no input during about 10 seconds from set mode, set mode is

canceled.

1. Direct Code Entry

Step 1 : Turn on the DEVICE what you want to set up(TV / DVD / VCR)
Step 2 : Press DEVICE and OK button during about 2 seconds at the same time.

 DEVICE LED will blink twice.

Step 3 : Input the 3 digit code numbers.

(Refer to ‘Code Table for Universal Remote Control Unit’ in the rear section of this manual)

 DEVICE LED will blink twice and the DEVICE turns off.
 If you enter a wrong DEVICE code, DEVICE will blink once

Step 4 : If your DEVICE turns off, press OK button.

 DEVICE LED will blink twice.

2. Auto Code Search

Step 1 : Turn on the DEVICE what you want to set up( TV, DVD)
Step 2 : Press DEVICE and OK buttons during about 2 seconds at the same time.

 DEVICE LED will blink twice.

Step 3 : Press UP or Down button within 10 seconds to enter the Search mode.
Step 4 : Press UP or Down button until the DEVICE turns off, one and one.
Step 5 : If your DEVICE turns off, press OK button.

 DEVICE LED will blink twice.

3. Code No. Checking (Number Call)

Step 1 : Press DEVICE and OK buttons during about 2 seconds at the same time.

 DEVICE LED will blink twice.

Step 2 : Press INFO button within 3 seconds.

 LED will blink according to inputted mode number on the device.

( Case of digit '0', it blinks 10 times.)

16

Connecting diagram

1. Receiver to A/C power

 Connect the A/C power cord between A/C power cord socket of receiver and A/C outlet.

2. Receiver to TV with Digital A/V Output

 Connect the HDMI Cable to the HDMI Connector of the TV.  Connect SPDIF to Digital audio input of the equipment(Digital Audio)

NOTE : Depending on the A/V equipment you own, there are various ways you can connect

the STB. To choose the best connection option, please refer to the manual of the
equipment you would like to connect to. To get High Definition playback of High
Definition content, we recommend that you connect your high definition display
with a HDMI cable. HDMI supports standard, enhanced or high-definition video
and multichannel audio in a single cable.

17

3. Receiver to TV with Analog A/V Output

 Connect the TV SCART to the SCART input of the TV.  Connect the Component to the Component input of the TV.  Connect the RCA to the RCA input of the TV.

NOTE : The component connection(YPbPr) is recommended for Digital TV.

The SCART cable connection is recommended for analogue TV or VCR
The composite connection(RCA cable) is recommended for analogue TV
You cannot view high definition video with the SCART and the composite video
connector.

18

4. Receiver to TV and VCR

 Connect the TV SCART to the SCART input of the TV.
 Connect the VCR SCART to the SCART input of the VCR.

19

5. Connecting to Antenna Cable

5.1 In case of S2 + S2 (Satellite + Satellite) tuners

 Connecting one dish to both tuners by Loop through

 Connecting each Dish to each Tuner

 Connecting Antenna cable to each Tuner using DiSEqC SW (Recommend)

20

5.2 In case of T(T2) + T(T2) (Terrestrial + Terrestrial) tuners

 Connecting one aerial antenna to both tuners by Loop through

 Connecting two aerial antenna to each Tuner

5.3 In case of C + C (Cable + Cable) tuners

Connecting one broadcasting cable to both tuners by Loop through



 Connecting two broadcasting cable to each Tuner

21

5.4 In case of S2 + T(T2) (Satellite + Terrestrial) tuners

Connecting dish antenna to LNB IN of the tuner

  Connecting aerial antenna to ANT IN of the Tuner

5.5 In case of S2 + C (Satellite + Cable) tuners

Connecting dish antenna to LNB IN of the tuner

  Connecting broadcasting cable to CABLE IN of the Tuner

5.6 In case of T(T2) + C (Terrestrial + Cable) tuners

Connecting aerial antenna to ANT IN of the Tuner

  Connecting broadcasting cable to CABLE IN of the Tuner

22

Guide of Functions

1. Selecting a Service

To select the desired service (channel), please refer to the instructions below.

1.1 Using CH UP/DOWN buttons

You can navigate between services by pressing CH UP/DOWN buttons. Whenever you press the CH
UP(DOWN) button, current service will be changed to next/previous service. Please press CH UP or CH
DOWN button until you fine the service you want to watch.

1.2 Using Service List

To select the desired service in the service list, you should firstly
display the service list by pressing the OK button.
Use the ARROW buttons to select a desired service and press
the OK button.
You can see that the service is changed in the small screen on
the top-right.
To watch that service, press the OK button once more.
To watch the previous service, press the EXIT button.
In the Service List window, you can also select additional
functions with the COLOR buttons. Press the RED button, and
you can sort the services by the Alphabet, Transponder(TP),
Group, Tuner and CAS (Conditional Access System).
Press the GREEN button, and you can add the services to one of 10 Favorite List.
Press the YELLOW button, and you can search & find the service via a virtual keyboard.
Press the BLUE button, and you can adjust service list option.

NOTE : If you connect the tuner with a loop-through, you cannot use the sort list option.

1.3 Using Simple Service List

If you press NUMERIC buttons or UP/DOWN ARROW button,



instant service list will be displayed.

 Select the desired service by using the ARROW button, and

press OK button to watch.

 You can also enter the service number directly by using the

NUMERIC button.

23

1.4 Using Recent Service List

To display recent service list, press the RECALL button for a



short time.

 To return to the previous service that you were watching, press

RECALL button twice or for a longer time.

 Choose the service from the recent service list, use the ARROW

button to select, and then press the OK button.

 Press EXIT button to exit from the recent service list.

2. Information Window

If you want to view the information of the current service that
you are watching, press INFO button. Then the Information
window will be displayed.
This Information window is automatically displayed when
changing between the services.
This window contains much useful information such as service
number, service name, scrambled types of service, teletext,
subtitle, Audio indication for Dolby Digital, Time duration of the
service and so on.
By pressing INFO button once again, you can get more detailed
information about the service.

3. Multi-Picture Display.

Press the BLUE button to display multiple pictures and use the
RED button to select the display options for 9 or 12 multiple

pictures.

4. Electronic Program Guide (EPG)

Electronic Program Guide (EPG) allows you to see program
schedule and program information from the service which
includes this data as part of their transmission. Multiple services
will be shown with a time line of programming events. The EPG
supplies additional information of channel service, such as
program listings, start/end times and detailed information about
the program listings for all available services. The availability and
details of information of these program details can be varied,
depending on the particular broadcasters, individual services.

24

 Press the EPG button, then the EPG menu will be displayed.
 Use the ARROW buttons to move to other services or to see previous/next guide.
 Press the EPG button once to view full EPG with multi service list, and press it twice to view the

additional EPG information of a specific channel service. Keep pressing the EPG button to toggle
between the full and detailed menus of EPG.

 Press the GREEN button to view next day EPG and the RED button to view EPG for a previous day.  Select the program by using the ARROW buttons then set the event timer by pressing OK.  You can schedule a recording with the EPG menu as follows.

- Press RECORD button to schedule the event. This schedule can be checked in the menu of Timer

Settings, in the System tool menu.

- To cancel the schedule of the recording, press the OK button for the appointed event.

- To edit the schedule of the recording, press the RECORD button for the appointed event.

5. Favorite Group

Press the FAV(Favorite) button to view all favorite groups such as
sports, movie, drama, satellite group and so on. Scroll through the
various favorite group using the UP/DOWN ARROW buttons, and
select the desired favorite group by pressing OK button.

6. Volume Control

 To adjust the audio volume, press the VOL UP/ DOWN

buttons.

 Audio volume control bar will be displayed at the top of the

screen and disappear after 4 seconds.

 When necessary, press the MUTE button to turn on/off the

audio sound.

NOTE : The mute function remains set while you change

services.

7. Pause

PAUSE button is used to freeze the video. Press PAUSE button

once more to resume the video.

25

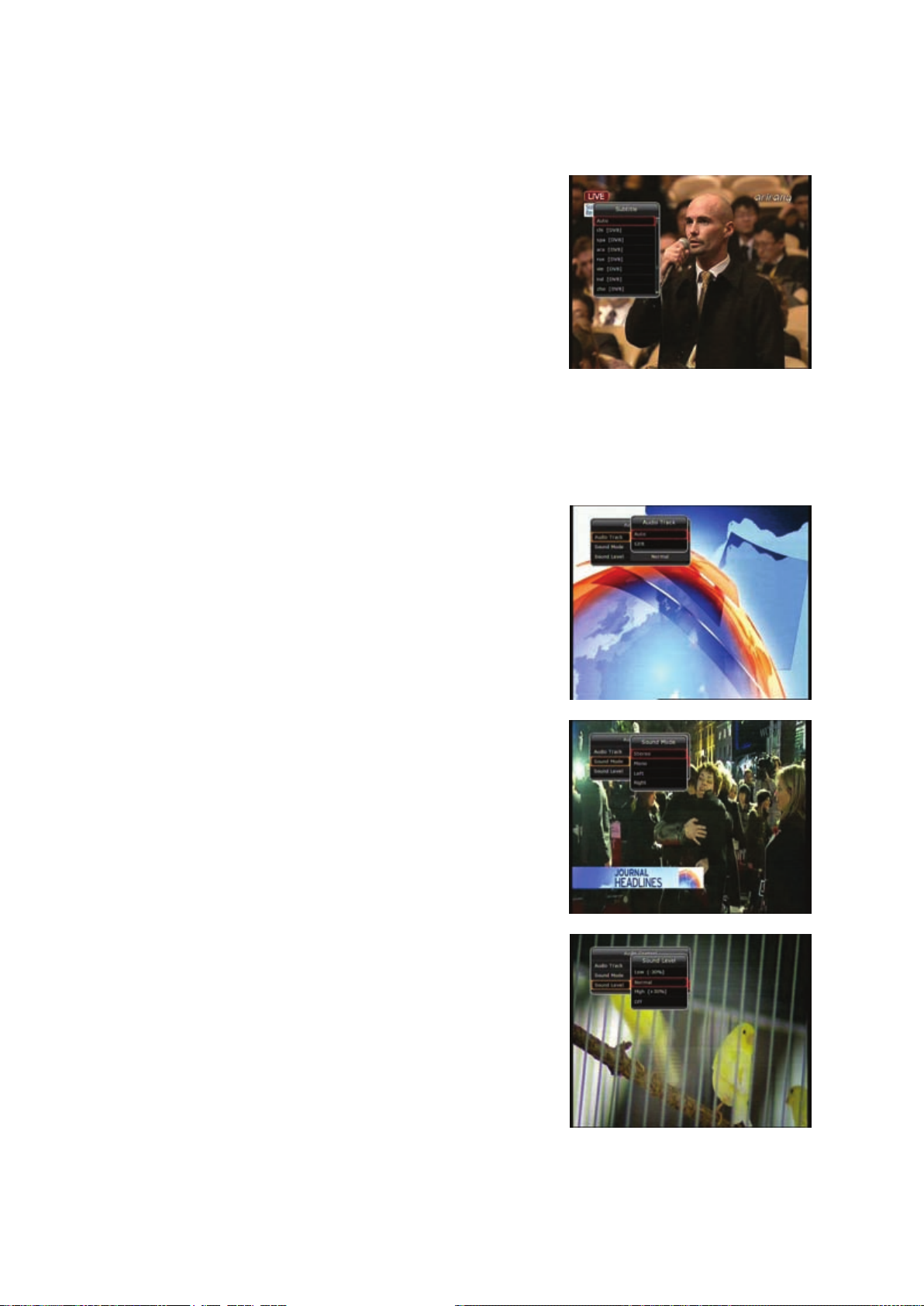

8. Subtitle

You can select the language for a Subtitle, if the program
provides subtitle information.

 Press the SUBTITLE button on your remote control unit.
 Select the desired subtitle language then press OK button.
 The subtitle will be displayed in the selected language at the

bottom of the screen.

 To turn OFF the subtitle from the screen, Select ‘Off’ from the

subtitle language list.

NOTE : When program does not provide subtitle information,

SUBTITLE button will not be active.

9. Audio Control

Press YELLOW button on live TV service to display Audio Control menu. You can set Audio Track /
Sound Mode / Sound Level.

 Audio Track :

You can see all the audio track of the service you are watching. Use the ARROW buttons to choose the preferred audio track. If you select Auto, audio track will play as what you set for audio language in language setting menu.

 Sound Mode :

To set sound mode, Stereo / Mono / Left / Right.

 Sound Level :

To set sound level, Low(-30%) / Normal / High(+30%) / Off.

26

10. Teletext

When the TELETEXT icon on the INFO Banner, press the TELETEXT button to view the teletext.

11. PIP (Picture in Picture)

 When you press the PIP button, a sub picture screen will appear on the main screen view.

If you press the PIP button one more time, the primary picture and the sub picture will appear
together side-by-side with the same size. The picture of the left side is the primary and the picture on
the right side is sub. If you press the PIP button one more time, the sub picture will disappear.

 In the PIP mode, you can change primary and sub with the PIP SWAP button.

27

 If you press the PAGE UP/DOWN button, the location of the sub picture is changed.

 If you press the PIP SERVICE LIST button, you can see the list

of services of sub picture.
You can change the service of the sub picture from the service
list shown.

NOTE : Changing services of sub the picture could be

limited by the condition of the tuner connection or
a recording event ongoing.

28

PVR (Personal Video Recorder) Function

1. Recording

You can select a recording storage device with the following sequence :

Menu > Configuration > Recording Option > Record Device.
Default is set to ‘Hard Disk’.

1.1 Recording methods

There are 3 type recording methods.

(Instant Recording / Time Scheduled Recording / Event Scheduled Recording).

 Instant Recording :

You may press the RECORD button to start your recording
instantly at anytime.

 Time Scheduled Recording :

- In Timer Settings menu, you may set the time & program to

record your desired service program.

(Go to Main Menu > System Tools > Timer Settings)

- Press the GREEN button to activate the new timer edit

screen.

- In the Timer Edit screen, you may choose start date/time,

duration, service, mode, type (Recording/Play), Tuner
(Auto/1/2) then simply press the Yes button to schedule
your recording event. Please note that the minimum offset
time of 3 minutes is required from the Start time & current
time for appropriate recording process to take place.

29

 Event Scheduled Recording via EPG :

- In the EPG menu screen, you can choose the event you wish

to schedule or record.

- While watching the LIVE TV screen, press the EPG button to

access the EPG menu screen.

- Go to the event which you wish to view at the time

indicated on the EPG schedule, then press OK. The event
will be scheduled with the BLUE play icon. This BLUE play
icon means that you want to just watch the event at the
scheduled time.

- Press the OK button one more time, then the event will be

scheduled with the RED dot icon. This RED dot icon means
that you want to record the event at the scheduled time.

- When you set an event for scheduled recording via the EPG

menu. It automatically sets a Timer Event in the Main

Menu > System Tools > Timer Settings.

30

1.2 Recording Edit

Press the REC button while recording to see the recording message window.

 Pause : Select Pause Recording then press OK to pause the current recording process.
 Duration : Set recording duration. Press LEFT/RIGHT ARROW button to change recording duration.
 Stop Position :

Set the finishing time of recording.

- End of current event : finish recording at the end of current

event

- End of next event : finish recording at the end of next event.

- Not Available : EPG is not available.

 Record Slot : When you are recording 3 services, you can

select Primary / Secondary / Tertiary by pressing Left/Right
Arrow button, then go to Change Service and press OK button

to show that recording service.

1.3 Long Time recording

During lengthy time recording processes of 4GB(Giga Byte) or more, additional files may be created per
every 4GB. (For example; aaa.ts, aaa.ts1, aaa.ts2… and so on).
You must remember not to delete any of duplicated file. These files are only able to be viewed with
your PC not with the receiver (STB).

1.4 Pause during recording

When the PAUSE button is pressed during recording, only the



live video is paused, but recording is continued at the selected
recording device.

(Menu > Configuration > Recording Option > Record Device)

31

 Press PAUSE button once again and event will resume from

the pause time.

 During recording, press the PLAY/TIMESHIFT button to show

the Play bar screen.

 While the Play bar is shown on your screen, you may use the

LEFT/RIGHT Arrow button to move (forward & backward)
freely within recorded time.

 If you press YELLOW button in the Play bar, you can set the

Position Jump time at Auto / 10sec / 30sec / 1min / 2min / 4min
/ 10min. Then press LEFT/RIGHT Arrow button to jump as you

set the time.

 If you press the STOP button, it will go to LIVE and you may

press PREV FILE button to view the recorded file from the
beginning.

 STB can record up to 3 different services simultaneously.  When recording 3 services at the same time, you can press the

STOP button to see a message window of current recording
status / information.
If you select one of the 3 or 2 recordings and press the OK
button, that recording service will be stopped.
If you press the STOP button during recording 1 service, a
recording stop message window will appear. Then select YES
to stop recording.

NOTE : If you want the recording up to 3 services, please format the storage devise with

'Journaled(JFS)' file system.
Menu > Storage Manager > Format > File System > select 'Journaled(JFS)'.

32

2. Time Shifting

You can select a storage device for a temporary file of the Time
shifting with the following sequence:

Menu > Configuration > Recording Option > TimeShift Device.
Default storage device is set to ‘Hard Disk( internal SATA)’

 If pressing the PAUSE button during Time shift, the live video

is paused but the temporary recording for time shift is
continued at the selected storage device.

 Press the PAUSE button once again, then the event will resume from the paused time.
 While watching live TV, press the PLAY/TIMESHIFT button to show the play bar on your screen.

 When the play bar is displayed on your screen, you may use

the LEFT/RIGHT Arrow buttons to move freely through the
recorded times bar.

 If you press YELLOW button in the Play bar, you can set the

Position Jump time at Auto / 10sec / 30sec / 1min / 2min / 4min
/ 10min. Then press LEFT/RIGHT Arrow button to jump as you

set the time.

 If you press the STOP button while time-shifting, the screen

will be turned to a live TV channel. You can also use PREV FILE
button to move to a start location of the Time-shifted file.

33

3. Playback (Play List)

You can playback many files with the Playlist which you access by the PL AYL IS T button.
In the Playlist, you can check and playback recorded files, multimedia movie files, MP3 music files, and

image files. With the LEFT/RIGHT ARROW button, go to the Recorded Files, Imported Files, Music and
Photo category and check & for playback files in each category.

If press the PL AY LI ST button, you can see all playable files. In this mode, Green button is not in
operation (not working). And when you select the file, you will not be able to select the different types of
file format files together at once.
You can press LEFT/RIGHT Arrow button to move to Recorded Files / Imported Files / Music / Photo /
Play List menu.

3.1 Recorded Files

If you press RIGHT Arrow button in Play List, you can go to



Recorded Files menu.

 Locate the recorded file(s) you wish to play with the

UP/DOWN button and press the OK button to playback the
recorded file(s).

 To choose a particular selection of files, select a desired file

and press the RED button. Press the OK button to begin the
selected files.

 Select Device : Press PLAYLIST button one more time in the

Playlist mode to see “Select Device” window, and select the
device which has the file you want to play.

NOTE : “Select Device” window shows devices which are

currently connected to the STB.

 Sorting : If you press the YELLOW button, you can sort the

files by Time / Name / Size / Type.

34

 File Option :

If you press the BLUE button, you can select a option for

Delete, New Folder, Move to Folder, Copy to Device, Rename,
Lock/Unlock. You can select multiple files together and delete

or move all of them at once.

- Delete : To delete file(s)

- New Folder : To make new folder. Default name of the

folder is “Group#”.

- Move to Folder : To move the selected file(s) to a folder you

want. This option is available if there is no folder.

- Copy to Device : To copy the file(s) to other storage device.

This option is not available if only one storage device is connected.

- Rename : To rename the folder or file.

- Lock / Unlock : To lock and/or unlock the file with your PIN Code. You must select a file to do this

option.

3.2 Imported Files

If you press RIGHT ARROW button in Recorded Files, you can



go to Imported File menu.

 Locate the file(s) you wish to play with the UP/DOWN button

and press the OK button to enjoy the movie.

 To choose a particular selection of files, select a desired file

and press the RED button. Press the OK button to begin the
selected files.

 You can use the same ‘Select Device’, ‘Sorting’ and ‘File Option’

features as in the Recorded Files.

3.3 Music

If you press the RIGHT ARROW button in Imported Files, you



can go to Music menu.

 If you press the RECALL button, you can enjoy music with

Shuffle playback and repeat.
You can use the same ‘Select Device’, ‘Sorting’ and ‘File
Option’ features as in the Recorded Files.

3.4 Photo

If you press the RIGHT ARROW button in Music, you can go to



the Image Photo menu.

 If you press the RED button or OK button, you can start the

slide show of image files. Press the EXIT button to stop slide

show.

- RED button : Auto Slide show

- OK button : Manual Slide show

 If you press the GREEN button, you can adjust the Slide Time,

Repetition, Title, Down-scale.

 You can use the same ‘Select Device’, ‘Sorting’ and ‘File

Option’ features as in the Recorded Files.

35

4. Bookmark

 When the Play bar is displayed, you may move to desired time and book mark it by pressing the RED

button. Bookmark(s) are indicated with a Green line on the play bar. Also, you may press the RED

button to activate the play bar to mark your bookmark(s).

 When the play bar is on, user can move / jump between the bookmarks by pressing the GREEN button.

 If you wish to delete any Bookmarks, go to that bookmark by

pressing the GREEN button, then press the RED button to

delete the current bookmarks.

5. Trick mode

 The user can change the speed of a fast forward play with

FF(Fast Forward) button. Press FF button to change the

speed to x2, x4, x6, and x8. If you once again press FF

button in its x8 mode, it returns to normal(x1) speed play.

 You can also change rewind speed with the REWIND button.

Press REWIND button to change the speed to x2, x4, x6, and

x8. If you press the REWIND button again in it is at the x8

mode, it returns to normal speed.

 You may press the PAUSE button at any time to pause a pre-recorded event. Press the PAUSE button

once again to resume play of the recorded event.

36

Menu Map

System Tools

Main Menu

1. Storage Manager

2. Timer Settings

3. Service List Manager

4. Data Transfer

Configuration

Installation

1. Recording Option

2. Parental Control

3. Display Setting

4. Time Setting

5. Language Setting

6. A/V Output Setting

1. Dish Setting

2. Service Search

3. Terrestrial Search

4. Cable Search

5. Network Setting

6. System Recovery

7. System Information

1. Calculator

2. Calendar

3. CAS

4. Plugin

Utilities

37

5. YouTube

Main Menu of Guide

To display the menu, press the MENU button at any time. You can
select the sub menus by using the ARROW buttons.
The selected sub menu becomes highlighted. After selecting
(highlighting) the sub menu you want to access, press the OK
button. If you want to return to the previous menu, press the

MENU button. And if you want to exit from the menu, press the
EXIT button.

1. System Tools

1.1 Storage Manager

The items in this menu allow you to access and control the
storage devices that you want.

 Current Device : Select the storage device you want to access

with the ARROW/OK buttons.

 Status : You can see the information of current connected

devices, such as ‘Mounted’, ‘Not Available’

 File System : It shows the file system of the current device.

You can also select desired file system that you want when you

format the device.

NOTE : You must select FAT32 file system, if you want to access the USB storage devices in

Windows

 Total : Displays total size of current device.
 Free : Displays free size of current device.
 Format : If you press the OK button to format current device, the device will be formatted with above

file system.

NOTE : When file system is ‘Unknown’, the device will be formatted with ‘Journaled’.

 Storage Check : Check the current connected device.
 Play List : Press OK button to move to ‘Play List’ menu directly.

38

1.2 Timer Settings

Insert a new timer entry or modify an existing timer entry.

 To add new timer entry : Press the GREEN button. Timer Edit

window will popup. You can set the specific start date, time,

duration and service for its reservation. And you can choose

one of Timer Modes as 'Once' or 'Daily' or 'Weekly'. You can

choose timer operation type as ‘Recording’ or just to 'Play'.

- If you choose 'Recording', it will start recording at that time.

- If you choose 'Play', it will change and tune to the service

that you wish to watch.

- If you set Alarm Confirm Message to ‘On’, alarm message will activate. Or choose ‘Off’ to disable.

 To modify existing timer entry : Choose the timer entry which you wish to modify and press the OK

button.

 To delete an existing timer entry : Choose the timer entry that you want to delete and press the RED

button.

 Press YELLOW button to enter to Calendar.
 Press BLUE button if you want to delete all the event(s).

NOTE : If you reserve one or more event through the EPG menu, the reserved event(s) will be

added to Timer Settings automatically.

1.3 Service List Manager

Service List Manager menu will appear when you press the OK button.
You can select Edit Mode by pressing the YELLOW button.

 Lock Services : All service lists will be shown on the left side of

the window, the middle will show the list of service to be

locked. By using the ARROW and OK buttons, you may move

the chosen service to the middle window to lock that service.

Services can also be moved back from the middle to the left

side to un-lock them.

 Move Services : All service lists will be shown on left side of

the window, services to be moved will be shown on the

middle window. Move the service to the middle window by

using the ARROW and OK buttons, then the middle window

service will be moved to a specified location when the desired

location is selected from the left window.

39

 Delete Services : All service lists will be shown on left side of

the window. By using the ARROW and OK buttons you may

select services to be deleted by placing them in the middle

window. The press the GREEN button to delete the selected

services.

 Skip Services : All services will be shown on left side of the

window, the middle window will only show the services that

are chosen to be skipped. By using the ARROW and OK

buttons you may move the selected services from the left to

middle window to skip them.

 Set Favorite Services : Use the ARROW and OK buttons to

select your desired favorite group. Once, favorite group is

chosen, the left side window will show all service lists and the

middle window will only show the selected services of the

favorite group selected. By using the ARROW and OK buttons,

you may ADD the desired services to a favorite group or

DELETE any from the favorite group. The name of the favorite

group can be edited by pressing the GREEN button.

 You can go to Select Favorite Group by pressing GREEN

button. In this mode, you can select Lock Group / Edit Group

Name / Add Group / Delete Group.

 Edit Services : All services name will be shown on the left side

of the window.

Move the highlighted bar to the service where you want to

edit its name and press the OK button for Edit Service menu.

Then move the highlighted bar which you want to edit.

You can edit Service Name, Video Stream Type, Video PID,

Audio Stream Type, Audio PID, PCR PID.

40

1.4 Data Transfer

When the data transfer task is in process, the Front USB slot is set to a default device slot. But, if no
USB device is connected on a front USB slot, then the Rear USB slot is set as a device to be used for the
data transfer process.

NOTE : If no USB device is connected on either two (Front & Rear) USB slots, then a

Menu item will not be available.

 Transfer all System data to USB storage : If you want to

transfer and use BOTH of the current system parameters and

service data in the future, this menu will allow you to store all

data to your USB device. Press OK button to store all current

data to an external USB storage.

 Transfer Service data to USB storage : If you want to transfer

and use ONLY the service data in the future, this menu allows

you to store current service data. Press the OK button to store

the current service data to your external USB storage. The

service data can also be viewed and edited on a PC with an appropriate editor (DrEdit) for the file

saved.

 Data download from USB storage device : This menu allows you to download the saved data from

the external USB storage to your STB. Press OK button to download data.

41

2. Configuration

2.1 Recording Option

 Alarm Confirm Message : Turn ‘ON’ this Alarm message to

indicate and show the alert pop-up message when there is a

reserved recording event. The alert message will show 3

minutes before the starting time of the reserved recording

event.

 Recording Stop Message :

- Set 'On' : When you press the STOP button while recording,

then a confirmation window is displayed.

- Set 'Off' : When you press the STOP button while recording,

the STB will stop the recording process immediately /
instantly without asking the additional confirmation from the user.

 Extra Recording Time Before(Start) & After(Finish) :

- You can add an extra recording time before start / after finish (1min /2min /3min /4min /5min/

10min/ 15min/ off) to scheduled recording events. If you set an extra recording time by using the
ARROW and OK buttons, the scheduled recording event will have a ‘Start’ / ‘Finish’ time of
additional recording time added to the basic event. This option only works for real time events.
But, when you schedule a service recording in the Timer Settings menu, this option has no affect.

 TimeShift Start : You can choose the method of TimeShift function.

- Auto : TimeShift function is automatically activated.

- Off : TimeShift function will be disabled.

- Manual : TimeShift will be activated when the Pause key is pressed.

 TimeShift Duration : You can adjust TimeShift duration in 30 minute intervals. (Off /30min /60min

/90min /120min). This duration defines the maximum time length of the TimeShift as long as the

storage device has enough memory space left.

 Playback Position Jump : When you use LEFT/RIGHT ARROW button to move back/forward through

the recorded time bar, You can select the time intervals. (10 Sec / 30 Sec / 1Min / 2 Min / 4 Min / 10

Min / Auto).

 Playback Numeric Function : This selection of function defines the operation type of the NUMERIC

buttons of your remote control unit (RCU) while the ‘Playbar’ is displayed on the screen.

- Commercial Skip : When the NUMERIC buttons (1 to 9) are pressed the video will move forward

according to the NUMERIC buttons pressed. For example ; when ‘1’ is pressed, 1min move forward,
‘5’ is pressed, 5min move forward from current position. When ‘0’ is pressed, it will move back for
1minute.

- Percentage Move : When the NUMERIC buttons are pressed, the video will move to the location of

that % percentage of numbers pressed. For example ; if you press ‘10’, you will move to the 10%
location of the total video length. If you press ‘99’, you will move to the end of the video clip
recorded.

 TimeShift Device : You can select the TimeShift Device you wish to use.

- Hard Disk, USB1(Front), USB2(Rear Top), USB3(Rear Bottom), Network Drive.

 Record Device : You can select the Recording device you wish to use.

- Hard Disk, USB1(Front), USB2(Rear Top), USB3(Rear Bottom), Network Drive.

 SATA Disk Select : You can choose between Internal, or External SATA disk connected.

42

2.2 Parental Control

User’s access rights to a service and programs are controlled by
a 4-digit secret code that is defined by the user. Whenever you
attempt to access the parental control menu, a pop-up window
will ask you to input a PIN code. (If necessary, you can change
it.)

NOTE : The default PIN code is ‘0000’

 Censorship : Set the parental guidance rating of highlighted

censorship classification. The parental level is given as an age-

based number.

 Change Pin code : To change your PIN code, input the new

PIN code using the NUMERIC buttons. To verify the new PIN

code, input the new PIN code again.

 System : Set the access rights to the System menu.
 Installation : Set the access rights to the Installation menu.
 Configuration :

Set the access rights to the Configuration menu.

 Edit Service : Set the access rights to the Edit menu.
 Plugin : Plugin Set the access rights to the Plugin menu.

2.3 Display Setting

Info Box position : Set a position of the information window.


 Info Box Display Time : Set the time duration of the

information window being displayed on the screen after

changing services.

 Info Box Event Type : Set the event type that display in left

bottom part of the information window.

- Present Event with Time :

Display the present event name with time. (Default)

- Present and Follow Event :

Display the present and following event name.

 Volume Bar Display Time : Set the time duration of the

volume bar being displayed on the screen after changing audio volumes.

 EPG Time Range : You can set the time range in hours which is displayed for a program in the EPG

window.

 Start MHW-EPG Automatically : Set to start the MHW-EPG automatically when you enter to main EPG.

Note : This function is only supported, when satellite tuner is installed.

 Zapping Mode : You can set the zapping mode as follows (zapping mode is when changing services).

- Black screen : Display a black screen when changing between services.

- Freeze : Display the last still picture when changing services.

 Simple Service List : To set the simple service list ‘On’ to display or ‘Off ‘.

- On : Press UP/DOWN ARROW button to display the simple service list while watching live TV.

ff : If you set Off, channel Up/Down when you press UP/DOWN ARROW button.

- O

 Front Display Scroll : You can set how the VFD Display Scrolls.

- Once : Scroll the service name only once.

- Continuous : Continually scroll the service name, if the letters of the service name is over 12

characters.

- Off : Scroll off.

 Front LED Lighting Time : You can adjust the lighting time of the front LED.
 Front LED Brightness : You can adjust brightness of the front LED with 4 steps. By setting ‘off’ this

option, will turn off the front LED lighting.

43

2.4 Time Setting

Time Setting : To set the current time, you can use two



modes; Auto or Manual.

 Local Offset : Enter the offset value by using the standardized

information of current service area.

 Daylight Saving : If you want to apply daylight saving, select

the counter by using the ARROW buttons.

 Clock Mode : Select the type of clock display(12 Hours or 24

Hours) using ARROW buttons.

 Wake Up Mode : Enter the time for the receiver to

automatically power ON. And you can choose one of Wake Up Mode as ‘off’ or ‘Once’ or ‘Daily’ or

‘Weekly’.

- Wake Up Date : Select the date when the STB is turn on. Press the OK button to display calendar.

- Wake Up Days : Select a day of the week when the STB is turn on.

- Wake Up Time : Enter the wake up time of the STB using the NUMERIC buttons.

- Wake Up Service : Select the service when the STB is turn on. Press the OK button to display the

service list.

 Sleep Mode : Enter the time for the receiver to automatically switch OFF and go to standby mode.

And you can choose one of the Wake Up Mode as ‘off’ or ‘Once’ or ‘Daily’ or ‘Weekly’.

- Sleep Date : Select the date when the STB is turn off. Press the OK button to display the calendar.

- Sleep Days : Select a day of the week when STB is turn off.

- Sleep Time : Enter the turn-off time of the STB using the NUMERIC buttons.

2.5 Language Setting

Menu Language : Select the desired menu language by using



the ARROW buttons.

NOTE : The menu and operation languages can be

changed depending on the country sold. Available
languages are subject to change without prior
notice.

 Audio Language : Select the default language for the audio

when changing services. If no other language is provided,

then the default language of current will be automatically

selected.

 Subtitle Language : Select the default language for subtitle when changing service.
 Teletext Language : Select the default language for Teletext.
 User Font file : Select a font you want to use.

NOTE : To show and use the User Font, please install a desired font file(*.ttf) to the

/Var/Font directory(folder) in your PC which is connected with your receiver(STB)
by network. Then press LEFT/RIGHT button to select a font and press OK button.

44

2.6 A/V Output Setting

TV Type : Select the TV types.(PAL/NTSC/Auto) In Auto mode,



the STB is automatically selected to NTSC or PAL accordingly to

the service played.

 TV Aspect Ratio : Select the aspect ratio of TV which is

connected to the STB (4:3/16:9). This menu must be set prior

to selecting the Display Format function.

 Display Resolution : Select the Display Resolution of the

screen by using ARROW or OK button. You can also change

the resolution with Resolution button in the remote. Each

time you press the Resolution button, the resolution changes

in the following sequence: 576i > 576p > 720p > 1080i > 1080p.

NOTE : Please note that your TV may not show a picture depending on the Display Resolution set by

your STB as well as if set to PAL when NTSC is required or vice versa. If you set the Display
Resolution as SD(576i), your TV cannot display anything when the TV is connected to the
Component Video(YPbPr). If you set the Display Resolution as HD(more than 576p), your TV
cannot display anything when the TV is connected to the SCART or Composite Video output of
the STB. In case of HDMI, your TV can display a picture for all of the resolution settings of
the STB. But it is also possible that your TV may not display a picture with 576i, because some
HDTV’s does not support 576i.

 Display Format : In case of a 4:3 ratio TV set, you can select Letter Box or Pan&Scan. In case of a 16:9

ratio TV set, you can select Pillar Box or Full Screen.

- 16:9 Display format on 4:3 TV set

Letter Box : You can see the full screen of 16:9, but top and bottom edges of your TV screen
display black horizontal Pillars.
Pan&Scan : The picture is displayed in full on your 4:3 TV screen, but left and right sides of the
original picture cannot be displayed.

- 4:3 Display format on 16:9 TV set

Pillar Box : You can see the full screen of 4:3, but left and right sides of your TV screen display black
vertical Pillars. 4:3
Full Screen : The picture is displayed in full on your 16:9 TV screen, but left and right sides of the
original picture is displayed with widening of the screen from left and right.
Because of the artificial widening, the TV picture will be distorted.

 Video Output Mode : According to Display Resolution, you can select the Video Output Mode.

- In case of More than 576p(HD) : The ‘RGB’ output will be disabled automatically. You can select

Video Output Mode (CVBS, YPbPr, YC).

- In case of 576i(SD) : The ‘YPbPr’ output will be disabled automatically. You can select Video Output

Mode (CVBS, RGB, YC).

 HDMI Dolby Digital : Set the Dolby Digital mode 'On' or 'Off' in status of HDMI output.
 Dolby Digital Default : Set the Dolby Digital Default mode 'On' or 'Off'. If you set 'On', Dolby Audio

will play on the service that support Dolby Audio.

 Sound Mode : Set the audio mode output among the RCA jack, optical SPDIF and HDMI

(Stereo/Mono/Left/Right).

 Standby Power : You can select the standby power.

- ‘On’ : Front window displays clock besides standby red LED in case of standby mode.

- ‘Off’ : Front window only displays standby red LED in case of standby mode.

 Audio Sync Delay : To adjust Audio Sync. You can adjust from 0ms to 400ms.

45

3. Installation

If your receiver(STB) is tuner(Satellite, Terrestrial, Cable) changeable type, installation menu will be
apply as which type of tuner(Satellite, Terrestrial, Cable) you have installed.
When you install two tuners, you may install any types of tuner and position you want.

NOTE : When you install only one tuner, you must install it at the Outer(TUNER 1) part

of the tuner position. If you installed it at the Inner(TUNER 2) part, it will be
disabled.

 Different types of Installation Menus based on the tuner settings

S+S(S) T+T(T) C+C(C) S+T S+C T+C

Dish Setting

Terrestrial Search Cable Search

Satellite Search

Network Setting Network Setting Network Setting Network Setting Network Setting Network Setting

System Recovery System Recovery System Recovery System Recovery

System

Information

System

Information

System

Information

Dish Setting Dish Setting Terrestrial Search

Satellite Search Satellite Search

Cable Search

Terrestrial Search Cable Search

System

Information

System

Recovery

System

Information

System Recovery

System

Information

46

3.1 Dish Setting

Select the satellite/antenna and LNB settings for service search.



The values that are set in this menu will be available for

selection in other service searching menus.

 Satellite :

Select the satellite which you want to do a search for.

- Press the LEFT/RIGHT ARROW button to select the satellite.

- If you press the OK button, the entire satellite list will be

displayed.

- Select the desired satellite name to search.

- If the desired satellite name is not listed then select User Defined.

 Tuner Connection : You can set connection type, Separate or Loop-Through.

NOTE : Tuner Connection menu is disabled if tuner is not connected in twin satellite

or only one tuner is connected.

- Separate : Set the connection type option to ‘Separate’, if each of the tuners are connected to

different LNBs (TUNER 1 / TUNER 2) individually / independently. This Separate connection is used,
when each two tuners are connected to different LNBs. Due the independent & separate
connections between two Tuners & LNBs, user can watch all the services scanned by one TUNER 1,
while the other TUNER 2 is set for recording at the same time.

- Loop-Through : Set the connection type option to ‘Loop-Through’, if you have connected the LNB

OUT (TUNER 1) and LNB IN (TUNER 2) with a loop-through cable. In this case, you would have some
limitations in using some features such as dual recording.
This connection is used when the TUNER 1 is connected with LNB output, and the Loop-through
output of the TUNER 1is connected with input of the TUNER 2. This is the way to use & activate
both tuners when you have only 1 LNB with your dish antenna. However, this will limit the possible
tuning range (Satellite & Polarization) of the 2nd tuner, while the 1st tuner is being used for its
recording process (Because the input signal of 2nd tuner is dependent of the signal which the 1st
tuner is tuned to).

NOTE : User should make the appropriate connection by choosing the right tuner connections

between the Loop-Through and Separate connections. Due to the difference of these
two connections, wrong LNB and Tuner connection may cause the loss of signal
reception. We strongly recommend the use of professional service personnel to make
this installation and connection if your knowledge is limited.

 Tuner : Select the tuner which you want to set (Tuner 1/ Tuner 2). If you set ‘Loop-Through’ on the

menu(Installation-Dish Setting-Tuner Connection), this menu(Tuner) will be disabled automatically.

 Frequency : Select the satellite frequency which you want to use for checking the signal.
 LNB Power : Select the LNB power on or off.
 LNB Type : Select the LNB type.
 LNB Frequency : Select the local oscillator (L.O.). frequency that is specified for the LNB used.

- Use the LEFT/RIGHT ARROW buttons to select the LNB frequency.

- If the required LNB frequency is not listed, then enter the frequency manually using the NUMERIC

buttons.

- When you select Universal LNB type, both 9750 and 10600 are supported at the same time. And

then the LNB 22KHz setting is disabled.

 LNB 22KHz : When you use a separate coax 22 KHz tone switch box, make the 22 KHz tone switch

enabled or disabled to select the input you desire of the tone switch.

 DiSEqC Switch : If you use DiSEqC 1.0 or DiSEqC 1.1 switch, select one of the DiSEqC inputs.

47

3.2 Positioner Setting

 Satellite : Select the satellite which you want to search for the

Service.

- Press the LEFT/RIGHT ARROW button to select the satellite.

- If you press the OK button, a complete satellite list will be

displayed.

- Select the wanted satellite name.

- If the desired satellite name is not listed then select User

Defined.

 Tuner : Select tuner that you want to set (Tuner 1/ Tuner 2). If

you have set ‘Loop-Through’ in the menu(Installation-Dish Setting-Tuner Connection), this

menu(Tuner) will be automatically disabled.

 Frequency : Select the satellite frequency you want to use to check for a signal.
 Positioner : Select the positioner.

- None : (No Positioner)

- Using DiSEqC 1.2 :

Move : To move the dish, press LEFT/RIGHT button.
Fine Move : To move the dish in smaller steps, press the

LEFT/RIGHT ARROW button.

Step : Set to positioner moving steps as 1, 2, 3, 4
Positioner Command : To use various positioner commands,

press the OK button. Then, available positioner commands
will appear.

- Using USALS :

Move : To move the dish, press the LEFT/RIGHT button.
Fine Move : To move the dish in smaller steps,, press the

LEFT/RIGHT ARROW button.

Step : Set to positioner moving steps as 1, 2, 3, 4
Dish Longitude : Enter the longitude position of the

antenna using the NUMERIC buttons.
Dish Latitude : Enter the latitude using the NUMERIC
buttons.
Go To : Press the OK button to rotate the dish to the
selected antenna position.

 Dish Setting : Press the OK button to move to Dish Setting

menu directly.

 Service Search : Press the OK button to move to Service

Search menu directly.

48

3.3 Service Search

You can select the following search mode.

3.3.1 Satellite Search

 Auto Search Mode :

- Satellite : Press the OK button to select the target satellite

to be searched.

- Tuner : Select tuner what you want to set (Tuner 1/ Tuner 2).

If you set ‘Loop-Through’ on the menu (Installation-Dish
Setting-Tuner Connection), this menu (Tuner) will be
automatically disabled.

- Search Type : Select the search type.

- Network Search : You can select ‘Off’ or ‘On’. When you

select ‘On’, you can find more transponders using the
home network. As it refers to NIT during searching, if there is
the frequency information of other transponder, it searches the other transponder besides the
transponder that the user inputs.

- Time Calibration : You can select ‘Simple’, ‘Full’ and ‘Off’ to get TDT(Time Data Table) from each

TP

- Dish Setting : Press the OK button to move to Dish Setting menu directly.

- Positioner Setting : Press the OK button to move to the Positioner Setting menu directly.

- Start Search : Press the OK button to start search.

 Manual Search Mode :

- Satellite : Press the OK button to select the target satellite

for search.

- Tuner : Select tuner what you want to set (Tuner 1/ Tuner 2).

If you set ‘Loop-Through’ on the menu (Installation-Dish
Setting-Tuner Connection), this menu (Tuner) will be
automatically disabled.

- Frequency : Select the frequency from the list to search.

- Symbol rate : Enter the symbol rate using the NUMERIC

buttons.

- Polarity : Select the polarity. (Vertical/Horizontal)

- Search Type : Select the search type.

- Network Search : You can select ‘Off’ or ‘On’. When you select ‘On’, you can find more

transponders using the home network. As it refers to NIT during searching, if there is the frequency
information of other transponder, it searches the other transponder besides the transponder that
the user inputs.

- Dish Setting : Press the OK button to move to Dish Setting menu directly.

- Transmission : You can select ‘DVB’ and ‘DVB-S2’.

- Start Search : Press the OK button to start search.

49

 Blind Search Mode :

- Satellite : Press the OK button to select multiple satellites.

- Tuner : Select tuner what you want to set (Tuner 1/ Tuner 2).

If you set ‘Loop-Through’ on the menu (Installation-Dish
Setting-Tuner Connection), this menu (Tuner) will be
automatically disabled.

- Frequency : Set Auto to search whole frequency, Set Manual

to search only desired frequency.

- Polarity :

Select the polarity. (All Polarity/Vertical/Horizontal)

- Search Type : Select the search type.

- Dish Setting : Press the OK button to move to the Dish

Setting menu directly.

- Start Search : Press the OK button to start a search.

 Advanced Search Mode :

- Satellite : Press the OK button to select the target satellite

for search.

- Tuner : Select tuner what you want to set (Tuner 1/ Tuner 2).

If you set ‘Loop-Through’ on the menu (Installation-Dish
Setting-Tuner Connection), this menu (Tuner) will be
automatically disabled.

- Frequency : Select the frequency from the list to search.

- Symbol rate : Enter the symbol rate by using the NUMERIC

buttons.

- Polarity : Select the polarity. (Vertical/Horizontal)

- Video PID : Enter the video PID using the NUMERIC buttons.

- Audio PID : Enter the audio PID using the NUMERIC buttons.

- PCR PID : Enter the PCR PID using the NUMERIC buttons.

- Transmission : You can select ‘DVB’ and ‘DVB-S2’

- Start Search : Press the OK button to start a search.

50

3.3.2 Terrestrial Search

 Auto Search Mode

- Search Type :

Select the search type. (All Service/FTA Only/TV Only)

- Antenna 5V : If you want to out the power of antenna, select

the power on.

- Start Search : Press OK button to start search.

 Manual Search Mode

- Channel : Select the channel what you want to search

- Frequency : Information of channel frequency.

- Bandwidth : Information of channel bandwidth.

- Search Type :

Select the search type. (All Service/FTA Only/TV Only)

- Start Search : Press OK button to start search.

3.3.3 Cable Search

 Auto Search Mode

- Search Type :

Select the search type. (All Service/FTA Only/TV Only).

- Start Search : Press OK button to start search.

 Manual Search Mode

- Frequency : Select the frequency what you want to search.

Or enter the frequency manually using NUMERIC buttons.

- Symbol rate : Enter the symbol rate using NUMERIC

buttons.

- QAM Mode : Select the constellation using ARROW buttons.

(AUTO / QAM16 / QAM32 / QAM64 / QAM128 / QAM256)

- Search Type :

Select the search type. (All Service/FTA Only/TV Only)

- Start Search : Press OK button to start search.

51

3.4 Network Setting

To use a Network connected to the STB Ethernet port, you

have to prepare the STB Network settings. When the STB and a

PC are connected via a network, you can access the files of the

STB storage device such as the SATA Hard Disk Drive (HDD) or

USB storage device.

NOTE : If you use DHCP function of router, you can set

easily network configuration.

 DHCP : You can select On/Off for the Dynamic Host Configuration Protocol (DHCP) to get the all

configuration from the router.

- If you select ‘On’ : You will obtain the configuration from network and be set up automatically. In

this case, the remaining item (IP Address, Subnet Mask, Gateway, First DNS, Second DNS) are
automatically set and you don’t have to configure them manually.

- If you select ‘Off’ : You have to input the IP address manually together with the following data.

- IP Address, Subnet Mask, Gateway, First DNS, Second DNS : You can input the address with the OK

button, NUMERIC buttons and the LEFT/RIGHT buttons. You can move to the next item of Subnet
Mast with the DOWN button and you can configure the following items in the same way.

 Firmware Upgrade Server : To upgrade the firmware by downloading from a internet server.

NOTE : Server installation and settings must be controlled by expert server manager. A storage

device must be connected with your receiver(STB) when firmware upgrade from server.

 MAC Address : This will display the MAC address of the STB Ethernet interface and is a fixed

assignment unique to each STB.

 Control of the files via the network and your PC :

- Check the IP Address of the STB on the Network Setting

menu.

- Press Enter button on your PC, after writing IP Address on

the web browser address line. Ex.) \\168.158.10.146\storage

- You can see the folder name of HDD, USB1, USB2 and USB3

in the Storage folder.

- HDD : SATA HDD (internal HDD or external-SATA)

- USB1 : Front USB Storage Device

- USB2 : Rear Top USB Storage Device

- USB3 : Rear Bottom USB Storage Device

- You may be able to load and retrieve data between the PC and the STB via the browser

 Dynamic settings (RED key)

- You can make your DDNS setting in this menu by pressing

the RED colored button.

- For more details about your DDNS settings, please ask your

local DDNS service provider.

52

 Wireless LAN can be supported by using the ‘USB to Wi-Fi’

module connected (*Option)

- By pressing the BLUE colored button, you can automatically

find and do the settings for AP.

- For the details of Wireless Wi-Fi settings, please refer to the

additional AP manual.

NOTE : The speed of Wireless LAN is slower than the

Wired LAN. So, it could take much more time
when a file copy / move functions are performed.

NOTE : Inevitably, only the limited types of Wireless LAN modules are supported. So, you

MUST check for the compatible / supported types BEFORE you purchase.
Currently supported types are : RT73 series, RT3070 series, RT2870 series.

3.5 System Recovery

System restore to factory default : Restore the factory set



values in case the user has encountered some problems after

changing any new parameters of service data and other

parameters which may be in error. Press the OK button to

erase all services and restore default setting.

 Reset Configuration data : Maintain the service data and

reset the configuration data.

 Reset Service data : Maintain configuration data and reset the

service data.

 System restore to stored position : Restore the stored values

including service data and system parameters. Press the OK button to restore all data.

 Store system data : If you want to use system parameters and service data in the future, this menu

allows you to store current state. Press the OK button to store current state.

 Delete store position : Delete stored system data.

3.6 System Information

This menu displays general information about the hardware and software version of your receiver.

53

4. Utility

4.1 Calculator

To use the calculator, highlight the calculator and press
the OK button.

4.2 Calendar

To display the calendar, highlight the calendar and press the OK
button. Utilize the ARROW buttons to choose the date. If you
press PAGE UP/DOWN button, you can see the past/next
month of the calendar.

4.3 CAS (Conditional Access System)

Smart Card Slot



- Conax smart card menu :

To watch scrambled services, you need to have an
appropriate Conax smart card from the service providers.
Insert a valid smart card into smart card slot (only the
bottom slot of the two is active). The message of ‘Smart card
Initializing…’ will appear on the screen. After the message
disappears, you can watch the service you want.

- Smart card information :

You can view the current status of smart card. Select the slot
which you want to view using the ARROW buttons. And
press the OK button.

 CAM Initializing

To watch scrambled services, you need to have a Common

Interface Conditional Access Module(CAM) and an appropriate

smart card from the provider. Insert the CAM together with a

valid smart card into CI slot (two slots available). The message

of ‘CI Initializing…’ will appear on the screen. After the

message disappears, you can watch the service you want.

 CAM information

You can view the current status of CAM. Select the slot which

you want to view using the ARROW buttons, and press the OK button. If the CAM is available, you can

view information about each slot.

NOTE : The displayed information of each CAMs may be different depending on the CAM used.

 CI message

- On : To display the CI message on live TV service.

- Off : To disable the CI message on live TV service.

54

4.4 Plugin

If you have the program file for Plugin, you can download the file(s) to Plugin then enjoy the program.

 Download Plugin File

- In the USB storage, please create a new folder name ‘plugin’

and in this ‘plugin’ folder, create a folder name ‘bin’.
(plugin > bin)

- Store(Copy) the plugin file in the ‘bin’ folder.

- Connect the USB storage to the receiver. When Software

Download menu is appeared, then press LEFT/RIGHT
ARROW buttons to move to User Data Download mode.

- Press RED button to start download the plugin file that you

want.

NOTE : You can also download by Menu > System Tools > Data Transfer > Data

download from USB storage.

 Plugin Menu

- RED button : To set the plugin Start Type. You can select

Auto or Manual.

- GREEN button : To Start the plugin. You will see ‘Started’ in

State if the plugin is started.

- BLUE button : Press BLUE button if you want to delete the

plugin file.

 We provide a special feature called WebZeal which is for Web-Browsing. You can simply enjoy the

WebZeal when you want web surfing.

 WebZeal Plugin File Download. [64MB Model]

- Stored the WebZeal file to the USB storage device.

File name : ‘WebZeal-201xxxxx.tar.bz’.

- Connect the USB storage device to your receiver.

- When USB storage device is connected, Software Download

window menu will appear. Or you may go to Data Transfer
menu > Data download from USB storage.

- In this menu, press LEFT/RIGHT ARROW buttons to move to

Uncompress File mode then you will see the file
name ‘WebZeal-201xxxxx.tar.bz’.

- Press RED button to download the WebZeal.

NOTE : Upgrading time takes approximately 10 minutes.

 Executing WebZeal with USB Storage device

- Stored the WebZeal file to the USB storage device.

File name : ‘WebZeal-201xxxxx.tar.bz’.

- Connect the USB storage device to your receiver then go to

Menu > System Tools > Storage Manager.

 Set the Current Device to File Mount Drive.  Set the Mount File Name to WebZeal-201xxxxx.mnt  Press Connect then go to Menu > Utilities > Plugin to start

the WebZeal.

55

NOTE : If you are using WebZeal by File Mount Drive, current USB storage device will not

allow to use PVR functions such as recording and time-shift. But it can be use when
WebZeal is not in use.

 WebZeal Option

- RED button : Press to set the current web page as home.

- GREEN button : Press to add the current web page to

favorite.

- YELLOW/BLUE button : Press to adjust the page Zoom In

and Zoom Out as you want.

- MENU button : Press MENU button to show simple internet

menu.

4.5 YouTube

 Required settings : Before you can enjoy the YouTube feature with your STB, please make sure of the

following conditions.

- Set-top-box should be connected with Ethernet cable, with proper network settings.

(Please refer to the menu of “Network setting”, and its operation instructions).

- Sufficient buffering with storage memory (HDD or USB) is needed ;

 If your STB is already installed with a Hard disk drive (HDD) inside, then this HDD will be used as a

buffering memory.

 If there is no HDD already installed in the STB. Then, you can plug in an USB memory of suitable

memory size for buffering.

NOTE : a) Minimum required USB memory size for buffering depends on the size of the

contents that you wish to watch from the YouTube service. So in general, it is
recommended to use a bigger and sufficient sized USB memory for enough
buffering.
b) Problems due to network environment : Problems such as flickering and freezing
of the screen can occur while you are watching the YouTube service. These kind of
problems can often occur due to the lagging and slow speed of the network status
from your internet service provider at home. This may also cause the STB to be
halted, then we kindly recommend to reset to STB power for rebooting and continue
using.

 About YouTube feature

- YouTube menu is located in the ‘Menu > Utilities >

YouTube’.

- On the right side of the screen, you can see the list of

thumbnails of the contents.

- Press the PAGE UP/DOWN buttons to navigate quickly in

the service list on the right.

- On the left side of the screen, the detailed information of

the selected thumbnail is being displayed.-

- Use the ARROW buttons to navigate through the menu

- And press the OK / Play buttons to start viewing the

selected content.

- While playing, use the PAUSE / STOP buttons to pause, or stop playing the service.

- Trick play modes (FAST FORWARD / REWIND) are not support in the STB’s YouTube menu.

- Use the VOLUME UP / DOWN / MUTE buttons to adjust the audio sound.

- Press the MENU / EXIT buttons to exit from the service, or to the menu while you are watching the

service.

56

 Using the Hot (colored) buttons in the YouTube menu :

- RED (Full screen) : Press this button to view the service in full screen size. This button only functions

while the service content is being played.

- Yellow (Search) : Press this button and input the name of the content that you wish to search in

YouTube. When the virtual keyboard is displayed, you can also use the dedicated hot colored
buttons for each functions.

- Green (Location) : Press and choose your location from the list of world-wide, and many country

names in this list. Based on your selected location, corresponding contents list will be provided.

- Blue (Category) : Press this blue button to view the list of categories, then choose the one you

prefer to view the list of contents in the selected category.

57

Troubleshooting

Problem Solution

Does not display any message

on the front panel.

No Picture

Poor picture quality

No Sound

 Check the main power cable and check that it is plugged into a

suitable power outlet.

 Check the STB main power switch ‘ON’ at the rear of the STB.

 See ‘Does not display any message on the front panel’ above.
 To match the STB system with your TV system (PAL/NTSC),

press V.For mat button until a picture is displayed.

 Check the video output port is firmly connected to the TV or

VCR.

 Check that you have selected the Video Input on your TV.
 Press the STB button on the remote to assure you are

controlling the STB and no other device with the remote.

 Check the brightness level of the TV.
 Check the resolution that your TV supports, and set the proper

resolution with the remote Resolution button to obtain a
picture.

 See ‘No Picture’ above.
 Check the signal level, if this is low then tries adjusting the

alignment of your dish.

 See ‘No Picture’ above.
 Check the volume level of the TV and STB.
 Check the Mute status of the TV and STB.

Remote Control does not

operate

No or Bad Signal

 Point remote control directly towards the STB.
 Check that the STB button lights up when you press any

button

 Check and replace batteries.

[ For DVB-S2 tuner model only]

 Check the LNB ; Replace the LNB if necessary.
 Check the cable from the LNB.
 Check the position of the dish; realign dish if necessary.
 If you are using a DiSEqC 1.0 switch, check that you have

connected and programmed the LNBs to the correct
connections on the switch.

[ For DVB-T(T2) tuner model only ]

 Check the connection of Aerial antenna line.

[ For DVB-C tuner model only ]

 Check the connection of Broadcasting Cable line.

Common features for all types of DVB receivers ]

[

 Check the ‘Signal Level’ and the ‘Signal Quality’.

58

Specifications

Tuner & Channel Decoder

Input Connector

Loop through out

Frequency Range

Input Impedance

Signal Level

LNB Power

22KHz Tone

DiSEqC Control

Demodulation

Input Symbol Rate

FEC Decoder

Tuner & Channel Decoder

Input Connector

Loop through out

Frequency Range

Demodulation

Channel Bandwidth

FET mode

Code Rate

Guard Interval

[S2 tuner]

F-type, IEC 169-24, Female
F-type, IEC 169-24, Female
950MHz ~ 2150MHz
75Ω, unbalanced

-65 to -25dBm
13/18VDC, max.400mA
(22±2)KHz, (0.6±0.2)V
V1.0/1.2/USALS Compatible
QPSK / 8PSK
2 ~ 45 Ms/s(QPSK of DVB-S)
2 ~ 45 Ms/s(QPSK of DVB-S2)
2 ~ 37 Ms/s(8PSK of DVB-S2)
1/2, 2/3, 3/4, 5/6 and 7/8 with
Constraint Length K=7(DVB-S)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 (DVB-S2)

[T tuner]

IEC 169-2, Female
IEC 169-2, Male
VHF III : 174~230 MHz
UHF IV : 470~606 MHz
UHF V : 606~862 MHz
OFDM
6, 7, 8 MHz
2K, 8K
1/2, 2/3, 3/4, 5/6, 7/8
1/4, 1/8, 1/16, 1/32

Tuner & Channel Decoder

Input Connector

Loop through out

Frequency Range

Demodulation

Channel Bandwidth

FET mode

Code Rate

Guard Interval

[T2 tuner]

IEC 169-2, Female
IEC 169-2, Male
VHF III : 174~230 MHz
UHF IV : 470~606 MHz
UHF V : 606~862 MHz
OFDM
6, 7, 8 MHz
1K, 2K, 4K, 8K, 16K, 32K
1/2, 2/3, 3/4, 3/5, 4/5, 5/6
1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128

59

Tuner & Channel Decoder

Input Connector

Loop through out

Frequency Range

Demodulation

IF Bandwidth

Symbol rate

MPEG Transport Stream A/V Decoding

Transport Stream

Profile Level

Input Rate

Video Formats

Video Resolution

Audio Decoding

Audio Mode

Sampling Rate

[C tuner]

IEC 169-2, Female
IEC 169-2, Male
50MHz ~ 1GHz
16, 32, 64, 128, 256 QAM(for Annex A/C)
64, 256 QAM(for Annex B)
8 MHz(-3dB) TYP(for Annex A/C)
6 MHz(-3dB) TYP(for Annex B)
1 Msps ~ 7 Msps(for Annex A/C)

5.057 Msps(for 64QAM, Annex B)

5.361 Msps(for 256QAM, Annex B)

H.264(MPEG-4 part 10, MPEG-4/AVC and H26L)
MPEG-II ISO/IEC 13818-2/1117 2 -2
MPEG-4/AVC MP@L4, MPEG-II MP@HL
Max. 80Mbit/s
4:3 Letter Box, 4:3 PanScan, 16 : 9
720 x 576i, 720 x 576p, 720 x 480i, 720 x 480p
1280 x 720p, 1920 x 1080i, 1920 x 1080p(supports only HDMI)
Dolby Digital, MPEG-1 Layer 1,2 and 3
Stereo/Joint stereo/Mono, Dolby Digital bitstream
32KHz, 44.1KHz and 48KHz(According to input)

Main System

Main Processor

Memory

STi chipset
Flash-ROM : 64 Mbyte
SDRAM : 256 Mbytes
EEPROM : 256 bytes

60

Audio / Video & Data IN/OUT

Front Panel

Power Supply

Input Voltage

Power Consumption

Standby Power

TV SCART

VCR SCART

RCA

Component

HDMI

OPTIC

RS-232C

USB

Ethernet

e-SATA

Slot

Display

Buttons

Type

Protection

RGB, Y/C, CVBS Video, Audio L, R Output
CVBS Video, Audio L, R Output
RGB Video input, CVBS Video, Audio L, R Input
CVBS Video Output, Audio L, R Output
YPbPr Video Output
Video & Audio Output
Dolby Digital (SPDIF)
9 pin D-SUB (Male) type, Transfer rate 115Kbps
USB 2.0 Host Front & Rear Support. (5V DC 500 mA Max.)
RJ45 connector, 100 Mbps
External SATA

1 USB 2.0 Host port
2 Common interface PCMCIA slot
2 Smart Card Slot
VFD(Vacuum Fluorescent Display) - 12Digit
5 Buttons (Standby, CH UP/DOWN, Volume UP/DOWN)

AC 100 ~ 250V, 50/60Hz
SMPS
Max. 55W
Max. 1W
Separate Internal Fuse & Lighting protection

Physical Specification

Size (W x H x D)

Weight (Net)

Operating Temp.

Storage Temp.

340mm X 60mm X 230mm

2.0 Kg (Excluding HDD)
0°C ~ +45°C

-10°C ~ +70°C

61

Code Table for Universal Remote Control Unit

1. Key Table

No KEY NAME TV DVD VCR

1

2

3

4

5

6 V.Format

7 SLEEP

8 TV/RAD, Source

9 Resolution

10

11

12

13

14

15

16

17

18

19

20

21

22

23 INFO

24 RECALL

V

V V

V V V

V

V

V V

V V

V V

V

V

V V

V V

V V

V

V

V

V

25 MENU

26 EXIT

27

28

29

30

31 OK

32

33 FAV

34

V V

V V

V V

V V

V V

V V

V V

62

No KEY NAME TV DVD VCR

35 VOL +

36 VOL -

37 CH +

38 CH -

V

V

V

V

39 EPG

V

V

40

41

42

43

44 0

45 1

46 2

47 3

48 4

49 5

50 6

51 7

52 8

53 9

54

55

56 REV1

57 REV2

V V V

V V V

V V V

V V V

V V V

V V V

V V V

V V V

V V V

V V V

58 REV3

59 REV4

60 REV5

61 REV6

63

155

156

157

050

099

111

2. TV Brands

Refer to ‘5.Multi-Brand IR Remote Controller Setting’ in the 16 page of this manual

TV Brands Code

ADMIRAL
AKAI
ALBA
ALBIRAL
ALCATEL
AMSTRAD
ANAM
ARC EN CIEL

ARISTONA

ARTHUR MARTIN

ASA
ATLANTIC
AUDIOSONIC
AUSIND

AUTOVOX

BAIRD
BASICLINE
BAUR
BEKO
BLAUPUNKT

BRANDT

BRION VEGA
BRUNS
BSR
BUSH
CENTURY

CGE

CIHAN
CLARIVOX
CONDOR
CONTEC

CONTINENTAL EDITION

CROSLEY
CROWN
CTC CLATRONIC

050 134
093 049 123
068
116
022
158 021

028 039 043 145 081
099 049 050 019 142
149 078
053 139 11 7 120 122
123 125 128
050 055 057 11 3 134
099 111
054
053
099 144 055 019 057
069
083
006
011
023 049
094 100 102 111 114
028 039 040 043 145
081

048 050
059 11 0 132
033 068 124 074
098 101 050 079 136
016 101 124 079 132
136
065
048 11 6

087
028 039 040 043 145
081
101 050 109
147
046

64

049

090

046

132

054

059

001

058

109

122

123

TV Brands Code

DAEWOO
DECCA
DEGRAAF

089
099 060 063 115 118
036

DIXI
DRYNATRON
DUAL
DUAL-TEC
DUMONT
ELBE
ELBIT

ELCIT

049
099 141
096 099 132
046 050 057 073

016 116
065
046 097 103 050 109
127 132

ELMAN
ELTA
EMERSON
ERRES

EUROPHON

FERGUSON

FIDELITY

FINLUX

FISHER

FORGESTONE
FORMENTI
FORTRESS
FRABA
FRONTECH
FUJITSU

090
158 098 050
049 142
098 046 097 099 051
115 132
146 040 041 150 057
061 116 149
099 149
034 046 053 055 057
109 113 073 074 079
015 048 050 052 109
136
149
099 053 109 111 125
137
075
054
025

FUNAI
GBC

GEC

GELOSO

GOLDSTAR

GOODMANS
GORENJE

109 132
099 060 109 115 134
088
103 109 132 134 090
092 003 017 099 049
075 076 077 090 152
033 049 060 077
066 136

GREATZ

128 129 130 134

65

112

114

082

204

206

145

056

109

139

110

231

235

099

TV Brands Code

GRANADA

033 099 049 058 060
142 115 125 134
094 100 057 058 108

GRUNDIG

212 217 222 239

HANSEATIC

HANTAREX
HEMMERMANN
HIFIVOX
HINARI

033 047 099 049 109
139 111
097
127
028 039 043 145 081
158 033 045 143 090
014 033 034 036 099

HITACHI

HYPER

IMPERIAL

INGELEN

INKEL

INNO HIT

INTERFUNK

IRRADIO

ITT

JVC

067 117 132 134 084
091 081 088
093 099
016 101 124 079 132
133
001 058 109 122 128
129 130 134
000
093 098 097 099 143
077 090
047 049 050 145 058
109 142 123 128 129
091
093 143 053 077 090
001 140 058 105 109
122 123 128 148 129
130 134 135 083 089
033 154 209 213 229

KTV
KAISUI
KARCHER
KENDO
KENNEDY
KORTING

KRIESLER

LENOIR

LG

099
006
006
098
144 019 109
050 059 111
099 049 050 019 142
149 078

202 205 207 213 218
219 220 222

66

008

097

047

049

050

049

033

035

047

049

050

099

050

139

120

136

131

091

081

TV Brands Code

LOEWE OPTA

LOGIK
LUMA

LUXOR

McMICHAEL

MEMOREX

MAGNAFON

MARANTZ

MATSUI

MAGNADYNE

METZ

MINERVA
MISTRAL

115 072
118 149
049 120 134
058 139 117 120 123
129 135 083
088
090
046 097 099 051 053
115

158 099 106 060 118
068 134 090
046 097 103 050 109
115 127 132
094 050 114 133 200
239
094 100 057 058 114
149

MITSUBISHI

MIVAR
MULTITECH
MURPHY
MAONIS
NATIONAL
NEC
NECKERMANN
NEI
NIKKAI
NOBLEX
NOBLIKO
NOGAMATIC

NOKIA

NORDMENDE

OCEANIC
ONCEAS
OPTONICA

062 118 119 148 080
138
097 099 115 077
046 099 115 136
134
096 144 019 110 134
042 104 109
033 085

049
060
015
098 046 099 053 057
028 039 043 145 081
001 140 058 105 109
122 123 128 148 129
130 134 135 083 089
028 032 039 043 145

109 064 123
099
137

67

077

060

099

053

109

111

125

046

097

051

053

077

074

TV Brands Code

ORION

OSAKI

158 059 118 068 127
090
060

OSIO
OSUME
OTTO VERSAND
P.T ACTTRON
PAEL

087
033 047 049 109 139
065
099 053
030 042 095 104 107

PANASONIC

109 121 126 208 214
217 223 230 231

PATHE CINEMA

099 111 116 132

PERDIO

PHILCO

016 030 101 050 109
124 079 132 136
009 010 013 018 024
099 049 050 019 142

PHILIPS

148 149 078 088 200
202 211 212 213 219
225 226 227 233 237
238 231

PHOENIX

PHONOLA

PIONEER
PRANDONI-PRINCE
PREMIER
PRINCE
PROTECH

PYE

099 049 050 019 142
149 078
020 049 145 091
098 097 053 115 134
124
098 097 053 134
049 054
099 049 050 019 142
148 149 078

QUASAR

047 099 100 049 053

QUELLE

055 057 058 111 112
113 114 11 8 123 073
074 128

RADIOLA

RADIOMARELLI

099 049 050 019 142
149 078
046 097 103 050 109
062 127 132

RANK
RBM
REDIFFUSION

074
062 123 134

68

096

144

019

141

110

123

125

128

135

083

215

220

222

226

228

019

141

109

142

125

099

049

050

019

142

TV Brands Code

REX

ROBOTRON
RTF

SABA

SAISHO

SALORA

SAMBERS

SAMPO
SEG
SEI

SAMSUNG

069 134
048 050
048 050
028 031 032 037 039
040 043 097 050 145
115 120 086 091 081
158 099 118 119 068
090
053 139 117 120 122

046 097 051 053 115
077
121
046
158 059
015 026 099 054 077
136 090 151 153 201
202 203 205 210 213

SANYO

SBR

SCHAUB LORENZ

SCHNEIDER

SELECO

SHARP

SIAREM
SICATEL

SIEMENS

SIERA

SILVER
SINGER

231 232 238 234
001 002 005 033 044
048 060 113 118 071
054 136
049 142 148 149 088
001 058 109 122 123
128 129 130 134
096 099 049 050 052

149 078 132
016 096 144 019 141
110 069 134
033 087 137 209 223
224
046 097 050 109 115
116
005 094 036 100 111
114 087

149 078
054
016 046 050 109

69

146

007

027

033

038

096

099

132

206

209

224

232

120

WHITE

099

TV Brands Code

SINUDYNE

SONOKO

158 046 050 059 109
127
049 090

SONY

STERN

TANDBERG
TANDY
TASHIKO

TATUNG

TEC

TELEAVIA

TELEFUNKEN

TELETECH
TELEVIDEON
TENSAI

TOSHIBA

TRANS CONTINENTS

THOMSON

THORN-FERGUSON

TOCOM
TRIUMPH
UHER

ULTRA VOX

118 203 205 209 210
096 144 019 110 069
134
133
099 060 137
002 033
099 060 063 065 115
118

028 039 040 043 145
091 081
028 041 145 150 086
091
090
099 053 109 111 125
049
004 016 033 070 074

098 097 053 134
012 028 032 039 040
043 145 091 081
014 040 041 054 150
057 061 116 149 086
029
158
052 111 125
098 046 099 050 109

UNIVERSUM
UNIVOX
VEGAVOX
VOXSON
WATSON

WATT RADIO

WEGA

WESTINGHOUSE

092 034 054 077
116
079
050 134

111
046 099 051 109 116
127
033

099 111

YOKO

70

TV Brands Code

ZANUSSI

ZOPPAS

096 144 019 110 069
134
096 144 019 110 134

71

3. VCR Brands

VCR Brands Code

AKAI

ALBA

AMSTRAD

ANITSCH

ARC EN CIEL

ARISTONA

ASA

AWIA

BAIRD

BAUER. BOSCH

BRIONVEGA

BUSH

BLAUPUNKT

BRANDT ELECTRONIQUE

C.EDISON

CANON

CAPEHART

CGE

CONTINENTAL EDISON

CRAIG

CURTIS MATHES

DAEWOO

DAYTRON

DECCA

DEGRAAF

DUAL

DUMONT

DYNAT ECH

EMERSON

FERGUSON

FIDELITY

FINLANDIA

FINLUX

FISHER

122 133 142 152 132

108 120

111

109

142 156 152

145 131

118

111 142

142 133

114 143

141

108 120

114 143 155 131 154

140

142 156 152

141

114

120

111 142 152

142 156 152

100 113

119

101 120 121

120

111 142

103 106 111 145 118

142 152

103 111 118

111

102 110 111 119 125

142 159 130 152 134

136

111

103 118

103 106 111 118

100 103 105

72

VCR Brands Code

FUNAI

GE

GENERAL

GOLDSTAR

GOODMANS

111

119

114

104 162

108 111 146

GRAETZ

GRANADA

GRUNDIG

HANSEATIC

HARMAN-KARDON

HIFIVOX

HINARI

HITACHI

IMPERIAL

INGELEN

INGERSOL

ITT

JENSEN

JVC

KENWOOD

KRIESLER

KUBA

LLOYD

LOEWE OPTA

LOGIK

LUXOR

MAGNADYNE

MAGNASONIC

MAGNAVOX

MARANTZ

MATUI

MEMOREX

METZ

141 142 156 150 152

138

103 105 118

114 143 11 8 155 131

153 154

143

104

142 156 152

102 108 124 127

106 107 111 142 157

111

142 156 152 138

127

105 141 142 156 150

152 133 138

142

142 156 160 130 152

163

105 142 160

145 131

143

111

114 118 129 131

108 127

133 138

141

138

119

104 114 146 118 131

110 125 127

100 103 105 111 145

114 143 131 154 137

73

VCR Brands Code

MGA

MINERVA

MINOLTA

MITSUBISHI

MTC

MULTITECH

MURPHY

NAONIS

NATIONAL

NEC

NECKERMANN

NOGAMATIC

117

155 154

106 107

160 117 149

111 11 3

108 111

111

142 156 152

140

104 142 160 152

102 141 114 142 152

142 156 152

NOKIA

NORDMENDE

OPTONICA

ORION

OSAKI

OTTO VERAND

P. C IN EMA

PAL LADIUM

PANASONIC

PATHE MARCONI

PENTAX

PERDIO

PHILIPS

PHONOLA

PIONEER

PORTLAND

PROLINE

PYE

QUARTZ

QUELLE

RADIOLA

RADIOMARELLI

103 105 141 142 156

150 152 133 138

139 142 156 152 153

135

145 146

102 110 125 127

111

143

114

141 114

123 151 140

142 156 152

106 107

111

112 114 145 146 118

129 131

114 145 11 8 129 131

160

120

111

114 145 11 8 129 131

105

102 144 154

145 131

141

74

VCR Brands Code

RCA

119

100 103 105 111 113

REALISTIC

145 146

REX

SABA

SAISHO

SALORA

SAMSUNG

SANSUI

SANYO

SBR

142 156 152

139 142 156 152 135

102 110 125 127

105 117

113 119 132 161

142 160

100 103 105 125 138

118 129

SCHAUB LORENZ

SCHNEIDER

SEI-SINUDYNE

SELECO

SENTRA

SHARP

SHINTOM

SIEMENS

SIERA

SINUDYNE

SONY

STERN

STS

SUNKAI

SYLVANIA

SYMPHONIC

TASHIKO

TATUNG

TEAC

TEKNIKA

TELEAVIA

TELEFUNKEN

TENOSAL

THOMSON

141 142 156 150 152

138

108 111 145 131

127

142 156 152

120

145 146 1105 148

108

114 143 155 131 154

138

145 131

127

144 115 116 126 128

142 156 152

106

125

111 11 7

111 11 7

111

111 142

111 142

111

142 156 152

142 156 152

108

142 156 152

75

VCR Brands Code

139 142 159 130 152

THORN-FERGUSON

134 136

TOSHIBA

TOTELEVISION

UHER

ULTRA VOX

UNITECH

UNIVERSUM

URANYA

VECTOR

VICTOR

VIDITAL

WESTING HOUSE

WARDS

YAMAHA

ZANUSSI

ZENDER

ZOPPAS

101 142 156 117 158

152

113

142

141

113

141 114 143

141

104

142 160

141

141

119

104 142

142 156 152

152

142 156

76

DVD Brands

Code

002

061

158

019

032

4. DVD Brands

AIWA
AKAI
ALBA
ANAM
ANSONIC
AMES

APEX

AUDIOSONIC
A-TREMD
BROKSONIC
BULE SKY
BUSH
CAT
CLASSIC
CELESTIAL
CENTREX
CINEULTRA
CONIA
COMBRIDGE AUDIO
CROWN
CYBERCOM
CYBERRHOME
DAEWOO
DAEWOO
INTERNATIONAL
DEC
DENON
DENVER
DENZEL
DIGITREX
DIK
DK DIGITAL
DRAGON
DUAL
ELTA
ENZER
EMERSON
FISHER
FUNAI
GE
GOLDSTAR
GOLEMANS
GO-VIDEO

007 044
036
074
152
051
003 011 025 037 039
044 047 048 054 040
044

000
158 036
067 044 000 152
036
051
158
158
036

088
044
152
061
005 045 052

036

036
041 050
036
083
011 158
152
