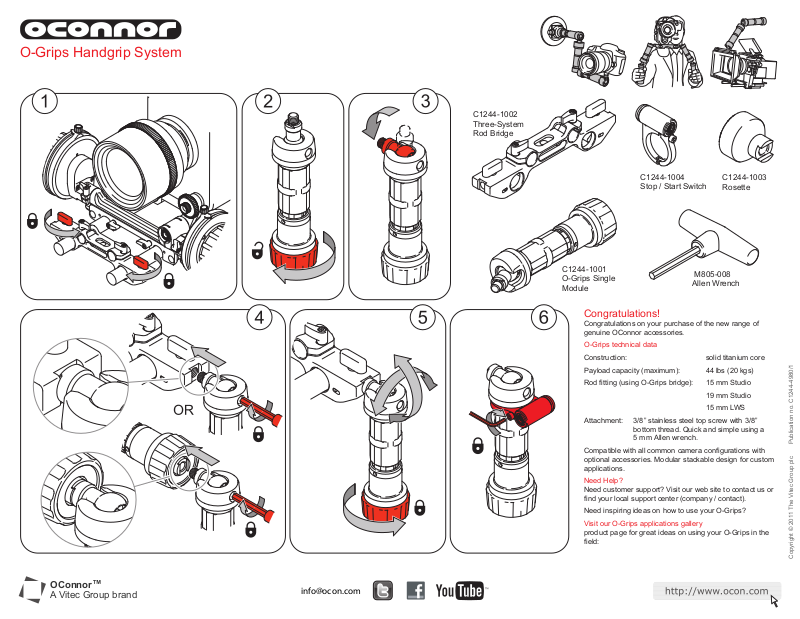

OConnor O-Grips User guide

Page 1
O-Grips Handgrip System
C1244-1002 Three-System Rod Bridge
C1244-1004 Stop / Start Switch
C1244-1001 O-Grips Single Module
C1244-1003 Rosette
M805-008 Allen Wrench
Congratulations!
Congratulations on your purchase of the new range of genuine OConnor accessories.
O-Grips technical data
Construction: solid titanium core
Payload capacity (maximum): 44 lbs (20 kgs)
Rod fitting (using O-Grips bridge): 15 mm Studio
19 mm Studio
15 mm LWS
Attachment: 3/8” stainless steel top screw with 3/8” bottom thread. Quick and simple using a 5 mm Allen wrench.
Compatible with all common camera configurations with optional accessories. Modular stackable design for custom applications.
Need Help?
Need customer support? Visit our web site to contact us or find your local support center (company / contact).
Need inspiring ideas on how to use your O-Grips?
Visit our O-Grips applications gallery on the O-Grips
product page for great ideas on using your O-Grips in the field:
Copyright © 2011 The Vitec Group plc Publication no. C1244-4980/1
