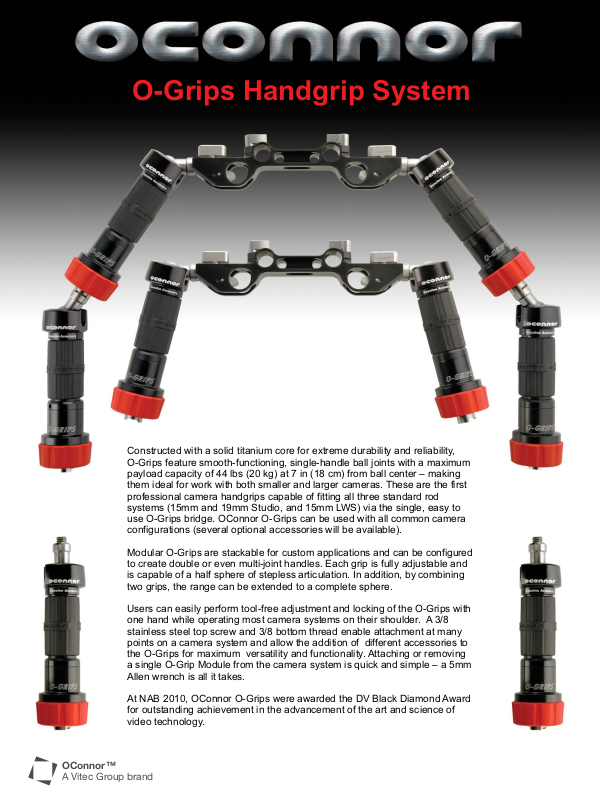

O-Grips Handgrip System

Constructed with a solid titanium core for extreme durability and reliability,
O-Grips feature smooth-functioning, single-handle ball joints with a maximum
payload capacity of 44 lbs (20 kg) at 7 in (18 cm) from ball center – making
them ideal for work with both smaller and larger cameras. These are the first
professional camera handgrips capable of fitting all three standard rod
systems (15mm and 19mm Studio, and 15mm LWS) via the single, easy to
use O-Grips bridge. OConnor O-Grips can be used with all common camera
configurations (several optional accessories will be available).

Modular O-Grips are stackable for custom applications and can be configured
to create double or even multi-joint handles. Each grip is fully adjustable and
is capable of a half sphere of stepless articulation. In addition, by combining
two grips, the range can be extended to a complete sphere.

Users can easily perform tool-free adjustment and locking of the O-Grips with
one hand while operating most camera systems on their shoulder. A 3/8
stainless steel top screw and 3/8 bottom thread enable attachment at many
points on a camera system and allow the addition of different accessories to
the O-Grips for maximum versatility and functionality. Attaching or removing
a single O-Grip Module from the camera system is quick and simple a 5mm
Allen wrench is all it takes.

At NAB 2010, OConnor O-Grips were awarded the DV Black Diamond Award
for outstanding achievement in the advancement of the art and science of
video technology.

–

OConnor

A Vitec Group brand

™

O-Grips Handgrip System

O-Grips Rod Bridge

The only handgrip bridge that accommodates the three
most common professional rod spacings (Studio 15mm
and 19mm, Light Weight Support LWS 15mm.)

O-Grips Modules

With the highest available payload capacity for a
balljointed handgrips, a single O-Grip module has a 3/8ths
male screw on top with a 3/8ths female receptacle on the
bottom. The stainless steel ball joint is adjustable and
lockable in a full hemisphere via single handed operation,
even while shouldering larger camera systems.

O-Grips Mounting

O-Grip modules are stackable for custom applications.
Using a 5mm Allen Wrench the O-Grips securely attach to
the Bridge, other O-Grips or any standard 3/8ths mounting
point.

O-Grips Versatility

With the various mounting options, high payload capacity
and single-handed operation the O-Grips are not only the
most versatile handgrips in the market but can also be
used as the strongest articulating arm for mounting various
hardware on camera setups.

-

-

O Grips

O Grips

C1244-0001 C1244-0002

C1244-1001

C1244-1002

C1244-1003 C1244-1004

FEEL THE DIFFERENCE!

OConnor

A Vitec Group brand

™

Version 1.4en

3.08.12

Order Codes

C1244-0001 O-Grips Single Jointed Set
C1244-0002 O-Grips Double Jointed Set
C1244-1001 O-Grips Single Module
C1244-1002 O-Grips Three-System Rod Bridge
C1244-1003 Rosette Adapter 60 Tooth

(Arri compatible)

C1244-1004 Switch Module
