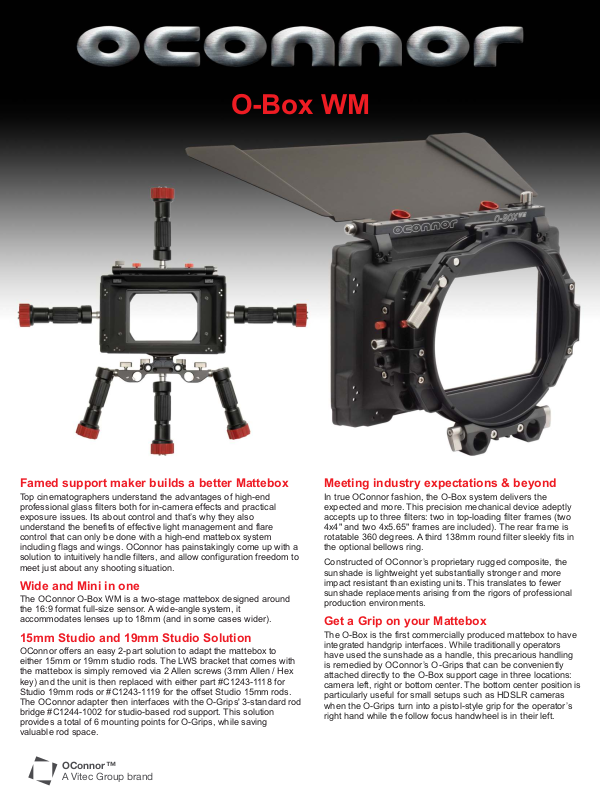

O-Box WM

Famed support maker builds a better Mattebox

Top cinematographers understand the advantages of high-end
professional glass filters both for in-camera effects and practical
exposure issues. Its about control and that’s why they also
understand the benefits of effective light management and flare
control that can only be done with a high-end mattebox system
including flags and wings. OConnor has painstakingly come up with a
solution to intuitively handle filters, and allow configuration freedom to
meet just about any shooting situation.

Wide and Mini in one

The OConnor O-Box WM is a two-stage mattebox designed around
the 16:9 format full-size sensor. A wide-angle system, it
accommodates lenses up to 18mm (and in some cases wider).

15mm Studio and 19mm Studio Solution

OConnor offers an easy 2-part solution to adapt the mattebox to
either 15mm or 19mm studio rods. The LWS bracket that comes with
the mattebox is simply removed via 2 Allen screws (3mm Allen / Hex
key) and the unit is then replaced with either part #C1243-1118 for
Studio 19mm rods or #C1243-1119 for the offset Studio 15mm rods.
The OConnor adapter then interfaces with the O-Grips' 3-standard rod
bridge #C1244-1002 for studio-based rod support. This solution
provides a total of 6 mounting points for O-Grips, while saving
valuable rod space.

OConnor

A Vitec Group brand

™

Meeting industry expectations & beyond

In true OConnor fashion, the O-Box system delivers the
expected and more. This precision mechanical device adeptly
accepts up to three filters: two in top-loading filter frames (two
4x4" and two 4x5.65" frames are included). The rear frame is
rotatable 360 degrees. A third 138mm round filter sleekly fits in
the optional bellows ring.

Constructed of OConnor’s proprietary rugged composite, the
sunshade is lightweight yet substantially stronger and more
impact resistant than existing units. This translates to fewer
sunshade replacements arising from the rigors of professional
production environments.

Get a Grip on your Mattebox

The O-Box is the first commercially produced mattebox to have
integrated handgrip interfaces. While traditionally operators
have used the sunshade as a handle, this precarious handling
is remedied by OConnor’s O-Grips that can be conveniently
attached directly to the O-Box support cage in three locations:
camera left, right or bottom center. The bottom center position is
particularly useful for small setups such as HDSLR cameras
when the O-Grips turn into a pistol-style grip for the operator’s
right hand while the follow focus handwheel is in their left.

-

-

O Box WM

O Box WM

O-Box WM

O-Box WM Set - LWS 15mm includes:

!

Lightweight, rugged Wide Mini Sunshade of proprietary
composite material

!

Two stages; front fixed/ rear rotatable 360 degrees

!

18mm + wide angle capability in 16:9 format

!

Two top-loading 4" x 4" horizontal filter frames

!

Two 4" x 5.65" horizontal filter frames

!

Rear clamping interface @ 150mm

!

Rod interface for 15mm LWS standard

!

O-Grips 3/8" interface on left, center bottom, and right sides

!

Integrated top flag mounting bracket with 1/4 & 3/8 tapped
cheese stick

!

Top Flag

!

138mm round filter (rotatable) held via optional Bellows Ring

Order Codes – Sets

C1243-0001 O-BOX WM Set - LWS 15mm
C1243-0002 O-Box WM Deluxe Set

OConnor Accessory Program

To prepare for any configuration, OConnor offers optional items
including: Bellows ring, side flags, retaining brackets, a bottom
bracket and flag. Popular bellows step-down rings to 80mm are
also available.

FEEL THE DIFFERENCE!

New O-Box WM Deluxe Set

The new O-Box WM Mattebox Deluxe Set introduces a new level
of out of the box versatility with innovative Universal Rings. Based
on an exclusive CINEPARTS design endorsed by OConnor the
new Universal Rings are made from aircraft aluminum and hold a
seamless, high-tech material that can flex over a variety of lens
diameters. The Universal Rings are supplied in two sizes: 150 to
80 mm, and 114 to 55 mm, covering lenses with diameters
between 55 mm and 134 mm. These handy new additions can
replace multiple hard reduction rings, making the O-Box Deluxe
Set a versatile package for today’s shooter who works with a
range of lenses.

Order Codes – Options

C1243-1107 Filter Frame 4 x 5.65" (H)
C1243-1116 Filter Frame 4 x 4”
C1243-1117 Bellows Ring (Donut) 150mm to 114mm (threaded)
C1243-1118 O-Box WM Studio Adapter 19mm (REQ: O-Grips Bridge)
C1243-1119 O-Box WM Studio Adapter 15mm (REQ: O-Grips Bridge)
C1243-2149 Top or Bottom Flag (REQ: Flag Bracket)
C1243-1127 Bottom Flag Bracket Set
C1243-1121 O-Box WM Side Flag Bracket Set (2 Brackets)
C1243-1122 O-Box WM Side Flag Set (2 Flags) (REQ: Flag Bracket)
C1243-2183 Clamp Ring 150mm-143mm
C1243-2184 Clamp Ring 150mm-134mm
C1243-1123 Clamp Ring 150-114mm
C1243-1124 Clamp Ring 150-110mm
C1243-1125 Clamp Ring 150-95mm
C1243-1126 Clamp Ring 150-80mm
C1243-2171 Reduction Ring 114-110mm (REQ: Bellows Ring)
C1243-2172 Reduction Ring 114-95mm (REQ: Bellows Ring)
C1243-2173 Reduction Ring 114-80mm (REQ: Bellows Ring)
C1243-1129 Universal Ring 114 mm (threaded)
C1243-1128 Universal Ring 150 mm

OConnor

A Vitec Group brand

™

Version 3.0en

3.11.13

O-Box WM Deluxe Set includes:

!

Complete O-Box WM Set - LWS 15mm

Plus

!

Side Flag and Bracket Sets

!

Bellows Ring (Donut) 150-114mm (threaded)

!

Universal Ring 150 mm

!

Universal Ring 114 mm

!

Reduction Ring 114-110mm
