OConnor 2065

Fluid Pan & Tilt Head

Operators Guide

Publication Part No. C1236-4980 Issue 1

Copyright © Vitec Group plc 2010

All rights reserved throughout the world. No part of this
document may be stored in a retrieval system, transmitted,
copied or reproduced in any way including, but not limited to,
photocopy, photograph, magnetic or other record without the
prior agreement and permission in writing of Vitec Group plc.

Trademarks

OConnor® is a registered trademark of the Vitec Group plc.

Important information about this document

Information contained within this document is subject to
change. OConnor Engineering reserves the right, without
notice to make changes in equipment design or performance
as progress in engineering, manufacturing or technology may
warrant.

Published by

Vitec Group Videocom Division
Technical Publications Department
William Vinten Building
Western Way
Bury St Edmunds
Suffolk IP33 3TB
UK
Email: [e-mail]

2065 Fluid Pan & Tilt Head

Preface

Thank you and congratulations on the purchase of your new 2065 fluid pan and tilt head from
OConnor.

We want you to get the most from your new 2065, and therefore encourage you to read this
operator's guide to familiarize yourself with its many features, some of which may be new to you.
It also covers essential health and safety information and a section on maintenance that will
ensure you keep your new product in perfect condition.

Please take the time to register your new purchase online at:

www.ocon.com

Features and benefits of your new 2065

The 2065 fluid pan and tilt head features OConnor's stepless counterbalance system as well as
ultra-smooth pan and tilt fluid drag designed for cine style shooting. A collapsible counterbalance
crank handle and numerical readout make counterbalancing the payload easy. The platform has
all the controls on the camera operator's side of the head (left side) and features a platform scale
on both sides and four rosette handle mountings. The platform release lever has a one touch
finger actuated safety release catch - while still requiring conscious effort.

OConnor's fluid drag system allows an extremely quick pan movement from one position to
another, recovering instantly without any spring back.

You can set up easily in low light conditions using the illuminated bubble level.

3

Operators Guide

Safety - read this first

Warning Symbols in this Operators Guide

Where there is a risk of personal injury or injury to others, comments appear
highlighted by the word WARNING!—supported by the warning triangle symbol.

Where there is a risk of damage to the product, associated equipment, process or
surroundings, comments appear highlighted by the word CAUTION!

Disposal of waste batteries

Any batteries included with this product must not be treated as household waste. By ensuring
these batteries are disposed of correctly, you will help prevent potentially negative
consequences for the environment and human health, and help conserve natural resources.
Read the ‘Battery Replacement’ section in this manual for instructions on replacing the battery.

Further Information

For further information or advice regarding this pan and tilt head, please contact OConnor
Engineering at:

OCONNOR ENGINEERING
2701 N. Ontario St.

Burbank, CA 91504
USA

Tel: [phone]
Fax: [phone]

E-mail: [e-mail]

Or use the contact form on our website.

www.ocon.com

4

2065 Fluid Pan & Tilt Head

Technical specification

Payload Capacity:

Minimum: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . zero lb (no load)

Maximum: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 lbs (32.2 kg)

at C of G height of 6" (15.2 cm)

See counterbalance chart

Tilt Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±90º throughout entire counterbalance

range, zero to maximum

Pan Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360°

Height: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.4 in (21.3 cm)

Width: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.4 in (31.5 cm)

Depth:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.6 in (21.8 cm)

Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22.9 lb (10.4 kg)

Operating Temperature Range: . . . . . . . . . . . . . . . . . . . . . . . -40°F to +140°F (-40°C to +60°C)

Dolly/tripod fixing: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mitchell base or 150 mm Ball base

5

Operators Guide

6

2065 Fluid Pan & Tilt Head

Contents

Page

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety - read this first. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Disposal of waste batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Technical specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Further Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Counterbalance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Numeric Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Ultra Smooth Fluid Drag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Pan and Tilt Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Tilt Lock Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Illuminated Bubble Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Handle Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Camera Mounting Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Bases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Installing the Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Handles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Mounting a Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Stability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Balancing the Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Fore and Aft Balance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Payload Weight and C of G Height Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Locking the Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Pan and Tilt Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Pan and Tilt Fluid Drag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Storing the Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Adjusting the Lock Levers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

7

Operators Guide

Battery cover

Pan fluid drag
adjustment knob

Pan fluid drag
level display

Pan lock lever

Tilt lock lever

Front box
mounting
screws

Tilt center
lock lever

Platform hook
release lever

Platform release
lever safety catch

Platform hook

Handle/accessory
mounting rosette

Platform release lever

Bubble level
illumination button

Eyepiece leveller
mounting screws

Bubble level

2065

Components

8

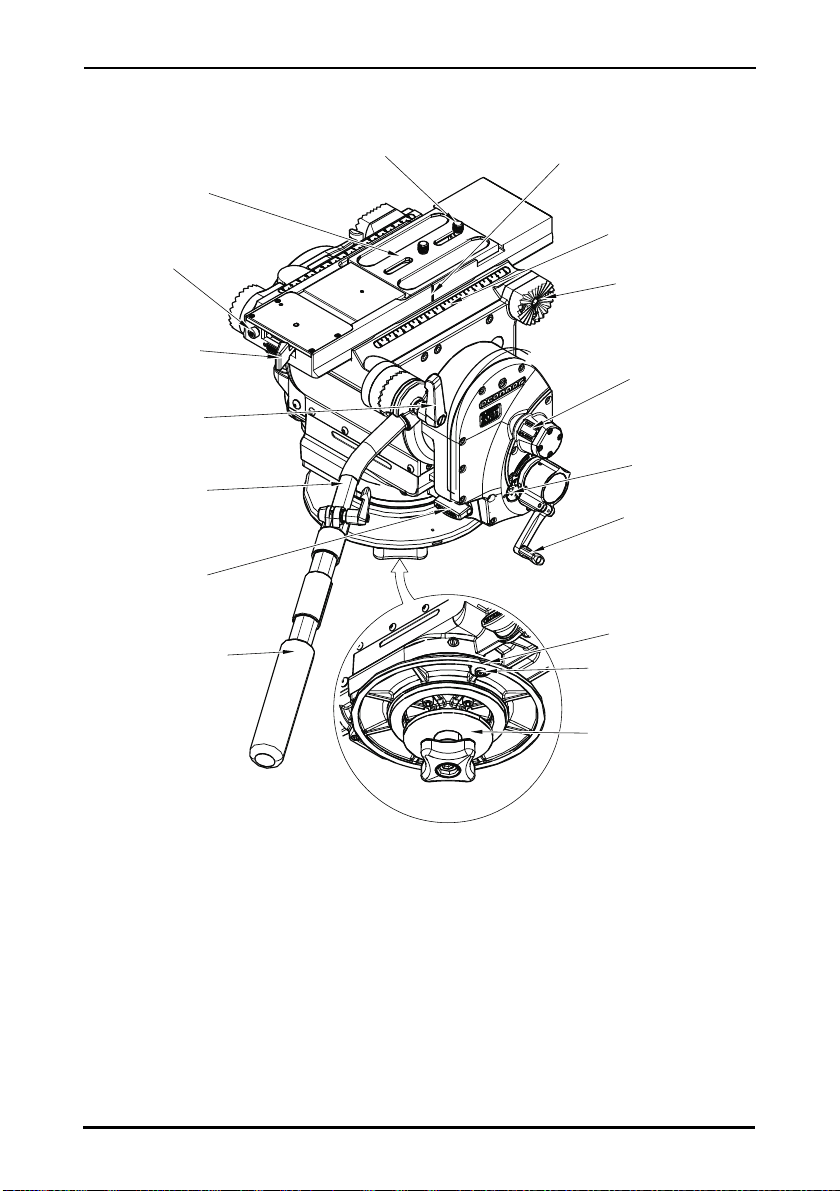

Fig. 1 2065 Fluid Pan & Tilt Head - right-hand-side

2065 Fluid Pan & Tilt Head

Camera fixing screws

Slide plate marker

Slide plate scale

Handle/accessory
mounting rosette

Counterbalance
numerical display

Tilt fluid
drag display

Folding
counterbalance
adjustment crank

Mitchell key marker

Mitchell key

Tie down

Camera plate
clamp release lever

Camera plate
clamp lever

Tilt fluid drag
adjustment knob

Camera mounting plate

Handle clamp

Handle

Handle extension

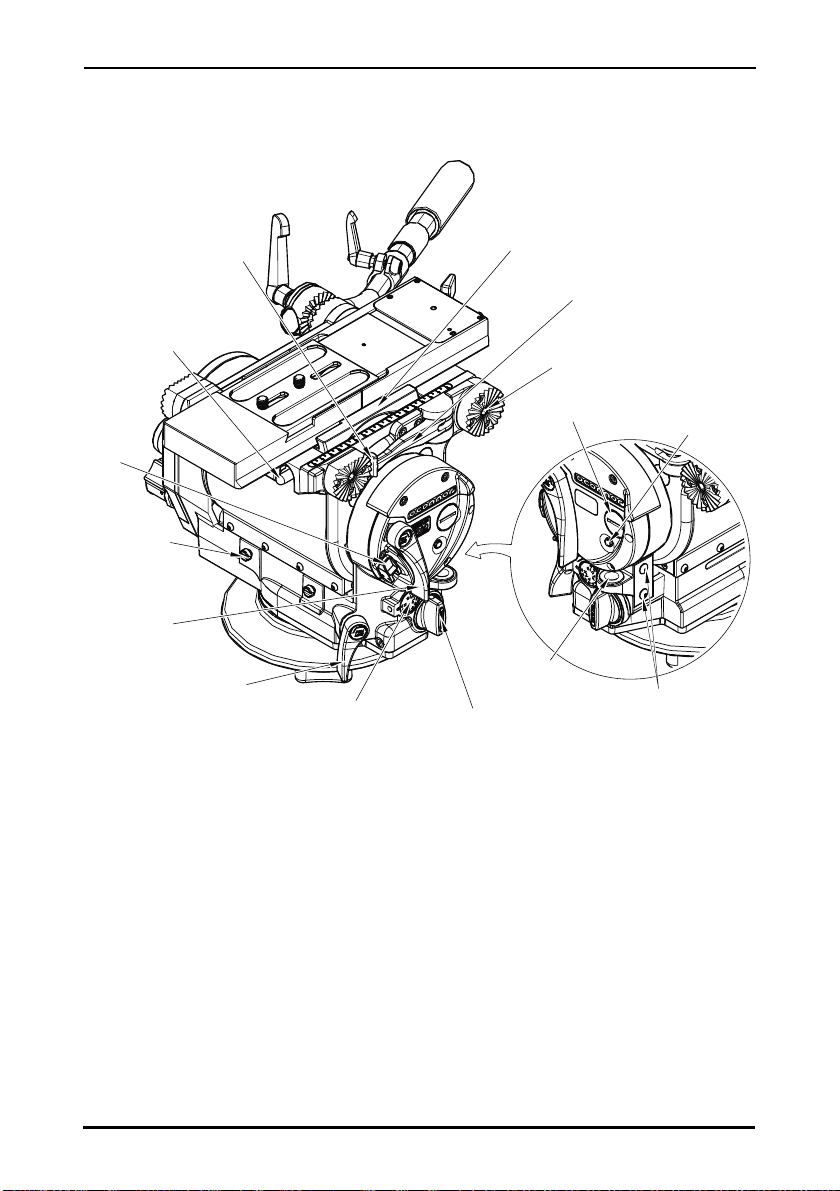

Fig. 2 2065 Fluid Pan & Tilt Head - left-hand-side

9

Operators Guide

2

4

6

8

10

12

14

16

18

in

0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150

lbs

5

9 141823273236 41455054596468

kg

51

102

152

203

254

305

356

406

457

mm

CAMERA WEIGHT

2065 COUNTERBALANCE CHART

CAMERA CENTER OF GRAVITY

ABOVE PLATFORM

Introduction

The 2065 fluid pan and tilt head embodies a patented sinusoidal counterbalance mechanism for
true and accurate balance; stepless drag assemblies for ultra-smooth pan and tilt motions; and
an adjustable camera mounting plate.

Counterbalance

The balance mechanism is adjusted by the counterbalance crank on the lower right of the head.
The knob has a folding handle which incorporates a clutch to prevent inadvertent damage to the
balance mechanism by over cranking. Maximum and minimum payloads that can be balanced
are dependent on the weight of the camera and accessories, and on the center of gravity (C of
G) height. The counterbalance chart (Fig. 3) shows the range of loads and C of G heights that
can be maintained in balance. The counterbalance can be adjusted all the way to zero (no
counterbalance) and the head can still be tilted ±90º.

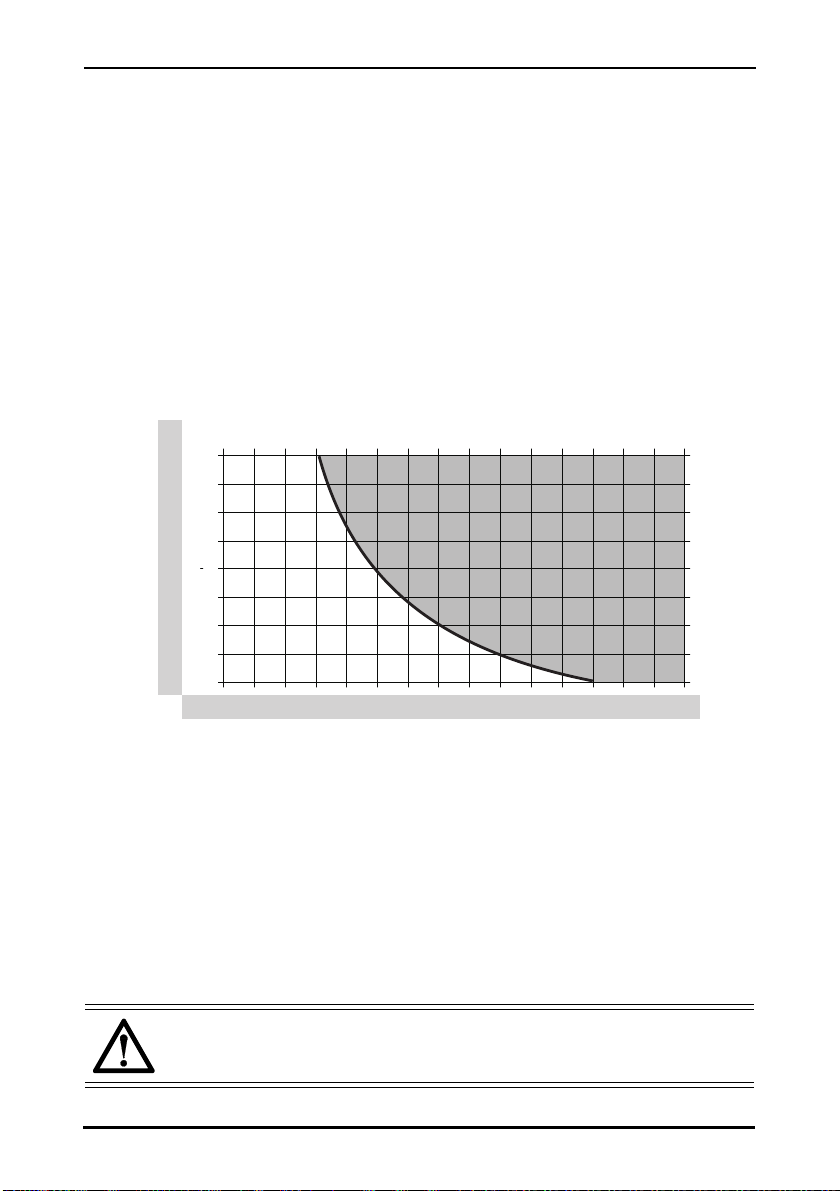

Fig. 3 Counterbalance chart

Numeric Display

The numeric display indicates the setting of the counterbalance mechanism on a scale of 0-99%.
Adjust the counterbalance crank clockwise to increase the counterbalance setting and counter­clockwise to reduce it. The display has a three color coded band offering advance warning of
cranking to the end limits. Green represents the normal operating range, yellow indicates
adjustment within 20-10% from the end limit and red indicates adjustment within 10-0% from the
end limit. When cranking into the red zone be careful to stop before reaching either "0%" or
"99%".

10

Warning!
Do not attempt to adjust the counterbalance crank below 0% or above 99%
as damage could occur.

2065 Fluid Pan & Tilt Head

Ultra Smooth Fluid Drag

Both the pan and tilt mechanisms incorporate OConnor's ultra smooth fluid drag to ensure
smooth movement. The pan drag adjustment knob is located on the lower left rear of the head
with its indicator wheel on the left side of the head, and the tilt drag adjustment knob on the lower
rear-right side of the head with its indicator wheel on the right side end cover. Both controls are
continuously adjustable from 0 to 9.

Pan and Tilt Locks

Friction locks on each axis allow the head to be locked at any desired position. The pan and tilt
lock levers are on the left-side of the head with the tilt lock above the pan lock for easy and
seamless operation.

Tilt Lock Pin

The tilt lock pin on the left side of the head is used to lock the platform in a horizontal position.
The lock pin is actuated by a flip lever with red (locked) and green (unlocked) label indicators.

Illuminated Bubble Level

The bubble level on the left side of the head can be illuminated by pressing the bubble level
illumination button. The light will go out after approximately 20 seconds.

Handle Mounting

Handle mounting rosettes are located at the front and rear of the head, on both the left and right
sides. A telescoping extension handle is supplied and is attached using the handle clamp, with
angular adjustment available on the rosette serrations. Additional handles, including a front
handle, Randal handle and accessories can also be installed.

Camera Mounting Platform

The camera is attached to the head by means of a side loading platform mechanism. The
mechanism is released by sliding the red clamp lock button to the left while pulling out the
platform release lever in a counterclockwise direction. Once the release lever has been rotated
about 90º, the red hook release lever in front of the platform can be pushed down and the
platform removed from the head.

The platform plate options for the 2065 head are:

• Euro style quick release with 120 mm camera mounting plate and screws

• OConnor plate with screws

• Panavision dovetail plate

• ARRI dovetail plate, 12" long

• ARRI dovetail plate, 24" long

Bases

The 2065 head can be fitted with either a Mitchell base and tie down or a 150 mm ball base and
tie down. Bases are secured by four ¼-20 socket head cap screws requiring a 3/16" hex drive
wrench.

11

Operators Guide

Operation

Installing the Head

The 2065 head may be installed onto standard tripods using either the Mitchell base and tie
down or the 150 mm ball base and tie down as required.

Warning!
Do NOT fit the head to a tripod that cannot support the combined mass of
the head and its full payload.

After securely mounting the head on to the tripod, use the bubble level to set it level. If
necessary, press the bubble level illumination button to view the bubble level in poor light
conditions.

Handles

Install the handles on the rosette handle mounts and adjust the position before tightening the
clamps. Adjust the length of the telescoping handle as desired.

Mounting a Camera

Warning!
Do not rely on the tilt lock when changing the payload. Always tilt the
platform horizontal and engage the tilt lock pin by placing it in the red
(engaged) position. The tilt pin will drop into the platform.

Ensure that the weight and C of G height of the total payload is within the
range for which the head is designed.

Always lock the crane, pedestal or dolly, before installing the head and
payload.

To mount the camera:

1. Attach the mounting plate to the bottom of the camera/lens.

2. Engage the tilt lock pin.

3. Release the safety catch and pull out the platform release lever.

4. Slide the camera mounting plate on to the platform towards the right side of the head until a
loud "click" is heard. Once the platform hook engages the camera mounting plate, the
camera is captive, but not locked.

Alternatively, press down and hold the red platform hook release lever on the front left hand
side of the head, and position the camera mounting plate on top of the head. Release the
red hook release lever until the platform hook automatically secures the camera mounting
plate.

5. Engage the platform release lever by rotating it towards the platform until the red safety
catch engages.

12

2065 Fluid Pan & Tilt Head

6. Install the remainder of the payload (lens, zoom and focus controls, viewfinder, prompter
etc.).

Stability

Warning!
When mounting the head on a tripod, it is possible to set the tripod legs so
that the center of gravity of the tilted payload falls outside the footprint of the
tripod, leading to instability.

Use the mid-level or floor spreader to ensure that the tripod legs are spread sufficiently so that
the center of gravity of the tilted payload remains within the footprint of the tripod.

Balancing the Head

Make sure that the head is level before balancing. Check the bubble level to verify that the head
itself is level and make sure that the platform is also level.

NOTE: It is important that the handle(s) and all camera accessories (lens, zoom and

focus controls, viewfinder, prompter etc.) are fitted in their operational position
before balancing the head. Any equipment fitted or adjusted later can
unbalance the head.

When the 2065 head is correctly balanced you will need a minimum amount of effort to move
the camera. Also the head and its payload can be set to any tilt position and the head will
maintain this position with 'hands off'.

The counterbalance chart (Fig. 3) shows the range of load and C of G heights that can be
maintained in balance. The area under the balance curve (colored white) corresponds to load/C
of G combinations that can be balanced over the full tilt range of ±90°. The area above the
balance curve (shaded grey) corresponds to load/C of G combinations that exceed the capacity
of the head.

Fore and Aft Balance

When positioning the payload, it is important to be aware of the potential danger that an
unbalanced payload will fall away suddenly. Always be prepared for this by maintaining a firm
hold on the payload until the balance is set correctly.

1. Make sure that the camera and all accessories are installed in their operating positions.

2. Before disengaging the tilt lock pin, turn the Counterbalance crank to set the counterbalance
to 50%. Depending on the payload weight, it may be necessary to increase or decrease this
setting to enable the payload to be correctly balanced fore and aft.

3. Make sure that the tilt lock pin is engaged.

13

Operators Guide

4. Set the tilt fluid drag adjustment knob to 0.

Warning!
Be prepared to prevent the head falling away suddenly. In the event of the
head falling away violently, increase the counterbalance setting using the
counterbalance crank.

5. Holding the handle to steady the platform, disengage the tilt lock pin.

6. Tilt the platform forwards and backwards and determine if camera payload is front or back
heavy.

7. If it is not in balance, re-engage the tilt lock pin. Release the safety catch and disengage the
platform release lever. With the help of an assistant, carefully slide the camera payload and
plate forwards or backwards until the payload is balanced fore and aft.

8. The horizontal balance is correct when no perceptible tilting force can be felt on the handle
with the platform level and with the tilt lock pin disengaged.

9. Fully engage the platform release lever to secure the payload in position. The red safety
button should engage the platform release lever.

10. If there is insufficient movement in the sliding plate to achieve balance, determine which
direction the mounting plate needs to be moved to achieve correct balance. Remove the
camera payload from the head, reattach the mounting plate to the camera in the required
position, remount the load and repeat the horizontal balancing procedure.

11. The sliding plate is marked and the platform has graduations. Make a note of the "balanced"
position to simplify rebalancing this particular payload.

Payload Weight and C of G Height Adjustment

The fore and aft balance must be set before adjusting the payload weight and C of G height
adjustment.

NOTE: If the correct numerical balance setting of the payload is known, tilt the

platform to the horizontal position and turn the counterbalance crank until the
numerical display shows the correct setting.

1. Using the handle, tilt the platform downwards and upwards. When correctly balanced, there
should be no perceptible tilting force on the handle at any angle of tilt and the head should
remain in any tilt position to which it is set.

2. If the head tends to fall away when the platform is tilted, the counterbalance will need to be
increased. If the head tends to spring back when the platform is tilted the counterbalance
will need to be decreased.

3. Set the platform level, unfold the counterbalance crank handle and turn it clockwise to
increase or counter-clockwise to decrease the counterbalance setting as required.

4. Using the handle, tilt the platform upward and downward to recheck the balance. Readjust
counterbalance until balance is achieved.

5. Make a note of the final numeric counterbalance setting to simplify rebalancing this particular
payload.

14

2065 Fluid Pan & Tilt Head

6. When the payload weight and C of G height adjustment is complete, check that the fore and
aft balance is still correct. Re-adjust the position of the sliding plate if necessary.

7. After balancing, exercise the head through the full range of pan and tilt to confirm that it
operates smoothly.

Locking the Platform

The tilt lock pin mechanism is operated by a flip lever on the left-hand side of the head. To
engage the pin, hold the platform in the horizontal position and flip the lever over from the green
position to the red position. If necessary, use the handle to rock the head slightly to achieve the
fully locked position. The pin and flip lever will snap towards the platform as the pin engages.

To release the tilt lock pin, flip the lever over from the red position to the green position. If the
platform is not balanced this may require force. If so, make sure that the tilt lock lever is rotated
clockwise to hold the platform in place.

Pan and Tilt Locks

The pan and tilt friction locks are operated by levers on the left of the head. The locks should be
applied whenever the camera/head is left unattended.

Rotate the pan lock lever clockwise (toward the front of the head) to engage the lock.

Rotate the tilt lock lever counter clockwise (upwards) to engage the lock.

If the lock does not fully engage at the end of the lock lever travel, refer to Adjusting the Lock

Levers in the Maintenance section.

Pan and Tilt Fluid Drag

Both the pan and tilt mechanisms incorporate the OConnor ultra smooth fluid drag system to
ensure smooth movement. The pan drag adjustment knob is located on the lower right rear of
the head, and the tilt drag adjustment knob on the lower left of the head. Both controls are
continuously adjustable from 0 to 9. To increase drag, turn the knob clockwise, towards a higher
setting. To decrease drag, turn the knob counter-clockwise, towards a lower setting.

Storing the Head

When shooting is finished and the 2065 head is to be stored, head settings (i.e. counterbalance
and fluid drag) should be left unchanged. This will reduce wear on the head's mechanisms and
save time on the next shoot.

15

Operators Guide

Maintenance

General

The 2065 fluid pan and tilt head is robustly made to high engineering standards and little
attention is required to maintain serviceability except for regular cleaning. For service beyond
the maintenance items in this manual, contact the OConnor headquarters or your local OConnor
representative.

Routine Maintenance

Replace the battery whenever the bubble level illumination is inadequate. See Battery
Replacement.

During normal use, check the following:

• Check the effectiveness of the pan and tilt locks. Reset as necessary - see Adjusting the
Lock Levers.

• Check the operation of the illumination of the bubble level. Replace the battery if necessary

- see Battery Replacement.

No other routine maintenance is required.

Cleaning

During normal operation the only cleaning required is a periodic wipe down with a lint-free cloth.
Any dirt that accumulates during storage or periods of non-use may be removed with a semi-stiff
brush. Particular attention should be paid to the dovetail faces of the camera mounting area.

NOTE: Use only detergent-based cleaners. DO NOT use solvent-based or oil-based

cleaners, abrasives or wire brushes to remove accumulations of dirt as these
will damage the protective surfaces.

Use out-of-doors under adverse conditions may require special attention and the head should
be covered when not in use. Salt spray should be washed off using fresh water at the earliest
opportunity. Sand and dirt act as an abrasive and should be removed using a semi-stiff brush or
a vacuum cleaner.

Adjusting the Lock Levers

If the pan and/or tilt friction locks do not fully engage at the end of the lock lever travel, adjust
the lever position as follows:

1. Rotate the lock lever to the "locked" end of travel.

2. Use a 3/32" hex key to loosen the set screw in the lock lever.

3. Pull the lock lever off the hexagonal shaft, rotate it away from the "locked" end of travel by
one flat on the shaft and reinstall it.

4. Tighten the set screw.

16

2065 Fluid Pan & Tilt Head

Battery Replacement

The battery illuminates the bubble level. It should be replaced whenever the illumination
becomes inadequate.

1. If required, rotate the tilt lock lever to assess the battery cover.

2. Use a coin or flat blade screwdriver to unscrew the battery cover (Fig. 4).

3. Carefully pull the battery out of its compartment with its ribbon.

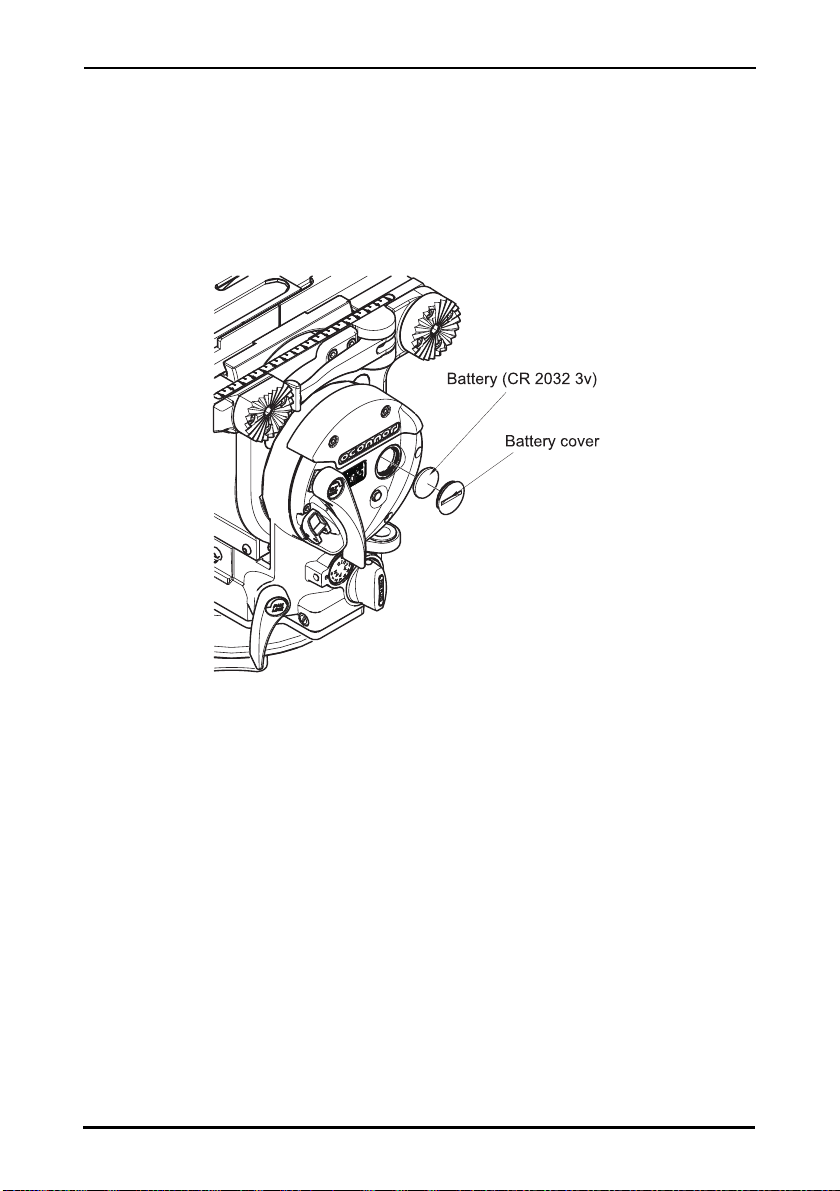

Fig. 4 replacing the battery

4. Fit a replacement CR 2032 3v battery in the compartment, ensuring that the positive side (+)
of the battery faces outermost and the ribbon is correctly positioned.

5. Replace the battery cover and tighten using a coin or flat blade screwdriver.

6. Press the bubble level illumination button and verify that the bubble level is lit for
approximately 20 seconds.

17

Headquarters

2701 N. Ontario St.
Burbank, CA 91504
USA
Tel: [phone]
Fax: [phone]

USA

709 Executive Blvd
Valley Cottage, NY 10989
USA
Tel: [phone]
Fax: [phone]

2701 N. Ontario St.
Burbank, CA 91504
USA
Tel: [phone]
Fax: [phone]

China

Room 706, Tower B
Derun Building,
YongAn Dongli A No. 8
Jianwai Ave., Chaoyang District
Beijing, China 100022
Tel: [phone]
Fax: [phone]

Germany

-Gebäude 16­Planiger Straße 34
55543 Bad Kreuznach
Germany
Tel: [phone]
Fax: [phone]

Erfurter Straße 16
85386 Eching
Germany
Tel: [phone]
Fax: [phone]

Japan

P.A. Bldg. 5F
3-12-6 Aobadai
Meguro-ku Tokyo 153-0042
Japan
Tel: [phone]
Fax: [phone]

Singapore

6 New Industrial Road
#02-02 Hoe Huat Industrial Bld
Singapore 536199
Tel: [phone]
Fax: [phone]

France

171 Avenue des Gresillons
92635 GENNEVILLERS Cedex
France
Tel: [phone]
Fax: [phone]

Specifications are subject to change without notice

www.ocon.com - [e-mail]

oconnor

®

A Vitec Group brand

UK

William Vinten Building
Western Way
Bury St. Edmunds
Suffolk IP33 3TB
UK
Tel: [phone]
Fax: [phone]
Sales Fax: [phone]
