OConnor 1030D, 1030Ds User manual
1030D/Ds Ultimate HeadFluid
C1237-0001
C1239-0001
ONLINE REGISTRA
HTTP://REGISTRATION.OCON.COM
Operators Guide
C1239-4980/1
TION:
OConnor
1030D/1030Ds
Fluid Head
Operators Guide
Publication Part No. C1239-4980 Issue 1
Copyright © 2011 The Vitec Group plc
All rights reserved throughout the world. No part of
this document may be stored in a retrieval system,
transmitted, copied or reproduced in any way,
including, but not limited to photocopy, photograph,
magnetic or other record without the prior agreement
and permission in writing of the Vitec Group plc.
Trademarks
OConnor™ is a registered trademark of
the Vitec Group plc.
Important information about this document
Information contained within this document is subject
to change. Camera Dynamics Limited reserves the
right, without notice, to make changes in equipment
design or performance as progress in engineering,
manufacturing or technology may warrant.
Published by
Vitec Group Videocom Division
Technical Publications Department
William Vinten Building, Western Way
Bury St Edmunds, Suffolk IP33 3TB
United Kingdom
E-mail: technical.publications@vitecgroup.com
1030D/1030Ds Fluid Head
Preface
Congratulations on the purchase of your new 1030D/1030Ds fluid head from OConnor!
We want you to get the most from your new 1030, and therefore encourage you to read this
operator’s guide to familiarize yourself with its many features, some of which may be new to you.
It also covers essential health and safety information and a section on maintenance that will
ensure your new product is kept in perfect condition.
Please register your purchase online at www.ocon.com.
Features and benefits of your new 1030
• The 1030D/Ds is the smallest in OConnor’s Ultimate range of fluid heads and
features OConnor’s stepless counterbalance system as well as ultra-smooth
pan and tilt fluid drag designed for cine-style shooting.

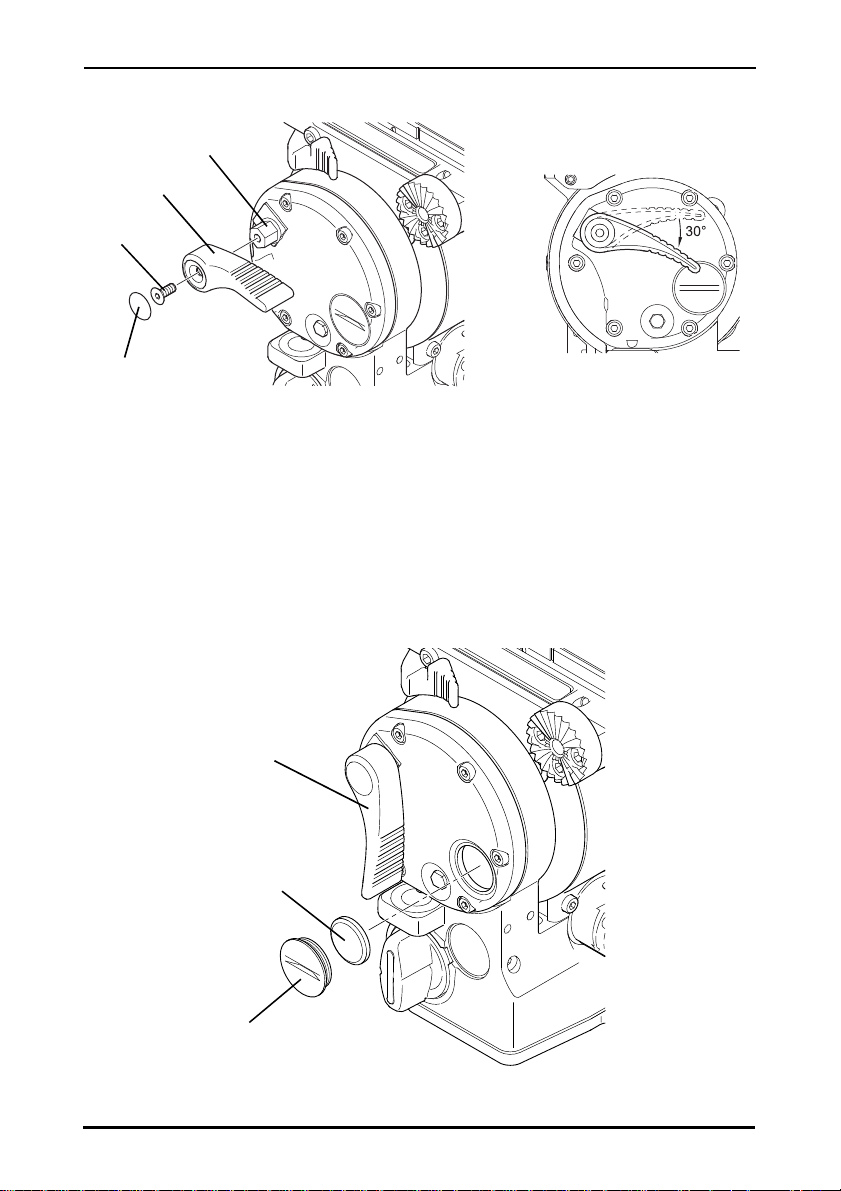

• A new collapsible counterbalance crank handle makes balancing the payload
easier. The new 1030 has all controls on the camera operator’s side of the
head (on the left or ‘smart’ side) and features platform scales and two rosette
handle mountings on either side of the head.
• OConnor’s patented fluid drag system allows extremely quick pan movements
from one position to another, recovering instantly without any springback.
• You can set up easily in low light conditions using the illuminated bubble level.
3
Operators Guide
Safety – read this first
Warning symbols in this Operators Guide
Where there is a risk of personal injury or injury to others, comments appear
highlighted by the word ‘WARNING!’—supported by the warning triangle symbol.
Where there is a risk of damage to the product, associated equipment, process or
surroundings, comments appear highlighted by the word ‘CAUTION’.
Disposal of waste batteries
Batteries included with this product must not be treated as household waste. By ensuring these
batteries are disposed of correctly, you will help prevent potentially negative consequences for
the environment and human health, and help conserve natural resources.
Refer to the section ‘Replacing the battery’ (page 17) in this manual for instructions on how to
remove the battery from the product safely. Hand the battery over to the applicable collection
point for recycling waste batteries.
Contact information
For further information or advice about the Ultimate range of fluid heads, please contact
OConnor at:
OConnor
2701 N. Ontario St.
Burbank, CA 91504
USA
Tel.: +1 818 847 8666
Fax: +1 818 847 1205
E-mail: info@ocon.com
Or visit our website www.ocon.com and use the contact form.
4
1030D/1030Ds Fluid Head
Technical specification
Dimensions
Height (incl. camera platform) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6.6 in. (16.8 cm)
Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7.6 in. (19.3 cm)
Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6 in. (11.7 cm)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.7 lbs (3.9 kg)
Payloads and ranges
Note: Payload capacity and tilt ranges are based on a C of G height of 6" (15 cm).
1030D

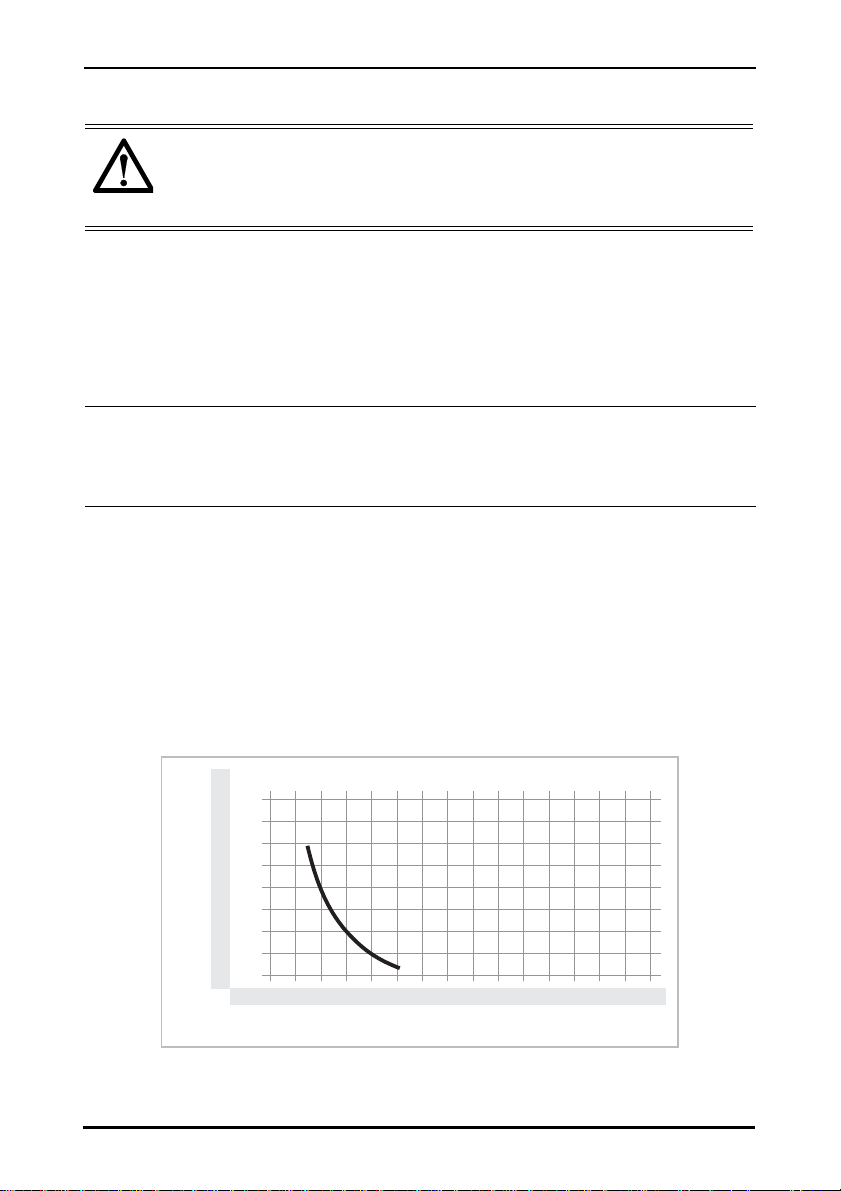

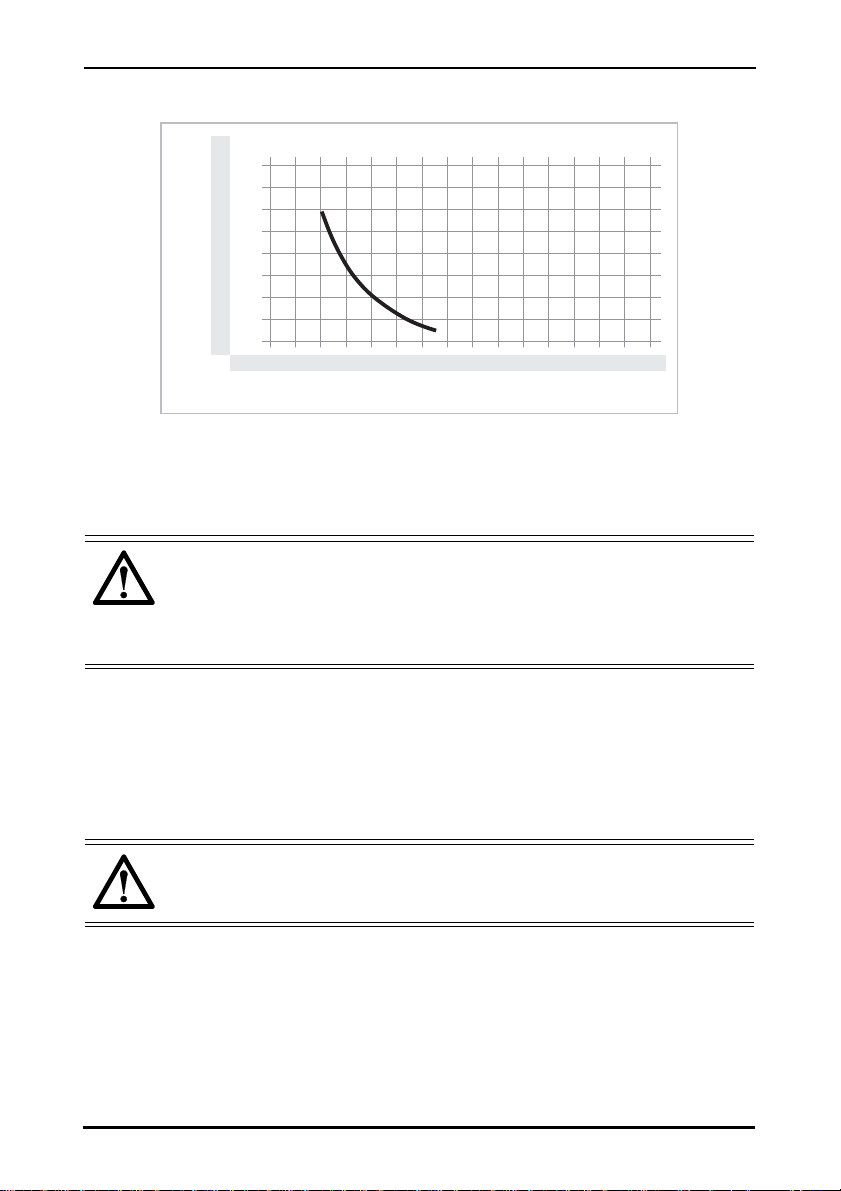

Capacity (see counterbalance graph, Figure 3)
Minimum payload. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 lbs (no load)
Maximum payload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 lbs (13.9 kg)
Tilt range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±90°
Pan range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360°
Counterbalance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . continuous
1030Ds
Capacity (see counterbalance graph, Figure 4)
Minimum payload. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 lbs (no load)
Maximum payload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 lbs (18.6 kg)
Tilt range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±60°
Pan range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360°
Counterbalance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . continuous
Mounting
Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mm ball base (standard)
150 mm ball base, Mitchell base (optional)
Camera mounting platform. . . . . . . . . . . . . . . . . . . . . . . . . . . mini Euro or large Euro (optional)
5
