Ocom OCPP-M05, OCPP-M03 Instruction Manual

58MM Portable MINI Thermal Printer

Instruction Manual

Version

June, 2014

Notice

• All rights reserved. Reproduction of any part of this manual in any form whatsoever,

without manufacturer’s express permission is forbidden.

• The contents of this manual are subject to change without notice.

• All efforts have been made to ensure the accuracy of the contents of this manual at the

time of going to press. However, should any errors be detected, manufacturer would greatly

appreciate being informed of them.

• The above notwithstanding, manufacturer can assume no responsibility for any errors in

this manual.

Declaration

We have been carefully handling the manual and trying our best to ensure the accuracy of

the contents of this manual. But we still can’t promise it is always correct due to our

products are being improved and updated all the time. The contents of this manual will be

updated without notice at any time.

All of our products must be used under environments/locations which are taken care by

human being. We are not responsible for any loss or damages caused by any accident while

the products are used without taken-care by human being. If there are any products failures

caused by human behaviors or natural disaster, we will not provide or just provide partial

free maintenance.

Please contact local agents for the latest information of the products.

Notes on safety

This section presents important information intended to ensure safety and effective use of
the printer. Please read carefully.

 Be sure to use the specified battery and power source provided by our company.

Connection to an improper power source may cause fire , explosion or damage to the
printer.

 Don’t put the battery into the fire or water, don’t disassemble or modify the battery,

don’t be short circuit, otherwise may result in injury or fire even explosion.

 If the printer would not be used for a long time, be sure to take off the battery,

otherwise the battery may leak the corrosive liquid out, if improper operation causes
battery leak, and the liquid is spattered on the skin or clothes, please wash it with water
immediately, if spattered in the eyes, please rinse them with water thoroughly and see a
doctor.

 Please don’t open the paper room cover when it is printing or just when printing is over, do

not touch the print head with hand or body, overheat may cause scald.

Notes on using

1、 Do not store the printer in hot and humid conditions.

2.、The lithium battery have a character that if it is not used for several months, it possibly
can’t be charged ever.

3、The printer’s power adapter is to be connected to a stable power 110~220Volts, please do

not use other devices on the same power socket, to avoid voltage fluctuations.

4、Avoid water or conductive material (for example: metal). If water is present on the

surface please turn off the power immediately.

5、Please ensure that a thermal paper roll is always inserted in the printer to avoid damaging

the printing roller and the printer head.

6、Please ensure that your printer is serviced and repaired by a qualified technician. No

responsibility is taken for misuse and/or non-qualified servicing.

7、The power adapter that comes with this printer is specifically designed to be only used

with the printer, please do not use an alternative power adapter.or use 9V-2A The standard

power adapter.

8、In order to ensure print quality and longevity of your printer, please ensure that only good

quality thermal paper rolls are used.

9、Please keep this manual in a safe place, where it can be accessed easily and used for your

reference.

1.Features & Application area

一．Features

 It can print 58mm width thermal paper

 Paper dimensions 40mm

 High-speed,Clear printing

 Super power lithium electricity, standby time can reach 5-6 days

 Auto sleep, auto awake, save electricity

 small size、light weight、reliable performance、simple to connect、 easy to use

二．Application area

Compared to the traditional thermal receipt printer, Mini printer has smaller body, more

reliable capability, more steady printing and portable advantages. The Mini printer can work

on a lot of locations, such as the TAXI bill printing, administrative fees receipt printing, post

receipt printing, restaurant ordering information printing, online payment information

printing, etc. With the rapid popularity of smart-mobile, Mini printer will be more widely

used in the near future

2.Specification

Printing Method: Direct Thermal

Speed: 90mm/sec

Reliability TPH Life: 100km

Resolution: 203DPI (8dot/mm)

Printing Width: 48mm (384dot)

Paper Width: 58±01mm

Roll Diameter: φ≤40mm

Paper Type: Thermal Paper

Power: rechargeable lithium battery/NI-MH battery

Battery: 7.2VNiMh, 700mAh

Charging method: external charger

Print parameters: support to download the Logo trademark

Language: support for multiple languages

Character size: 384 dots/line

FontA:12*24dots,1.5(W)*3.0(H)mm

FontB: 9*17dots, 1.1(W)*2.1(H)mm

Simplified/Traditional:24*24dots,3.0(W)*3.0(H)mm

Printing Chinese character: Chinese: simplified Chinese 24x24 point. support 18030 font library,

support Taiwan and HK traditional(complex font) ANK: ANK characters

Extended character table:

OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek/Hebrew/EastEurope/I

ran/WPC1252/OEM866/OEM852/OEM858/IranII/Latvian/Arabic/PT1511251/OEM747/WPC1257/V

ietnam/OEM864/Hebrew/WPC1255/Thai

Emulation: ESC/POS/STAR command

Interface: standard RS232/USB, Bluetooth 2.0&4.0(option)/SPP agreement or infrared/IRCOMM

agreement (optional)/Android up to 4.0 operation system.

Driver: Win200/Win2003/Win2000/Win7/WinXP/VISTA/WIN8/LINUX

Working Temperature: -10～50℃

Humidity: 10～90%

Weight: 134g

3.Appearance

Model：OCPP-M03

Size：103*75*46 mm

Weight：134g(With Battery)

Model：OCPP-M05

Size：102X78X46 mm

Weight：134g(with Battery))

4.Communication Interface

 1. RS232(COM)：standard RS232 Communications Protocol

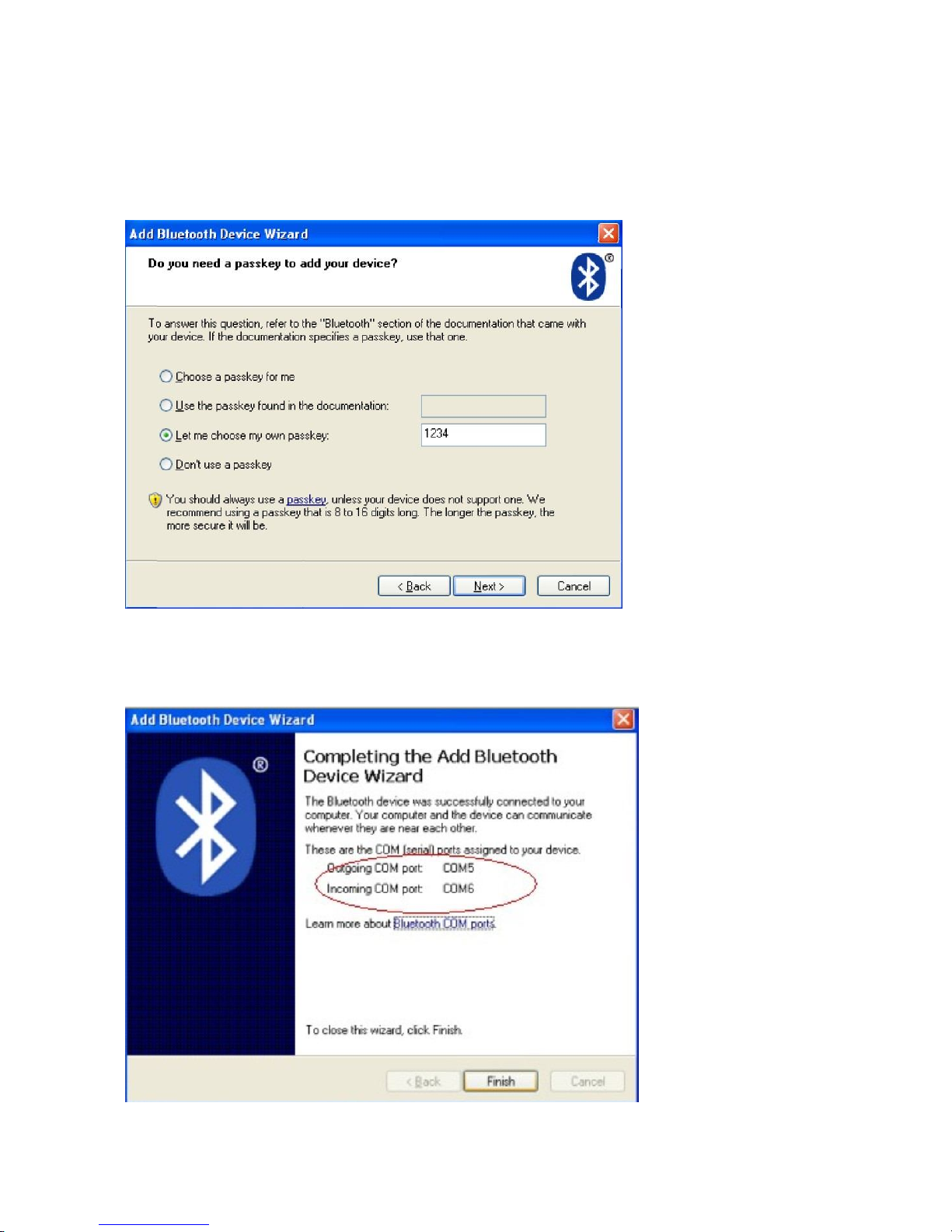

 2. Bluetooth 2.0：standard Bluetooth 2.0 Communications Protocol

 3. USB：standard USB Communications Protocol

4-1. RS-232 Serial Interface

RS-232 is developed according to the EIA standard asynchronous transmission, the
specifications are as following:

Data transmission: serial interface

Synchronization: asynchronous

Signal Level: RS-232 level, logic 1:-5.4v, logic 0 : +5.4v

Hardware Flow Control: None

Baud rate: 2400pbs to 115200pbs is optional

Data word length: 8 bits

Stop bit: 1bit

Parity: None

Users can get the current baud rate from the printer self-testing page.

Serial cable: We have made the cable specially using mini port like Mini USB port which
connects the printer .The following picture shows the signal definition of the RS-232 Serial
interface:

The connection between the printer and host follows the following rules:

Printer Host

TXD RXD

RXD TXD

GND GND
