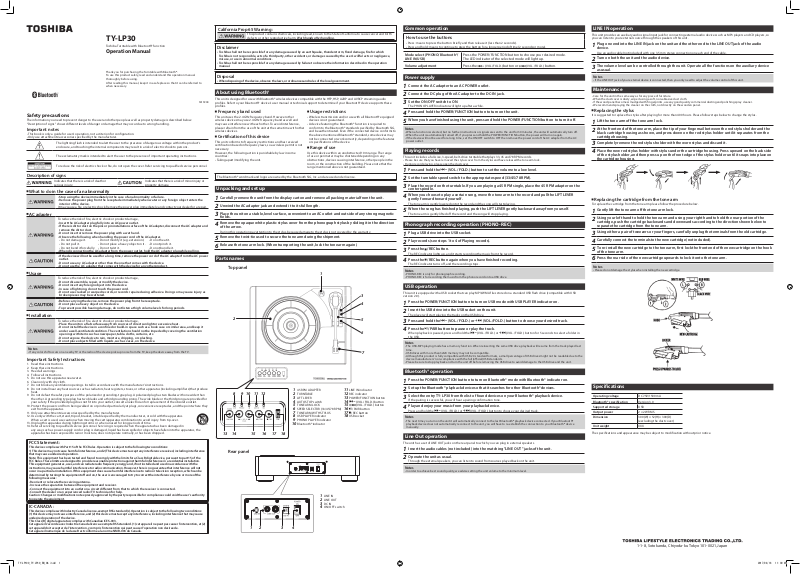

Ocean Star Electronics LP30 User Manual

TY-LP30

Toshiba Turntable with Bluetooth® function

Operation Manual

Thank you for purchasing the Turntable with Blu etooth®. To use this produc t safely, read and und erstand this operation man ual thoroughly before using. After reading this m anual, keep it in a safe place so that it can be referred to when necessary.

5015900

Safety precautions

The information you need to prevent danger to the user and other people as well as property damage is described below. “Description of signs” shows different levels of danger or damage that may occur due to wrong handling.

Important notes

• This book is only a guide for user's operation, not a criterion for configuration.

• Only use at tachments/accessories specified by the manufacturer.

The lightning flash is intended to alert the user to the presence of dangerous voltage within the product's enclosure, and touching the internal components may result in a risk of electric shock to persons.

The exclamatory mark is intended to alert the user to the presence of important operating instructions.

To reduce the risk of electric shock or f ire, do not open the cover. Refer servicing to qualified service personnel.

Description of signs

Indicates that there is a risk of death or serious injury.

What to do in the case of an abnormality

• Stop using the device immediately in the case of an abnormality or failure.

• Remove the power plug from the receptacle immediately when water or any foreign obje ct enters the interior of the device.

It may cause a fire or electric shock. Remove the power plug immediately, and contact your dealer for a repair.

AC adapter

To reduce the risk of f ire, electric shock or product damage,

• Insert the AC adapter plug fully into an AC power outlet.

• If there is d irt or dust on the pin s or pin installation surface of the AC adapter, disconne ct the AC adapter and remove the di rt or dust.

• Do not inser t or remove the power plug with a wet hand.

• Observe the following when handling the power cord of the AC adapter.

• Do not damage it. • Do not modify it (e.g. extension). • Do not heat it.

• Do not pull it. • Do not place a heavy object on it. • Do not pinch it.

• Do not bend it forcefully. • Do not twist it. • Do not bundle it.

• When disconnecting the AC adapter from the power outlet, hold the AC adapter plug while pulling.

• If the device will not be used for a long time, remove the power cord of the AC adapter from the AC power outlet.

• Do not use any AC adapter other than the one that comes with the device.

• Do not use the AC adapter that comes with the device for any other produc t.

Usage

To reduce the risk of f ire, electric shock or product damage,

• Do not disassemble, repair, or modify the device.

• Do not inser t any foreign object into the dev ice.

• In case of lightning, do not touch the power cord.

• Do not use cracked or warped records, or records repaired using adhesive. Doing so may cause injury as broken pieces may be scattere d.

• Before carrying the device, remove the power plug from the receptacle.

• Do not place a heavy object on the device.

• To prevent possible hearing damage, do not listen at high volume levels for long periods.

Installation

To reduce the risk of f ire, electric shock or product damage,

• Place the unit on a  at surface away from sources of direct sunlight or excessive heat .

• Do not install the device in a con ned or build-in space such as a book case or similar area, and keep it under a well-ventilated condition. The ventilation should not be impe ded by covering the ventilation openings with items such as newspaper, table-cloths, curtains, etc.

• Do not expose the device to rain, moisture, dripping, or splashing.

• Do not place objects  lled with liquids, such as vases, on the device.

Notes

• If any color shif t occurs on a nearby T V or the radio of the device pick s up noise from the T V, keep the d evice away from the TV.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instruc tions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instruc tions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched par ticularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a car t is used, use caution when moving the cart /apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all ser vicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Statement :

This devi ce complies with Par t 15 of the FCC Rul es. Operation is su bject to the follo wing two condition s:

1) This device may not c ause harmful inte rference, and 2) Thi s device must accept a ny interference re ceived, includi ng interferenc e that may cause undesired operation. Note: This e quipment has bee n tested and found to co mply with the limit s for a Class B digital d evice, pursuant to pa rt 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equi pment generates , uses, and can radi ate radio frequen cy energy and, i f not installed and u sed in accordance wi th the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a par ticular insta llation. If this eq uipment does caus e harmful interf erence to radio or tel evision receptio n, which can be determi ned by turning the equ ipment o an d on, the user is enco uraged to try to corr ect the interf erence by one or more of t he following measures:

• Reorient o r relocate the receiving ante nna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a ci rcuit di ere nt from that to which the receiver is connected.

• Consult the dealer or an e xperienced radio/TV technician for hel p. Caution: Ch anges or modi cations not ex pressly approved b y the party resp onsible for compl iance could void the us er's authority to operate the equipment.

IC-CANADA :

This devi ce complies with Ind ustry Canada lice nse-exempt R SS standard(s). Opera tion is subject to th e following two con ditions: (1) this device may not cau se interferenc e, and (2) this device must ac cept any interfere nce, including int erference that m ay cause undesir ed operation of the d evice. This Class [B] digital apparatus complies with Canadian ICES-0 03. Cet appar eil s’accorde avec Indust rie Canada licence -exempte RSS st andard. (1) cet appareil ne pe ut pas causer l’int ervention, et (2) cet appar eil doit accepter de l ’intervention , y compris l’inter vention qui peut cau ser l’operation non d esiree de. Cet appar eil numerique de la c lasse B est conforme a l a norme NMB- 003 du Canada.

Indicates that there is a risk of minor injury or property damage.

California Prop 65 Warning :

This product contains chemicals, including lead, k nown to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

Disclaimer

• Toshiba shall not b e responsible for any damage caused by an earthquake, thunderstorm,  ood damage,  re for which Toshiba is not responsible, acts of a third party, other accidents, or dam ages caused by the use r's willful acts or neglig ence, misuse, or use in abnormal conditions.

• Toshiba shall not b e responsible for any damage caused by failure to observe the information described in the operation manual.

Disposal

• When dis posing of the device , observe the laws, o r ordinances and rul es of the local gover nment.

About using Bluetooth®

This unit is designed for use with Bluetooth® wireless devices compatible with the HFP, HSP, A2DP and AVRCP streaming audio profiles. Refer to your Bluetooth® device’s user manual or technical support to determine if your Bluetooth® device supports these profiles.

Frequency band used

This unit uses the 2.4 GHz frequency band. However other wireless devices may use 2.4 GHz frequency band as well and may cause interference with each other. To avoid interference, please refrain from the use of the unit at the same time with other wireless devices.

Certi cation of this device

This unit conforms to frequency restrictions and has received certif ication based on frequency laws, so a wireless permit is not necessary. However, the following action is punishable by law in some countries:

• Taking apart/modifying the unit.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and are used under license.

Usage restrictions

• Wireless transmission and/or use with all Bluetooth® equipped devices is not guaranteed.

• A device featuring the Bluetooth® function is required to conform to the Bluetooth® standard speci ed by Bluetooth SIG, and be authenticated. Even if the connected device conforms to the above mentioned Bluetooth® standard, some devices may not be connected or work correctly, depending on the features or speci cations of the device.

Range of use

Use this device within an unobstruc ted 10 m range. The range of use or perimeter may be shortened depending on any obstructions, devices causing interference, other people in the room, or the construc tion of the building. Please note that the range mentioned above is not guaranteed.

Unpacking and set up

Carefully remove the unit from the display carton and remove all packing material from the unit.

Unwind the AC adapter jack and extend it to its full length.

Place the unit on a stable, level surface, convenient to an AC outlet and outside of any strong magnetic

fields.

Remove the opaque white plastic stylus cover from the phonograph stylus by sliding it in the direction

of the arrow.

During this operation pay attention to the stylus, because damage to the stylus is not covered by the warrant y.

Remove the twist-tie used to secure the tone arm during the shipment.

Release the tone arm lock. (When transporting the unit, lock the tone arm again.)

Parts names

Top panel

8 9 10

11 12

13 14 15 16 17 18

Rear panel

1 2 3 4

1 45 RPM ADAPTER

2 TURNTABLE 3 LIFT LEVER 4 AUTO STOP switch 5 TONE ARM LOCK 6 SPEED SELECTOR (33/45/78 RPM) 7 TONE ARM WITH STYLUS 8 USB PLAYER indicator 9 PHONO PLAYER indicator 10 Bluetooth® indicator

1 LINE IN

2 LINE OUT 3 DC IN 4 ON/OFF switch

11 LINE IN indicator 12 REC indicator 13 POWER/FUNCTION button 14 (VOL./FOLD.) button 15 (VOL./FOLD.) button 16 /PAIR button 17 /REC button 18 USB socket

Common operation

How to use the buttons

• Press: means to press the button brie y and then release it (less than 2 seconds).

• Press and hold: means to continue to press the button for a longer period of time (2 seconds or more).

Mode select (PHONO/Bluetooth®/ LINE IN/USB)

Volume adjustment

Press the POWER/FUNCTION button to choose your desired mode. The LED indicator of the selected mode will light up.

Press the

(VOL./FOLD.) button or (VOL./FOLD.) button.

Power supply

Connect the AC adapter to an AC POWER outlet.

Connect the DC plug of the AC adapter to the DC-IN jack.

Set the ON/OFF switch to ON.

The PHONO PL AYER indicator will light up after a while.

Press and hold the POWER/FUNCTION button to turn on the unit.

When you have finished using the unit, press and hold the POWER/FUNCTION button to turn it off.

Notes

• When a function is sele cted, but no fur ther instructi ons or signals are sent to the unit for 30 minutes, the unit will a utomatically turn o  .

• When the unit is au tomatically turne d o , i f you press and hold the POWER/FU NCTION butto n, the power will turn on again.

• If the d evice will not be used f or a long time, set the O N/OFF switch to OFF then remove the powe r cord of the AC adapter fro m the AC power outlet.

Playing records

This unit includes a full-size, 3-speed, belt-drive turntable that plays 33, 45 and 78 RPM records.

• Pleas e be sure that you have remove d the stylus cover fr om the stylus and have release d the tone arm lock.

• Duri ng record playing, please open the dust cover.

Press and hold the (VOL./FOLD.) button to set the volume to a low level.

Set the turntable speed switch to the appropriate speed (33/45/78 RPM).

Place the record on the turntable. If you are playing a 45 RPM single, place the 45 RPM adapter on the

center spindle.

When you choose to play a certain song, move the tone arm to the record and pull the LIFT LEVER

gently forward toward yourself.

The tone arm is gently lowered onto the record and the song will start playing.

When the song has finished playing, push the LIFT LEVER gently backward away from yourself.

The tone arm is gently lifted of f the record and the song will stop playing.

Phonograph recording operation (PHONO-REC)

Plug a USB drive into the USB socket.

Play records (see steps 1 to 4 of Playing records).

Press the /REC button.

The REC indicator lights up, and it starts recording the music from the record.

Press the /REC button again when you have finished recording.

The REC indicator turns off, and the recording stops.

Notes

• PHONO-REC is only for phonograph recording.

• PHON O-REC is for reco rding the music from th e phono record onto a USB drive.

USB operation

This unit is equipped with a USB socket that can play MP3/WMA files stored on a standard USB flash drive (compatible with USB version 2.0).

Press the POWER/FUNCTION button to turn on USB mode with USB PLAYER indicator on.

Insert the USB drive into the USB socket on the unit.

The player will start playing the tracks on the USB drive.

Press and hold the (VOL./FOLD.) or (VOL./FOLD.) button to choose your desired track.

Press the /PAIR button to pause or play the track.

When playback is paused, press and hold the ( VOL. /FOLD.) or (VOL./FOLD.) button for 5 seconds to select a folder in the USB.

Notes

• The USB-MP3 pl aying mode has a memory func tion. When reins erting the same USB d rive, playback will re sume from the track pl ayed last time.

• USB dri ves with more than 32GB mem ory may not be compatible.

• Although this pr oduct is fully comp atible with USB 2.0 st andard formats, a sm all percentage of USB dr ives might not be readable due to th e device manufacturers’ non-compliance with the full (o cial) USB standards.

• Pleas e be sure to stop playback and turn th e unit o before removing the USB drive to avoid dama ge to the USB drive and the unit.

Bluetooth® operation

Press the POWER/FUNCTION button to turn on Bluetooth® mode with Bluetooth® indicator on.

Set up the Bluetooth® playback device so that it searches for other Bluetooth® devices.

Select the entry T Y-LP30 from the list of found devices on your Bluetooth® playback device.

If the pairing is successful, you will hear a pairing confirmation tone.

Play and enjoy your music from your playback device.

Press and hold the (VOL ./FOLD.) or ( VOL./FOLD.) button to choose your desired track.

Notes

• The n ext time you turn on the unit it will automati cally connect to th e last Bluetooth® play back device connec ted. If your Blueto oth® playback d evice does not automatically r econnect to the uni t, you will have to re-e stablish the conne ction to your Bluetooth® device manually.

Line Out operation

The unit has a set of LINE OUT jacks on the rear panel to which you can plug in external speakers.

Insert the audio cables (not included) into the matching "LINE OUT" jacks of the unit.

Operate the unit as usual.

Through the external speakers, you can listen to sound from sources played back on the unit.

Notes

• In ord er to achieve best sound qualit y, we advi se setting the unit volume to the minimum level.

LINE IN operation

This unit provides an auxiliary audio signal input jack for connecting ex ternal audio devices such as MP3 players and CD players, so you can listen to your external source through the speakers of this unit.

Plug one end into the LINE IN jack on the unit and the other end to the LINE OUT jack of the audio

device.

Use an audio cable (not included) with one 3.5 mm stereo connection on each end of the cable.

Turn on both the unit and the audio device.

The volume level can be controlled through the unit. Operate all the functions on the auxiliary device

as usual.

Notes

• If the L INE OUT jack of your ex ternal device is conn ected, then you on ly need to adjust the vo lume control of this uni t.

Maintenance

• Care f or the unit in the same way a s for any piece of furniture.

• When the dust cove r is dusty, wipe it using a soft, no n-abrasive dust cl oth.

• If the w ood panel become s smudged with  ngerprints, us e any good quality com mercial dusting and p olishing spray clea ner.

• We recom mend spraying the cl eaner on the cloth, not direct ly on the wooden panel.

Replacing the stylus

It is suggested to replace the stylus after playing for more than 4 00 hours. Please follow steps below to change the stylus.

Lift the tone arm off the tone arm lock.

At the front end of the tone arm, place the tip of your fingernail between the red stylus holder and the

black cartridge housing as shown, and press down on the red stylus holder until it separates from the cartridge housing.

Completely remove the red stylus holder with the worn stylus and discard it.

Place the new red stylus holder with stylus under the cartridge housing. Press upward on the back side

of the stylus holder, and then press up on the front edge of the stylus holder until it snaps into place on the cartridge housing.

Replacing the cartridge from the tone arm

To replace the cartridge from the tone arm please follow the procedure below.

Gently lift the tone arm off the tone arm lock.

Using your left hand to hold the tone arm and using your right hand to hold the rear portion of the

cartridge, push the cartridge backwards and downwards according to the direction shown below to separate the cartridge from the tone arm.

Using either a pair of tweezers or your fingers, carefully unplug the terminals from the old cartridge.

Carefully connect the terminals to the new cartridge (not included).

To re-install the new cartridge to the tone arm, first lock the front end of the new cartridge on the hook

of the tone arm.

Press the rear side of the new cartridge upwards to lock it onto the tone arm.

Notes

• Pleas e do not damage the st ylus when installing the new cartridge.

Specifications

Operating voltage DC7.5V/1500 mA

Bluetooth® speci cation Version 3.0

Supported storage USB

Output power 2 × 2W RMS

Dimension 300(W) × 52(H) × 300(D)

Unit weight XXX

The specifications and appearance may be subject to modification without prior notice.

(excluding the dust cover)

1-1-8, Sotokanda, Chiyoda-ku Tokyo 101-0021, Japan

TY-LP100_TY-LP30_EN_04.indd 1 2017/04/18 11:39:45

Ocean Star Electronics LP30 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
