Ocean Star Electronics 31324GC User Manual
PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATI
NG THIS UNIT AND
ALEXA ENABLED BLUETOOH/WIFI
WIRELESS STEREO SMART SPEAKER
MODEL: JSB-550
USER MANUAL
RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
IMPORTANT SAFETY INSTRUCTIONS
When used in the directed manner, this unit has been designed and manufactured to ensure
your personal safety. However, improper use can result in potential electrical shock or fire
hazards. Please read all safety and operating instructions carefully before installation and use,
and keep these instructions handy for future reference. Take special note of all warnings listed
in these instructions and on the unit.
1. Read these instructions – All the safety and operating instructions should be read
before the appliance is operated.
2. Keep these instructions – The safety and operating instructions should be kept for future
reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow all instructions – All operation and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near water; for
example, near a bath tub, washbowl, kitchen sink, laundry tub, in a wet basement, or
near a swimming pool.
6. Clean only with dry cloth – The appliance should be cleaned only as recommended by
the manufacturer.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions. The appliance should be situated so that its location or position does not
interfere with its proper ventilation. For example, the appliance should not be situated on
a bed, sofa, rug, or similar surface that may block the ventilation openings; or placed in a
built-in installation, such as a bookcase or cabinet that may impede the flow of air through
the ventilation openings.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. AC adaptor is used as disconnect device and it should remain readily operable during
intended use. In order to disconnect the apparatus from the mains completely, the AC
adaptor should be disconnected form the mains socket outlet completely.
10. Only use attachments / accessories specified by the manufacturer.
11. Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
14. This appliance shall not be exposed to dripping or splashing water and that no object
filled with liquids such as vases shall be placed on the apparatus.
15. Power Sources – The appliance should be connected to a power supply only of the type
described in the operating instructions or as marked on the appliance. Do not overload
wall outlet.
16. Do not attempt to dismantle, open or repair this product yourself. If a fault occurs, seek
advice from your local qualified service technician or contact the distributor via the
telephone number at the back of this instruction manual.
17. Nameplate is located on the bottom of product.
E1
IMPORTANT NOTES
Avoid installing the unit in locations described below:
Places exposed to direct sunlight or close to heat radiating appliances such as
electric heaters.
Places subject to constant vibration.
Dusty, humid or moist places.
Sources of electrical noise such as fluorescent lamps or motors.
In case of malfunction due to electrostatic discharge, the apparatus has to be reset by
disconnecting it from mains supply, wait at least for 60 seconds before reconnect
COMPLIANCE WITH FCC REGULATIONS
FCC ID: LMZ-31324GC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
PROTECT YOUR FURNITURE
This product is equipped with non-skid rubber 'feet' to prevent the product from moving when
you operate the controls. These 'feet' are made from non-migrating rubber material specially
formulated to avoid leaving any marks or stains on your furniture. However certain types of oil
based furniture polishes, wood preservatives, or cleaning sprays may cause the rubber 'feet'
to soften, and leave marks or a rubber residue on the furniture. To prevent any damage to
your furniture we strongly recommend that you purchase small self-adhesive felt pads,
available at hardware stores and home improvement centers everywhere, and apply these
pads to the bottom of the rubber 'feet' before you place the product on fine wooden furniture.
E2
DEAR JENSEN® CUSTOMER
Selecting fine audio equipment such as the unit you've just purchased is only the start of
your musical enjoyment. Now it's time to consider how you can maximize the fun and
excitement your equipment offers. This manufacturer and the Electronic Industries
Association's Consumer Electronics Group want you to get the most out of your equipment
by playing it at a safe level. One that lets the sound come through loud and clear without
annoying blaring or distortion and, most importantly, without affecting your sensitive
hearing.
Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of
sound. So what sounds "normal" can actually be loud and harmful to your hearing. Guard
against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
Start your volume control at a low setting.
Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future.
After all, we want you listening for a lifetime.
We Want You Listening For a Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often undetectable until it is too late, this manufacturer
and the Electronic Industries Association's Consumer Electronics Group recommend you
avoid prolonged exposure to excessive noise.
Customer's Record:
The serial number of this product is found on its back cover. You should note the serial
number of this unit in the space provided as a permanent record of your purchase to aid in
identification in the event of theft of loss.
Model Number: JSB-550 Serial Number: ____________________
E3
ACCESSORIES
1 4 3
5
6 7
2
1 x AC Adaptor
1 x Stereo Audio Connection Cable with 3.5mm stereo plugs
1 x User Manual
LOCATION OF CONTROLS
MAIN UNIT
TOP VIEW
<<Replace updated drawing here>>
Controls Press & hold Tap
1. Microphone --- ---
2. Mode/ Tap to talk Button Switch input mode
(Bluetooth/ Line in/ WiFi)
3. Power On/Standby;
Turn unit On/ Off Switch Mic/ Alexa On/ Off
Activate Mic to talk to Alexa
without saying Alexa first
Mic ON/OFF Button
4. Volume - Button Decrease Volume
Decrease Volume by step
Continuously
5. Volume + Button Increase Volume
Increase Volume by step
Continuously
6. Play/ Pause/ Pair In BT mode, enter pairing
mode
Play/ Pause at WiFi/ BT
playback
7. Mode indication LED --- ---
E4
8 9
BACK VIEW
10
AUX IN
WPS
<<Replace updated drawing here>>
Controls Press & hold Tap
1. DC IN Jack --- ---
2. LINE IN Jack --- ---

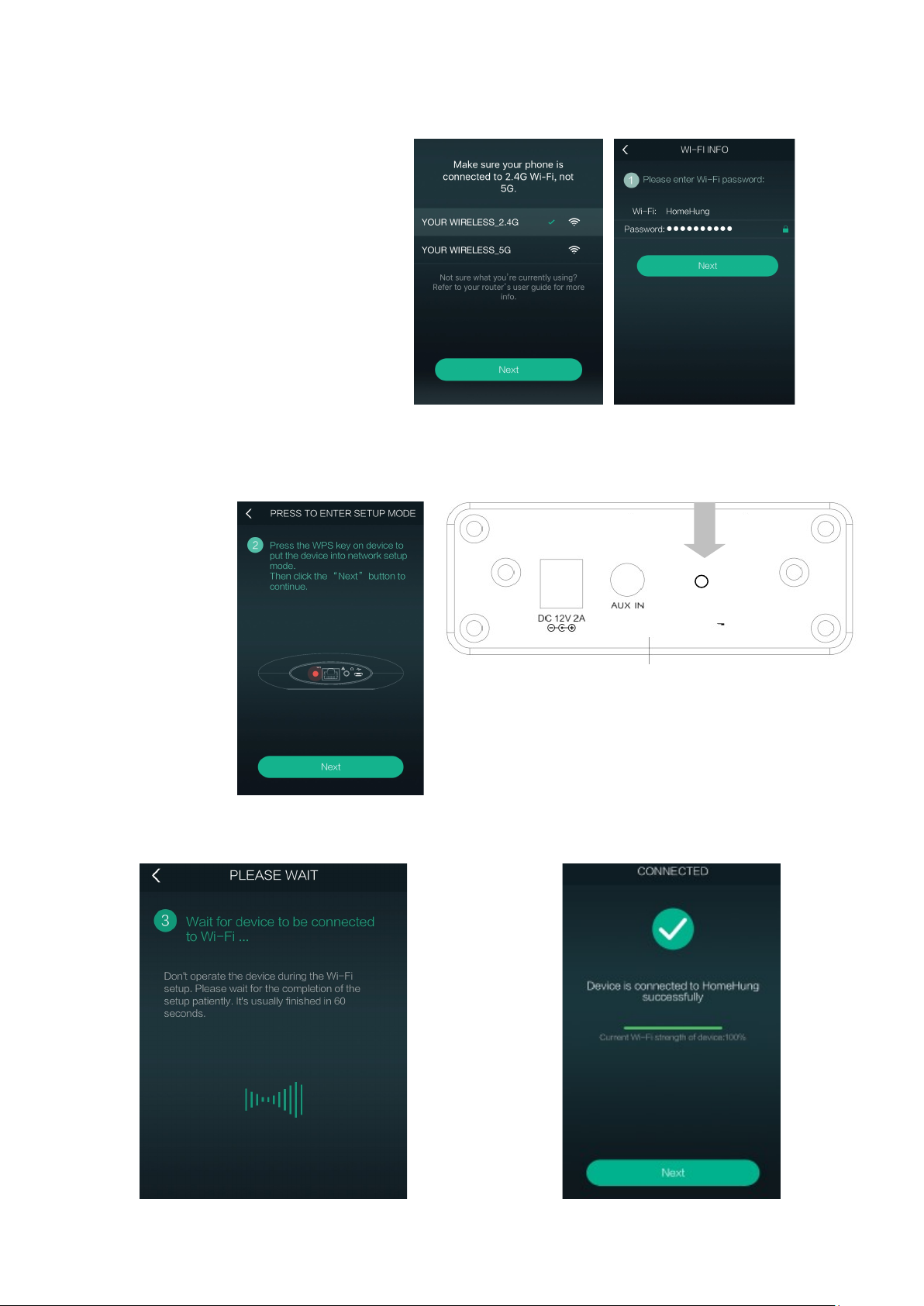

3. WPS Button In WiFi mode, press and hold
this button for 5 – 6 seconds
then release it, unit will reset
WiFi to factory setting then
In WiFi mode, tap this button
once to link up the speaker to
your Wi-Fi network by
following the APP instruction.
restart for set up.
GETTING STARTED
CONNECTING THE AC POWER
This unit operates using the included AC adaptor with 12V 2A (center-positive )
output, and is compatible with standard 120V~ 60Hz AC household power
Insert the the DC Plug of the AC Adaptor into the DC IN jack on the back of the unit. Plug the
AC Adaptor into a standard 120V~ 60Hz AC wall outlet.
INITIALIZATION
The unit will initialize when first plugged in. The initialization process could take up to 60
seconds to complete, so please wait for this process to finish before proceeding. The LED
will be flashing White, you will hear a voice prompt of “Ready for a set up” when the
initialization is completed. The unit is now in setup Mode.
NOTE: 1.) The initialization process may take up to 60 seconds or longer when first
connected. This process is normal and only occurs when first plugged in.
2.) If the unit has been setup to connect your Wi-Fi network successfully, the LED will be
solid White after connected. The unit is now in WiFi mode.
E5
