Ocean Signal E101V User Manual
User Manual
E101V
Emergency Position
Indicating Radio Beacon
(Including Float Free VDR memory capsule)
English
E101V USER MANUAL
2 Part No 912S-01865
© 2015 Ocean Signal Ltd
The technical data, information and illustrations contained in this manual were believed to
be correct at the time of print. Ocean Signal Ltd reserve the right to change specifications
and other information contained in this manual as part of our continual improvement
process.
No part of this manual may be reproduced, stored in a retrieval system or transmitted in
any form, electronic or otherwise, without the prior permission of Ocean Signal Ltd.
No liability can be accepted for any inaccuracies or omissions in this manual.
Ocean Signal® and rescueME® are registered trademarks of Ocean Signal Ltd.
For ease of access please record details of your EPIRB here.
Owners Name: .............................................
Vessel Name: ...............................................
Beacon HEX ID (UIN): ...................................
E101V USER MANUAL
3 Version 00.30 7/4/2016
IN CASE OF EMERGENCY
Use only in Situations of Grave or Imminent
Danger
•

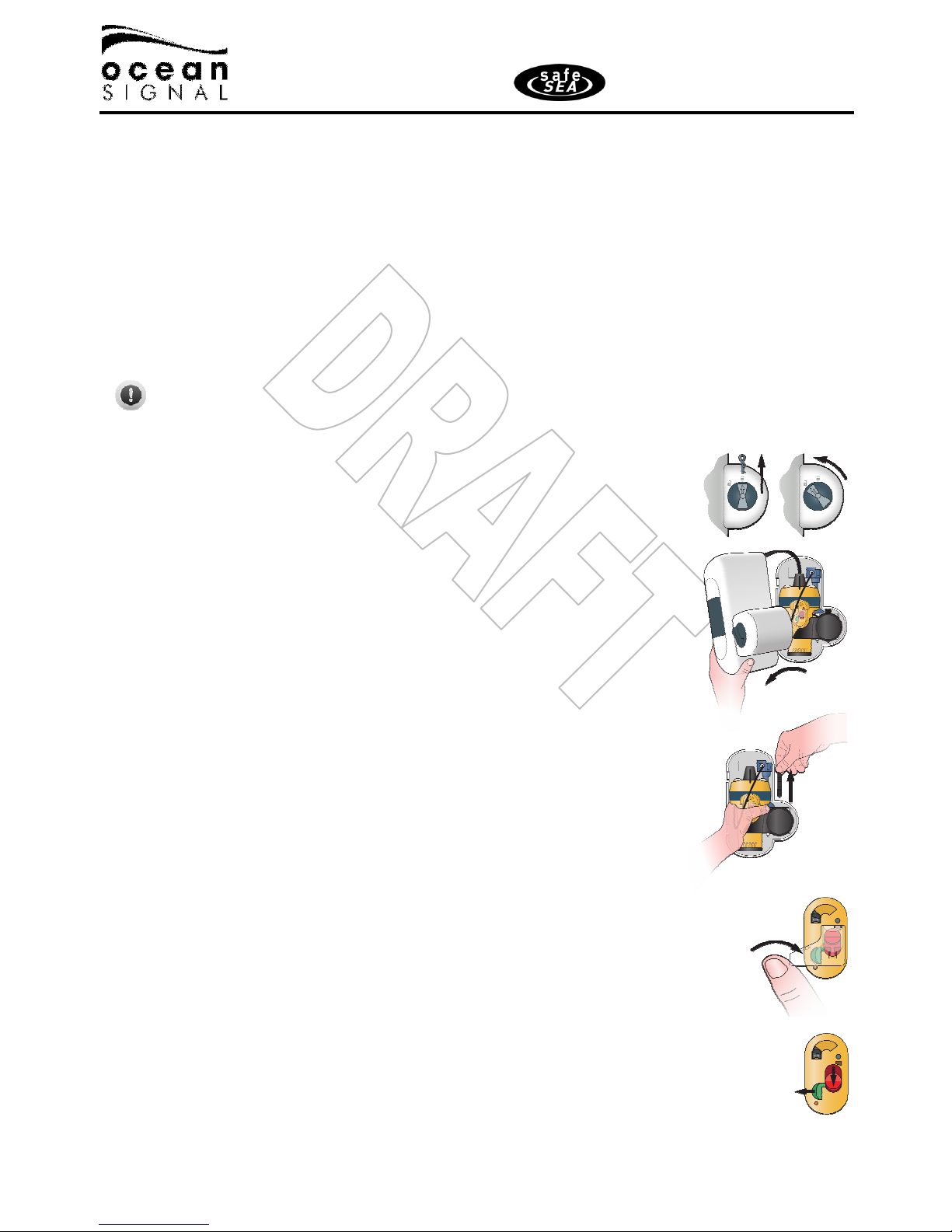

For Manual Activation
•
Remove the EPIRB from the housing
•
Make sure the antenna is folded out fully vertical
•
Break off the protective cover
•
Slide and hold the Green switch to the left, then slide the RED
switch into the down position and release the Green switch
•
The green led will flash to indicate activation
•
The strobe light will start flashing to indicate it is activated
•
Remove the lanyard cover
•
Holding the free end of the lanyard, throw the EPIRB into the water.
Refer to section 4.2 for deactivation instructions.
E101V USER MANUAL
4 Part No 912S-01865
CONTENTS
IN CASE OF EMERGENCY ........................................................................................................................... 3
1. GENERAL ............................................................................................................................................ 5
1.1 Introduction .................................................................................................................. 5
1.2 Exposure to RF Electromagnetic Energy .................................................................... 5
1.3 Warnings ...................................................................................................................... 5
1.4 Operating Mode ............................................................................................................ 5
1.5 COSPAS/SARSAT System ............................................................................................ 6
2. Installation .......................................................................................................................................... 6
2.1 VDR Installation ........................................................................................................... 7
2.2 EPIRB Installation ........................................................................................................ 8
3. E101V OVERVIEW ................................................................................................................................ 9
4. OPERATION .......................................................................................................................................10
4.1 Manual Release and Activation ................................................................................. 10
4.2 Deactivation................................................................................................................ 11
4.3 False Alerts ................................................................................................................ 11
5. TESTING ............................................................................................................................................12
5.1 Beacon test ................................................................................................................ 12
5.2 GPS test ...................................................................................................................... 13
6. APPENDIX ..........................................................................................................................................14
6.1 Maintenance and Troubleshooting ........................................................................... 14
6.2 Batteries ..................................................................................................................... 14
6.3 Transport.................................................................................................................... 14
6.4 Disposal ...................................................................................................................... 15
6.5 Specifications ............................................................................................................. 16
6.6 Approvals ................................................................................................................... 17
6.7 Registration ................................................................................................................ 17
6.8 Limited Warranty ....................................................................................................... 18
E101V USER MANUAL
5 Version 00.30 7/4/2016
1.
GENERAL
1.1
Introduction
The SafeSea range of products provides the user with the latest technology specifically
designed for compact size and ease of operation. The E101V is an Emergency Position
Indicating Radio Beacon (EPIRB) with an integrated VDR memory capsule. It is intended as
a float free memory capsule meeting the requirements of IMO Resolution MSC.333(90).
1.2
Exposure to RF Electromagnetic Energy
This product complies with EN62479 (EU) and RSS-102 (Canada).
1.3
Warnings
It is a legal requirement to register your EPIRB with your National Authority.
Only use your EPIRB in a situation of grave and imminent danger. Deliberately
misusing your EPIRB or setting it off accidentally may result in prosecution and a
fine.
Your EPIRB contains lithium batteries. Please see section 6.2 for information on
safe transportation.
The battery in your EPIRB should be replaced immediately if it has been activated,
or if the test indicator shows the battery as ‘used’, or if the expiry date marked on
the unit has been exceeded.
The E101V is supplied with an automatic release housing (ARH101V) with
connection to the VDR. See the installation guidelines in section 2 for further
information.
Please read these instructions carefully. Failure to follow the guidance in this
manual may result in loss of warranty.
1.4
Operating Mode
Your E101V may be operated in a variety of modes.
1.4.1 Floating in water (a)
This is the preferred method of operation. Ensure the EPIRB is firmly tied to the life raft or
person before deployment.
1.4.2 On deck (b)
When deploying the EPIRB on a deck, ensure it is vertical and clear of obstructions that
might impede a clear view of the sky.
1.4.3 In a safety raft (c)
The EPIRB may be deployed in a liferaft, where it should be held in a vertical position so
that there is a clear view of the sky, preferably outside of the canopy.
E101V USER MANUAL
6 Part No 912S-01865
a) EPIRB floating in
water
b) EPIRB deployed on
deck
c) EPIRB used in a
liferaft.
1.5
COSPAS/SARSAT System
The COSPAS/SARSAT system utilises two satellite arrays to provide distress alert and
location data to search and rescue authorities. The GEOSAR system can provide near
immediate alerting within the coverage of the receiving satellite. The LEOSAR system
provides coverage of the polar region beyond
the range of the GEOSAR system. It can
calculate the location of distress events using
Doppler processing techniques and is less
susceptible to obstructions which could block
a signal in a given direction. The system is
comprised of instruments on board the
satellites which detect the signals from the distress beacons. Ground receiving stations,
referred to as Local Users Terminals (LUTs) receive and process the satellite downlink
signal to generate the distress alerts. The distress alerts, generated by the LUTs, are then
received by Mission Control Centres (MCCs) which then forward the alert to Rescue Coordination Centres (RCCs), Search and Rescue Points of Contacts (SPOCs) and other MCCs.
2.
Installation
The E101V should be mounted where it is easily accessible in an emergency.
Do not mount the EPIRB closer than 1 metre to any steering compass as this may
affect the accuracy of the compass. Keep the EPIRB away from any strong magnetic
sources such as loudspeakers, compass compensation magnets, etc., which might
cause inadvertent activation.
