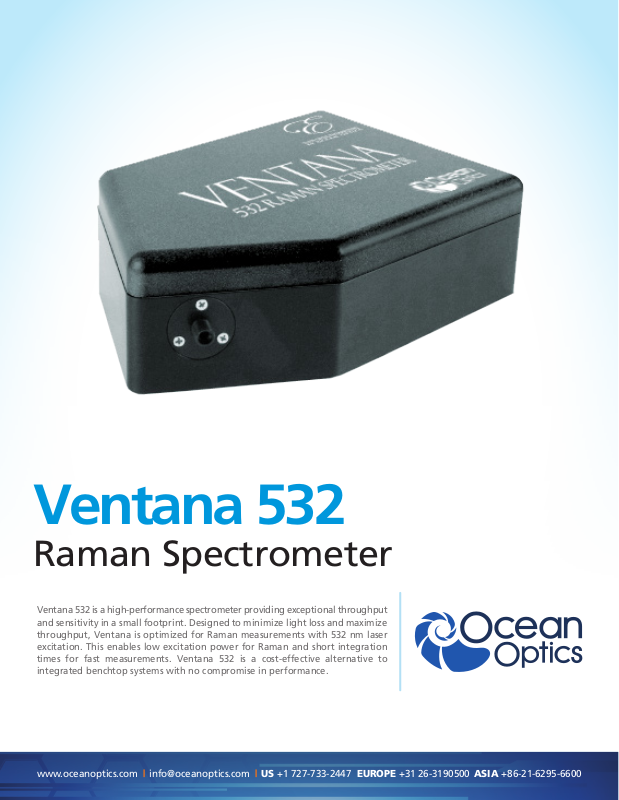

Ventana 532
Raman Spectrometer
Ventana 532 is a high-performance spectrometer providing exceptional throughput
and sensitivity in a small footprint. Designed to minimize light loss and maximize
throughput, Ventana is optimized for Raman measurements with 532 nm laser
excitation. This enables low excitation power for Raman and short integration
times for fast measurements. Ventana 532 is a cost-effective alternative to
integrated benchtop systems with no compromise in performance.
www.oceanoptics.com | info@oceanoptics.com | US +1 727-733-2447 EUROPE +31 26-3190500 ASIA +86-21-6295-6600
At a Glance
f/#: 1.3
Raman shift range: 350-4300 cm-1
Resolution: 20 cm-1
Dynamic range: 17000:1
Optimum input fiber: 600 µm
NA = 0.39
Intensity (counts)
Raman Shift (cm
Toluene has a distinctive spectrum as observed using Raman spectroscopy.
Features
• Low f/# design
• Anti-reflection coatings and optics placed in an optimized configuration
minimize light loss and provide superior image quality
• HD Volume Phase Holographic Grating (VPH) provides maximum diffraction
efficiency with low stray light, maximizing the instrument’s linearity
• Low noise electronics
-1)
Learn more online at
elitespectrometers.com
Contact an Ocean Optics
Application Scientist
for details and pricing
Contact an application sales
engineer today to find out more.
