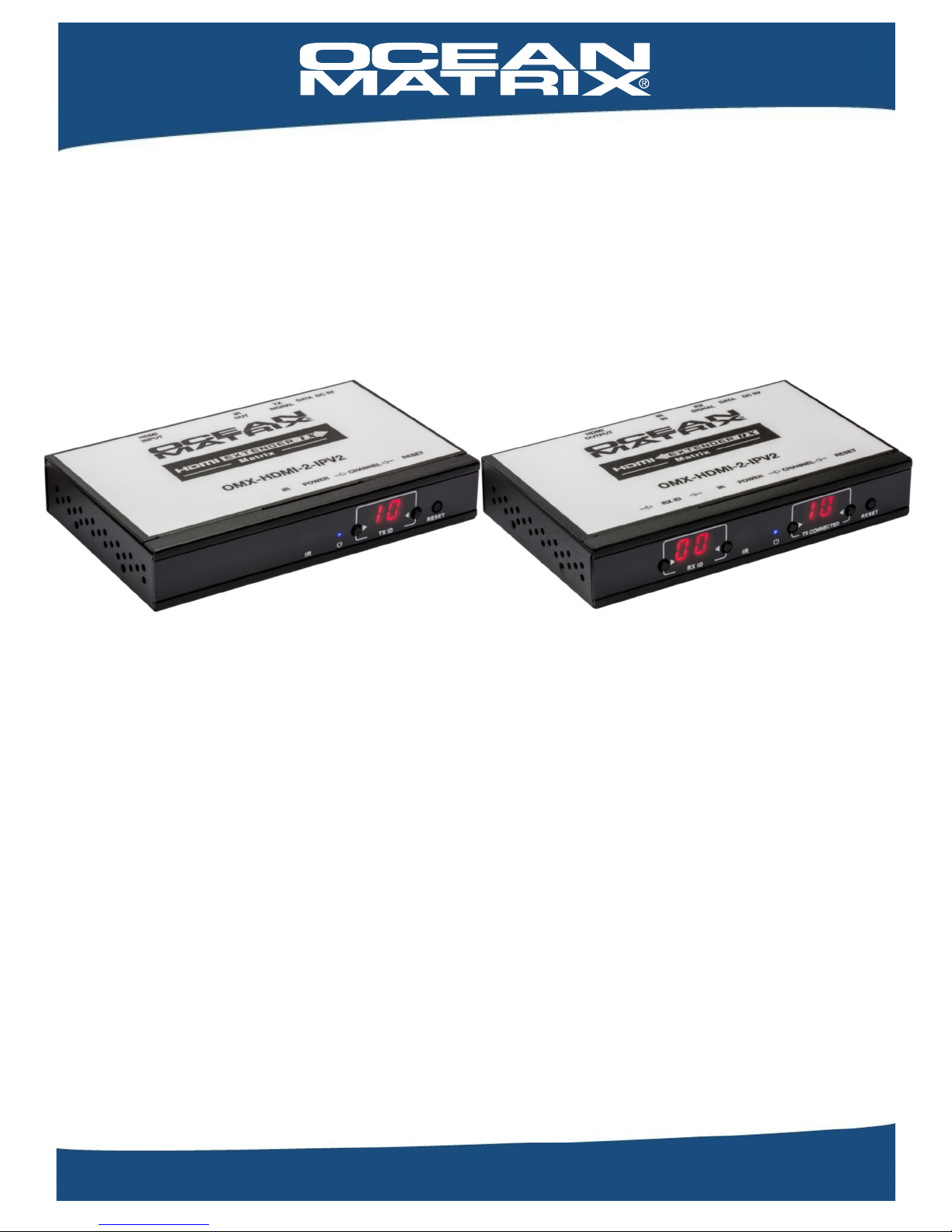

OMX-HDMI-2-IPV2
4K Multipoint to Multipoint Extender
Over IP Single CAT5/5e/6
INSTALLATION & SPECIFICATIONS
Includes:
One Transmitter
One Receiver
Two 5VDC/2A Power Adapters
One IR Receiver Cable, connects to transmitter
One IR Blaster Extension Cable, connects to receiver
Remote Control
Four Mounting Ears
Ocean Matrix
812 Kings Highway • SaugerƟes, NY 12477
www.oceanmatrix.com
Rev1a
Ocean Matrix OMX-HDMI-2-IPV2 Installation
TRANSMITTER
7 8 9 10 6 5
RECEIVER
7 8 9 10 6 11
2
1 IR: Remote Control
2 Power Indicator
3 TX Channel Display
4 Reset Button
4 1 2 3
4 5 1 2 3
5 5VDC Power Input
6 Data Transmission Indicator
7 RJ45 Signal Output
8 Connection Indicator
9 IR Blaster Extension Port
10 HDMI Signal Input
1 RX ID (non-functioning)
2 IR: Remote Control
3 Power Indicator
4 RX Channel Display
5 Reset Button
6 5VDC Power Input
7 Data Transmission Indicator
8 RJ45 Signal Input
9 Connection Indicator
10 IR Receiver Extension Port
11 HDMI Signal Output
SPECIFICATIONS
Signal HDMI 1.3, Compliant to HDCP
Resolutions 480p@60Hz, 576p@50Hz, 720p@60Hz, 1080p@60Hz
Audio Format PCM
HDMI Transmission Distance Cat5 263 Ft, Cat5E 328 Ft, Cat6 394 Ft
Network Bandwidth 18Mbps
IR Passback Supports 20-60KHz IR devices
Input Voltage 5VDC@2A
Power Consumption 4W each unit
Dimensions (LxWxH) 5.27x3.30x0.94 in/ 133.8x83.8x23.8 mm
Weight TX 9.17 oz / RX 8.81 oz
Ocean Matrix
www.oceanmatrix.com
