2OAC series
Deluxe Portable Air-Cooled Spot Cooler
ENGINEERING, INSTALLATION AND SERVICE MANUAL
Form EISM-2OAC, 110114 Rev 1
TABLE OF CONENTS PAGE
GENERAL DESCRIPTION …................................. 1
PRODUCT DATA AND SPECIFICATIONS............ 2
UNIT DESCRIPTION
Standard Features.................................. 3
Applications / Operation.......................... 4
Electrical.................................................. 5
Use of Extension Cords........................... 6
Three Phase Monitor............................... 7
Condensate............................................. 8
Accessories………................................... 9 - 15
Installation................................................ 16
Electronic Controller................................. 17-19
SERVICE
Replacement Parts Procedure................. 20
Troubleshooting Guide............................. 21
Preventive Maintenance........................... 22
Interior View............................................. 23
Piping Schematic...................................... 24
DIAGRAMS
Wiring Diagrams......................................... 25 - 31
WARRANTY Statement............................. 32
This manual provides the user with basic details for the installation
and operation of the Oceanaire 2OAC spot cooler. It is recommended to read and fully understand the instructions outlined within this
manual, before operating the 2OAC unit.
As with all commercial air conditioning equipment, it is recommended
to have the 2OAC sized and installed by a licensed specifying engineer and contractor, in accordance with all local and state codes.
The length of service received can be extended by following the
installation and preventive maintenance instructions.
In our ongoing process of continuous improvement, the items and
procedures described in this manual are subject to change without
notice. Please note model and serial number of the 2OAC
unit when contacting the factory.
FORWARD
NOTICE
GENERAL DESCRIPTION
The Oceanaire 2OAC is a portable air-cooled spot cooler designed
for permanent or temporary spot cooling or heating applications.
The entire air conditioning unit has been built in an premium sheet
metal cabinet, equipped with heavy-duty casters for mobility. All
2OAC models come with a 10-foot power cord for electrical connection and added mobility in service. These spot-coolers are designed
to direct air to specific areas or objects through a discharge grill located on the upper-front of the unit, while rejecting heat from the top
of the unit. The 2OAC models range in cooling capacities from
12,000 BTU/HR to 60,000 BTU/HR to satisfy most space cooling
requirements.
The 2OAC is a self-contained unit with the entire cooling system,
evaporator and condenser fan motors and electrical components
neatly arranged in a gray polyester powder coated metal cabinet.
When connected to the proper source of electrical power, the 2OAC
is controlled by a solid-state electronic controller, with numerous
options of temperature and airflow controls that will provide the
desired level of comfort and cooling.
A wide variety of accessories and factory installed options are available for the 2OAC units allowing for improved performance and added
versatility.
NOMENCLATURE
2O AC 24 1 2
DELUXE
PORTABLE VOLTAGE
AIR-COOLED SINGLE PHASE
NOMINAL
CAPACITY
CAPACITY RATING
12..........12,000 BTU/HR
18..........18,000 BTU/HR
24..........24,00 BTU/HR
36..........36,000 BTU/HR
60……...60,000 BTU/HR
WARRANTY CARD
It is important that the warranty card be filled out completely and
returned to the factory within fourteen (14) days of installation of the
unit in order to receive the benefits of the warranty.
1
SPECIFICATIONS
2OAC
2
STANDARD FEATURES
CABINET
The 2OAC Series spot cooler has a cabinet that is constructed of 18 gauge steel with a
polyester powder coated finish that will compliment any decor. The cool blue front compliments any surrounding space, and is insulated with sound-absorbing insulation for
cool, quiet comfort. All units come equipped with handles and premium swivel casters
for portability and convenient set-up.
DELUXE ELECTRONIC CONTROLLER
Each 2OAC unit is equipped with deluxe electronic controller. When power is connected
to the unit, the thermostat will control the unit to cool a space to the desired temperature.
The thermostat is also capable of controlling the fan to operate automatically (when
needed) or continuously.
One additional feature of the Deluxe Electronic Control is that it will display a condition
alarm CON. CON displays when a condensate alarm, or a high pressure reset condition has been met. To protect the compressor from short-cycling, there is a built-in
time delay.
FAN SPEED CONTROL
One of the features of the electronic controller is that the unit supply fan can be controlled automatically or manually. In AUTO mode, the evaporator blower will adjust air
flow automatically for added comfort and performance Or if desired, the fan speed can
be set to MANUAL mode and the evaporator blower will run continuously at one of six
levels of fan speed.
CONDENSATE RESERVOIR/PUMP
2OAC units come equipped with a means for handling the condensate generated during
the cooling process. All models except the 2OAC60 models come equipped with a Con-
densate Reservoir Tank, that captures the condensate from cooling. The tank can then
be easily removed from the unit and emptied as required.
The 2OAC60 models come equipped with an Automatic Condensate Pump that disposes of the condensate. The pump comes with a 20 foot long vinyl hose that allows for the
disposal of the condensate water to a drain. The automatic pump is capable of a 20ft lift,
to handle almost any installation requirement.
FILTERS
All 2OAC units are equipped with washable filters at the air intakes. Electrostatic mesh
air filters located behind the evaporator return air grill serve to filter the air before it is
cooled, and behind the condenser return air grill to prevent dust build-up. Both filters
can be easily removed and cleaned.
HIGH PRESSURE SAFETY SWITCH
Located on the back of the 2OAC unit is a manual re-set high pressure switch, used for
the protection of the compressor. If the condensing pressure exceeds the limit setting,
the cut-out shuts down the compressor, while the evaporator fan remains running. The
display will indicate CON. The compressor can be re-started, once the condensing pressure has lowered, by depressing the “RESET” button.
POWER CORDS
All 2OAC units come with power cords, convenient connection and portability. All units
except the 5-ton models, and 3-phase models are equipped with LCDI for added safety
devices.
3
APPLICATIONS
COOLING MODE—SPOT COOLER
The 2OAC can be used in an open environment to cool specific objects or "spots". Spot
Cooling is a convenient and economical way to provide air conditioning where cooling the
entire space is impractical. Cool air is discharged from the unit and is directed where it is
needed. Nozzle kits can be used to improve direction of the cooling airflow.
AREA COOLER
When the 2OAC is installed in an area that is not totally enclosed, the condenser hot air
exhaust duct directs condenser air out of the area, allowing the evaporator air to cool the
specific space.
ROOM AIR CONDITIONER
When ducted, the OceanAire 2OAC can be used as a room air conditioner to cool an
enclosed space. Using the condenser return air plenum (2DCP) and ceiling discharge kit
(CK) and ceiling panel kits CK-PL accessories, the 2OAC can operate as a room air
conditioner with the condenser air isolated form the conditioned space.
2OAC—OPERATION / DESCRIPTION
ELECTRONIC
CONTROLLER
CONDENSER
AIR INLET
(Back of Unit)
OUTDOOR FAN DISCHARGE
“HOT”
INDOOR FAN
SUPPLY AIR
“COOL”
RETURN AIR
GRILL
AND FILTER
2OAC OPERATION
4
SERVICE CORD
All 2OAC-Series units are equipped with the standard ten foot long service cord
with plug configurations and receptacle requirements as shown in this chart.
2OAC1211, 2OAC1811, 2OAC2412 and 2OAC3612 units come with LCDI
(Leakage Current Detection & Interruption) devices that serve as a means of
electrical protection.
CAUTION—DO NOT USE THE LCDI AS AN ON/OFF SWITCH FOR THE
All 3-phase models are equipped with locking plugs for added connection reliability. Refer to the chart below for plug and receptacle details for all
2OAC models.
UNIT
A DAMAGED LCDI POWER SUPPLY CORD MUST
BE REPLACED WITH A NEW POWER SUPPLY
CORD AND NOT REPAIRED
UNIT/MODEL PLUG CONFIGURATION RECEPTACLE
115 VOLT
2OAC1211
115 VOLT
2OAC1811
208-230 VOLT SINGLE PHASE
2OAC2412
208-230 VOLT SINGLE PHASE
2OAC3612
208-230 VOLT SINGLE PHASE
2OAC6012
208-230 VOLT 3-PHASE
2OAC3632
2OAC6032
15A-125 VOLT
NEMA 5-15P
20A-125 VOLT
NEMA 5-20P
20A-250 VOLT
NEMA 6-20P
30A-250 VOLT
NEMA 6-30P
50A-250 VOLT
NEMA 6-50P
30A-250 VOLT
NEMA L15-30P
NEMA-5-15R
NEMA 5-20R
NEMA 6-20R
NEMA 6-30R
NEMA 6-50R
NEMA L15-30R
460 VOLT 3-PHASE
2OAC3634
2OAC6034
20A-460 VOLT
NEMA L16-20P
5
NEMA L16-20R
CAUTION:
USE OF EXTENSION CORDS
FOR MODEL 2OAC1211 AN EXTENSION CORD CAN BE USED PROVIDED IT IS
RATED AT LEAST 15 AMPS @ 115 VOLTS WITH GROUNDING-TYPE ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING)
FOR MODEL 2OAC1811 AN EXTENSION CORD CAN BE USED PROVIDED IT IS
RATED AT LEAST 20 AMPS @ 115 VOLTS WITH GROUNDING-TYPE ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING)
FOR MODEL 2OAC2412 AN EXTENSION CORD CAN BE USED PROVIDED IT IS
RATED AT LEAST 20 AMPS @ 250 VOLTS WITH GROUNDING-TYPE ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING)
FOR MODEL 2OAC3612 AN EXTENSION CORD CAN BE USED PROVIDED IT IS
RATED AT LEAST 30 AMPS @ 250 VOLTS WITH GROUNDING-TYPE ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING)
FOR MODEL 2OAC6012 AN EXTENSION CORD CAN BE USED PROVIDED IT IS
RATED AT LEAST 50 AMPS @ 250 VOLTS WITH GROUNDING-TYPE ATTACHMENT PLUG AND GROUNDING TYPE CONNECTOR (LOAD FITTING)
FOR MODELS 2OAC3632 AND 2OAC6032 AN EXTENSION CORD MAY BEUSED
PROVIDED IT IS RATED AT LEAST 30 AMPS @ 250 VOLTS, 3 PHASE
FOR MODELS 2OAC3634 AND 2OAC6034 AN EXTENSION CORD CAN BE USED
PROVIDED IT IS RATED AT LEAST 20 AMPS @ 600 VOLTS, 3 PHASE
SPECIAL NOTICE—THREE PHASE OPERATION
Models 2OAC3632, 2OAC3634, 2OAC6032 and 2OAC6034
All three-phase 2OAC models are equipped with a three-phase monitor for added compressor protection. The phase monitor, located in
the control box, has multi-color LED that reports status. The monitor
protects the compressor from reverse operation, phase loss and low
voltage situations. Further description of the three-phase monitor is
located in the electrical section of the manual.
NOTICE - DO NOT OPERATE ANY THREE-PHASE UNIT BY BYPASSING THE MONITOR, THIS WILL VOID THE WARRANTY
6
7
CONDENSATE RESERVOIR TANK
For 2OAC Models 2OAC12, 2OAC18, 2OAC24 and 2OAC36, a 5-gallon polyethylene
tank is provided to collect condensate. The tank is located in the lower, front section of
the unit. A high water level cut-out switch is used to stop the compressor and condenser
fan automatically when the tank's pre-set water level has been reached. The evaporator
fan will continue to run, circulating air.
For 2OAC12, 2OAC18, 2OAC24 and 2OAC36 — Condensate water drops from drain
pan into SUMP of the condensate tank
TANK LEVEL ADJUSTMENT INSTRUCTIONS
An adjustment screw is provided to vary the cut-off of the tank full switch. If a lighter (less
weight) level of water is desired, turn the adjusting screw clockwise. Do not exceed 6 full
turns counter-clockwise.
CAUTION, TURN UNIT OFF: BEFORE ADJUSTING SET SCREW
BEFORE REMOVING TANK TO EMPTY CONDENSATE
Turn screw clockwise to lower water level. Less water makes tank lighter and easier to
remove.
8
CK-12PL
CK-16
ACCESSORIES
CK-12
CK-16
2DDA-6
2DDA-10
2DDA-16
2NK-1
2NK-2
2NK-3
2DCP-1
2DCP-2
DCP-5
DEP-10
2DEP-12
DEP-16
2OAC UNIT
9
2OACH – 2OAC ACCESSORIES

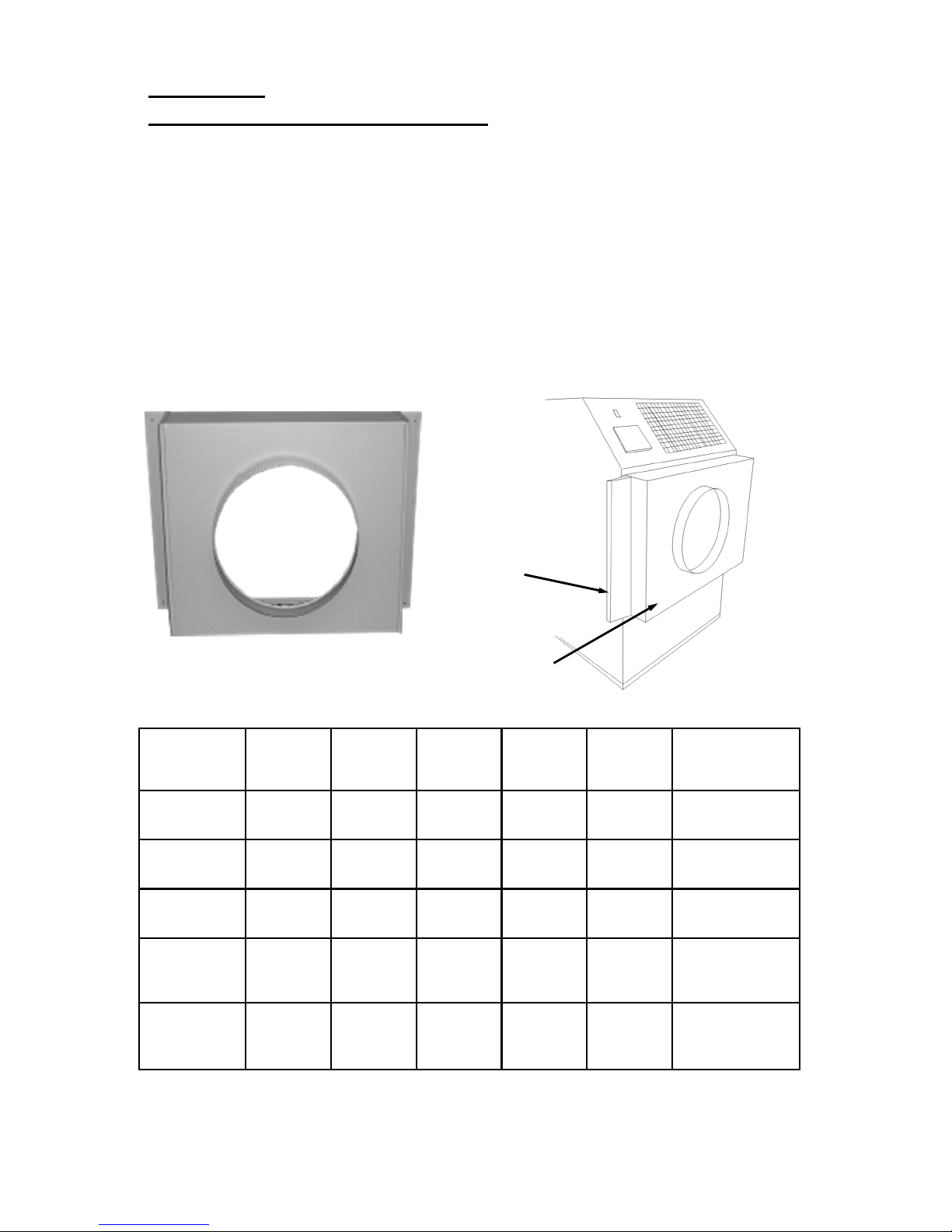

NOZZLE KIT
2NK-1 (2 X 4-Inch) 2OAC12
2NK-2 (2 X 6-Inch) 2OAC18, 24
2NK-3 (2 X 8-Inch) 2OAC36, 60
EVAPORATOR RETURN AIR PLENUM
DEP-10 (10-Inch Round) 2OAC12
2DEP-12 (12-Inch Round) 2OAC18, 24
DEP-16 (16-Inch Round) 2OAC36, 60
DISCHARGE DUCT ADAPTER
2DDA-6 (6-Inch Round) 2OAC12
2DDA-10 (10-Inch Round) 2OAC18, 24
DDA-16 (16-Inch Round) 2OAC36, 60
CONDENSATE PUMP KIT *
2DPC-1 115V Models
2DPC-2 230V Models
* Not Required for 2OAC60’s

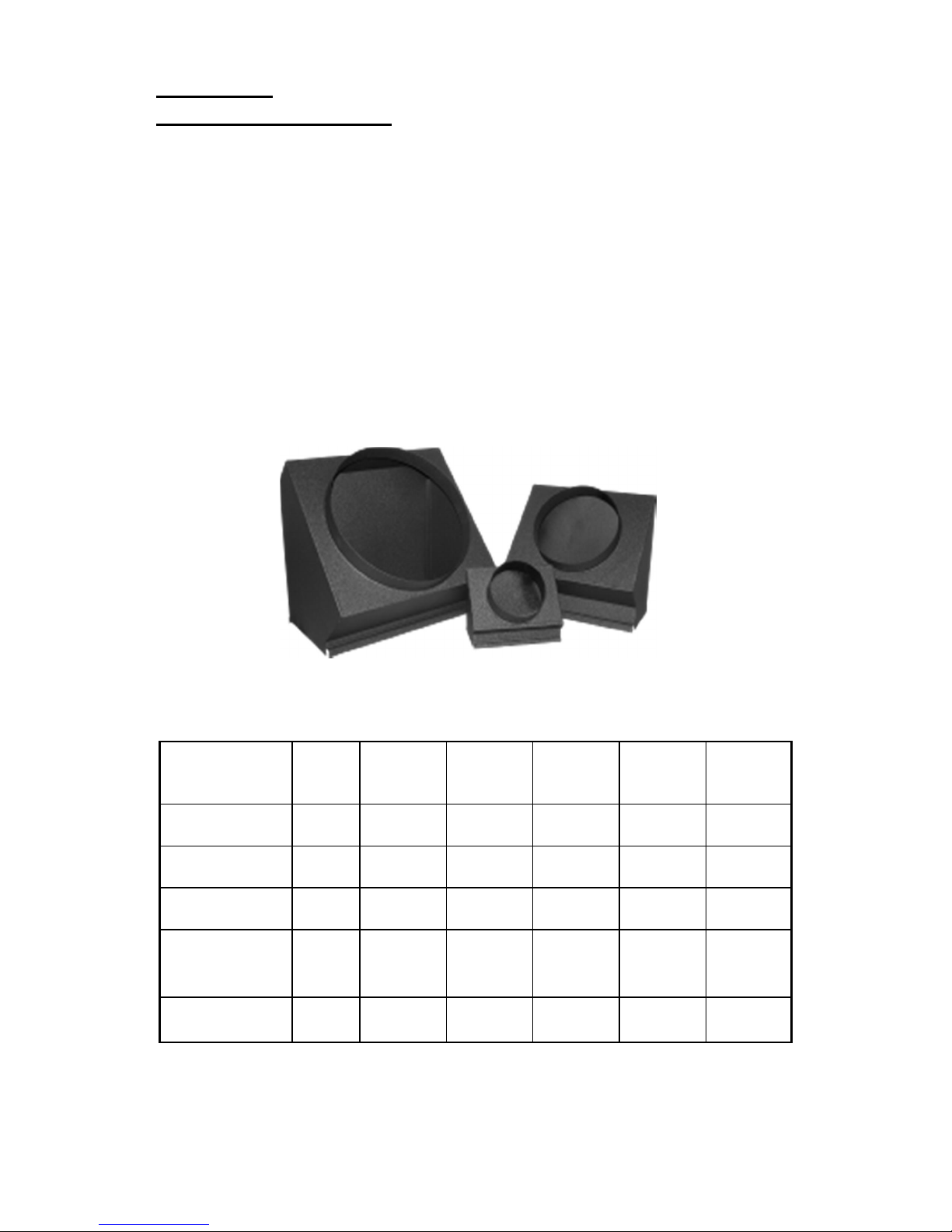

CEILING PANEL KIT
CK-12 2OAC12, 18, 24
CK-16 2OAC36, 60
CK-12PL CK-12 without Duct Flange
CKP-12 2 X 2 Ceiling Panel w/12-Inch Dia. Flange
CKP-16 2 X 2 Ceiling Panel w/16-Inch Dia. Flange
DUCT FLANGE
DF-12 12-Inch Duct Flange
DF-16 16-Inch Duct Flange
CONDENSER RETURN AIR PLENUM
2DPC-1 2OAC12
2DCP-2 2OAC18, 24
DCP-5 2OAC36, 60
10
ACCESSORIES
CEILING PANEL DUCT KIT, CK-12, CK-16
A ceiling panel kit is available for discharging the
condenser air above a drop ceiling.. The ceiling
panel duct kits are furnished with a white vinyl
coated flexible duct that allows for convenient
installation. A 2ft X 2ft ceiling duct- panel is
included to replace a 2ft X 2ft drop-ceiling panel
where the connection is desired.
The CK-12 is available for the 2OAC12, -18 and
-24 models. The ceiling panel kit consists of
flexible duct, a 2' X 2' lay in ceiling panel and a
12-inch duct flange that attaches to the
condenser air discharge opening on the top of
the unit. The CK-16 is available for the 2OAC36
and -60models, and consists of a ceiling ductpanel, and a 16-inch flexible duct.
Note—Drop ceiling spaces should be vented
or large enough to handle the warm
condenser air. Check local codes to assure
compliance.
If longer runs of duct are required, table below
lists maximum duct run with no 90° elbows. For
every 90° elbow, subtract 6 feet from the run.
2 x 2 CEILING
DUCT-PANEL
VINYL COATED
FABRIC DUCT
DUCT STRAP
DUCT FLANGE
Ceiling
Kit
Model
CK-12
CK-16
Maximum Equivalent
Feet (approx)
DUCT FLANGE (DF-12, DF-16)
Flexible
Duct
Diameter X
Length
12 inch X
8 feet
16 Inch X
8 feet
(ESP)
Fits
2OAC12
Fits
2OAC18
ü ü ü
No
25
(.20)
No No
50
(.25)
Fits
2OAC24
50
(.25)
The optional duct flange allows for round flexible ducting to
be attached to the 2OAC condenser discharge. DF-12 (12
-inch diameter) fits all size 12, 18 and 24 units. The DF-16
(16 inch diameter) fits all size 36 and 60 units.
NOTE: 2OAC36 and 2OAC60 units come with duct
flanges installed.
Fits
2OAC36
No No
ü ü
50
(.25)
DUCT FLANGE
Fits
2OAC60
100
(.50)
11
ACCESSORIES
DISCHARGE AIR NOZZLE KIT ASSEMBLY (2NK)
The optional discharge nozzle kits are used to direct the conditioned air to a specific target area. By concentrating the airflow,
the nozzles increase the air velocity towards production lines to
cool personnel or equipment. In server rooms, the nozzles can be
used to induce airflow through the rack to remove the hot air from
the area of the equipment.
2NK-1 for model 2OAC12, with (2) 4-inch diameter nozzles with
an approximate compressed length of 15 inches. The approximate
extended length is 21 inches.
2NK-2 for models 2OAC18 and 2OAC24 with (2) 6-inch diameter nozzles with an approximate compressed length of 22 inches.
The approximate extended length is 32 inches.
2NK-3 for 2OAC36 and 2OAC60, with (2) 8-inch diameter nozzles with an approximate compressed length of 20 inches. The
extended length is approximately 29 inches.
The nozzle kits come pre-assembles with the nozzles secured to a
mounting plate, and with edge guards. By removing the
2OAC discharge grill, one can insert the nozzle kit into the opening without the use of tools.
Nozzle Kits
CONDENSATE PUMP KIT: 2DPC-1 and 2DPC-2
A plug-in condensate pump kit is available for applications where emptying the 5 gallon
condensate tank is not desired. The pump kit consists of a condensate pump with mounting hardware and electrical connections, along with the tubing required for the drain and
discharge of the condensate water.
Pump Kit
The condensate pump provides for the
automatic removal of condensate water
during the cooling process. The pump is
capable of pumping against a 20 foot head,
allowing for the routing of the drain line
above the drop-ceiling to a nearby drain.
The pump is controlled by an internal floatswitch which turns the pump on and off
automatically. The pump is also equipped
with a condensate over-flow safety switch,
that will shut down the 2OAC compressor
when the pump is not working properly.
PARTS LIST
(1) Condensate Pump with mounting hardware
Kit Voltage
2DPC-1 115V
2DPC-2 208-230V
(1) 3/8-inch drain hose, 25 ft
(2) Mounting screws
(1) Drain hose — black corrugated
(2) Hose clamps
12
ACCESSORIES
CONDENSER RETURN AIR PLENUM, 2DCP
Condenser return air plenums are available for installations where it is required to duct air
to the inlet of the condenser. The plenum easily attaches with one screw to the back of
the unit, and is provided with flange(s) for connecting 12-inch flexible ducting. A condenser return air plenums can substantially reduce air noise and allows the unit to operate
without drawing condenser air from the conditioned space. Refer to the table below for
configuration and application information.
NOTE — When installing the condenser return air plenum with the ceiling panel
kits, allow for a minimum separation distance of 2 feet between the unit discharge
duct and the return air duct(s). It is also recommended to direct the condenser
discharge air away from the condenser return air ducts.
2DCP-1 ,2DCP-2 and DCP-5
To estimate the “equivalent feet” of condenser duct, add the length of the
condenser intake duct run and the length of the condenser discharge duct run,
and add 6 equivalent feet per bend in the duct. Make sure that you do not exceed
the rated E.S.P. to avoid shut down due to the high pressure cut-out
Plenum Duct
Kit Flange
2DCP-1 12-inch
2DCP-2 12-inch
DCP-5 16-Inch
Maximum Approximate
Equivalent Feet
Estimated External Stat-
ic Pressure
2OAC12 2OAC18 2OAC24 2OAC36 2OAC60
ü
25 50 50 50 100
(.20) (.25) (.25) (.25) (.50)
ü ü
ü ü
13
ACCESSORIES
EVAPORATOR RETURN AIR PLENUM, 2DEP
Evaporator return air plenums are available for installations where it is required to duct air
to the inlet of the evaporator. The evaporator return air plenums allow the user to connect
round duct (flexible or rigid) to the return air intake to reduce air noise and increase the
number of options for solving difficult cooling problems. The plenum attaches to the front
of the unit, replacing the return air grill. Refer to the table below for configuration and
application information
DEP-10 for 2OAC12 transitions the return air opening to 10-inch round duct.
2DEP-12 for 2OAC18 & 2OAC24 transitions the return opening to a 12-inch round
duct.
DEP-16 for 2OAC36 and 2OAC60 transitions the return opening to a16-inch round
duct.
NOTE—When a evaporator return air plenum is installed, it is recommended to set
the evaporator blower speed to high, to avoid evaporator freeze-up.
Plenum Kit
Duct/Flange
2OAC12 2OAC18 2OAC24 2OAC36 2OAC60 FILTERS
DEP-10
10 inch
2DEP-12
12 inch
DEP-16
16 inch
Maximum
Equivalent
Feet
Est. External
Static
Pressure
FILTER(S)
2DEP—EVAPORATOR
RETURN AIR PLENUM
ü
(1) 10”X20”X1”
ü ü
(1) 15”X25”X1”
ü ü
(1) 12”X30”X1”
(1)15”X30”X1”
25 50 50 50 100
(.20) (.25) (.25) (.25) (.50)
14
ACCESSORIES
Discharge Duct Adapter, 2DDA
Discharge duct adapters are available for applications where ducted evaporator discharge
is required. The adapters can be easily installed on the unit without fasteners, and be
installed for either vertical or horizontal ducting. The standard discharge grille is removed
and the 2DDA is attached in the grill opening.
2DDA-6 for 2OAC12, converts the evaporator discharge to a 6-inch diameter round
duct.
2DDA-10 for 2OAC18 and 2OAC24, converts the evaporator to a 10-inch
diameter round duct.
2DDA-16 for 2OAC36 and 2OAC60, converts the evaporator discharge to a 16-inch
diameter round duct.
When used in conjunction with the evaporator return air plenum, DEP, the unit can provide closed-loop cooling to and from a given space without the influence of any outside
air.
Adapter
Model
2DDA-6 6-inch
2DDA-10 10-inch
Round
Duct
Size
2OAC12 2OAC18 2OAC24 2OAC36 2OAC60
ü
ü ü
2DDA-16 16-inch
Maximum Ap-
prox Equivalent
25 50 50 50 100
Feet
Maximum
E.S.P
.15 .25 .25 .25 .50
15
ü ü
INSTALLATION INSTRUCTIONS
RECEIVING—INSPECTION:
Upon receiving your 2OAC unit, inspect the packaging for any damage.
All units are shipped on a skid, and packaged in a triple-wall carton for
added protection. In shipment, some wear may occur on the
packaging. If the packaging is heavily damaged or broken, file a claim
with the freight company immediately. Carefully unpack the unit and
remove all wrapping materials. Save all documentation and fill out the
Warranty Card and mail it to Oceanaire.
BEFORE INSTALLING
Check the air conditioner/spot cooler for any damage. All Oceanaire
products are thoroughly inspected at the factory and carefully
packaged. If any damage is evident, file a claim with the delivering
carrier immediately.
ELECTRICAL REQUIREMENTS
Check the nameplate located on the back of the unit to make certain
that the proper power is available for the unit. Refer to "Specifications"
section for voltage and amperage requirements. For proper NEMA
receptacles, refer to "Electrical service plug configuration". When using
extension cords, use the properly sized cord, and check cord voltage to
the unit.
TIME DELAY FUSES/CIRCUIT BREAKERS ARE RECOMMENDED
WARNING—OPERATING THE UNIT ON
IMPROPER VOLTAGE WILL VOID THE
WARRANTY
ACCESSORIES
Verify that all accessories are correct for the model, and that they
installed in accordance with all instructions.
START-UP
Install the unit in accordance with all local and state building codes, and
install all accessories. Allow for a clearance around the unit for future
maintenance and/or service. Level unit and lock casters, when
available. Connect power and test the LCDI on the power cord (if
available). Power up unit, via thermostat and check for proper
operation. Refer to Thermostat Operation for more details.
16
Deluxe Electronic Controller
The 2OAC controller is equipped with many features for a more precise level of cooling and operation. Additionally, the controller can be
removed from the unit and installed for remote operation, if desired—
accessory parts may be required.
OCEANAIRE DELUXE ELECTRONIC CONTROLLER
When power is connected, the controller will display “888” momentarily, and will then go
blank. Press the POWER button, then press the TEMP SELECT button until the SET
POINT is displayed. Adjust the SET POINT to the desired temperature, and the unit will
heat/cool as required.
POWER—Turns the unit on/off when power is supplied
MODE - Selects the mode of operation from AUTO to Moisture Control.
COOL - The system will operate in cooling mode, only.
The systems controls temperature within +/- 2°
MOISTURE CONTROL - The system operates in the cooling mode to reduce humidity
within the conditioned space.
Every 4 hours, the fan is started, circulating the air, and the air temperature is recorded by
the controller. The cooling cycle is started for one hour, or until the room temperature
drops 2°, which ever comes first. This cycle repeats every four hours.
17
FAN SPEED—The operator can select between AUTO and MANUAL fan speed control.
Pressing the FAN SPEED button, will switch speed from AUTO to MANUAL. In MANUAL
mode, pressing the FAN SPEED button will change fan speed from low to high. In AUTO
the fan speed is controlled automatically. In cooling mode, the controller automatically
adjusts the fan speed to high, and as the inside temperature approaches the set point, the
fan speed will reduce. In heat mode, the fan speed goes from low to high as the temperature approaches the set point
TEMP SELECT—Allows the operator to view the controller temperatures; INSIDE = re-
turn air temperature, OUTSIDE = supply air temperature, SET POINT can be seen and
adjusted, by pressing ▲ or▼.
CONTROLLER PROGRAMMING MENU
1) Make sure the unit has power.
2) Pushing the POWER button, turn the unit “OFF”.
3) Press the following buttons in sequence “S-U-D-S”:
4) The display will begin flashing P1 and a number.
If there is no display, repeat the sequence, making sure the unit has power, but is turned
OFF.
5) To adjust any program parameter, press the ARROW UP▲ or ARROW DOWN ▼
button until the desired value is displayed.
6) Use the “MODE” button to scroll through the programmable parameters P1 through
P16.
7) If no buttons are pushed, the display will then return to the “OFF” position after about
50 seconds.
PROGRAMMING PARAMETERS
P1—High Fan Speed Limit Setting
P2—Low Fan Speed Limit Setting
P4—Temperature Sensor Calibration
P10— Temperature Display, °F or °C
P13—Supply Fan Operation, Cycling or Continuous
P15—Fan Motor Type Setting, PSC or Shaded Pole
P1, P2 - To adjust fan speed settings, P1 represents the high fan speed parameter, while
P2 represents the low fan speed parameter. When using nozzle kits, discharge duct
adapters and evaporator plenums, setting P1 to 85 will help to avoid freeze ups.
P4 - Adjust the P4 setting to match the actual INSIDE room temperature, if needed.
P10 - Use this parameter to display temperatures in the desired units.
P13 - To cycle the evaporator fan with the compressor, access code P-13. Press the up
or down button to switch to “CYC”, which means cycle the fan with the compressor. The
factory default setting is “CON”, which means continuous fan operation.
P15 - Fan Motors are PSC type, SC - should be selected.
8) Press POWER—you should see a code A (followed by numbers)
Press POWER and the unit will start at the new settings
18
2OAC PROGRAM PARAMETERS
MODEL CODE SETTINGS
2OAC12 P1 = 85, P2 = 35
2OAC18 P1 = 80, P2 = 50
2OAC24 P1 = 70, P2 = 50
2OAC36 P1 = 85, P2 = 40
2OAC60 P1 = 85, P2 = 45
NOTICE
Program Parameters are NOT controller default values.
They are Oceanaire Factory Settings
DISPLAY FAULTS
LAC……. Low AC line power
AAA……. Failed Air Sensor (unit will not run)
CON…….Empty Condensate Bucket—Units with a bucket
Condensate Pump Over-Flow Alarm—Units with pump
High Pressure Cut-Out—Low condenser water supply
correct problem, and re-set unit at HP RESET
TO CHECK THE NUMBER OF HOURS ON THE UNIT
1) Disconnect unit power, and reconnect unit power.
2) When “888” appears in display, push and release the arrow down
button
3) The first set of numbers displayed reads thousands of hours:
02 = 2000, 04 = 4000 hours, 00 means less than 1000 hours.
4) The second set of numbers read hours directly:
58 = 58 hours. 742 = 742 hours.
6) Add the 2 number sets together to get total hours.
03 and 486 = 3486 hours. 01 and 59 = 1059 hours.
TOTAL HOURS REPRESENTS COMPRESSOR “RUN” TIME
19
REPLACEMENT PROCEDURE FOR PARTS
IT IS RECOMMENDED THAT ALL OCEANAIRE UNITS BE SERVICED BY A
LICENSED TECHNICIAN
WARNING—TO AVOID INJURY, DISCONNECT UNIT POWER PRIOR TO SERVICING
A. FAN MOTORS
1. Remove cabinet's left-side panel (when looking at the front of the unit).
2. Evaporator fan motor—disconnect evaporator motor wires from evaporator fan
contactor and fan speed rocker switch. Condenser fan motor—disconnect condenser
motor wires from condenser fan contactor.
3. For all model sizes 12, 18 and 36, remove the screws securing motors and inlet ring to blower housings (all screws are external and visible), and remove blower wheel motor assembly. Remove the blower wheel set screw and disassemble the blower
wheel from the motor shaft and remove the motor.
For models size 60—loosen blower wheel shaft set screw, and remove the screws
securing the motor mount to the blower housing and remove motor and mount.
Remove the motor from the motor mount.
4. Install the new motor, reversing the removal procedure.
B. ELECTRONIC CONTROLLER (2 PARTS)
1. To remove the Heat/Cool display, remove the cabinet's left-side panel (from front).
Locate the two nuts securing the display to the front panel. Unplug the display cable
and remove display. Install new display and secure. Plug in display cable.
2. To remove the Power Module, remove the rear control box cover. Disconnect wires,
and remove power module. Install new power module, and re-wire in accordance with
the wiring diagram.
5. CONDENSATE PUMP (ON ALL 5-TON UNITS OR ON UNITS WHERE THE
CONDENSATE PUMP KIT HAS BEEN INSTALLED)
1. Remove side panel.
2. Remove brackets securing condensate pump in base pan, or condensate tank tray pan
3. Disconnect pump wire leads at Molex connectors. Remove retainer clamp and tubing.
4. Replace pump, install by reversing procedure.
E. HIGH PRESSURE SAFETY SWITCH
1. Remove cabinets right side panel, or right rear side panel of Model 60.
2. Remove flare nut that secures capillary to the refrigeration system high pressure side.
A Schrader valve is located in the discharge port, and allows removal without dumping
the refrigerant charge.
3. Remove two screws that retain high pressure switch.
4. Disconnect wire leads from compressor contactor and condensate pump safety switch.
5. Install new High Pressure Control, reversing the procedure.
To gain access to compressor and compressor run capacitor, remove left hand side
panel.
20
TROUBLESHOOTING GUIDE
The following steps and procedures are recommended for correcting the problems
indicated. In the event that the problem can not be corrected, service may be required.
SERVICE SHOULD BE PERFORMED BY A QUALIFIED AIR CONDITIONING
SERVICE TECHNICIAN
PROBLEM: UNIT DOES NOT POWER UP
CAUSE: Power interruption
REMEDY: Check LCDI (on models with LCDI), and reset LCDI. Check external power
supply making sure that the disconnect is ON. Check for blown fuses or tripped circuit
breakers. Reset or replace if needed.
CAUSE: Loose display cable
REMEDY: Re-seat display cable at display and power module.
CAUSE: Phase Monitor Fault (3-Phase Models)
REMEDY: Check Phase Monitor, and correct power problem>
PROBLEM: EVAPORATOR FAN RUNS BUT COMPRESSOR AND CONDENSER
FAN DO NOT START
CAUSE: SET POINT — setting may be too high for cooling or too low for heating.
REMEDY: Make sure set-point is adjusted accordingly. You should see a red dot to
the right of the temperature display indicating compressor ON.
Note—there is a time delay for the compressor
CAUSE: Loose Display Cable
REMEDY: Examine the control unit for loose wires. Tighten any loose connections.
CAUSE: Condition Alarm—”CON”.
REMEDY: Check condensate tank and empty tank or check condensate pump and
make sure pump is working properly and that there is no kink in the drain line from the
pump.
CAUSE: High Pressure Cut-Out—”CON” Check High Pressure Cut-out Switch.
Press Reset and clear away any obstructions to the condenser intake or condenser
discharge.
CAUSE: Compressor contactor open or burned.
REMEDY: Replace contactor
CAUSE: Defective Power Module
REMEDY: Replace Power Module.
21
PREVENTIVE MAINTENANCE
2OAC Spot Coolers are designed to last a long time and to give
maximum performance and reliability with minimum maintenance. To
prolong the life of the unit, regular maintenance must be performed
as specified below:
BLOWER MOTORS
The motors on all units have permanently lubricated bearings. No
oiling is necessary
FILTERS
A clogged filter will cause the unit to operate at greatly reduced
efficiencies. We recommend that the filter be inspected on a regular
bases every six weeks or more often depending on the environment.
The evaporator filter is located behind the return air grille and can be
easily removed and cleaned. The condenser filter is located in the
lower backside of the unit. Remove by loosening one screw holding
retaining clip and pull out. The filters must be washed periodically as
needed by placing them in a dishwasher or soaking them in a
solution of warm water and detergent for 10 minutes. Then rinsing
them clean with hot water and shaking excess moisture from filter.
CONDENSATE PUMP
Condensate pumps come standard on all Size 60 models, and may
be installed as options on size 12, 18, 24 and 36 models. When
servicing pump follow these steps;
1. Make certain that the unit is disconnected from the power source
before attempting to service or remove any component.
2. Be sure the floats move freely. Clean as necessary.
3. Remove the volute and check for obstructions. Clean as needed.
4. Clean the tank with warm water and mild soap when mineral
deposits are visible.
5. Check the inlet and outlet piping. Clean as necessary. Be sure
there are no kinks in the lines that would inhibit flow.
GENERAL
When necessary maintenance steps outlined above are followed, the
air conditioner will provide long and reliable service. The refrigeration
and electrical circuits of the system should only be serviced by a fully
qualified service technician.
22
2OAC12
INTERIOR VIEW
23
24
25
26
27
28
29
30
31
MANUFACTURER’S LIMITED WARRANTY
The Manufacturer (OceanAire, Inc.) warrants to the original owner that the Product will be
free from defects in material or workmanship for a period not to exceed one (1) year from
date of installation. If upon examination by the Manufacturer the Product is shown to have
a defect in material or workmanship, during the warranty period, the manufacturer will
repair or replace, at its option, that part of the Product which is shown to be defective.
The Manufacturer further warrants that the product's compressor-motor will be free from
defects in materials and workmanship for five (5) years from the date of installation. If
upon examination by the Manufacturer, the Compressor-Motor is shown to have a defect
in materials or workmanship during the warranty period, the Manufacturer will repair or
replace, at its option, that compressor which is shown to be defective. Electrical parts
(such as relays, overloads, capacitors, etc.) and the sealed refrigeration system
(condenser and evaporator) are included in the one year limited warranty, but not with the
five year limited warranty of the compressor. This limited warranty does not apply:
a) if the Product has been subjected to misuse or neglect, has been accidentally or
intentionally damaged, has not been installed, maintained or operated in accordance with
the furnished written instructions, or has been altered or modified in any way.
b) to any expenses, including labor or material, incurred during removal or reinstallation of
the Product.
c) to any workmanship of the installer of the Product.This limited warranty is conditional
upon:
(i) shipment, to the Manufacturer, of that part of the Product thought to be defective.
Goods can only be returned with prior written approval from the Manufacturer. All returns
must be freight prepaid.
(ii) determination, in the reasonable opinion of the Manufacturer that there exists a defect
in material or workmanship.
Repair or replacement of any part under this Limited Warranty shall not extend the
duration of the warranty with respect to such repaired or replaced part beyond the stated
warranty period.
THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EITHER
EXPRESS OR IMPLIED, AND ALL SUCH OTHER WARRANTIES, INCLUDING
WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED AND EXCLUDED
FROM THIS LIMITED WARRANTY. IN NO EVENT SHALL THE MANUFACTURER BE
LIABLE IN ANY WAY FOR ANY CONSEQUENTIAL, SPECIAL, OR INCIDENTAL
DAMAGES OF ANY NATURE WHATSOEVER, OR FOR ANY AMOUNTS IN EXCESS
OF THE SELLING PRICE OF THE PRODUCT OR ANY PARTS THEREOF FOUND TO
BE DEFECTIVE. THIS LIMITED WARRANTY GIVES THE ORIGINAL OWNER OF THE
PRODUCT SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS
WHICH MAY VARY BY EACH JURISDICTION.
32
USEFUL INFORMATION
MODEL:
SERIAL NUMBER:
DATE PURCHASED:
INSTALLED BY:
DATE INSTALLED:
For Technical Support, or to locate a distributor for
service parts, contact Oceanaire at (847) 583-0311
or 1-866-GETAIRE (438-2473). Please indicate the
Model Number and Serial Number of the unit to
assure proper information and service parts.
Form EISM-2OAC, 110114 Rev 1
Loading...
