Ocean BTC2018 User Manual

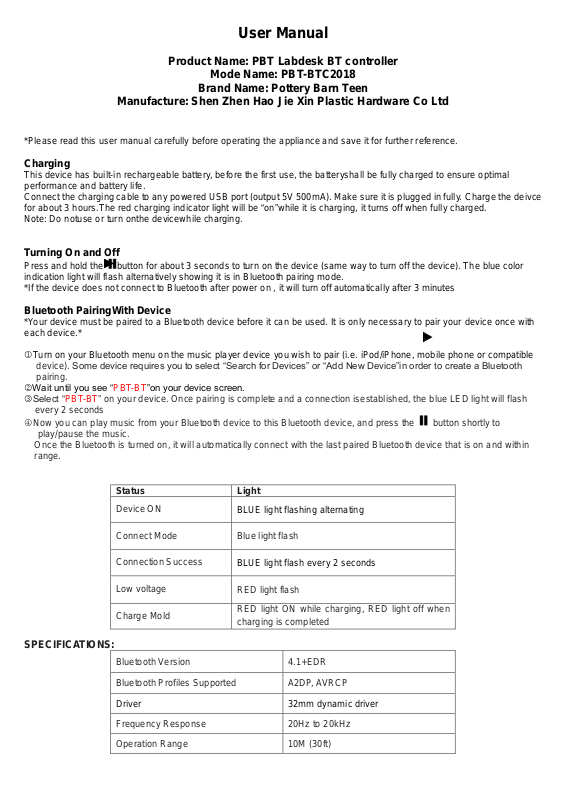

User Manual
Bluetooth Version
4.1+EDR
Bluetooth Profiles Supported
A2DP, AVRCP
Driver
32mm dynamic driver
Frequency Response
20Hz to 20kHz
Operation Range
10M (30ft)
Status
Light
Device ON
BLUE light flashing alternating
Connect Mode
Blue light flash
Connection Success
BLUE light flash every 2 seconds
Low voltage
RED light flash
Charge Mold
RED light ON while charging, RED light off when
charging is completed
Product Name: PBT Labdesk BT controller
Mode Name: PBT-BTC2018
Brand Name: Pottery Barn Teen
Manufacture: Shen Zhen Hao Jie Xin Plastic Hardware Co Ltd
*Please read this user manual carefully before operating the appliance and save it for further reference.
Charging
This device has built-in rechargeable battery, before the first use, the batteryshall be fully charged to ensure optimal
performance and battery life.
Connect the charging cable to any powered USB port (output 5V 500mA). Make sure it is plugged in fully. Charge the deivce
for about 3 hours.The red charging indicator light will be “on”while it is charging, it turns off when fully charged.
Note: Do notuse or turn onthe devicewhile charging.
Turning On and Off
Press and hold the button for about 3 seconds to turn on the device (same way to turn off the device). The blue color
indication light will flash alternatively showing it is in Bluetooth pairing mode.
*If the device does not connect to Bluetooth after power on , it will turn off automatically after 3 minutes
Bluetooth PairingWith Device
*Your device must be paired to a Bluetooth device before it can be used. It is only necessary to pair your device once with
each device.*
Turn on your Bluetooth menu on the music player device you wish to pair (i.e. iPod/iPhone, mobile phone or compatible
device). Some device requires you to select “Search for Devices” or “Add New Device”in order to create a Bluetooth
pairing.
Wait until you see “PBT-BT”on your device screen.
Select “PBT-BT” on your device. Once pairing is complete and a connection isestablished, the blue LED light will flash
every 2 seconds
Now you can play music from your Bluetooth device to this Bluetooth device, and press the button shortly to
play/pause the music.
Once the Bluetooth is turned on, it will automatically connect with the last paired Bluetooth device that is on and within
range.
SPECIFICATIONS:
SAFETY AND CARE
When not in use, turn the headphone off and store in a cool, dry place.Battery performance will be severely decreased
when stored in extreme temperatures, including direct sunlight.
Clean with a soft, dry or slightly damp cloth. Never use chemical cleaners.
This product has no user-serviceable parts. Do not attempt to repair to avoid permanent damage.
Do not place on any wet surface.
Do not use this device near water.
Do not drop the product on hard surface. Doing that may result damage of the product.
Press function button gently, press too hard might shorten life time of function.
Do not cover the unit with any table-clothes, curtains, etc. Place theunit where there is good air circulation.
Do not place unit near TV, speakers, wireless telephones and otherobjects that generate strong magnetic fields.
Do not expose the headphones to liquids. If the device comes in contact with liquids, quickly wipe away. If submerged
in water, do not turn the device on.
Do not use around flammable gasses as fire or explosion may occur.
WARNING
Using headphones at high to moderate volumes for extended periods of time will result in permanent hearing damage. It is
advised you keep volume levels moderate to low at all time for your safety.
Do not use while driving a car, cycling, operating machinery, or performing other activities that require hearing surrounding
sounds.
It is advised to turn the volume on your device all the way down before connecting your headphones, then gradually
increase the volume until you reach a comfortable listening level.
TROUBLESHOOTING:
Q: Cannot pair successfully.
A: Check the headphone is on and within searchable distance.
A: Check whether there are too many Bluetooth receivers around, turn unnecessary device off to avoid disturbance and pair again.
Q: The sound is too low or distorted.
A: Check volume setting on music device and adjust to a suitable sound level.
A: Battery might be low, please charge headphone.
Q: Cannot play music properly.
A: Check whether the distance between headphone and music device is too far from working distance, or whether there are some
obstacles blocking the communication between headphone and device.
FCC STATEMENTS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Caution: unauthorized use of the product may cause damage or injury.
“NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.”
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without
restriction.
CAN ICES-3 (B).FCC ID :2AI88BTC2018
Product Made in China for Pottery Barn Teen
