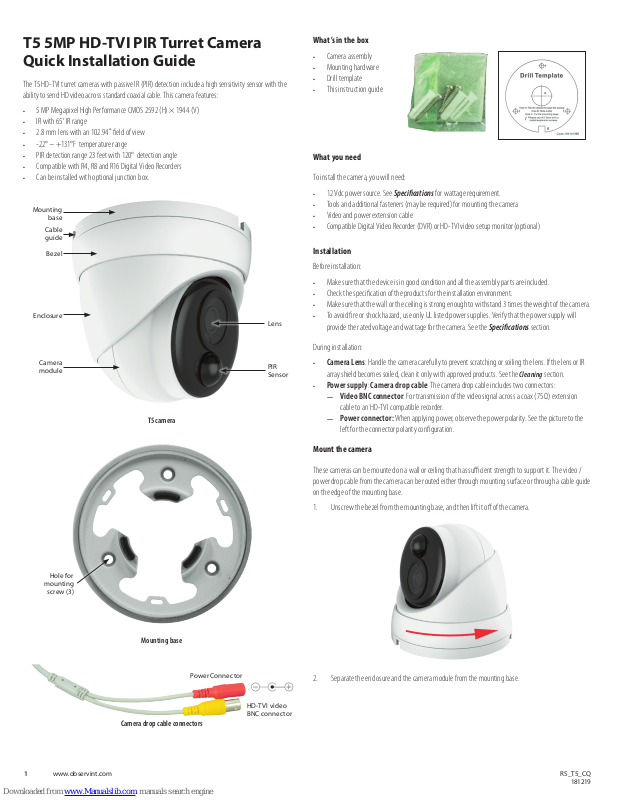

T5 5MP HD-TVI PIR Turret Camera
Quick Installation Guide
The T5 HD-TVI turret cameras with passive IR (PIR) detec tion include a high sensitivity sensor with the
ability to send HD video across s tandard coaxial cable. This camer a features:
• 5 MP Megapixel High Per formance CMOS 2592 (H) × 1944 (V)
• IR with 65’ IR range
• 2.8 mm lens with an 102.94˚ eld of view
• -22° ~ +131°F temperature range
• PIR detection range 23 feet with 120° detec tion angle
• Compatible with R 4, R8 and R16 Digital Video Recorders
• Can be installed with optional junction box.
Mounting
base
Cable
guide
Bezel
Enclosure
Lens
What’s in the box
• Camera assembly
• Mounting hardware
• Drill template
• This instruction guide
What you need
To install the camera, you will need:
• 12 Vdc power source. See Specications for wat tage requirement.
• Tools and additional fasteners (may be require d) for mounting the camera
• Video and power extension cable
• Compatible Digital Video Recorder (DVR) or HD-TVI video setup monitor (optional)
Installation
Before installation:
• Make sure that the device is in good condition and all the assembly p arts are included.
• Check the spe cication of the products for the ins tallation environment.
• Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
• To avoid re or shock hazard, use only UL listed power supplies. Verif y that the power supply will
provide the rated voltage and wat tage for the camera. See the Specications sec tion.
Camera
module
Hole for
mounting
screw (3)
T5 camera
PIR
Sensor
During installation:
• Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
array shield becomes soiled, clean it only with approved product s. See the
• Power supply: Camera drop cable: The camera drop cable includes t wo connectors:
— Video BNC connector: For transmission of the video signal across a coax (75 Ω) extension
Cleaning section.
cable to an HD-TVI compatible recorder.
— Power connec tor: When applying power, observe the power polarit y. See the picture to the
left for the connector polarity conguration.
Mount the camera
These cameras can be mounted on a wall or ceiling that has sucient strengt h to support it. The video /
power drop cable f rom the camera can be routed either through mounting surface or through a cable guide
on the edge of the mounting base.
1. Unscrew the be zel from the mounting base, and then lift it o of t he camera.
Mounting base
Power Connector
Camera drop cable connectors
www.observint.com
1
2. Separate the enclosure and the camera module f rom the mounting base.
HD-TVI video
BNC connector
RS_T 5_CQ
181219
3. Using the mounting template or the mounting base, mark the holes for the camera mounting
screws.
4. Drill holes for the screws that anchor the base to the mounting surface. T he mounting hardware
provided is appro priate for most surfaces. However, depending on the surface material and streng th,
more appropriate fasteners may be required.
5. Drill a 3/4” hole through the mounting sur face for the drop cable, if nece ssary.
6. If using wall inserts for the mounting sc rews, install the wall insert s at this time.
7. Attach the mounting base the surface using the appropriate f asteners. If the camera dro p cable will
route through a cable guide, lay the cable in the guide before tightening the mounting screws.
Specications
Camera Model (SKU). T5
Image Sensor 1/2.7” CMOS
Resolution 5MP: 2592 (H) × 194 4 (V)
Video Output Termination 1-channel BNC video output
Minimum Illumination 0.05 lux @ F1.0 (AGC ON)
0 lux with IR O N
IR Cut Filte r Yes, 850 nm
DWDR Yes
WDR N/A
IR LEDs 18
Night Vision (IR range) 65 ft (20 m)
Lens 2.8 mm
Viewing Angle (degrees) Horizontal FOV: 102.9 4°
Backlight Compensation O (default)
Mechanical Zoom Fixed focus
Audio - Microphone No
Audio Rang e (Mtrs) N/A
On-scr een display (OSD) Yes
Operating Power 4 W max.
Operating Temperature -22° ~ +131°F (-30° ~ +55° C)
Number of PI Rs (motion dete ction) 1
PIR Detec tion Angle 120°
PIR Detection Distan ce 23 ft (7 m)
8. If the drop cable will route through a hole in the mounting surface, rou te the cable through the hole,
and then reassemble the camera on the mounting base. Thread the bezel onto the mounting base
only enough to hold the assembly toget her. Do not tighten the bezel.
9. Route ex tension cables from the power source and DVR to the mounting location.
10. Connect the network video coax and power e xtension cables to the camera drop cables.
Drop cable connectors are not waterproof. Fail ure of the power or vid eo connector
!
WARNING
due to moist ure or another con taminant is consi dered an instal lation error, which
voids the wa rranty. If installi ng this camera in a lo cation such as an over hang, shop,
garage, k itchen, etc. where h igh humidit y or dust is present, se al these connec tions
adequately.
12. Apply power to the camera through the 12 Vdc power cable.
Camera adjustments
1. While observing video from the camera, move the camera module to adjust direc tion, tilt and
horizontal alignment to center the eld of view on your surveillance target. Loosen the bezel if
needed to so t he camera module can be adjusted easily.
2. While holding the camera module and enclosure in place, tighten t he bezel to lock the camera in
position.
Camera conguration customization
For conguration and customization, refer to the Us er Manual for your camera or recorder.
Cleaning
Clean the camera dome with an approved glass cleaning solution and a lint free cloth.
• Dust can be removed from the unit by wiping it with a s oft damp cloth. To remove stains, gently rub
the surface with a sof t cloth moistened with a mild detergent solution, then rinse and dr y it with a
soft cloth. Do not use benzene, thinner or other chemical p roducts on the camera as sembly; these
may dissolve the paint and promote damage of the surfaces.
• Remove all foreign par ticles, such as plastic or rubber materials, at tached to the camera housing.
These may cause damage to the surface over time.
2 www.observint.com
© 2018 Observint Technologies. All rights reserved.
