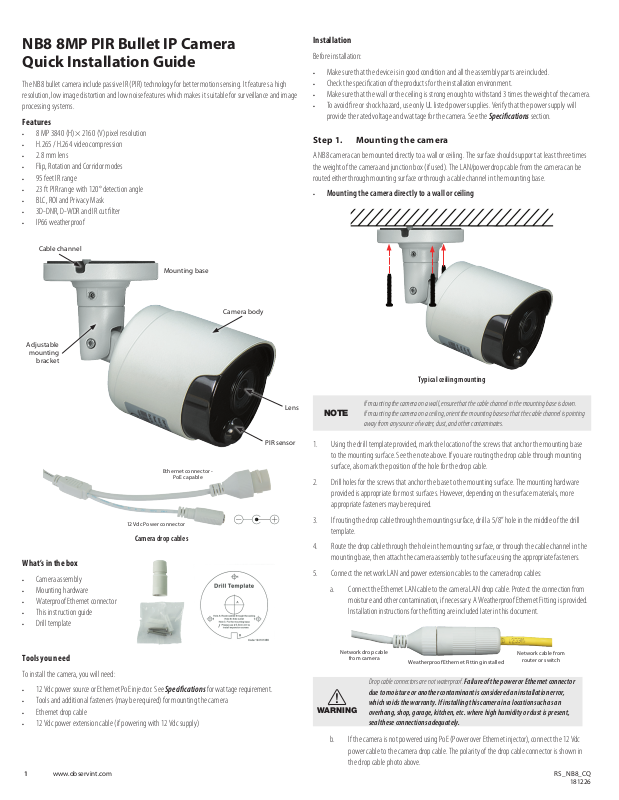

Page 1
NB8 8MP PIR Bullet IP Camera
Quick Installation Guide
The NB8 bullet camera include passive IR (PIR) technology for b etter motion sensing. It features a high
resolution, low image distort ion and low noise features which makes it suitable for sur veillance and image
processing systems.
Features
• 8 MP 3840 (H) × 2160 (V) pixel resolution
• H.265 / H.264 video compression
• 2.8 mm lens
• Flip, Rotation and Corridor modes
• 95 feet IR range
• 23 ft PIR range with 120° detection angle
• BLC, ROI and Privac y Mask
• 3D-DNR, D-WDR and IR cut lter
• IP66 weatherproof
Cable channel
Mounting base
Camera body
Installation
Before installation:
• Make sure that the device is in good condition and all the assembly par ts are included.
• Check the spe cication of the products for the installation environment.
• Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
• To avoid re or shock hazard, use only UL listed power supplies. Verify that the power supply will
provide the rated voltage and wat tage for the camera. See the Sp ecications section.
Step 1. Mounting the camera
A NB8 camera can be mounted direc tly to a wall or ceiling. The surface should support at leas t three times
the weight of the camera and junction box (if used). The LAN/power drop cable from the c amera can be
routed either t hrough mounting surface or through a cable channel in the mounting base.
• Mounting the camera directly to a wall or ceiling
Adjustable
mounting
bracket
What’s in the box
• Camera assembly
• Mounting hardware
• Waterproof Ethernet connec tor
• This instruction guide
• Drill template
Ethernet connector -
PoE capable
12 Vdc Power connec tor
Camera d rop cables
Typical ceiling mounting
Lens
NOTE
If mounting the ca mera on a wall, ensure that the cable channel in th e mounting base is down.
If mounting the ca mera on a ceiling, orient the mountin g base so that the cable channel is pointi ng
away from any source of water, dust, and oth er contaminates.
PIR sensor
1. Using the drill template provided, mark the loc ation of the screws that anchor the mounting base
to the mounting sur face. See the note above. If you are rou ting the drop cable through mounting
surface, also mark the position of the hole for the drop cable.
2. Drill holes for the screw s that anchor the base to the mounting surface. The mounting hardware
provided is appro priate for most surfaces. However, depending on the surface materials, more
appropriate fasteners may be required.
3. If routing the drop cable t hrough the mounting surface, drill a 5/8” hole in the middle of the drill
template.
4. Route the drop cable through the hole in the mounting surface, or through the cable channel in the
mounting base, then attach the c amera assembly to the surf ace using the appropriate fasteners.
5. Connect the net work LAN and power extension cables to the camera drop cables:
a. Connect the Ether net LAN cable to the camera L AN drop cable. Protect the connection from
moisture and other contamination, if ne cessar y. A Weatherproof Etherne t Fitting is provided.
Installation ins tructions for the t ting are included later in this document.
Tools you need
To install the camera, you will need:
• 12 Vdc power source or Ethernet PoE injector. See Specications for wattage requirement.
• Tools and additional fasteners (may be required) for mounting the c amera
• Ethernet drop c able
• 12 Vdc power extension cable (if powering with 12 Vdc supply)
www.observint.com
1
Networ k drop cable
from camera
Weatherproof Ethernet Fitting installed
Networ k cable from
router or s witch
Drop cable connec tors are not waterproof. Failure o f the power or Etherne t connector
due to moist ure or another con taminant is consi dered an instal lation error,
!
WARNING
which void s the warranty. If insta lling this came ra in a location such as a n
overhang , shop, garage, kitch en, etc. where hig h humidity or d ust is present,
seal these connections adequately.
b. If the camera is not powered using PoE (Power over Ethernet injector), connect the 12 Vdc
power cable to the camera drop cable. The p olarity of the drop cable conne ctor is shown in
the drop cable photo above.
RS_ NB8_CQ
181226
Page 2
CAUTION
Do not apply p ower to the camera at this time. Before applyin g power to the camera, ensure that
the polarit y is correct. An incorrect connection m ay cause a malfunction and can d amage the
camera .
6. For outdoor installations, seal holes drilled in t he mounting surface to block moisture and other
contaminants, if ne cessary.
7. Secure the camera to the mounting surface using appropriate screws.
8. Apply power to the camera through the 12 Vdc power cable or PoE injector, as congured.
Step 2. Using the Device Configuration Tool software
NOTE: Skip this Step if y ou are adding your camera directly to th e Ethernet connectors on the ba ckpanel if an NVR.
Installation
The Device Conguration Tool is a PC-based network utility for discover y of NTx or NBx cameras for your
N-Series recorder. It provides an easy way to congure the camera’s network settings and reset the camera.
It can be installed on a Microsof t® Windows® (Windows 7 or newer) operating sy stem that has access to
the networ k where your the cameras are installed. The Device Congur ation Tool is available from your
vendor.
1. Acquire the Device Conguration Tool from your vendor. At the time when this document was
published, the le is named: Device Cong Tool_<version>.exe.
2. Run the .exe le on a Windows computer that is connec ted to the LAN where your cameras are
installed. Follow the on-screen instruc tions to complete the installation. You may have to open
ports in your rewall. The sof tware automatically opens af ter it is installed and then searches for
cameras on the L AN. See below.
Click here to vi ew network set tings
5. Click Modify, and then slide the Shif t Bar to the right. The St atus of the modify operation is
shown in the right-most column.
Modify status
Shift b ar
6. Slide the Shift Bar to the left to se e the new settings in the Searc h list.
Click here to lo gin
Modify network settings
Modify the network s ettings of the camera you are installing to avoid IP address conicts on t he LAN. Verify
that the your new se ttings will be compatible wit h other devices on the networ k before continuing. Consult
with your net work administrator for spe cic recommendations, if necessary.
3. Click the entry in the search results list for the camera you are installing. The frame at the bottom of
the window shows User Info (UserName and Password) and Device Info (network settings).
4. Enter the new and compatible network set tings in the Device Info eld (see below). Here, the IP
address was changed to 192.168.0.68, and the Gateway was c hanged to 192.16 8.0 .1.
Step 3. Perform the initial setup of the camera
NOTE: Skip this Step if y ou are adding your camera directly to th e Ethernet connectors on the ba ckpanel if an NVR.
1. To log into the camera and setup a password, click on the IP address of the camera in the list you
want to log into (see above). If SurveillancePlugin was not previously installed on your compu ter, the
following window will appear. You must install the plugin to access the camera.
2. In the screen above, click the download hyperlink.
3. In the following window, click Run in the footer menu, and then c lose your browser.
2 www.observint.com
© 2018 Observint Technologies. All rights reserved.
Page 3
4. Follow the on-screen instructions to complete the ins tallation o SurveillancePlugin.e xe.
8. In the Login screen shown below using the new password you created previously.
Following a success ful login, the camera live view window will appear. Notice that SubStream is
shown by default . Click MainStream to see a bet ter image.
Click here to LogoutScreen selectLive view imageStream select
5. Return to the Device Conguration Tool menu, and then click on the IP address of the camera
you want to log into.
6. If the follow screen appear s, click (select) Allow in the footer query.
7. Next, the browser will appear with a Password popup window. Use this feature to setup a unique
password for your camera. Enter a password in the Password and Conrm elds that indicates a
High security level as shown below, and then click OK. Copy the new password for the c amera and
save it in a safe place.
Step 4. Using the NVR Live View screen - add camera
NOTE: Skip this Step if y ou are adding your camera to an IP net work.
If you are adding your camera directly to the NVR backpanel Ethernet connec tors, use this step.
Click to add camera
3
www.observint.com
1. To add a camera to a frame, click the + icon in the upper right corner.
2. In the Quick Add menu that opens, a list of cameras that can be added appears at the top. Click on
the one you want to add to the viewing frame.
© 2018 Observint Technologies. All rights reserved.
Page 4
3. Check the parameter s in the menu to ensure they are correc t (see above), and then click the Add
button. Video from the camera will appear in the viewing frame.
Status Icons
Refer to the User Manual for your NVR for additional information abou t using your camera.
Camera adjustments
1. Apply power to the camera.
2. Verify that video from the camera can be s een on the monitor.
3. While observing video from the camera, loosen the mounting bracket pan lock screw, and tilt and
rotation adjustment lock screws, point the camera at your surveillance targe t, and then tighten
adjustment lock screws to hold the camera in position.
Rotation: Use for horizon
line adjustment
Pan: Use
for pan
adjustment
0° ~ 360°
Tilt: Use for
elevation
adjustment
0° ~ 90°
0° ~ 360°
Mounting bracket adjustment
Step 5. Additional Setup procedures
Refer to the User Manual for your camera for proce dures to customize your camera fo r your surveillance
application.
Specications
Model NB8
Resolution 8 MP: 384 0 (H) × 2160 (V)
Image Sensor 1/2.3” Progressive CMOS
Min. Illumination Color 0.1 lux @ F1.2 (AGC ON); B/W 0 lu x @ IR ON
Shutter 1/5 ~ 1/20000s
Slow shutter Supported
Lens 2.8 mm
F No. F 2.0 ±5%
Day & Night IR cut lte r with auto swi tch (Day/Night/Auto/S chedule)
Digital noise reduction: 3 D DNR
WDR Digital
Video Compression H.265 / H.264
Video bi t rate 8 Kbps ~ 8 Mb ps
Triple Stream Yes
Resolution Main Str eam: 8 MP (3840 × 2160), 5 MP (3072 × 1728) (5292 × 194 4), 4 MP (2592 × 1520),
3 MP (2304 × 1296), 108 0P (1920 × 1080), 720P (1280 × 720),
Sub Steam 1080P (1920 × 1080), 720P (1280 × 720), VGA (640 × 4 80), QVGA (320 × 240)
Mobile Stream VGA (640 × 480), QVGA (320 × 240)
Image Settings: Flip, Rotat ion, Corrido r mode, Satura tion, Brightn ess, Contras t, Hue, Sharpn ess adjustab le
SD card slot Yes, for micro SD up to 128GB (For camer as provided in dividually onl y. Not for cameras in k its.)
BLC Supported
ROI Supported
Privacy Mask Supported
Video Analytics NA
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FT P
System Compatibility ONVIF (Ver 2.6, Prole S, Prole G)
Interface RJ45 10M / 100 M Ethernet inte rface × 1
Led 18 pcs (SMD)
IR Range U p to 95 ft (30 m)
Alarm Trigger No
Audio No
Video Output: No
Reset Button No
PoE Yes
Water Proof IP 66
Power Supply 12 Vdc / PoE
Consumption ≤ 7 W
Weight .77 lb (349 g) appr ox.
Storage Temperature -22° + 140 °F (-30° + 60° C)
Operating Temperature -22° + 131° F (-30° + 55° C)
PIR Detec tion Angle 120°
PIR Detection Distan ce 23 ft (7 m)
Cleaning
Clean the camera dome with an approved glas s cleaning solution and a lint free cloth.
• Dust can be removed from the unit by wiping it with a sof t damp cloth. To remove stains, gently rub
the surface with a sof t cloth moistened with a mild detergent solution, then r inse and dry it with a
soft clot h. Do not use benzene, thinner or other chemical product s on the camera assembly; these
may dissolve the paint and promote damage of the sur faces.
• Remove all foreign par ticles, such as plastic or rubber materials, attached to the camera housing.
These may cause damage to the surf ace over time.
4
www.observint.com
© 2018 Observint Technologies. All rights reserved.
Page 5
Using the Waterproof Ethernet Fitting
Install the Waterproof Ethernet Fitting on the Ethernet cable end at the camera when moisture or
contamination ex ists in the area near the camera. The tting includes several par ts that must be installed in
a specic order. To install the tting:
1. Place the rubber O -ring over the camera drop cable end c ap.
Push the O-ring up to the connector cap.
2. If the network cable f rom the switch or router has a conne ctor
on the end, cut o the connector.
3. Place the Lock Nut onto the net work cable from the router
or switch as shown in the drawing to the right. The inside
threads must be toward the camera end.
4. Place the rubber basket onto the network cable above the lock
nut as shown.
5. Place the end cap onto the net work cable above the rubber
gasket as shown. The ngered end must be toward the router
or switch.
6. Install an RJ-45 connector onto the network cable.
7. Plug the RJ- 45 connector with the net work cable into the
camera net work drop cable.
8. Fit the end cap on the net work cable onto the camera drop
cable end cap. Rotate the network c able end cap to lock it in
place.
9. Push the rubber gasket fully into the end of the network c able
end cap.
10. Screw the lock nut onto the network cab le end cap until it is
fully seated.
Networ k drop
cable fro m
camera
Drop cable
end cap
Rubber
O-ring
seal
RJ- 45
connector
End cap
Rubber
gasket
Networ k drop
cable fro m
camera
Ethernet Fitting installed
Waterproof Ethernet Fitting assembled and connected
Networ k cable from
router or s witch
Lock nut
Networ k
cable
from
router or
switch
5
www.observint.com
© 2018 Observint Technologies. All rights reserved.
Loading...
