Infrared Turret Dome Camera
User Manual
Products: CD600 Series, CD601 Series, CD700 Series Cameras
Please read this manual before installing and using this camera and always follow instructions for proper use.
Save this manual for future reference.
CD600-CD601-CD700_CM
11/14/13
WARNING
!
Do not use the camera if it is emitting fumes, smoke or a strange
odor, or if it seems to function abnormally. Disconnect the power
source immediately and consult your supplier.
CAUTION
Always follow the instructions in the installation guide when
applying power. Fire and equipment damage can occur if power
is applied incorrectly. For the correct power supply, refer to the
specication sheet.
CAUTION
Do not install or operate in small, unventilated areas. Heat build up
can signicantly reduce the performance and operating life of the
product and may cause a re.
© 2013 Observint Technologies. All rights reserved.
11000 N. Mopac Expressway, Building 300, Austin, TX 78759
1.800.335.9777 | Fax: 1.866.267.9777
For Sales/Support, please contact your supplier.
www.observint.com
WARNING
Risk of electric shock – do not open.
To reduce the risk of electric shock, do not
disassemble the camera module. No user
serviceable parts are inside. Refer servicing to
qualied service personnel.
iii
Infrared Turret Camera User Manual
WARNINGS & CAUTIONS
CAUTION
To prevent damage, do not drop the camera or subject it to
strong shock or vibration.
CAUTION
If installed close to a TV, radio transmitter, magnet, electric motor
transformer or audio speakers the magnetic eld generated may
interfere with or distort the image.
CAUTION
Never point it toward the sun. Use caution when operating the
camera in the vicinity of spot lights or other bright lights and light
reecting objects.
CAUTION
Do not use the camera in extreme environments where high
temperatures or high humidity exists. Use the camera only in
environments where temperature is between -4 °F ~ 122 °F
(-20 °C ~ 50 °C) and humidity is below 85%.
iv
www.observint.com
TABLE OF CONTENTS
Table of Contents
SECTION 1 Features ................................................. 1
1.1 Camera components ......................................2
1.2 Camera connections ......................................3
SECTION 2 Installation .............................................. 4
2.1 What’s in the box .........................................4
2.2 Tools you need ...........................................4
2.3 Installation instructions ...................................5
2.4 OSD Setup (CD700 series only) .............................12
SECTION 3 Aiming the Camera ....................................... 15
SECTION 4 Cleaning ................................................ 16
SECTION 5 Specications ........................................... 17
SECTION 6 Troubleshooting .........................................19
1
Infrared Turret Camera User Manual
SECTION 1: FEATURES
SECTION 1 Features
The CD600, CD601, and CD700 series cameras are weatherproof, vandal resistant turret
dome cameras, ideal for outdoor or indoor locations where surveillance in low-light
environments is required. These cameras include:
• Advanced image sensors for greater picture clarity
• Precision lenses to achieve the perfect view
(varifocal (VF) cameras have 2.8 - 12 mm adjustable zoom)
• The ability to see in the dark with built-in IR array
• Turret design for increased vandal resistance
• Each model available with a black or white shell
2
www.observint.com
SECTION 1: FEATURES
1.1 Camera components
Drop Cable
Video 75 Ohm
12 V dc
Base
Bezel
Camera
Housing
Camera
Module
Zoom Adjust
(-VF Models)
Camera Lens
IR LEDs
Camera assembly
3
Infrared Turret Camera User Manual
SECTION 1: FEATURES
1.2 Camera connections
Connect
Connect
Single camera with monitor
Multiple camera system with DVR and monitor
4
www.observint.com
SECTION 2: INSTALLATION
SECTION 2 Installation
2.1 What’s in the box
The camera package contains:
• Camera assembly
• Instruction manual
• Hardware kit, including four screws and four wall inserts
2.2 Tools you need
To install the camera, you will need:
• Phillips #2 screwdriver
• Small blade screwdriver (for adjusting VF model cameras)
Depending on how the camera is mounted, you may also need:
• Hammer
• Drill with 3/32" and 3/16" drill bits
• 3/4" hole saw
5
Infrared Turret Camera User Manual
SECTION 2: INSTALLATION
2.3 Installation instructions

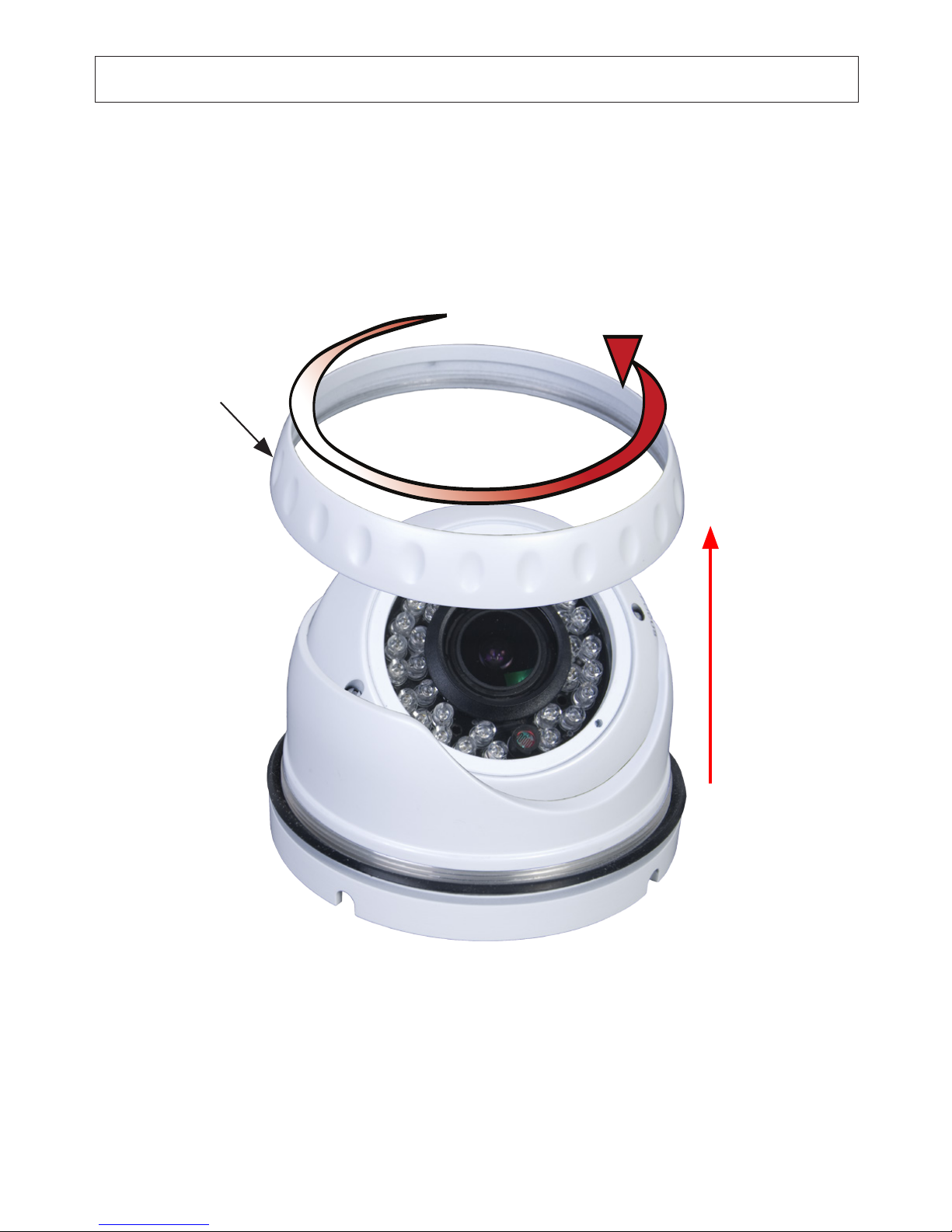

1. Separate the base from the rest of the camera assembly by unscrewing the housing
bezel.
Bezel
Remove the bezel
2. Determine where the camera will be mounted.
6
www.observint.com
SECTION 2: INSTALLATION

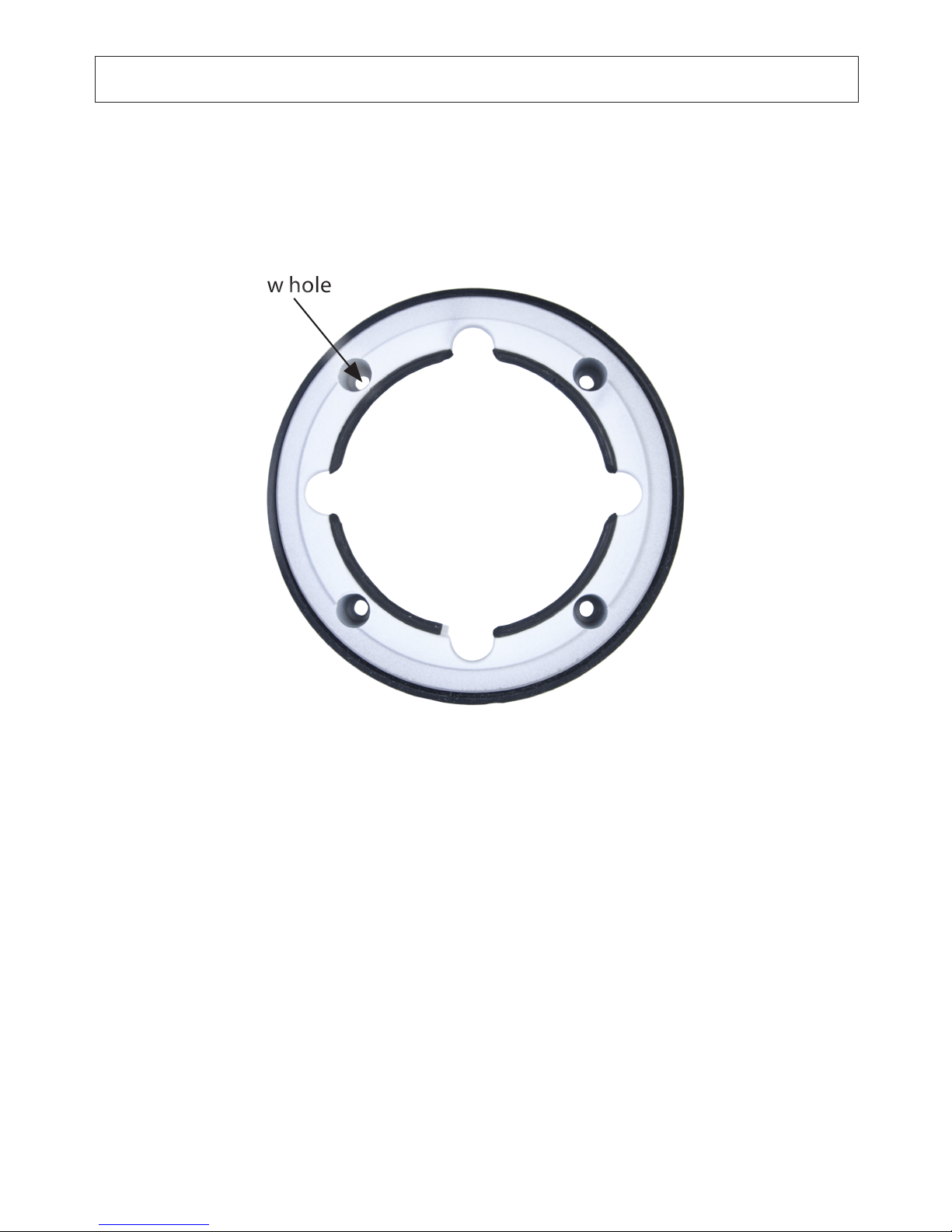

3. Using the base as a template, mark the location of the four mounting screw holes.
Mounting
screw hole
Camera Base
4. Drill mounting screw holes into the mounting surface.
a. If the mounting surface is a soft material, such as a drywall, use a 3/16” bit to
drill the mounting holes. Use a hammer to tap the wall inserts provided into
each hole until they are ush with the surface.
OR (continue on next page)
7
Infrared Turret Camera User Manual
SECTION 2: INSTALLATION
5. Drill mounting screw holes into the mounting surface.
a. If the mounting surface is a soft material, such as a drywall, use a 3/16" bit to
drill the mounting holes. Use a hammer to tap the wall inserts provided into
each hole until they are ush with the surface.
OR
b. If the mounting surface is a very soft material, such as ceiling tile, place a wood
block behind the tile. Screws longer than 1" may be required. Drill holes for the
mounting screws through the surface and into the wood block.
OR
c. If mounting the camera on a harder surface, such as wood, drill the mounting
screw holes with a 3/32" bit.
6. Determine the cable routing. If the cable is to be routed through a hole in the
mounting location within the coverage of the base, perform the following steps. If the
cable will be routed through a cable channel in the base, skip to step 9.
8
www.observint.com
SECTION 2: INSTALLATION

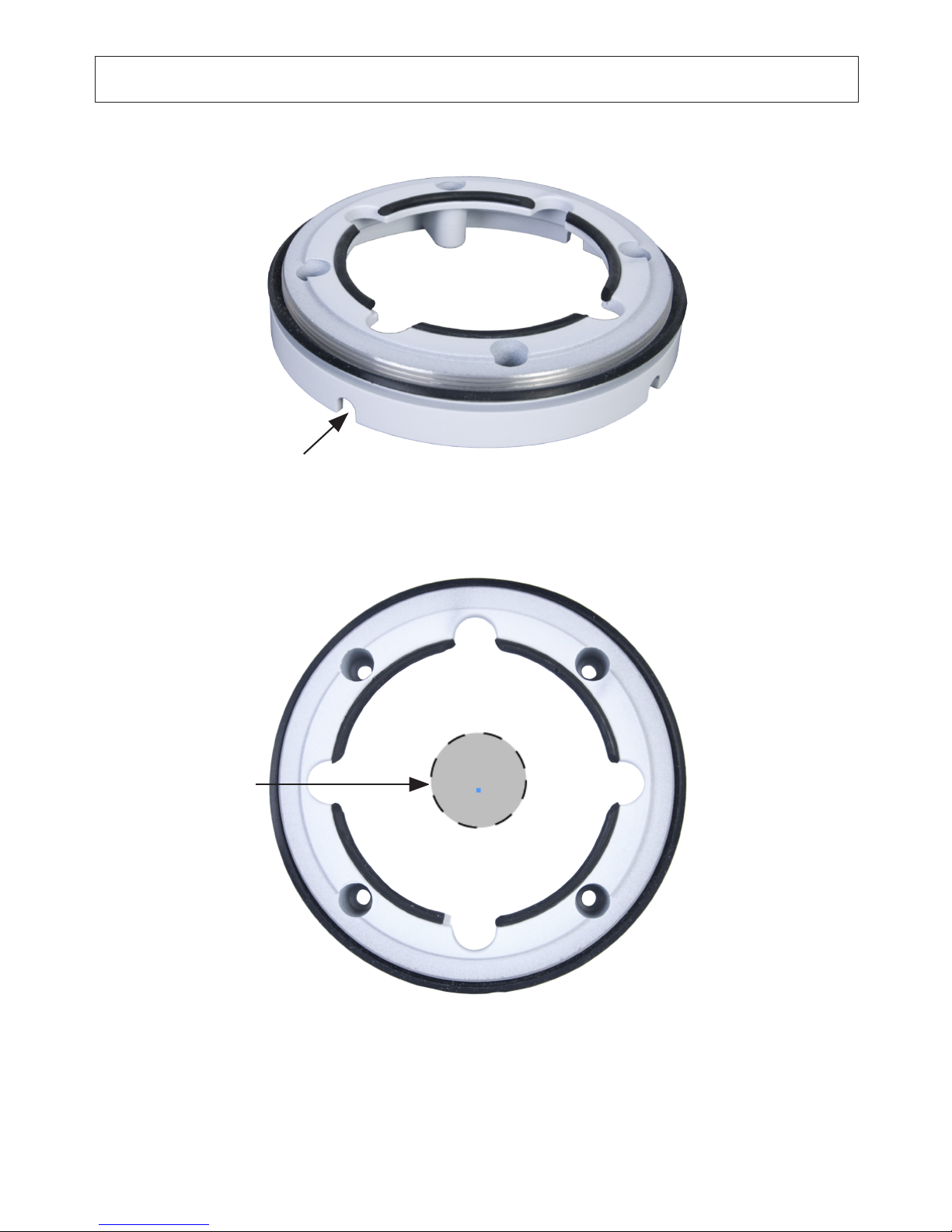

Cable channel in base
7. Drill a 3/4" hole through the mounting surface at the center of the base.
3/4" Drop cable
routing hole
Use a #2 Phillips screwdriver to mount the base with the provided screws.
9
Infrared Turret Camera User Manual
SECTION 2: INSTALLATION
8. With the camera in the camera housing, route the drop cable through the 3/4" hole
until the camera housing is tted onto the base. Place the housing bezel over the
camera housing and screw it onto the base until the camera and camera housing are
held in place. Skip to step 12.
9. Set the camera on the base with the camera cable pressed into one of the cable
guides of the base. Allow some slack in the cable within the base to allow for camera
positioning later.
10. Use a #2 Phillips screwdriver to mount the base with the provided screws.
11. Without allowing the camera to hang by the drop cable, place the camera module
onto the base, cover with the camera housing, then move the bezel into place. Screw
the housing bezel onto the base until the camera and camera housing are held in
place.
10
www.observint.com
SECTION 2: INSTALLATION

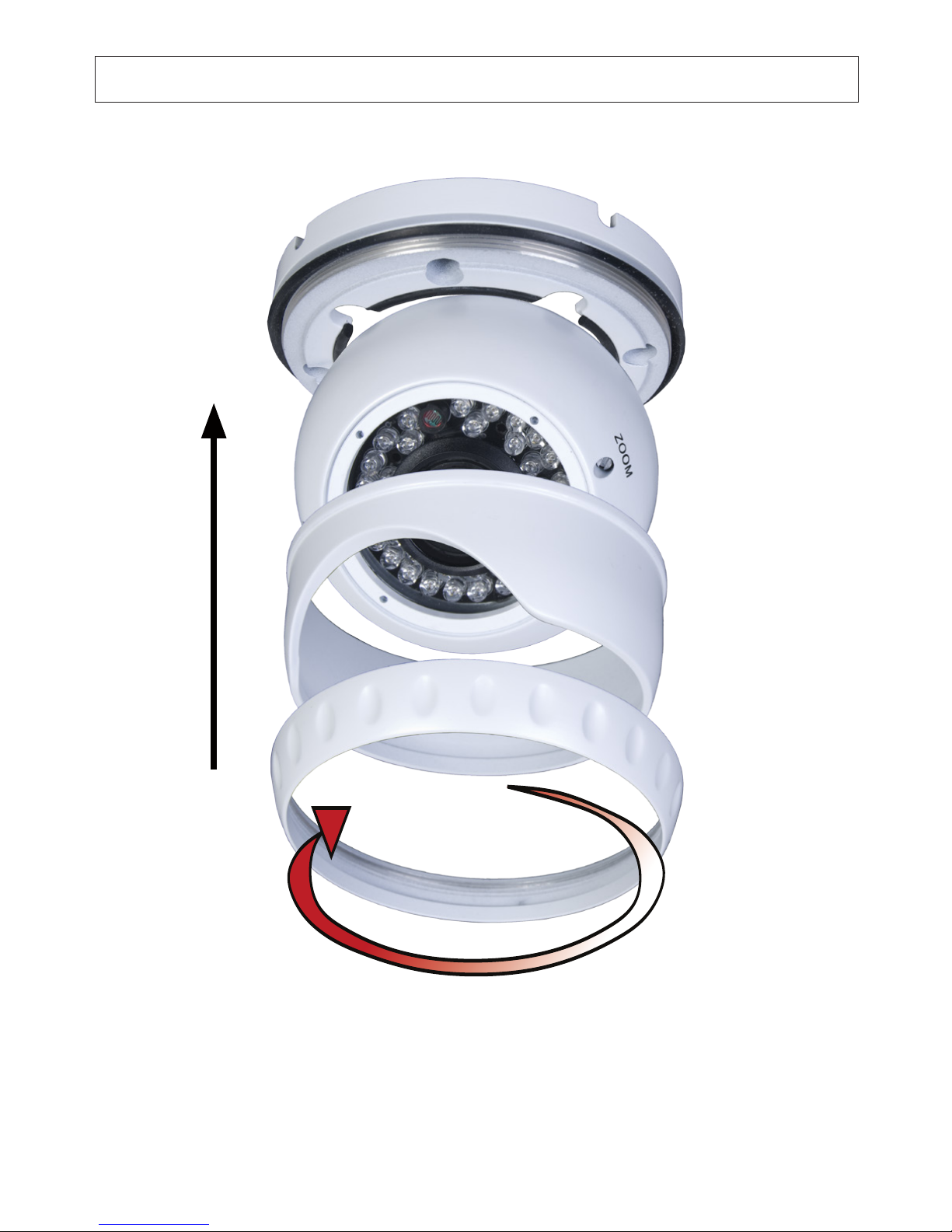

Reassemble camera
11
Infrared Turret Camera User Manual
SECTION 2: INSTALLATION

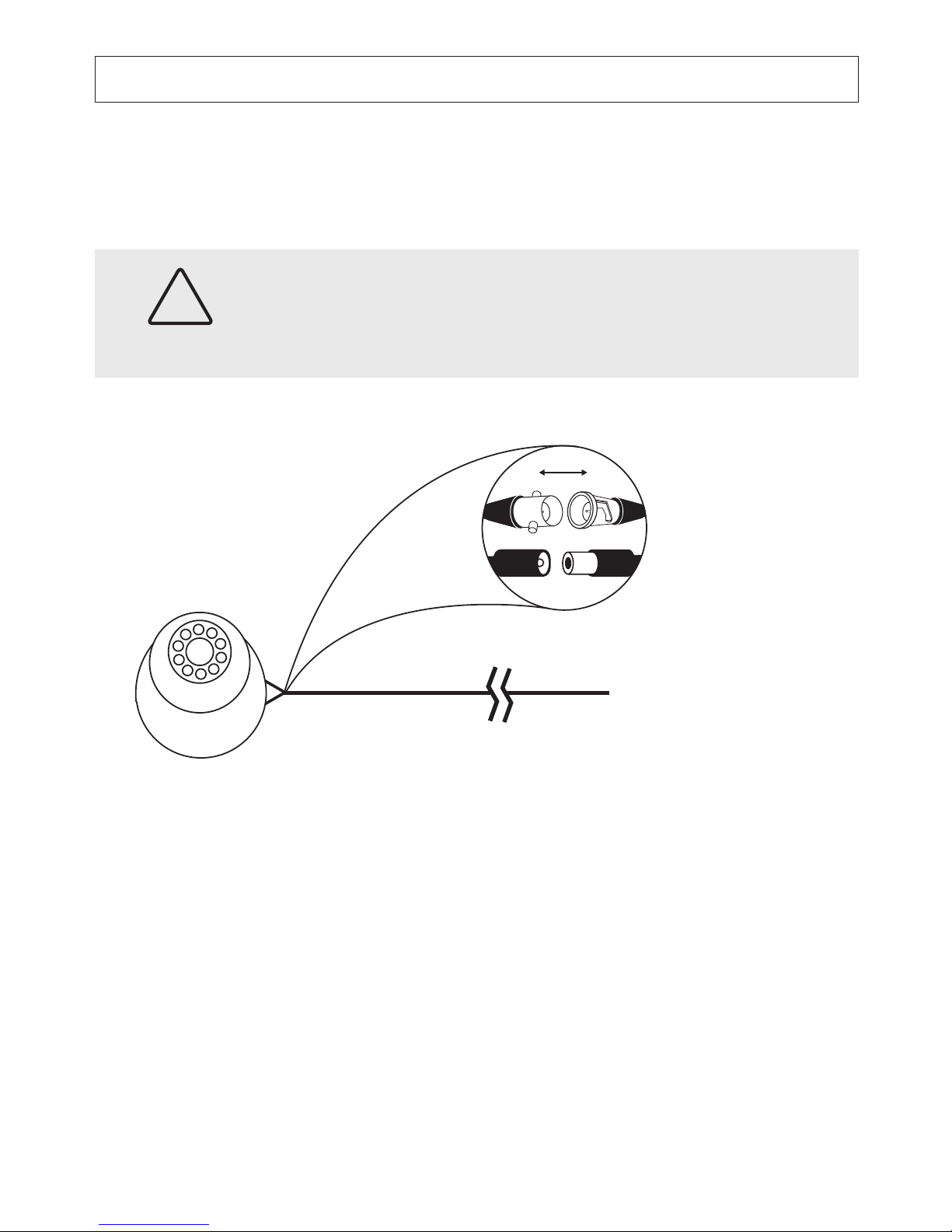

12. Attach the BNC video/power cable to the camera cable as required.
CAUTION
Notice that power connectors on the BNC video/power cable are
dierent at each end!
Connect
To DVR/Monitor
and Power
To DVR/monitor
and power
Cable attachment
12
www.observint.com
SECTION 2: INSTALLATION
2.4 OSD Setup (CD700 series only)
CD700 series cameras include on-screen
display (OSD) software for adjusting the
internal camera settings to complement
specic environment where it is installed.
These settings are adjusted using the OSD
controller attached to the camera drop cable.
The OSD controller includes a joystick that
can be pushed down and rocked UP, DOWN,
left (L) and right (R), or, to open the menu
system and navigate the menus.
Joystick
OSD
Controller
To use the OSD controller, press the joy stick in (toward the controller block) to open the
OSD menu. (See the menu chart on the following page.) Rock the joystick UP or DOWN to
highlight a parameter or submenu, then press the joystick in to select it. Rock the joystick
right (R) to highlight an option, UP or DOWN to identify the option, then press the
joystick in to select it. Repeat this method to navigate the menu system and select options.
13
Infrared Turret Camera User Manual
SECTION 2: INSTALLATION
OSD MENU OPTIONS
OSD SET
LENS
MANUAL
AUTO
TYPE: DC / VIDEO
MODE: CLOSE / AUTO/OPEN SPEED: 0-255
SHUTTER/
AGC
AUTO
HIGH LUMINANCE MODE: SHUT+AUTO IRIS / AUTO IRIS
BRIGHTNESS: 0-255
LOW LUMINANCE MODE: OFF / AGC
BRIGHTNESS: ×0.25, ×0.5, ×0.75, ×1
MANUAL
MODE: SHUT+AGC
SHUTTER: 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000,
1/4000, 1/10000 s
AGC: 6, 12, 18, 24, 30, 36, 42, 44.8
WHITE BAL
ATW SPEED / DELAY CNT / ATW FRAME / ENVIRONMENT
PUSH / ANTI CR / PUSH LOCK / USER1 / USER2 / MANUAL
BACK
LIGHT
OFF / BLC / HLC
PICT
ADJUST
MIRROR / BRIGHTNESS / CONTRAST / SHARPNESS / HUE / GAIN
ATR
OFF --
ON LUMINANCE/CONTRAST
14
www.observint.com
SECTION 2: INSTALLATION
OSD SET
(cont.)
MOTION
DET
OFF --
ON
DETECT SENSE / BLOCK DISP / MONITOR AREA / AREA
SEL / TOP / BOTTOM /
LEFT / RIGHT
PRIVACY
OFF --
ON
AREA SEL / TOP / BOTTOM / LEFT / RIGHT / COLOR /
TRANSP / MOSAIC
DAY/NIGHT
COLOR --
B/W BURST: OFF / ON
AUTO
BURST: OFF / ON
DELAY CNT / DAY-NIGHT / NIGHT-DAY
NR NR MODE: Y/C, OFF, Y, C
CAMERA ID OFF/ON --
SYNC INT --
LANGUAGE
ENGLISH / CHINESE / JAPANESE / ESPANOL / PORTUGUESE /
PYCCKNN / FRANCAIS / DEUISCH
CAMERA RESET / BACK / EXIT / SAVE ALL
15
Infrared Turret Camera User Manual
SECTION 3: AIMING THE CAMERA
SECTION 3 Aiming the Camera
1. Connect the video cable from the camera to a test monitor or to the BNC input on the
DVR.
2. Apply 12 Vdc power to the camera to power it on.
3. Unscrew the bezel until the camera module and housing can be rotated on the base.
4. While observing the video from the camera, adjust the camera to point it at your
surveillance target.
5. Position the housing to the LED array and the FOCUS and ZOOM adjusters (varifocal
models) are accessible
6. Screw the bezel onto the base tight enough to hold the camera assembly securely in
place.
7. If you are installing a CD601BVF / CD601WVF or CD700BVF / CD700WVF camera, use
a small blade screwdriver to adjust the focus and zoom if necessary.
16
www.observint.com
SECTION 4: CLEANING
SECTION 4 Cleaning
Clean the camera lens and IR lamp shield with an approved glass cleaning solution and a
lint free cloth.
• Dust can be removed from the unit by wiping it with a soft damp cloth. To remove
stains, gently rub the surface with a soft cloth moistened with a mild detergent
solution, then rinse and dry it with a soft cloth.
• Remove all foreign particles, such as plastic or rubber materials, attached to the
camera housing. These may cause damage to the surface over time.
CAUTION
Do not use benzene, thinner or other chemical products on the camera
assembly; these may dissolve the paint and promote damage of the
surfaces. Before using any chemical product, read the accompanying
instructions carefully.
17
Infrared Turret Camera User Manual
SECTION 5: SPECIFICATIONS
SECTION 5 Specications
Model CD600W, CD600B CD601W, CD601B
CD601WVF,
CD601BVF
Sensor 1/3" CMOS 1/3" SHARP CCD 1/3" SHARP CCD
Eective Picture
Elements (H×V)
728 (H) x 488 (V) 768 (H) x 494 (V) 768 (H) x 494 (V)
Horizontal Resolution 600 TV Line
Minimum Illumination
0.1 lux F1.2 /
0 lux (with IR LED on)
0.1 lux F1.2 /
0 lux (with IR LED on)
0.01 lux F1.2 /
0 lux (with IR LED on)
S/N Ratio More than 46 dB More than 48 dB More than 48 dB
Scanning System 2:1 interface
Synchronous System Internal, negative sync.
Auto-electronic Shutter 1/60 s ~ 1/100,000 s
Gamma Characteristic 0.45
IR Distance
65 ft (with Ø5 x 24 PCS
Infrared LED array)
65 ft (with Ø5 x 24 PCS
Infrared LEDs)
90 ft (with Ø5 x 36 PCS
Infrared LED array)
IR Status Under 10 lux by CDS - - Under 10 lux by CDS
IR Power On CDS AUTO Control - - CDS AUTO Control
Video Output 1 Vp-p, 75 Ω
Auto Gain Control Auto
Power/Current 12 Vdc (+/-10%) / 350 mA 12 Vdc (+/-10%) / 350 mA 12 Vdc (+/-10%) / 450 mA
Lens 3.6 mm / F2.0 3.6 mm / F2.0 2.8 - 12 mm manual zoom
Dimensions
Ø3.7 x 2.7 (H) in
(Ø94 x 69 (H) mm)
Ø3.7 x 3.15 (H) in
(Ø94 x 80 (H) mm)
Ø5.12 x 3.67 (H) in
(Ø131 x 93 (H) mm)
Weight 15.9 oz (450 g) 15.9 oz (450 g) 28.2 oz (800 g)
Storage Temperature -22 ~ 140 °F (-30 ~ 60 °C) RH 95 % max
Operating Temperature 14 ~ 122 °F (-10 ~ +50 °C) RH 95 % max
18
www.observint.com
SECTION 5: SPECIFICATIONS
Model CD700W, CD700B CD700WVF, CD700BVF
Sensor 1/3" SONY Super-HAD CCD II 1/3" SONY Super-HAD CCD II
Eective Picture
Elements (H×V)
976 (H) x 494 (V)
Horizontal Resolution 700 TV Line
Minimum Illumination
0.001 lux F1.2 /
0 lux (with IR LED on)
0.001 lux F1.2 /
0 lux (with IR LED on)
S/N Ratio More than 52 dB
Scanning System 2:1 interface
Synchronous System Internal, negative sync.
Auto-electronic Shutter 1/60 s ~ 1/100,000 s
Gamma Characteristic 0.45
IR Distance
65 ft (with Ø5 x 24 PCS
Infrared LED array)
90 ft (with Ø5 x 36 PCS
Infrared LED array)
Video Output 1 Vp-p, 75 Ω
Auto Gain Control Auto
Power/Current 12 Vdc (+/-10%) / 350 mA 12 Vdc (+/-10%) / 450 mA
Lens 3.6 mm / F2.0 2.8 - 12 mm manual zoom
Dimensions
Ø3.7 x 2.7 (H) in
(Ø94 x 69 (H) mm)
Ø5.12 x 3.67 (H) in
(Ø131 x 93 (H) mm)
Weight 15.9 oz (450 g) 28.2 oz (800 g)
Storage Temperature -22 ~ 140 °F (-30 ~ 60 °C) RH 95 % max
Operating Temperature 14 ~ 122 °F (-10 ~ 50 °C) RH 95 % max
19
Infrared Turret Camera User Manual
SECTION 6: TROUBLESHOOTING
SECTION 6 Troubleshooting
Before sending the camera for repair, please check below to make sure that the camera is
installed correctly. If it still does not perform adequately, please consult your supplier.
1. No picture on the monitor screen.
a. Check that all connected devices are powered on.
b. Conrm that the voltage is correct.
c. Conrm that the power supply provides enough current
to power the camera.
d. Check that all video cables are correctly connected.
2. The picture is not clear.
a. Check that your monitor is correctly adjusted.
b. Conrm that the glass in front of the lens is clean.
If there is dust, dirt or ngerprints on the glass, the image
quality will be aected. To clean the glass use a soft, dry
and non-abrasive cloth or a commercially available lens cleaning set.
c. Correctly adjust the focus (VF (varifocal) models only.)
3. The picture has interference.
a. The camera may be close to a high voltage source,
such as a power generator.
b. The BNC cable is not terminated properly.
c. The video cables are not connected properly.
Loading...
