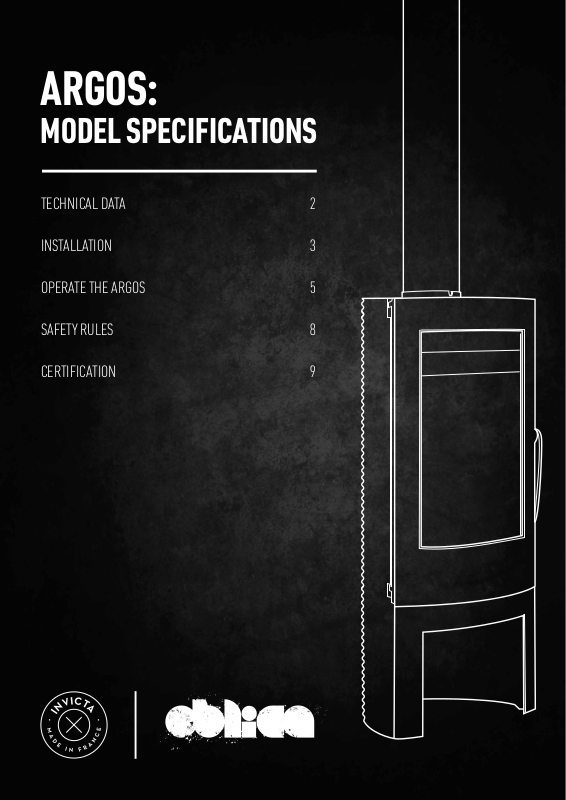

Oblica ARGOS User Manual

ARGOS:

MODEL SPECIFICATIONS

TECHNICAL DATA 2

INSTALLATION 3

OPERATE THE ARGOS 5

SAFETY RULES 8

CERTIFICATION 9

TECHNICAL DATA

Please read this notice carefully.

AUSTRALIAN STANDARDS TEST RESULTS MANUFACTURER DATA

Power output 11kW 12kW
Efficiency 56% 76%

Weight 169 Kg
Dimensions h1250mm ø532mm
Flue sections Double skin 175/225mm
Roof/ceiling penetration Triple skin 275mm
Fuel Wood / 400mm long log max (or 500mm upright)
Modes of use Ignition / Normal rate / Slow Combustion

21 5

12 5 0

3 0

85 0

OBLICA | argos model specifications

44 4

53 2

page 2

INSTALLATION

CLEARANCESANDFLOORPROTECTOR

Clearances and Floor Protector

If the Argos stove is to be installed near combustible surfaces, it is necessary to respect the minimum
distances indicated in the diagram below.

ARGOS

It is possible to reduce these clearances by installing heat shields between the unit and the combustible material.
Installation of such heat shields has to be made in accordance with the BCA (Building Code of Australia)

If the nearby surfaces are made of incombustible materials and do not get damaged under heat, those clearances
may be reduced to 100mm (as per BCA regulation).

Floor Protector.
If the Argos is to be installed on top of a combustible surface (e.g. Timber floor), a floor protector must be placed
directly underneath the Argos.

The floor protector shall be made of heat resistant material (e.g. steel, cement sheet, tiles, glass…) and shall
extend not less than 300mm from the front and 200mm from the side of the base.

OBLICA | argos model specifications

page 3

INSTALLATION

DEFLECTORASSEMBLY

To avoid any damage during transport the deflector is attached to the grids. The deflector must be put
in place before use of the fireplace.

STEP

1

STEP

2

STEP

3

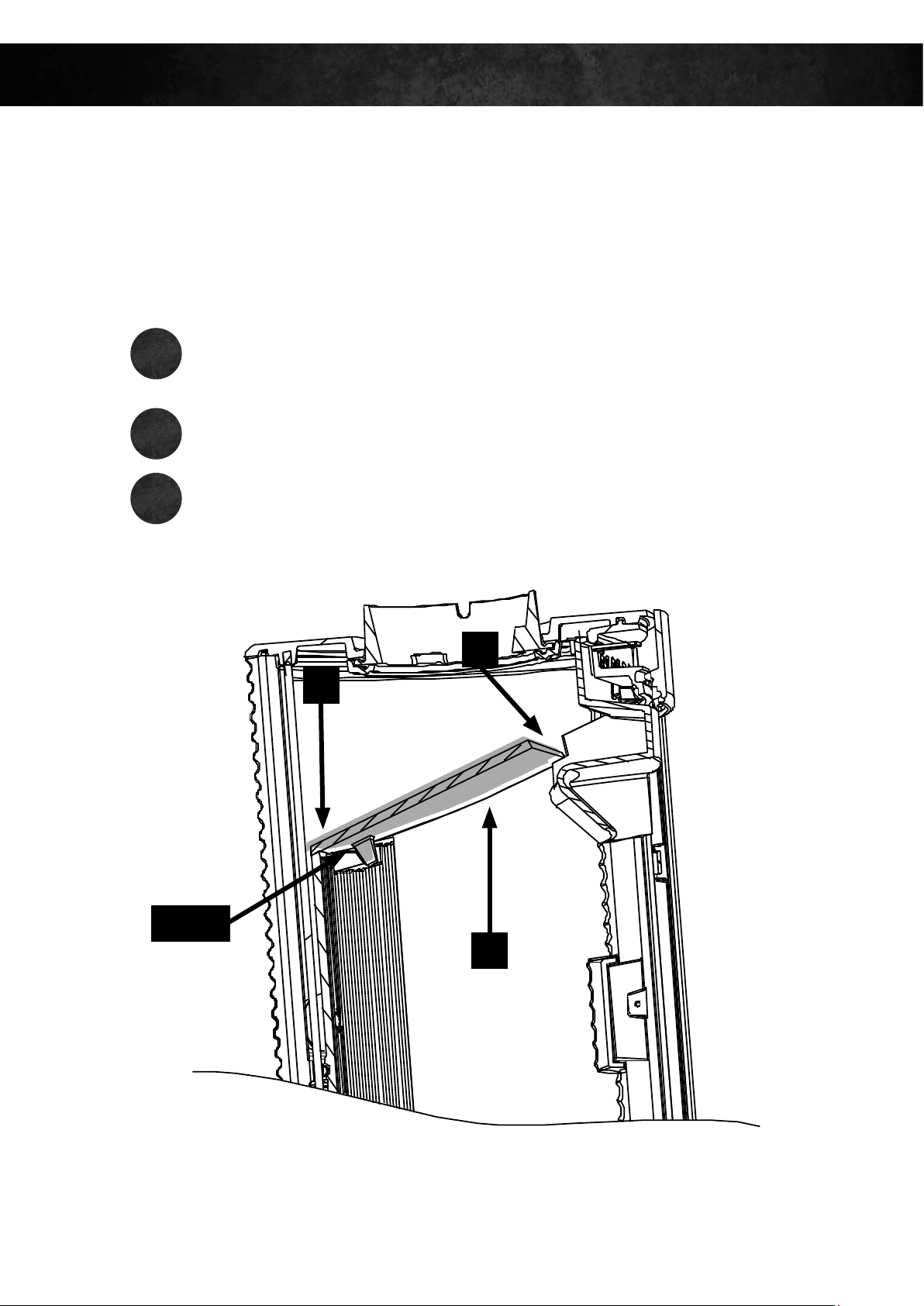

Cut the tie keeping the deflector to the grids and bring it to the top of combustion
chamber (indicator no. 1 on sketch below)

Place bottom of the deflector on the rear stops (indicator no. 2 on sketch).

Let the front of the deflector sit on the front stops (indicator no. 3 on sketch).

3

2

Stops

OBLICA | argos model specifications

1

page 4

OPERATE THE ARGOS

FUEL

Only use recommended Fuel. Dry wood (Less than 20% moisture content) or at least 2 years old cut.
Avoid soft wood, painted or treated timber.

The ash pit drawer must always remain in the appliance during de-ashing. To open or close the door,
use a heat resistant glove.

Verification before operating the first times

During the first operations of the appliance a smell of paint evaporates from the appliance.
Ventilate the room to limit nuisance.

AIRCONTROL

Use the heat resistant glove provided with the appliance to handle the instruments of control,
which could be very hot.

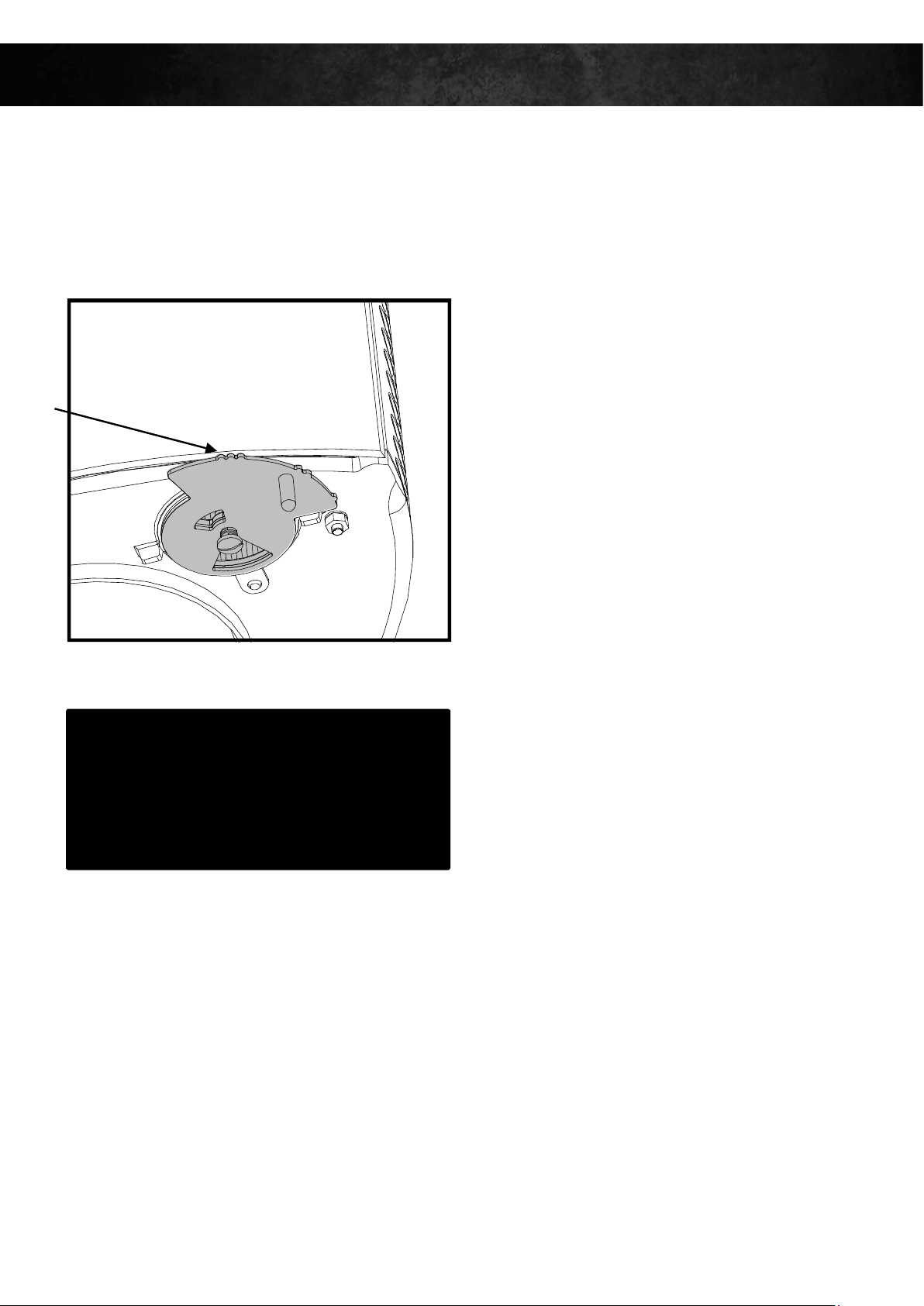

Burning rates

Located on the front of the ash pit, this damper is used to regulate the rate of this appliance between
“Ignition”, “normal rate” and “slow combustion”.

WARNING: Putting the damper on “ignition” position allows an addition of air intake. This position is

to be used only for ignition and must be maintained no more than 30 minutes to avoid overheating damage.
The appliance must be attended during the whole duration of operation in this position.

OBLICA | argos model specifications

page 5

OPERATE THE ARGOS

MODESOFUSE

3 modes of use: Ignition, Normal Rate and Slow Combustion.

Ignition

Place some crushed paper on the grid (avoid glazed
paper) and some kindlings. Lit the paper, close the
door of the appliance and fully open the air outlet.
Once the fire is well lit up you can load your appliance.
It is recommended, during the first hours of operation,
to make a moderate fire so as to allow a normal
dilatation of the whole appliance. To ease ignition,
we advise you to keep a bed of ashes on the grid,
which will be saved for further use (make sure air
vents aren’t obstructed too much).

WARNING:Ignitionpositiononlytobeused

duringignition(30minmax).

Theappliancemustbeattendedduringthe
wholedurationofoperationinthisposition!

OBLICA | argos model specifications

page 6

OPERATE THE ARGOS

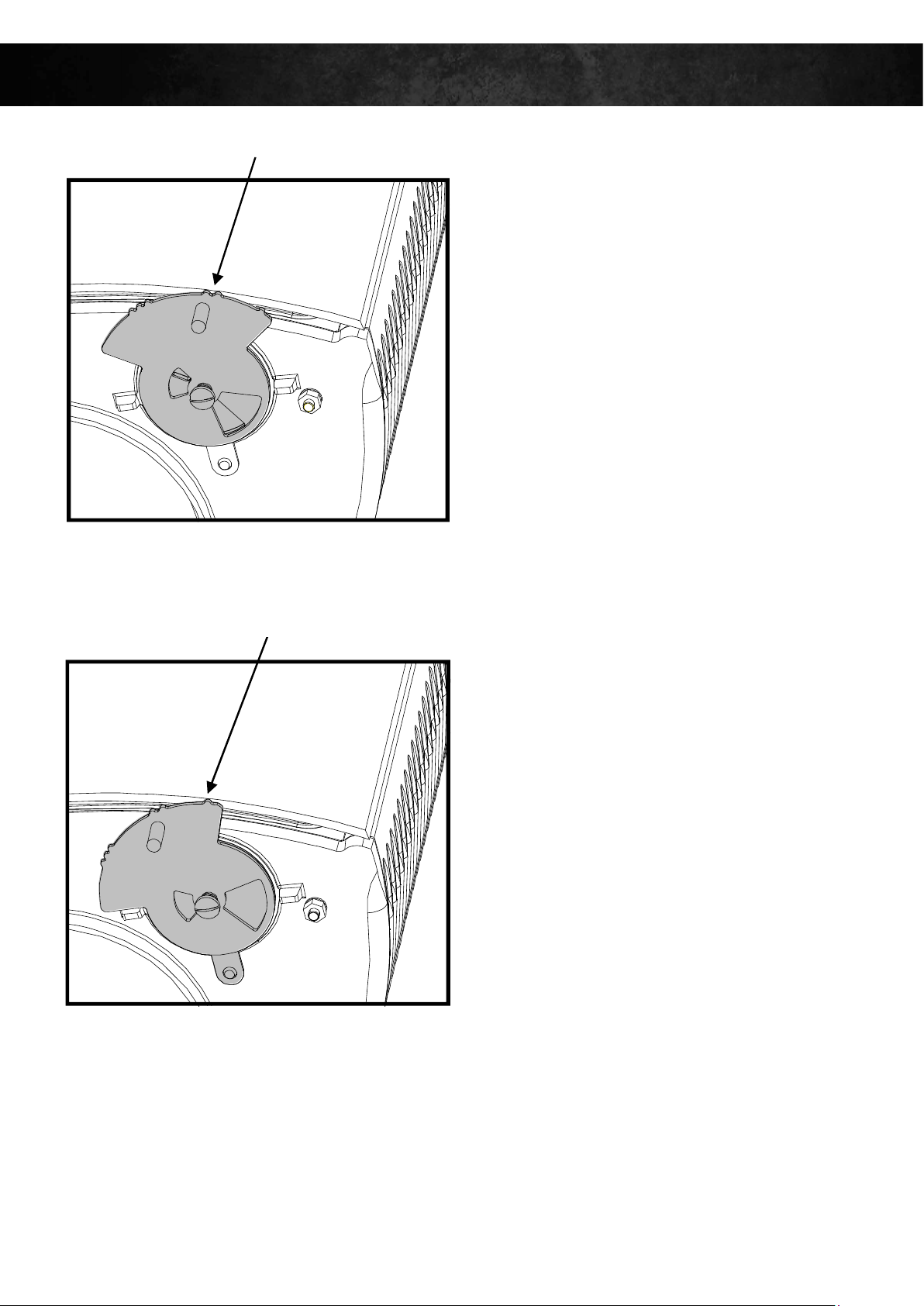

Normal Rate

An “intermittent” operation requires reloading every
3/4 of an hour with small quantities of wood.
This mode of operation is a preferred mode as it
performs particularly well and is eco-friendly.
The appliance can also operate under “continuous”
when the constrains of intermittence cannot be
respected or a reduced power is chosen. In this case,
full power can be achieved over duration of 3 hours,
and at a reduced rate, at low power, 10 hours of
operation are achievable.

Slow combustion

This combustion is achieved under a draft of 6Pa with a
6 to 8 kg load of large hard un-split wood and by totally
shutting the heat control. First carry out a reduced heat
control regime by shutting the heat control and then load
over a very low reddish ember bed.

OBLICA | argos model specifications

page 7

SAFETY RULES

Flammable objects must be kept at a minimum of 1.5 meters from the stove. In particular clothing
or objects that may be put near the stove to dry.

During operation, all the stove’s surfaces are hot: Be careful of burns!!!

Never try to modify the stove.

The use of fuels that are not recommended or unsuitable for the stove are forbidden, including liquid fuels.

The combustion chamber must always remain closed, except during reloading and removing ash.

Never overheat the stove.

Using the stove as an incinerator is forbidden.

OBLICA | argos model specifications

page 8

CERTIFICATION

AS/NZSSTANDARDS

The Argos has been Tested and Approved under AS/NZS standards as per below:

LABORATORY: VIPAC Engineers & Scientist
279 Normanby Rd, Port Melbourne VIC 3207
[phone]

VIPAC is a NATA accredited Laboratory.
Registration Number: 676.

TITLE: Oblica – Argos wood heater

WORK REQUESTED: Assessment of appliance to AS/NZS 4012:1999 for

determination of Power Output and Efficiency and AS/NZS
4013:1999 for Flue Gas Emission using hardwood fuel.

Assessment of appliance in one configuration to AS/NZS
2918:2001 Appendix B, with a full-length standard flue kit.

TEST DATE: 16/02/2012 to 08/03/2012.

TEST REPORT NUMBER: 30A-12-0012-TRP-257791-0

30A-12-0012-TRP-257790-0

INVESTIGATING OFFICERS: Rhys Connick, Rebecca Searcy.

OBLICA | argos model specifications

page 9
