Objetivos y Servicios de Valor Anadido OBSADSL User Manual

OBS_ADSL-HomeStation User Manual

EEdd22

Page 1 of 52

Made by:

Name

Maribel Ferrer García

Charge

SW Product Manager

Date

17/01/2014

OBS_ADSL-HomeStation

User Manual (Ed2)

OBJETIVOS Y SERVICIOS DE VALOR

AÑADIDO S.L.

OBS_ADSL-HomeStation User Manual

EEddiittiioonn

EEdd 22..00

Page 2 of 52

EDITION

CHANGES

Ed. 1

21/11/2013: Initial Edition.

Ed .2

17/01/2014: Add FCC statement .

REVISION LIST

OBS_ADSL-HomeStation User Manual

EEddiittiioonn

EEdd 22..00

Page 3 of 52

CONTENT

1.- INTRODUCTION .......................................................................................................................... 5

1.1.- PACKING LIST ....................................................................................................................... 6

1.2.- SAFETY PRECAUTIONS .......................................................................................................... 6

1.3.- LEDS AND INTERFACES ......................................................................................................... 6

1.4.- SYSTEM REQUIREMENTS ....................................................................................................... 8

1.5.- FEATURES ............................................................................................................................ 8

2.- HARDWARE INSTALLATION ......................................................................................................... 9

3.- WIZARD ................................................................................................................................ 11

4.- ADVANCED WEB ................................................................................................................. 14

4.1.- STATUS ............................................................................................................................ 14

4.2.- LAN ................................................................................................................................... 15

4.3.- WLAN ................................................................................................................................ 15

4.3.1 Basic Configuration ....................................................................................................... 15

4.3.2 Advanced Configuration ............................................................................................... 16

4.3.3 Security ......................................................................................................................... 17

4.3.4 Access Control .............................................................................................................. 18

4.3.5 WPS .............................................................................................................................. 19

4.3.6 MBSSID ........................................................................................................................ 20

4.3.7 WLAN STATUS ............................................................................................................ 22

4.4.- WAN .................................................................................................................................. 22

4.4.1 DSL WAN ..................................................................................................................... 22

4.4.2 ATM CONFIGURATION ............................................................................................... 24

4.4.3 ADSL CONFIGURATION ............................................................................................. 24

4.4.4 3G configuration ........................................................................................................... 25

4.4.5 PIN CONFIGURATION ................................................................................................. 26

4.4.6 3G DRIVER .................................................................................................................. 26

4.5.- SERVICES ........................................................................................................................ 27

4.5.1 DHCP ............................................................................................................................ 27

4.5.2 DNS .............................................................................................................................. 27

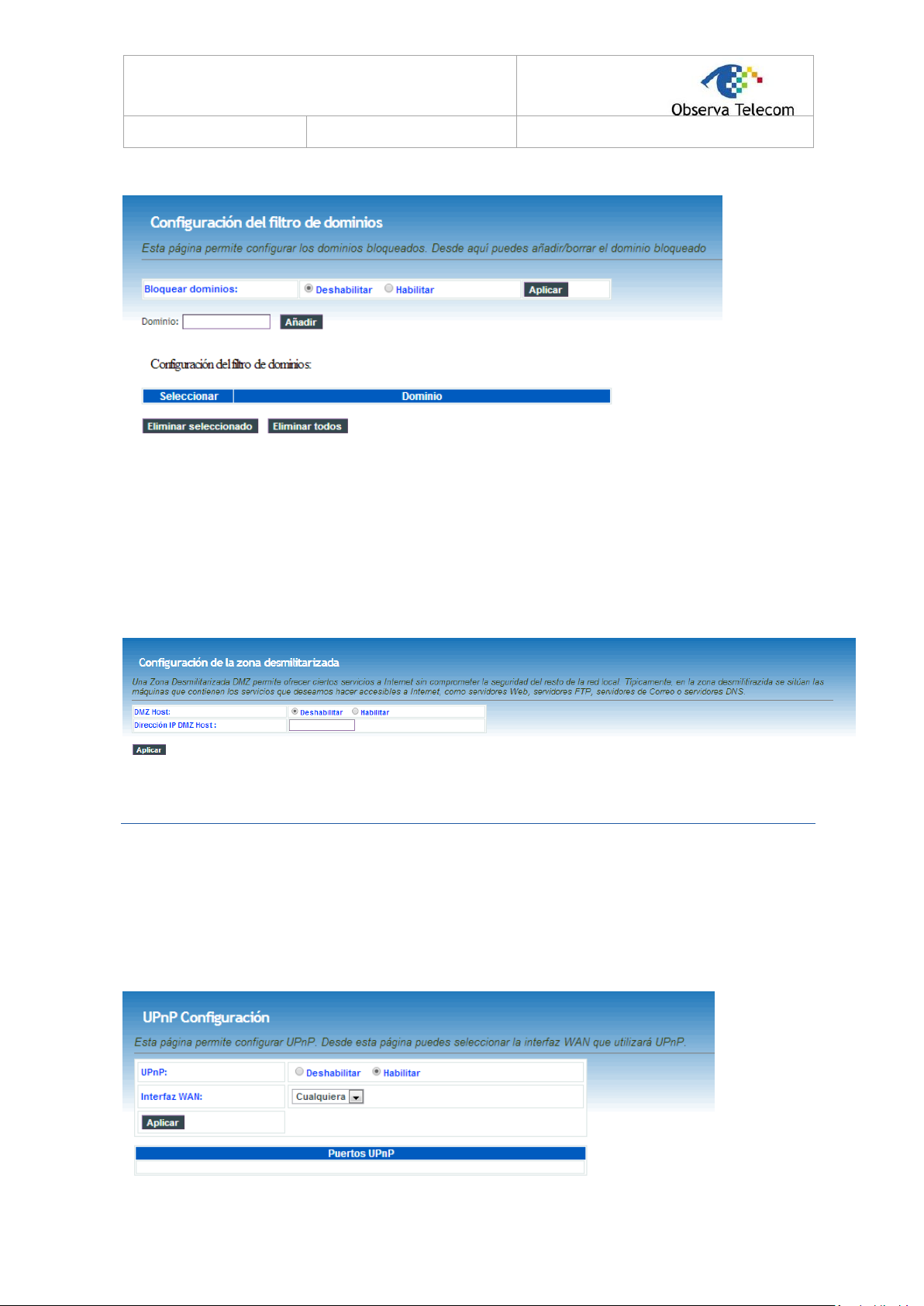

4.5.3 Firewall.......................................................................................................................... 29

4.5.4 UPnP............................................................................................................................. 31

4.5.5 RIP ................................................................................................................................ 32

4.5.6 DMS .............................................................................................................................. 32

4.6.- ADVANCED ...................................................................................................................... 32

4.6.1 ARP Table .................................................................................................................... 32

4.6.2 Bridging ......................................................................................................................... 33

4.6.3 Routing.......................................................................................................................... 33

4.6.4 SNMP............................................................................................................................ 34

4.6.5 IP QoS .......................................................................................................................... 35

4.6.6 Remote access ............................................................................................................. 36

4.6.7 Printer ........................................................................................................................... 37

4.6.8 SAMBA ......................................................................................................................... 38

4.6.9 Other configuration ....................................................................................................... 38

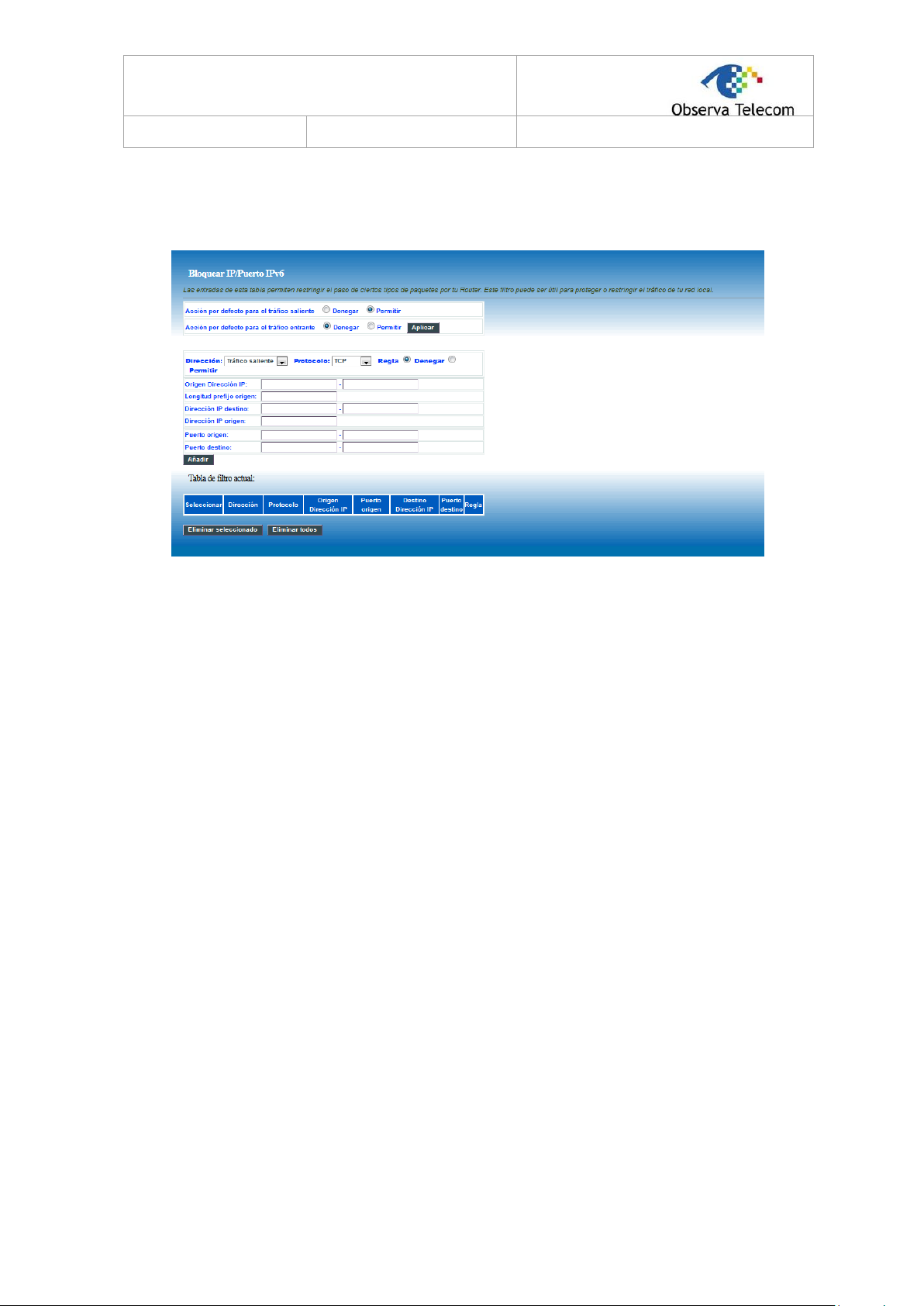

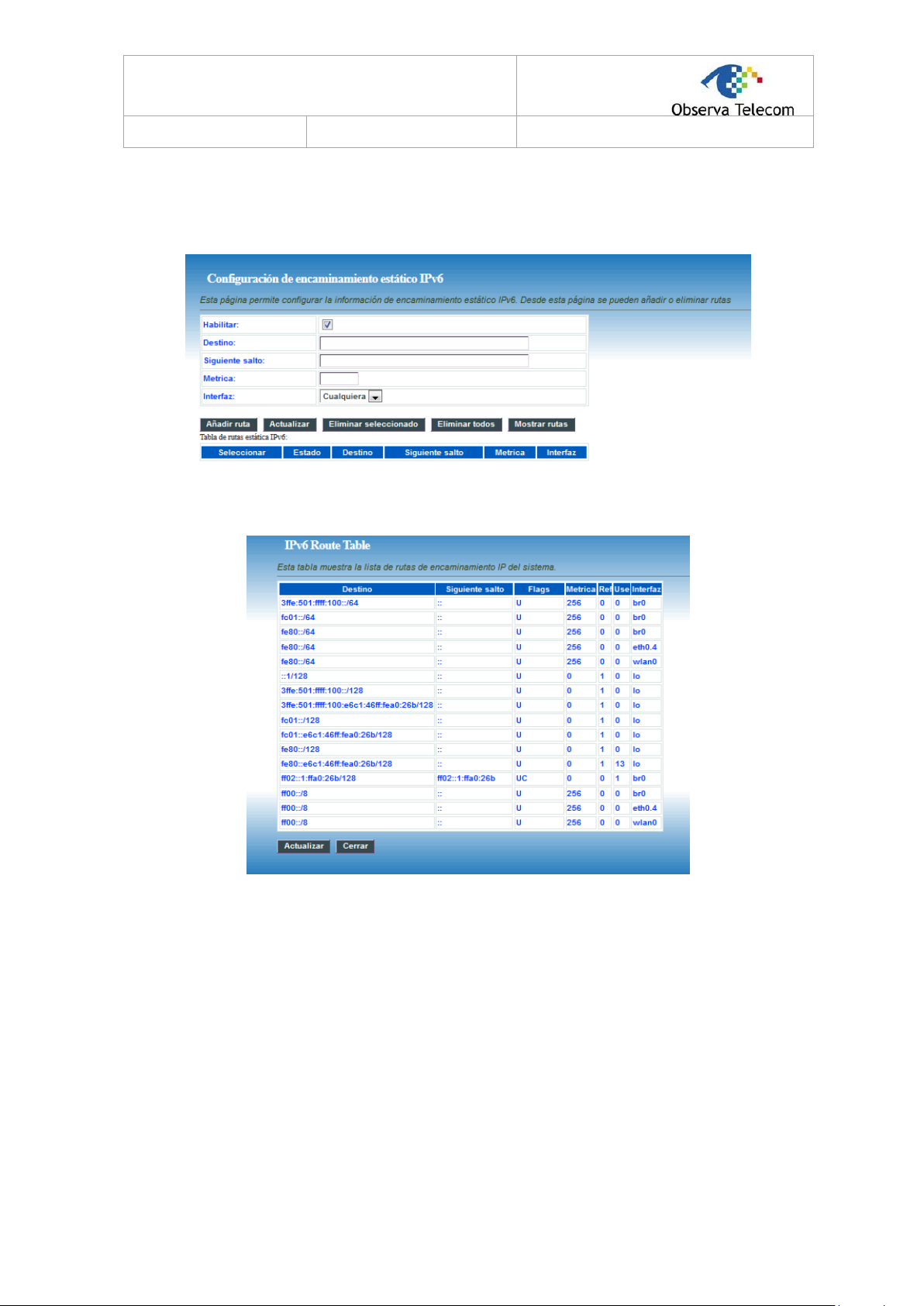

4.6.10 IPv6 ............................................................................................................................... 39

4.7.- DIAGNOSTICS ...................................................................................................................... 44

4.7.1 Ping ............................................................................................................................... 44

OBS_ADSL-HomeStation User Manual

EEddiittiioonn

EEdd 22..00

Page 4 of 52

4.7.2 Packet Dump ................................................................................................................ 44

4.7.3 ATM Loopback .............................................................................................................. 44

4.7.4 ADSL Tone ................................................................................................................... 45

4.7.5 ADSL Conectivity .......................................................................................................... 45

4.8.- ADMINISTRATOR ............................................................................................................ 46

4.8.1 Save and Reboot .......................................................................................................... 46

4.8.2 Backup and restore ....................................................................................................... 46

4.8.3 Close Session ............................................................................................................... 47

4.8.4 System log .................................................................................................................... 47

4.8.5 Password ...................................................................................................................... 48

4.8.6 Upgrade Firmware ........................................................................................................ 48

4.8.7 ACL ............................................................................................................................... 49

4.8.8 Time Zone ..................................................................................................................... 50

4.8.9 TR-069 .......................................................................................................................... 50

4.9.- STATISTICS ......................................................................................................................... 51

4.9.1 Interface ........................................................................................................................ 51

4.9.2 ADSL............................................................................................................................. 52

OBS_ADSL-HomeStation User Manual

EEddiittiioonn

EEdd 22..00

Page 5 of 52

FCC ID: 2ABDFOBSADSL

1.- Introduction

The device supports multiple line modes. With four 10/100 base-T Ethernet interfaces at the user end,
the device provides high-speed ADSL broadband connection to the Internet or Intranet for high-end users
like net bars and office users. It provides high performance access to the Internet with a downstream rate
of 24 Mbps and an upstream rate of 1 Mbps. It supports 3G WAN, 3G backup, and Samba for USB storage.
The device supports WLAN access, such as WLAN AP or WLAN device, to the Internet. It complies with
specifications of IEEE 802.11, 802.11b/g/n, WEP, WPA, and WPA2 security. The WLAN of the device
supports 2T2R.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1） This device may not cause harmful interference.
2） This device must accept any interference received, including interference that may cause

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.

Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This device and its antenna must not be co-located or operating in conjunction with any other antenna or
transmitter.

“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile
Configurations. The antennas used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.”

OBS_ADSL-HomeStation User Manual

EEddiittiioonn

EEdd 22..00

Page 6 of 52

LED

Color

Status

Description

Power

Red/Green
Off

Router powered off

Blinking 2Hz Red

Failure on power-on self-test

Solid Green

Router powered on correctly.

Ethernet

Green
On

Ethernet connection is available.

Off

Ethernet connection is unavailable.

Wifi

Green
On

Wi-Fi connection is available.

Off

Wi-Fi connection is unavailable.

Blinking Green

Negotiation or traffic on line.

WPS

Red/Green
Solid Green

WPS active

Blinking 2Hz Green

WPS negotiation open

1.1.- Packing List

 1 x ADSL Home Station
 1 x PSU 12V-1A
 1 x RJ11 telephone cable
 1 x RJ45 Ethernet cable
 1 x Quick Installation Guide

1.2.- Safety Precautions

Take the following instructions to prevent the device from risks and damage caused by fire or electric
power:

 Use the type of power marked in the volume label.
 Use the power adapter in the product package.
 Pay attention to the power load of the outlet or prolonged lines. An overburden power outlet

or damaged lines or plugs may cause electric shock or fire accidents. Check the power cords
regularly. If you find any damage, replace it at once.

 Proper space left for heat dissipation is necessary to avoid damage caused by overheating to

the device. The long and thin holes on the device are designed for heat dissipation to ensure
that the device works normally. Do not cover these heat dissipation holes.

 Do not put this device close to a heat source or under a high temperature occurs. Keep the

device away from direct sunshine.

 Do not put this device close to an overdamp or watery place. Do not spill fluid on this device.
 Do not connect this device to a PC or electronic product unless instructed by our customer

engineer or your broadband provider. Wrong connection may cause power or fire risk.

 Do not place this device on an unstable surface or support.

1.3.- LEDs and Interfaces

Front Panel

The following table describes the LEDs of the device:

OBS_ADSL-HomeStation User Manual

EEddiittiioonn

EEdd 22..00

Page 7 of 52

LED

Color

Status

Description

Solid Red (20
seconds)

Problems on WPS registration

3G

Red/Green

Blinking Green

Negotiation

Solid Green

Up

Quick Blinking Green

Tx/Rx traffic on line

Solid Red

Authentication failed

Off

Traffic through broadband interface

ADSL

Green

Off

Router powered off

Blinking 2Hz

No line detected

Blinking 4Hz

Line training

Solid

Line up

Internet

Red/Green

Blinking Green

PPP/DHCP negotiation

Solid Green

PPP/DHCP up

Quick Blinking Green

Tx/Rx traffice on line

Solid Red

Authentication failed

Interface/Button

Description

Interface connecting to the power adapter. The power
adapter output is: 12V DC, 800mA

On/Off

Push to power on/off the device.

Wifi

 Press the button for more than 1 second to enable

WLAN function.

 Press the button for more than 5 seconds to enable

WPS function.

Reset

Reset to the factory defaults. To restore factory defaults,
keep the device powered on and push a paper clip into the
hole. Press down the button for more than 5 seconds and
then release.

USB

Connecting to a 3G data card or other USB storage device

Eth4/3/2/1

Ethernet RJ-45 interfaces connecting to the Ethernet
interfaces of computers or Ethernet devices

ADSL

RJ-11 interface connecting to a telephone set through a
telephone cable

Rear Panel

The following table describes the interface of the device.

OBS_ADSL-HomeStation User Manual

EEddiittiioonn

EEdd 22..00

Page 8 of 52

1.4.- System Requirements

 A 10 baseT/100BaseT Ethernet card is installed on your PC.
 A hub or switch (attached to several PCs through one of Ethernet interfaces on the device)
 Operating system: Windows Vista, Windows 7, Windows 8, Windows 98SE, Windows 2000,

Windows ME or Windows XP

 Internet Explorer V5.0 or higher, Netscape V4.0 or higher, or Firefox 1.5 or higher

1.5.- Features

 Various line modes
 External PPPoE dial-up access
 Internal PPPoE and PPPoA dial-up access
 Leased line mode
 1483B, 1483R, and MER access
 Multiple PVCs (eight at most) and these PVCs can be isolated from each other
 A single PVC with multiple sessions
 Multiple PVCs with multiple sessions
 Binding of ports with PVCs
 802.1Q and 802.1P protocol

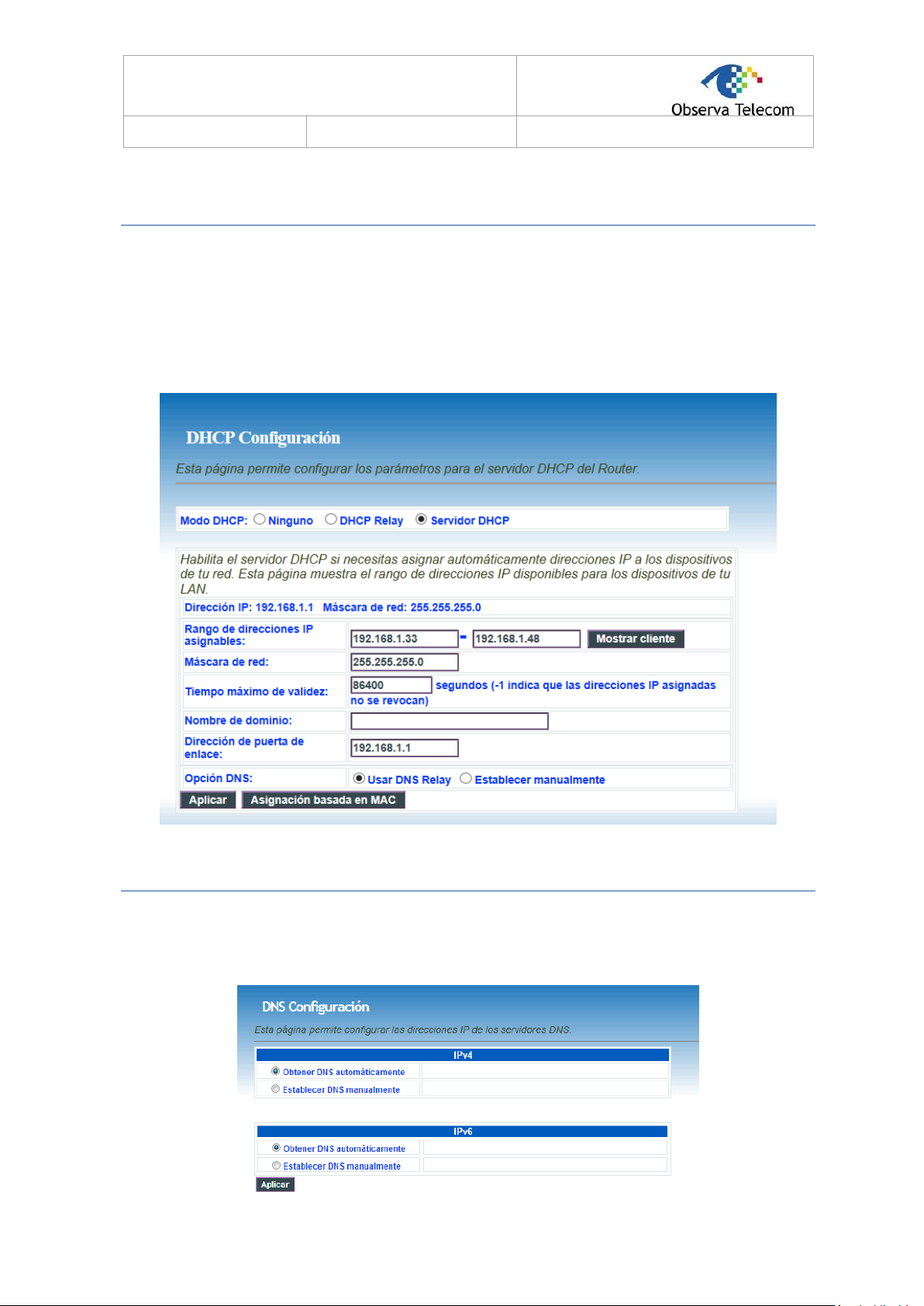

 DHCP server
 NAT and NAPT
 Static route
 Firmware upgrade: Web, TFTP, FTP
 Reset to the factory defaults
 DNS relay

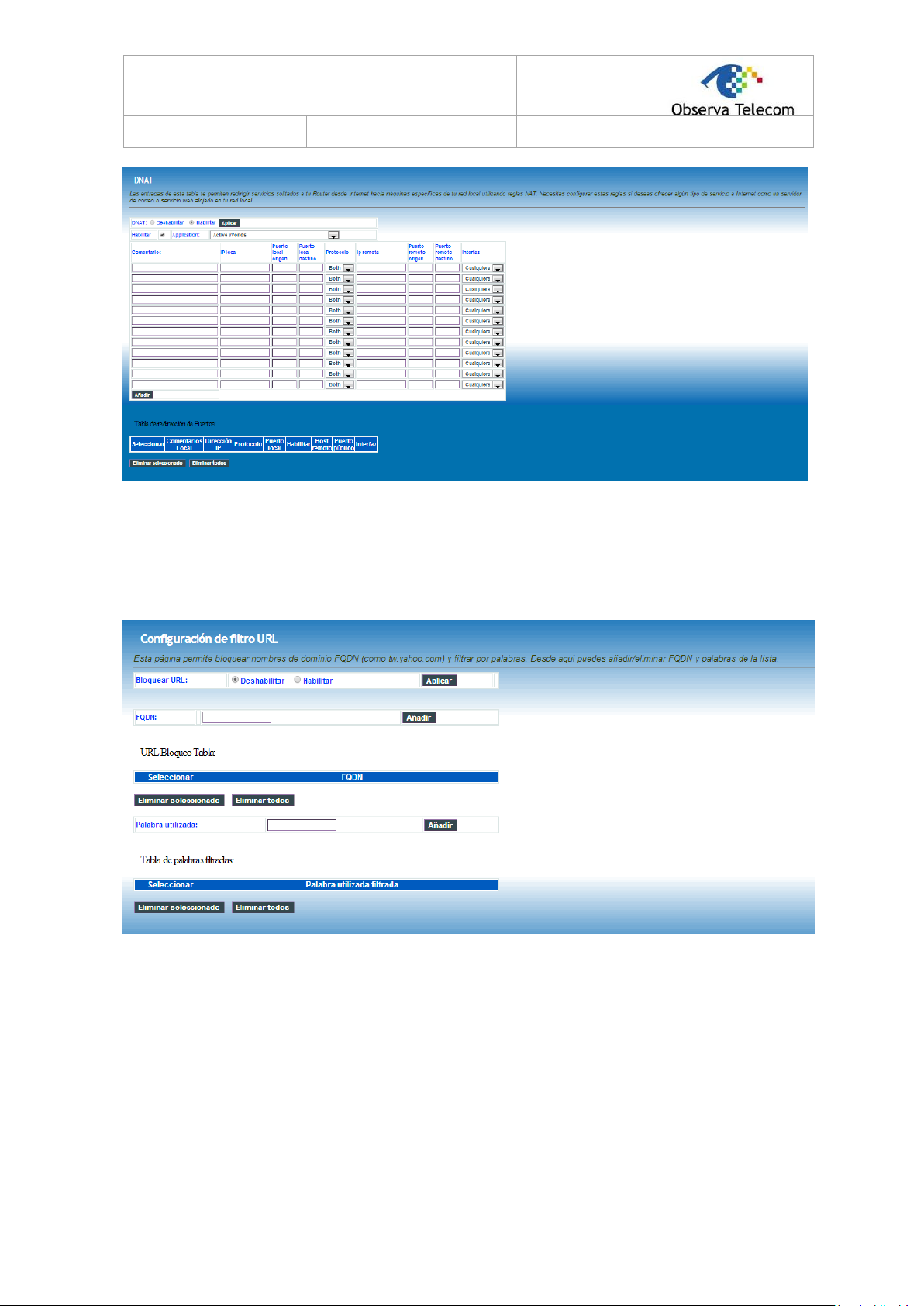

 Virtual server
 DMZ
 Two-level passwords and user names
 Web user interface
 Telnet CLI
 System status display
 PPP session PAP and CHAP

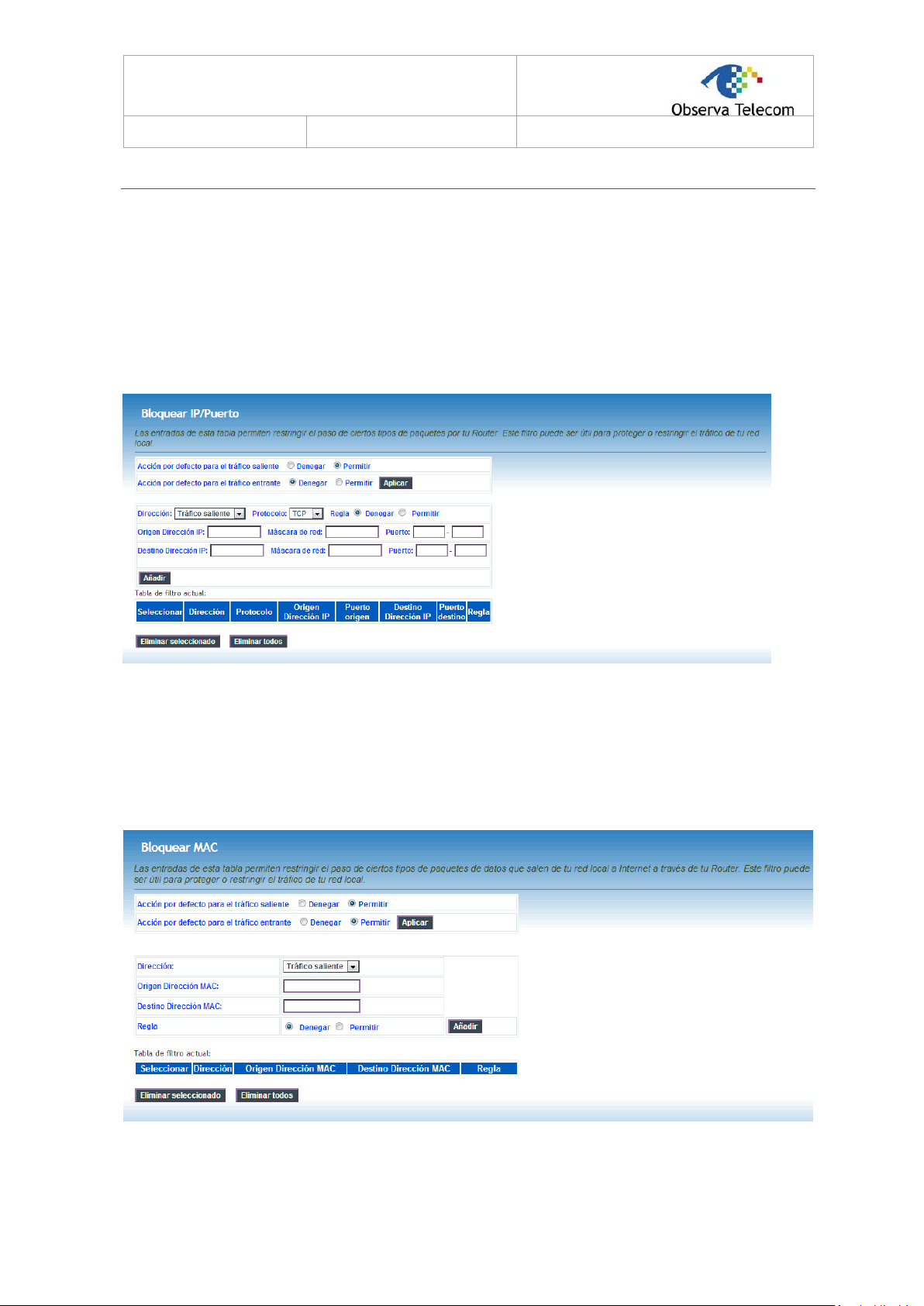

 IP filter
 IP QoS
 Samba
 Remote access control
 Line connection status test
 Remote management (telnet and HTTP, TR069)
 Backup and restoration of configuration file
 Ethernet interface supports crossover detection, auto-correction and polarity correction
 UPnP

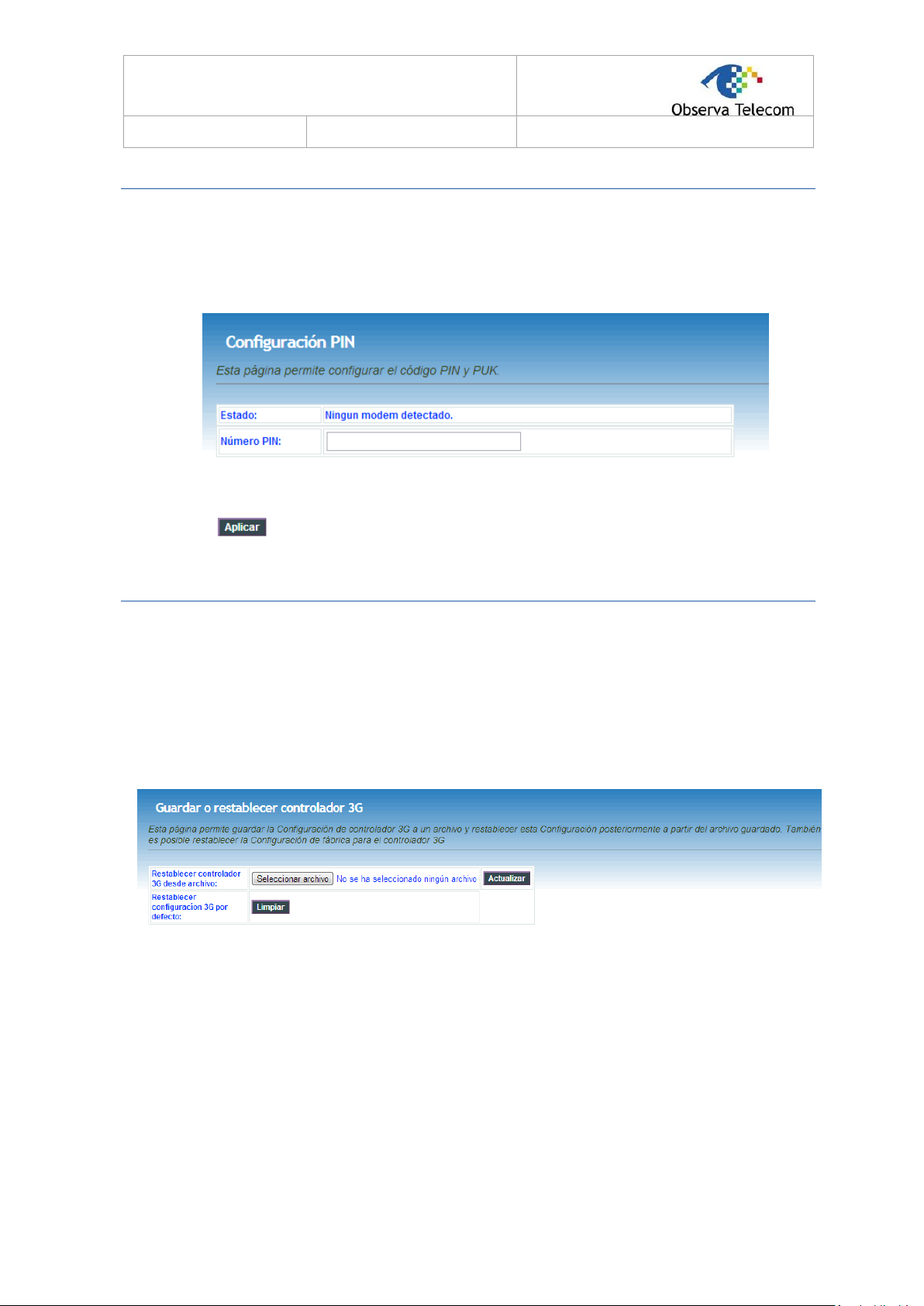

 3G WAN and 3G Backup
 Samba for USB storage

OBS_ADSL-HomeStation User Manual

EEddiittiioonn

EEdd 22..00

Page 9 of 52

2.- Hardware Installation

Step 1 Connect the ADSL port of the device and the Modem port of the splitter with a telephone cable.

Connect the phone to the Phone port of the splitter through a telephone cable. Connect the
incoming line to the Line port of the splitter.

The splitter has three ports:

 Line: Connect to a wall phone port (RJ-11 jack).
 Modem: Connect to the DSL port of the device.
 Phone: Connect to a telephone set.

Step 2 Connect an Eth port of the device to the network card of the PC through an Ethernet cable

(MDI/MDIX).

Note:

Use twisted-pair cables to connect the device to a Hub or switch.

Step 3 Plug one end of the power adapter to the wall outlet and the other end to the Power port of the

device.

Connection 1: displays the application diagram for the connection of the device, PC, splitter and telephone
sets, when no telephone set is placed before the splitter.

1 Connection diagram (without telephone sets before the splitter)

Connection 2: displays the application diagram for the connection of the device, PC, splitter and telephone
sets when a telephone set is placed before the splitter.
As illustrated in the following figure, the splitter is installed close to the device.

2 Connection diagram (with a telephone set before the splitter)

OBS_ADSL-HomeStation User Manual

EEddiittiioonn

EEdd 22..00

Page 10 of 52

Note:

When connection 2 is used, the filter must be installed close to the telephone cable. See Figure 2. Do not
use the splitter to replace the filter.

Installing a telephone directly before the splitter may lead to failure of connection between the device and
the central office, or failure of Internet access, or slow connection speed. If you really need to add a
telephone set before the splitter, you must add a microfilter before a telephone set. Do not connect several
telephones before the splitter or connect several telephones with the microfilter.

OBS_ADSL-HomeStation User Manual

EEddiittiioonn

EEdd 22..00

Page 11 of 52

3.- WIZARD

The following is the detailed description of accesing the device for the first time.

Step 1 Open the Internet Explorer (IE) browser and enter http://192.168.1.1.
Step 2 The Welcome page is shown in the following figure.

Step 3 Click Next to configure your user’s account and Wi-Fi network as shown in the following

Connectivity page, or click Advanced Configuration for more options.

OBS_ADSL-HomeStation User Manual

EEddiittiioonn

EEdd 22..00

Page 12 of 52

By default, the user’s name is MAC@acs and password is the MAC. The MAC is the equipment’s MAC
Address leaving out the 2 points.

Step 4 Select Advanced Configuration to login into the equipment with the user admin and password 1234,

or selected Cancel to return to the Welcome page without saving changes, or select Next to save selected
changes. When the checkbox Additional Services is selected, it will go to the following figure.

When Solo Speedy (LAN1, LAN2, LAN3 y WIFI)+ VOIP(LAN4) is selected, the LAN4 port is used as VOIP port
for voice service.

Step 5 Select Advanced Configuration to login into the equipment, or select Cancel to return to the
Connectivity page without saving the changes, or selected Next to save changes and go to the following
WiFi-Configuration page.

OBS_ADSL-HomeStation User Manual

EEddiittiioonn

EEdd 22..00

Page 13 of 52

Next, you are going to config you wireless network. You can enable wireless network, hide the SSID, select a
channel and security mode, and input a key as instructed by the screen.

Step 6 Select Next to save changes and go to the following figure, or select Cancel to return to the

Additional Services page without saving the changes, or select Advanced Configuration to login into

the equipment.

OBS_ADSL-HomeStation User Manual

EEddiittiioonn

EEdd 22..00

Page 14 of 52

4.- ADVANCED WEB

Click in Configuración Avanzada and you will obtain a login box. Credentials are admin as user and 1234 as
password. If you log in successfully you will find the following page.

4.1.- STATUS

If user has followed all steps mentioned in wizard, there will be many parameters already configured. Now,
we can complete setup from advanced web. First we can see device status from page Estado  Dispositivo.

This page is showing information about System, WAN, LAN, DSL and DNS. Device information will change

depending on its configuration. This page will auto refresh after few seconds, although there’s a refresh

button that will update information immediately.

Following pictures are showing system information. In the first figure ADSL line is still down, we can see that
firmware is still syncing as well. This device synchronizes both memory stacks after every reboot in order to
have same image in both stacks. Second image is showing firmware it’s already synced and line is up.

OBS_ADSL-HomeStation User Manual

EEddiittiioonn

EEdd 22..00

Page 15 of 52

4.2.- LAN

You can configure the LAN IP address according to the actual application. The preset IP address is

192.168.1.1. You can use the default settings and DHCP service to manage the IP settings for the private
network. The IP address of the device is the base address used for DHCP. To use the device for DHCP on
your LAN, the IP address pool used for DHCP must be compatible with the IP address of the device. The IP
address available in the DHCP IP address pool changes automatically if you change the IP address of the
device.
You can also enable the secondary LAN IP address. The two LAN IP addresses must be in different networks.
Choose LAN and you will see picture below.

4.3.- WLAN

This section describes the wireless LAN and basic configuration. A wireless LAN can be as simple as two
computers with wireless LAN cards communicating in a pear-to-pear network or as complex as a number of
computers with wireless LAN cards communicating through access points which bridge network traffic to
wired LAN.

4.3.1 Basic Configuration

Choose WLAN  Configuración Básica, page shown will be the one below.

In this page, you can configure the parameters of wireless LAN clients that may connect to the device.

OBS_ADSL-HomeStation User Manual

EEddiittiioonn

EEdd 22..00

Page 16 of 52

Field

Description

Enable Wireless
(Deshabilitar interfaz
WLAN)

Select this to turn Wi-Fi on or off.
Button ‘Varios AP’

Select this to open MultiAP isolation page and its
options.

Wireless Network Name
(SSID)

The Wireless Network Name is a unique name that
identifies a network. All devices on a network must
share the same wireless network name in order to
communicate on the network. If you decide to change
the wireless network name from the default setting,
enter your new wireless network name in this field.

Control Sideband
(Control de banda
Lateral)

Choose the channel selection mode as Upper or
Lower.

Wireless Channel
(Número de canal)

Select the wireless channel from the pull-down menu.

Band Width
(Anchura del canal)

Select the appropriate band of 20M, 40M or 20M/40M
from the pull-down menu.

Disable WLAN/WPS
button

It’s enabled by default. This avoids WLAN or WPS can

be enable/disable from physical button.

The following table describes the parameters in this page.

4.3.2 Advanced Configuration

This function is used to modify the standard 802.11g wireless radio settings. It is suggested not to
change the defaults, as incorrect settings may reduce the performance of your wireless radio. The default
settings provide the best wireless radio performance in most environments.

From this page is also possible avoid Wireless network broadcast (Difusión SSID).
