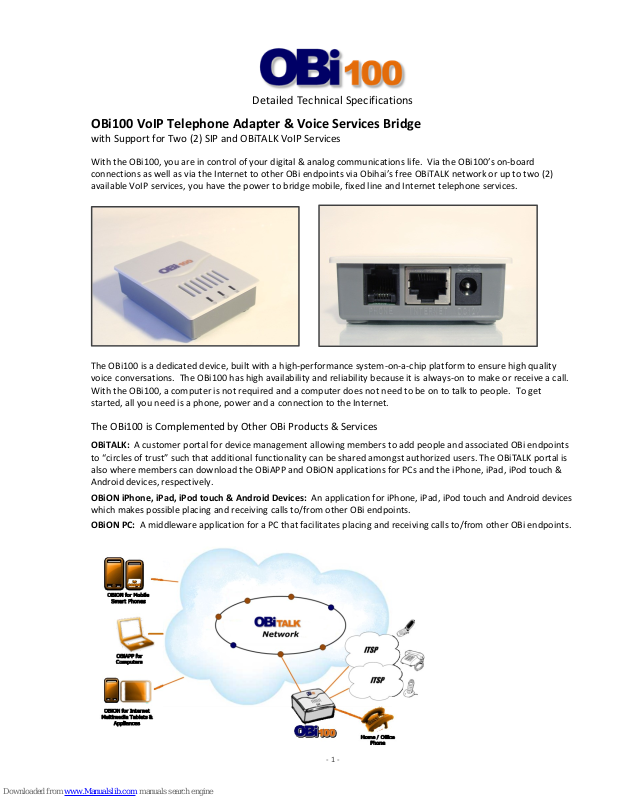

Obihai OBi100 Technical Specifications
OBi100 VoIP Telephone Adapter & Voice Services Bridge
with Support for Two (2) SIP and OBiTALK VoIP Services
With the OBi100, you are in control of your digital & analog communications life. Via the OBi100’s on-board
connections as well as via the Internet to other OBi endpoints via Obihai’s free OBiTALK network or up to two (2)
available VoIP services, you have the power to bridge mobile, fixed line and Internet telephone services.
The OBi100 is a dedicated device, built with a high-performance system-on-a-chip platform to ensure high quality
voice conversations. The OBi100 has high availability and reliability because it is always-on to make or receive a call.
With the OBi100, a computer is not required and a computer does not need to be on to talk to people. To get
started, all you need is a phone, power and a connection to the Internet.
The OBi100 is Complemented by Other OBi Products & Services
OBiTALK: A customer portal for device management allowing members to add people and associated OBi endpoints
to “circles of trust” such that additional functionality can be shared amongst authorized users. The OBiTALK portal is
also where members can download the OBiAPP and OBiON applications for PCs and the iPhone, iPad, iPod touch &
Android devices, respectively.
OBiON iPhone, iPad, iPod touch & Android Devices: An application for iPhone, iPad, iPod touch and Android devices
which makes possible placing and receiving calls to/from other OBi endpoints.
OBiON PC: A middleware application for a PC that facilitates placing and receiving calls to/from other OBi endpoints.
Detailed Technical Specifications
- 1 -
Key Features of the OBi100 VoIP ATA & Voice Services Bridge:
Aggregation and Bridging of Two (2) SIP and One (1) OBiTALK Services
Automatic Attendant for Simplified Call Routing (AA)
Call Back Service – Connect to AA to Make a New Call or Ring the Attached Phone
OBiTALK Web Portal Integration
Configuration and Management of OBi Endpoints
Download OBi Client Applications for Smart Phones, Internet Devices & PCs
Creating & Joining Circles of Trust So You Can Share Your OBi
Setting Up Your OBi Endpoint Speed Dial Directory
Configurable to Work with Any SIP Compliant Internet Telephone Service
Analog Phone Impedance Agnostic
Robust Telephony Features:
Message Waiting Indication - Visual and Tone Based
Speed Dialing of 99 OBi Endpoints or Numbers
Three Way Conference Calling with Local Mixing
Hook Flash Event Signaling
Caller ID – Name & Number
Caller ID Spoofing
Call Waiting
Call Forward - Unconditional
Call Forward on Busy
Call Forward on No Answer
Call Transfer
Anonymous Call
Block Anonymous Call
Do Not Disturb
Call Return
Repeat Dialing
Powerful Call Routing & Voice Service Features:
SIP Support for Voice and Fax Over IP from Internet Telephony Service Providers
OBiTALK Managed VoIP Network for OBi Endpoint Devices & Applications
High Quality Voice Encoding Using G.711, G.726, G.729 Algorithms
Recursive Digit Maps & Associated Call Routing (Outbound, Inbound)
OBi100 & OBi110
- 2 -
General
Brand
Obihai
Browse Obihai Devices
Manufacturer
Obihai
Hardware Designer
Obihai Technology, Inc.
Model Name
OBi100
Release Date
March 2011
Microprocessor
Chip Vendor
Obihai SoC
Width of Machine Word
32 bit
Instruction Set
MIPS
FXS SLIC (Subscriber Line Integrated Circuit)
Ringer Specifications
Ring Frequency: 14Hz – 68Hz
Ring Waveform: Trapezoidal, Sinusoidal
Ring Voltage: 55v – 85v
Maximum Ring Load
5 REN (Ringer Equivalence Number)
FXS (PHONE Port)
Configuration Settings
Recursive Digit Map & Associated Outbound Call Routing
On-Hook Tip Ring Voltage: 30v – 52v
Off-Hook Current Max: 15mA – 45mA
Impedance: 12 Independent Settings
DTMF Playback Level: -90 dBm – 3dBm
Caller ID Method (FSK Bell202, FSK V.23, DTMF FI/SE/DK)
Caller ID Trigger (Before / After First Ring, Polarity Reversal)
Channel Tx Gain: -12dB – 12dB
Channel Rx Gain: -12dB – 12dB
Silence Detect Sensitivity
Hook--Flash Time Max
HookFlash Time Min
CPC Delay Time
CPC Duration
Idle Polarity
Connect Polarity
Management – Configuration
Local Access Interface
IVR, Web Page – Password Protected (Admin & User Level Log-in)
Remote Access Interface
Syslog (Multi-Level Granularity), Invokable via SIP Notify, Web, Provisioning
Device Web Page Standard
HTTP v1.1, XML v1.0
Remote Provisioning
XML via TFTP or HTTP (TR069 / TR104 Parameter Naming Syntax)
Secure Remote Provisioning
SSL via HTTPS , Encrypted XML via HTTP or TFTP – Dedicated User Name & Password
Secure Remote Firmware Update
Encrypted Binary File via TFTP or HTTP + Dedicated User Name & Password
Customization
OBi-ZT: Obihai Zero-Touch Automatic Customization & Configuration **
Call History (CDRs)
Call Detail Records on OBi Web Page, Export to XML
LED Indications
Power, Device Status, Upgrade Progress Status, Ethernet Actvty, PHONE Status
RTP Statistics
RTP Transport Type
Audio Codec Type (Tx/Rx)
RTP Packetization - ms (Tx/Rx)
RTP Packet Count (Tx/Rx)
RTP Byte Count (Tx/Rx)
Peer Clock Differential Rate - PPM
Packets In Jitter Buffer
Packets Out-Of-Order
Packets Interpolated
Packets Late (Dropped)
Packets Lost
