Figure 4
Step 6 – Run the data and power cable (if required) through the conduit connectors located on sides of the access point
enclosure. In order to maintain a separation of signal and power, install the data and power cables through opposite sides of
the enclosure utilizing the two knock-outs provided. Pull the data cable through the conduit connector far enough to allow
attachment to the access point (8" - 10"). Snap the grommet on to the cable and slide it inside the conduit connector.
Step 7 – Attach data and power cables to the access point.
Step 8 – Close and lock the access door. The installation is now completed.
Figure 5
Page 4
MODEL 1052-CCOAP
Installation Instructions
**** WARNING ****
Please thoroughly read the product warning below
before installation to provide for a safe work
environment.
1. Ceiling mounted products should be installed in accordance with National Electric Code paragraphs 300.10 (Electrical
Continuity of Metal Raceways and Enclosures) and 300.11 (Securing and Supporting). Independent support wires or
other means must be used for the installation of this product in the ceiling. Acoustical, suspended, false, drop and
concealed spline ceiling grid work is not designed to support the weight of this product. Oberon’s ceiling mounted
products have four support wire tabs on the back box. These tabs shall be used for supporting the product with
independent support wires, wire rope, threaded rod, or other secure support means of adequate gauge and fire
resistance.
2. When closing the enclosure access door, be sure that the cam lock is completely engaged to prevent the access door
from accidentally swinging open.
3. When opening the enclosure door, be sure to support the door to prevent the door from accidentally falling open.
4. This enclosure has a maximum operating ambient of 55º C (131º F), the temperature within the enclosure may not
exceed this temperature, depending on power dissipation within enclosure.
5. A minimum air clearance of 1“ between the housing of the access point and the enclosure side walls must be
maintained for the safe operation of the equipment.
6. This product is intended to be installed by trained personnel.
7. Only Listed ITE and Listed AC Receptacles shall be installed within the enclosure.
8. This product is to be repaired by personnel trained by the manufacturer or returned to the manufacturer for repair or
replacement.
9. Maximum weight to be installed in the unit is 25 lbs.
10. All knockouts, openings, and holes shall be sealed with a plug constructed of metal, or a non-metal material that
complies with UL 2043 or UL 1479.
11. All unused mounting holes should be sealed with tape or other material that complies with UL 1479.
12. If AC power is used inside the enclosure, connect the ground wire to the green ground screw located near the
knockout in the backbox.
Page 1
Installation Instructions
Figure 2
Model Number 1052-CCOAP
Assembly Components:
- Ceiling enclosure Model 1052-CCOAP assembly – 1 each
- 1” Trade size conduit connectors – 1 each
- Firestop Grommet – 1 each
- #8 – 32 screw – 4 each
- #6 – 32 screw – 4 each
- Support wire – 4 each
- Installation Instructions – 1 each
- Keys for access door lock – 2 each
If any of these items are missing, contact your Oberon representative.
NOTE: If using Cisco 1040, 1140, 1260, 3500 series
access point use Cisco AIR-AP-BRACKET-2. If
using Cisco 3600 series use Cisco AIR-APBRACKET-1.
Find a flat work surface to assemble the ceiling
enclosure, access point and antenna(s) prior to
mounting in ceiling.
Step 1 – Place the ceiling enclosure assembly on the
work surface with the keyed doorway unlocked.
Remove hole knock outs located on the outside edge
of the back box to install conduit connectors. Install
one conduit connector if using P.O.E. or install 2
conduit connectors if bringing in power and Ethernet
and power separately (Figure 1).

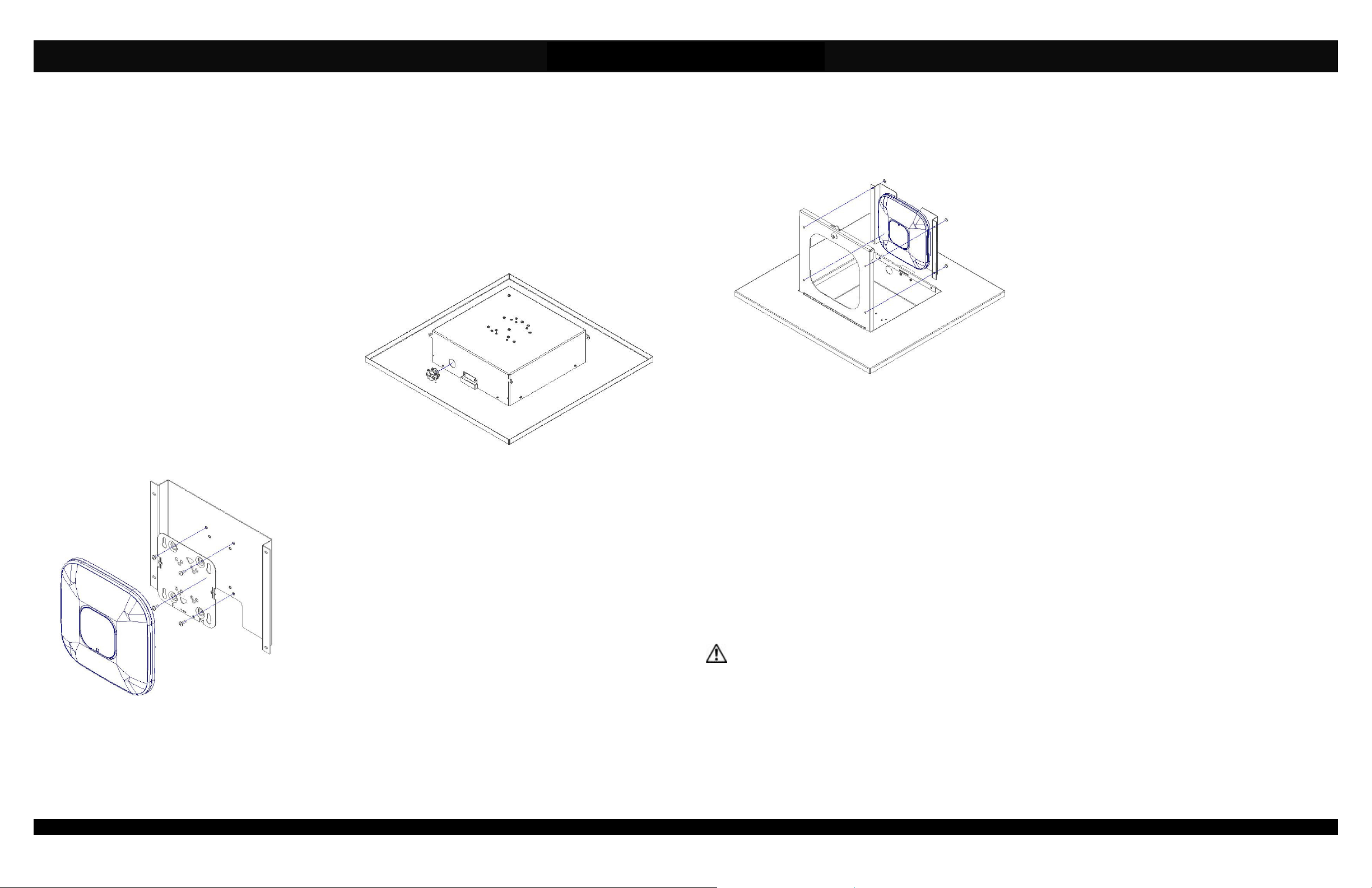

Step 2 – Install the mounting plate onto the mounting bracket using the
(4) # 8-32 screws. The triangle cutouts of the mounting plate should be
facing down toward the cutout on the bracket. Slide the access point onto
the mounting plate using the feet to lock it in place (Figure 2).
Figure 2
Page 2
Rev. 2A 06/05/14 Oberon, Inc. •••• 1315 South Allen Street •••• State College, PA 16801 Copyright 2013
(877) 867-2312 • www.oberonwireless.com
Step 3 – The door assembly is completed by attaching the
previously assembled mounting plate/access point
assembly to the enclosure door by securing it in place with
four (4) #8-32 hex nuts. Place the slotted holes in the
mounting plate/access point assembly over the studs
located on the bottom side of the door (NOTE: the
mounting plate can only be attached to the door in one
direction. If the slotted holes don’t match up with the studs
in the door, rotate the mounting plate 180°). Once the
mounting plate is positioned, secure it in place by installing
four (4) #8-32 hex nuts (Figure 3).
Figure 3
The assembled unit is now ready for ceiling installation.
Step 4 – Remove the ceiling tile and replace it with the completed access point enclosure assembly.
Step 5 – Use minimum 12-gauge support wire (included) to support the access point enclosure independently of the ceiling
grid. Attach one end of the wire to the support wire tabs located along the edge of the back box and the other end to a
permanent supporting structure within the ceiling such as a ceiling joist (Figure 4).
**IMPORTANT** - This is an important safety feature that could prevent human injury or damage to the access
point should the unit become dislodged from the ceiling.
Page 3
