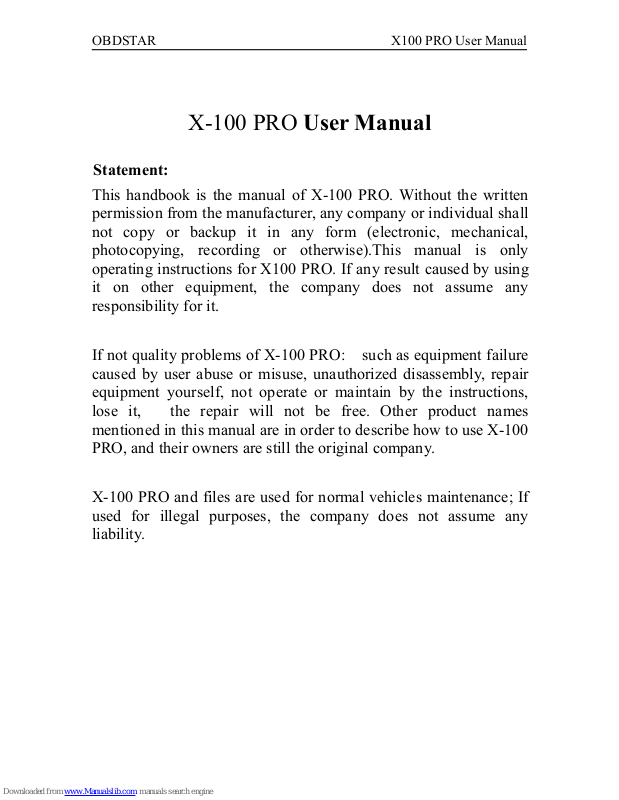

Statement:

This handbook is the manual of X-100 PRO. Without the written
permission from the manufacturer, any company or individual shall
not copy or backup it in any form (electronic, mechanical,
photocopying, recording or otherwise).This manual is only
operating instructions for X100 PRO. If any result caused by using
it on other equipment, the company does not assume any
responsibility for it.

If not quality problems of X-100 PRO: such as equipment failure
caused by user abuse or misuse, unauthorized disassembly, repair
equipment yourself, not operate or maintain by the instructions,
lose it, the repair will not be free. Other product names
mentioned in this manual are in order to describe how to use X-100
PRO, and their owners are still the original company.

X-100 PRO and files are used for normal vehicles maintenance; If
used for illegal purposes, the company does not assume any
liability.

OBDSTAR X100 PRO User Manual

Content

Chapter1:Summary………………………………………………1

1.1 Features……………………………………………………1

1.1.1 Universal……………………………………………1

1.1.2 Advantages....................…………………................1

1.1.3 Durability...............………………………................1

1.2 Introduction of the device……………………………….2

1.2.1 The main unit and accessories…………………….2

1.3 Hardware technical specification………………………3

1.4 Functions setting………………………………………...3

1.4.1 System setting……………………………………4

1.4.1.1 Language selected….…………….......…..…4

1.4.1.2 Contrast adjustment………………………….4

1.4.1.3 Metric/Inch………………………………...5

1.4.1.4 Data logging…..........…………………….…5

1.4.2 System information..………………………….....….6

1.4.3 Device self test..…….................………………...…..6

Chapter2: How to update software for X-100 PRO……………….7

2.1 Update tool software installation..…....…………………..7

2.2 Register...….….…………………………………….....…10

2.3 Software updating...….………………………….....…11

OBDSTAR X100 PRO User Manual

1

Chapter1：Summary

1.1 Features

1.1.1 Universal

1.1.2 Advantages

● Providing multi-language environment so it can be used in

different countries and regions.

● The main unit system uses ARM high-speed chip to keep it

running fast, stable, and anti-jamming.

● Support updating via TF card. You can update the software at

any time.

● With modern design and high-definition true color screen to

realize the integration of automotive industry and electronic
information technologies and make auto diagnostic and key
programming more easier, practical and economical.

1.1.3 Durability

● Integrity structure design, Drop and Shock Resistance, and

durable.

● Industrial design to ensure the tool work stable in harsh

environment such as high temperature, low temperature,etc.

OBDSTAR X100 PRO User Manual

2

1.2 The introduction of the device

1.2.1 The Main unit and accessories（picture as below）

Name

Instruction

Testing cable interface

Connect to the main testing cable for
key programming

USB interface

For connecting USB cable

TF Card Slot

To store diagnostic program and data

F1

Keyboard input option key

Left

To left

Enter

OK

ESC

Exit or give up

Screen

Show information

F2

Other functions option

Up

Up

Right

To right

Down

Down
