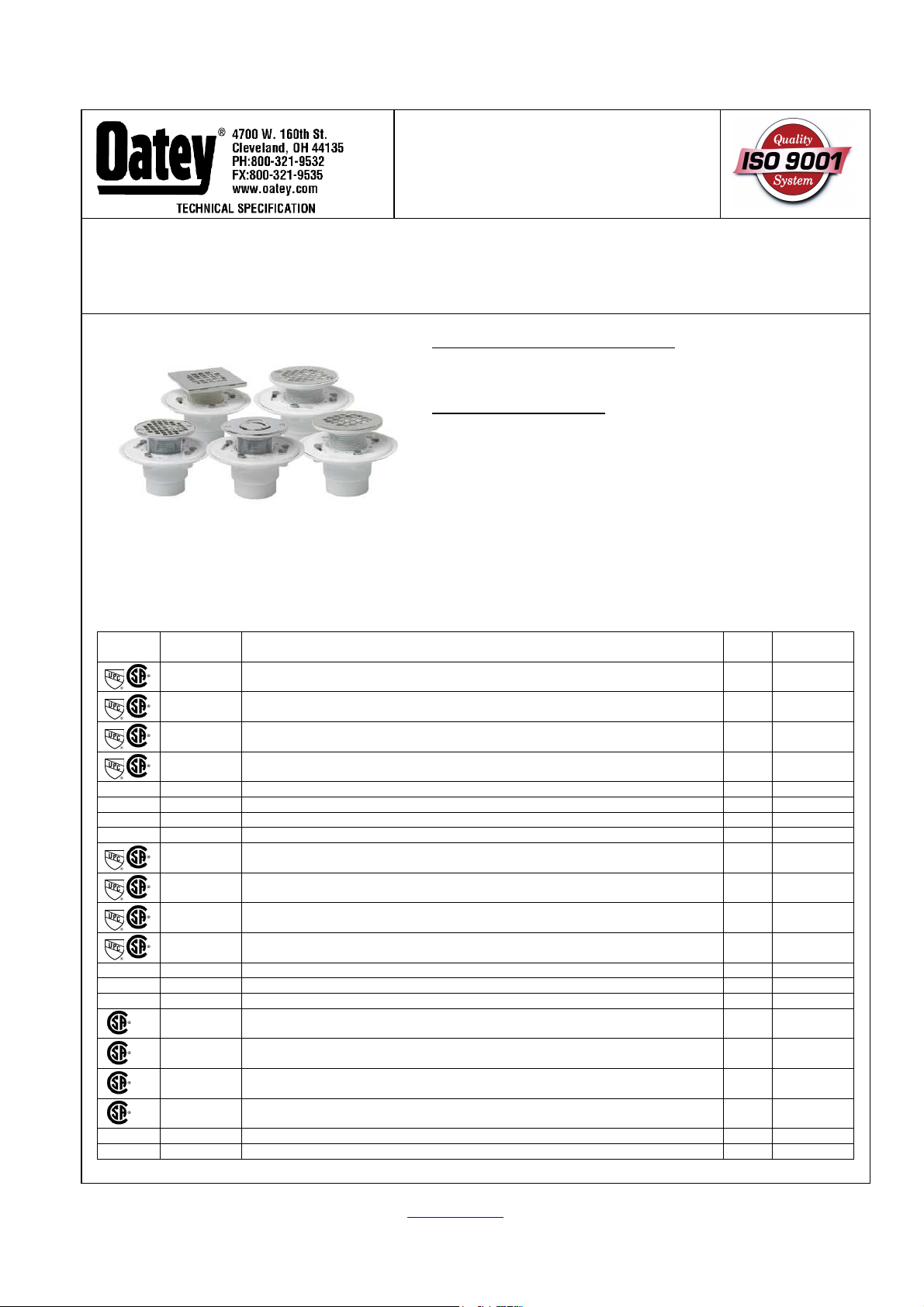

130 SERIES
SHOWER DRAINS FOR
TILE SHOWER BASES
TECHNICAL SPECIFICATION: Oatey Shower Drains for Tile Shower Bases are designed for use with tile or marble showers where a shower
pan liner is used. The low profile design allows for installation in tight spaces. Drain body solvent welds over 2” or inside 3” Schedule 40 DWV
pipe. Reversible clamping collar is secured with 4 stainless steel bolts into brass inserts. 2” IPS threaded strainer barrel is adjustable to allow
for easy height adjustment. Weep holes in the drain assembly allow drainage from the pan liner. Round drain barrel accommodates 4-¼”
Universal Snap-Tite Strainers available in a variety of designer finishes.
PHYSICAL/CHEMICAL PROPERTIES
Material/Color ABS Plastic = Black
PVC Plastic = White
COMMON APPLICATIONS
Oatey Shower Drains for Tile Shower Bases are designed for use
with tile or marble showers where a shower pan liner is used.
The low profile design allows for installation in tight spaces. Drain
body solvent welds over 2” or inside 3” Schedule 40 DWV pipe.
Reversible clamping collar is secured with 4 stainless steel bolts
into brass inserts. 2” IPS threaded strainer barrel is adjustable to
allow for easy height adjustment. Weep holes in the drain
assembly allow drainage from the pan liner. Round drain barrel
accommodates 4-¼” Universal Snap-Tite Strainers available in a
variety of designer finishes.
PRODUCT
NUMBER
42210 2” or 3” ABS Shower Drain w/Round Screw-Tite Stainless Steel Strainer for Tile Shower
42213 2” or 3” PVC Shower Drain w/Round Screw-Tite Stainless Steel Strainer for Tile Shower
42399 2” or 3” ABS Shower Drain w/Round Screw-Tite UltraShine® PVD Polished Brass
42404 2” or 3” PVC Shower Drain w/Round Screw-Tite UltraShine® PVD Polished Brass
42218 2” or 3” ABS Shower Drain w/Round Chromed Strainer Assembly for Tile Shower Base 12 19 lbs.
42219 2” or 3” PVC Shower Drain w/Round Chromed Strainer Assembly for Tile Shower Base 12 23 lbs.
42393 2” or 3” ABS Shower Drain w/Square Chromed Strainer Assembly for Tile Shower Base 12 26 lbs.
42394 2” or 3” PVC Shower Drain w/Square Chromed Strainer Assembly for Tile Shower Base 12 26 lbs.
42202 2” or 3” PVC Shower Drain w/Round Snap-Tite Stainless Steel Strainer for Tile Shower
42203 2” or 3” ABS Shower Drain w/Round Snap-Tite Stainless Steel Strainer for Tile Shower
42237 2” or 3” PVC Shower Drain w/Square Snap-Tite Stainless Steel Strainer for Tile Shower
42238 2” or 3” ABS Shower Drain w/Square Snap-Tite Stainless Steel Strainer for Tile Shower
42245 2” or 3” PVC Shower Drain Kit- Threaded Barrel & Round SS Snap-Tite Strainer ONLY 12 5 lbs.
42246 2” or 3” PVC Shower Drain Kit- Solvent Welded Drain Body and Clamping Collar ONLY 12 8 lbs.
42247 2” or 3” PVC Shower Drain Kit- Threaded Barrel & Square SS Snap-Tite Strainer ONLY 12 12 lbs.
42250 2” or 3” ABS Shower Drain w/Square Snap-Tite Brushed Nickel Strainer for Tile Shower
42251 2” or 3” PVC Shower Drain w/Square Snap-Tite Brushed Nickel Strainer for Tile Shower
42396 2” or 3” ABS Shower Drain w/Square Snap-Tite Rubbed Bronze Strainer for Tile
42398 2” or 3” PVC Shower Drain w/Square Snap-Tite Rubbed Bronze Strainer for Tile
42393 2” or 3” ABS Shower Drain w/Square Chromed Strainer Assembly for Tile Shower Base 12 26 lbs.
42394 2” or 3” PVC Shower Drain w/Square Chromed Strainer Assembly for Tile Shower Base 12 26 lbs.
DESCRIPTION PACK CARTON
WEIGHT
12 14 lbs.
Base
12 17 lbs.
Base
12 14 lbs.
Strainer for Tile Shower Base
12 17 lbs.
Strainer for Tile Shower Base
12 17 lbs.
Base
12 14 lbs.
Base
12 14 lbs.
Base
12 14 lbs.
Base
12 24 lbs.
Base
12 24 lbs.
Base
12 24 lbs.
Shower Base
12 24 lbs.
Shower Base
LB-5
Visit www.oatey.com for updates
03/2010
