Water Coolers
VERSAFILLER®
Model PWSBF (retro fit) and
PG*SBF Family of Drinking
Fountains/VersaFiller combo
Installation Instructions
The VersaFiller is an extension of the Aqua Pointe® product line that mounts
directly above Versacooler® I and II products. No additional electrical
connections are required.
If installed onto a refrigerated cooler, then chilled water can be dispensed
through the VersaFiller. Otherwise, room temperature water will be dispensed.
The VersaFiller is shipped partially assembled.
On the combo units, the cooler is plumbed and ready to attach to the
VersaFiller.

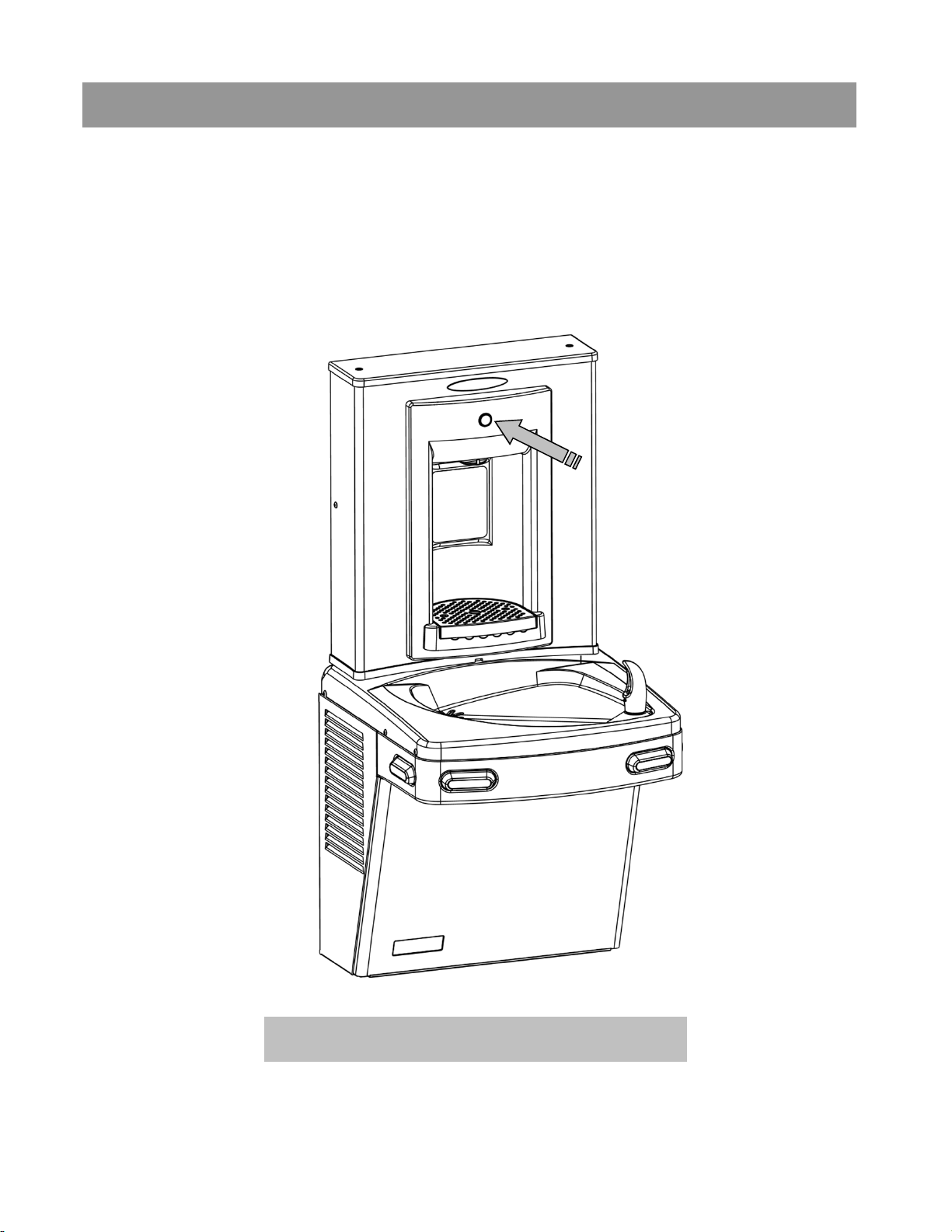

When completed, the finished assembly will look like this:
OR
1
Page 2
Section 1: Getting Started
What’s Included:
Quasar Hands-Free
Bottle Filler
Top Cap
38” of ¼ OD plastic
tubing with 19” of
sponge tubing
insulation (included
with “Quasar Bottle
Filler ready” coolers)
Snap bushings 7/8”
Quick connect tee
fitting
Installation
instructions
Rubber
Gasket
Versafilter II
Versafilter II is optional
Tools required:
3/8” pilot drill and either a step drill bit up to 7/8” diameter that will drill
through SS top or 7/8” diameter punch die (retrofit version only)
Electric drill; wrench for punch die
Small tubing cutter for copper tube
1/4“ nut driver
# 2 Phillips screw driver
#15 torx bit driver
2
Page 3
Section 2: Rough In Drawing
Oasis PWSBF: Versacooler® II Models PGAC, PG8AC with Hands-Free Bottle Filler
3
Page 4
Section 2: Rough In Drawing
Oasis PWSBF: Versacooler® II Split Level Models with Hands-Free Bottle Filler
* On split level models, the Bottle Filler must be mounted on the
low unit in order to meet ADA guidelines.
4
Page 5
Section 3: Installation
Note: Proceed to Section 3B Step 5 “Final steps for both product families”
if the cooler is purchased “Quasar Bottle Filler or Versafiller ready”.

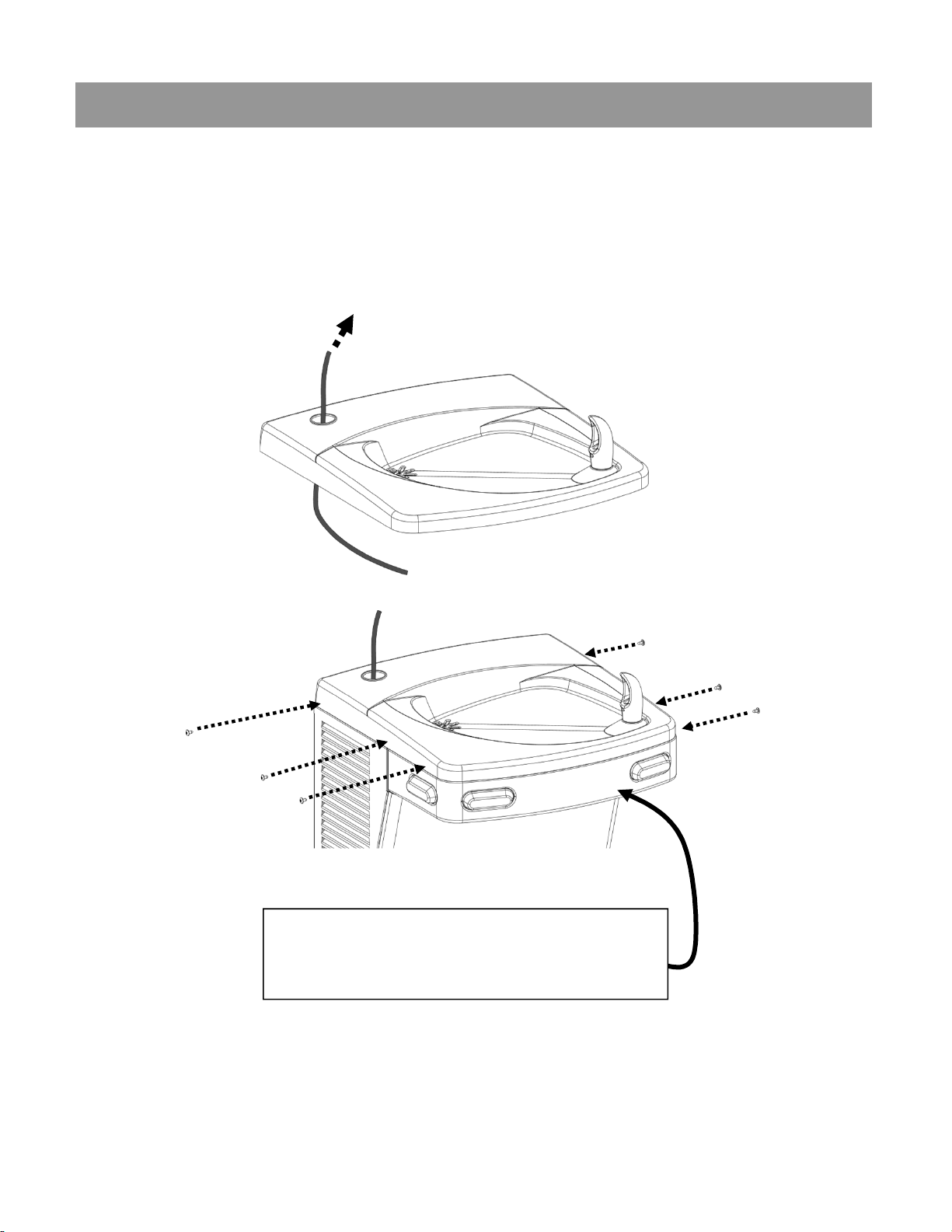

A: Drilling hole in the top for water line connection.
1. Disconnect power by UNPLUGGING unit. It might be necessary to remove
the front panel to get access to the power.
2. Turn OFF water supply to the unit. It might be necessary to remove the front
panel to access the water stop valve.
3. Place hole template onto cooler top so it is aligned with the left side of unit
and wall. SEE NEXT PAGE FOR TEMPLATE
4. Mark hole location
5. Remove top from unit.
Mark hole location.
Template
Remove top from cooler by
removing six, #15 torx head screws
on sides of top.
6. Using a step drill bit or 7/8” punch die, make a 7/8” hole through top. You may
want to drill a pilot hole to get these started.
7. Install snap bushing into hole to protect tubing from being cut.
Install bushing
Drill
5
5
Page 6
2-1/8”
6
3-1/4”
from
edge
of
paper
ALIGN THIS
EDGE WITH LEFT
EDGE OF
COOLER TOP
from
edge of
paper
PLACE THIS
EDGE AGAINST
WALL
Mark this center point on the
top. Remove the top from the
cooler. Then create a 7/8”
diameter hole through the top
at the marked center point
(step drill bit or punch die).
USE THIS TEMPLATE TO MARK THE
HOLE LOCATION ON COOLER TOP
Page 7
Section 3A: Installation
Versacooler to Bottle Filler Plumbing Diagram
OPTIONAL VERSAFILTER II
BOTTLE
FILLER
DISPENSE
VALVE
INLET STRAINER,
TUBE, AND
REDUCER FTG.,
PROVIDED WITH
FOUNTAIN.
BUILDING
INLET WATER
VERSACOOLER
7
Page 8
Section 3A: Installation
Two Versacoolers to Bottle Filler Plumbing Diagram
INLINE
STRAINER,
TUBE, AND
REDUCER FTG.,
PROVIDED
WITH FOUNTAIN
OPTIONAL
VERSAFILTER II
BOTTLE FILLER
DISPENSE
VALVE
BUILDING
INLET WATER
VERSACOOLER
T-FITTING
VERSACOOLER
8
Page 9
Section 3B: Installation
B: Connecting the water line
Note: If you are retrofitting the Versafiller to an existing cooler,
follow the instructions starting on page 11.
For the single “Versafiller ready” cooler, the tube to connect to the Versafiller
is found inside the access panel (the compressor compartment). This tube
supplies cold water from the cooling tank to the Versafiller.
¼” OD tube to connect
to Versafiller (no tee is
needed)
For split level “Versafiller ready” coolers, the tube to plumb in the
Versafiller is packaged in the dummy unit.
Remove tube from bag.
First, remove plug from
fitting on tank drain
Next, insert end of
tube into fitting.
9
Page 10
Tee and tube to Versafiller are packaged with PWSBF unit. One branch of
tee will supply valve on dummy unit. Other branch of tee will connect to
Versafiller. Note: “Versafiller ready” single units do not use tee since
water line from cooling tank only supplies water to bottle filler.
Tube to connect valve
on dummy unit
Tube to connect
Versafiller
Tube to connect chilled
water to dummy unit
and Versafiller
Go to Step 5 “Final steps for both product families:”
10
Page 11
To retrofit the Verafiller to an existing unit, follow the
instructions below:
If the cooling tank is non-pressurized, then go to the “Pressurizing the
cooling tank” addendum section. Otherwise, proceed to step 1 below.
Non-pressurized units are single units made since December of 2009.

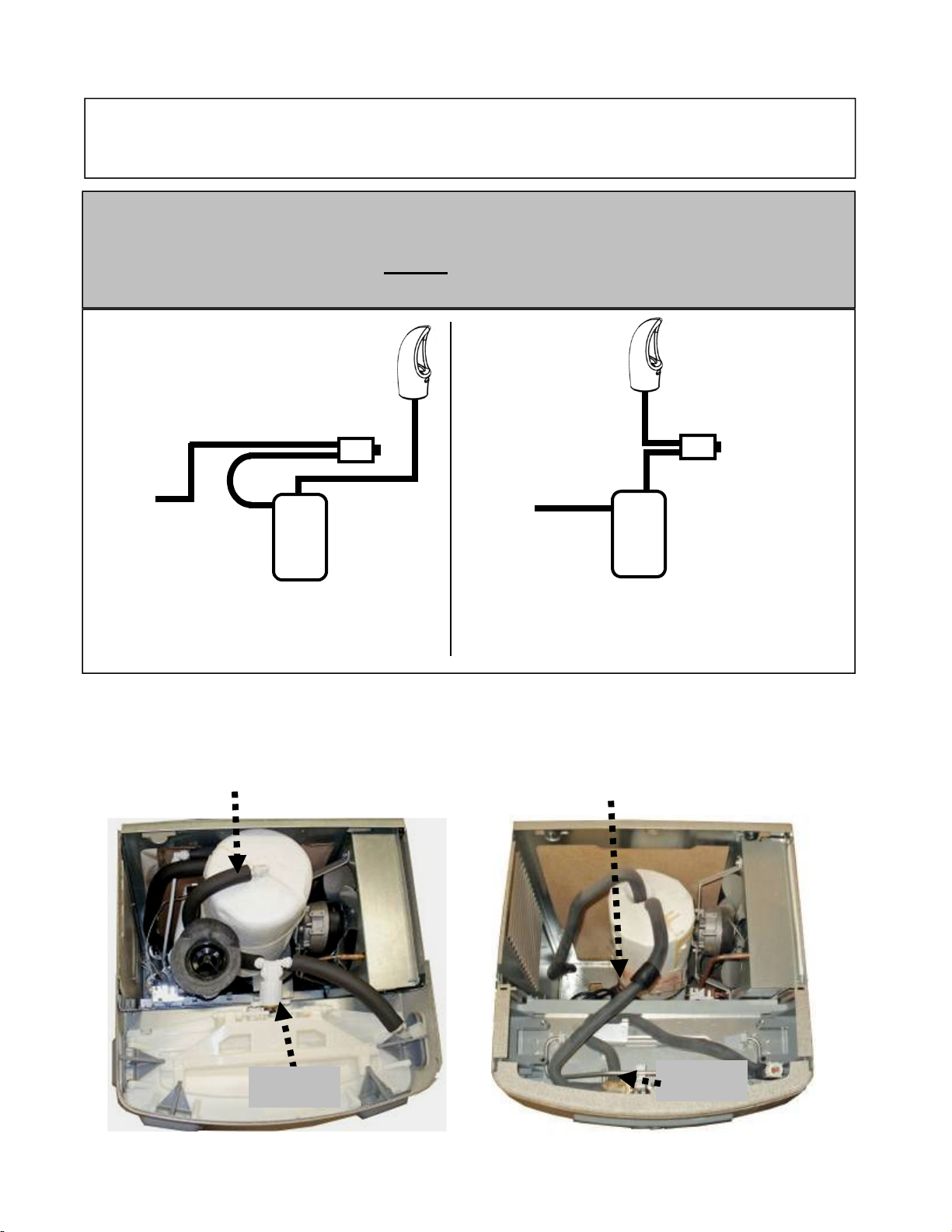

Refer to the schematic below to identify the system that you have.
Water
valve/
regulator
tank
Supply
Water
Water
valve/
regulator
tank
Cooling
NON-
PRESSURIZED
COOLING TANK
Supply
Water
Cooling
PRESSURIZED
COOLING
TANK

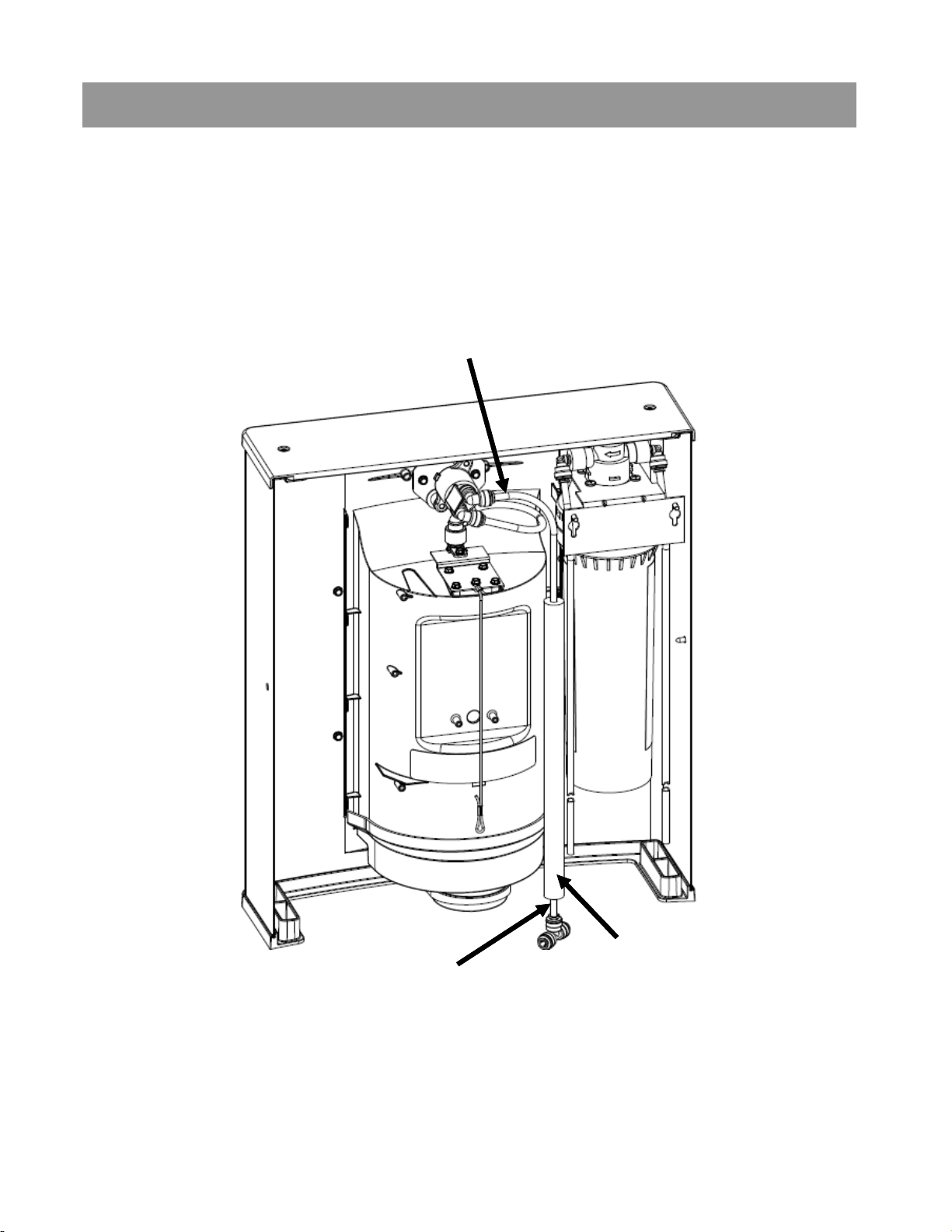

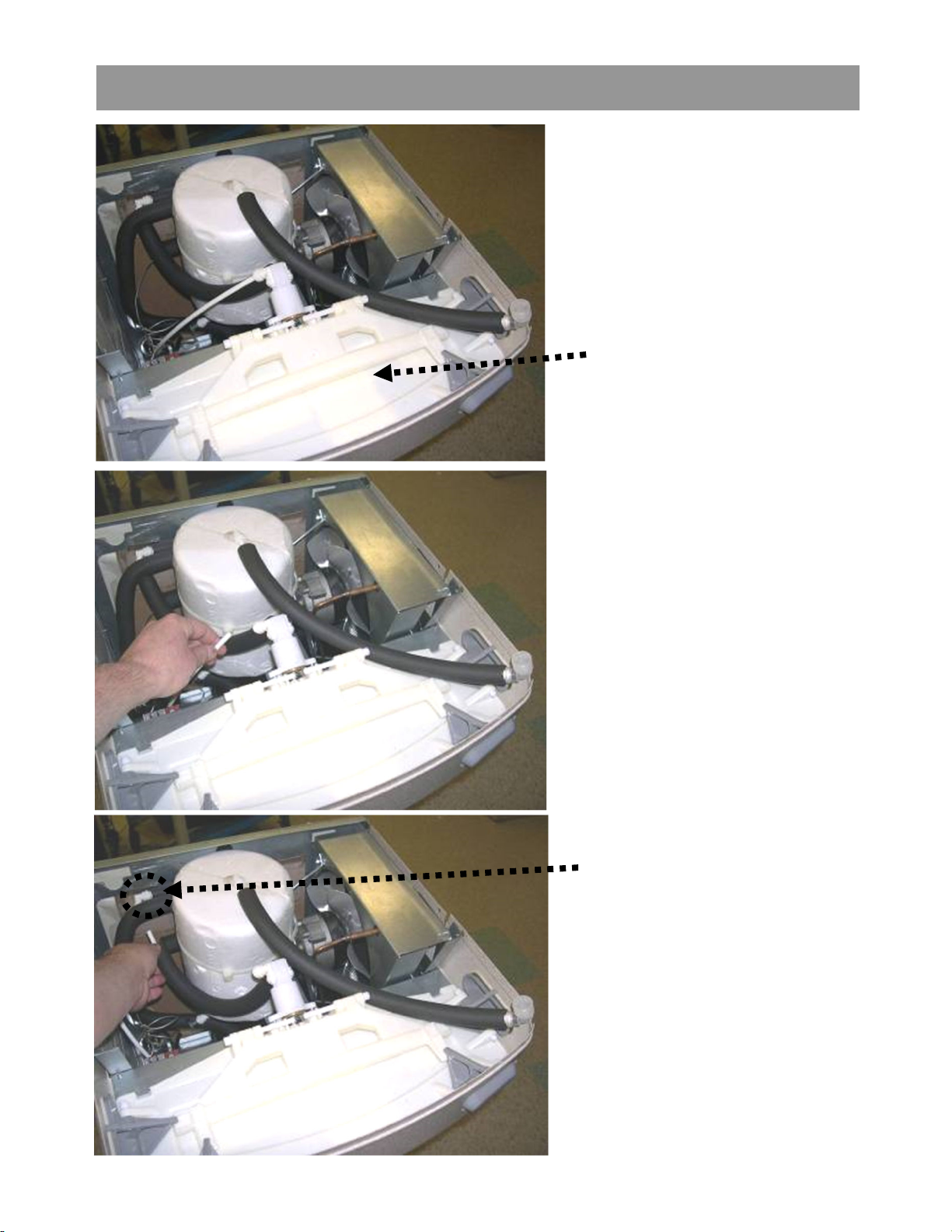

1. With the cooler top removed, find the tube going from the cooling
tank outlet to the valve. The TEE fitting (supplied) will need to
connect between the cooling tank and valve.
Outlet Tube (insulated plastic)
Outlet Tube (insulated copper)
Valve
P8AC family
Valve
P8AM family
11
Page 12
Section 3B: Installation: For the P8AC Version: Versacooler II

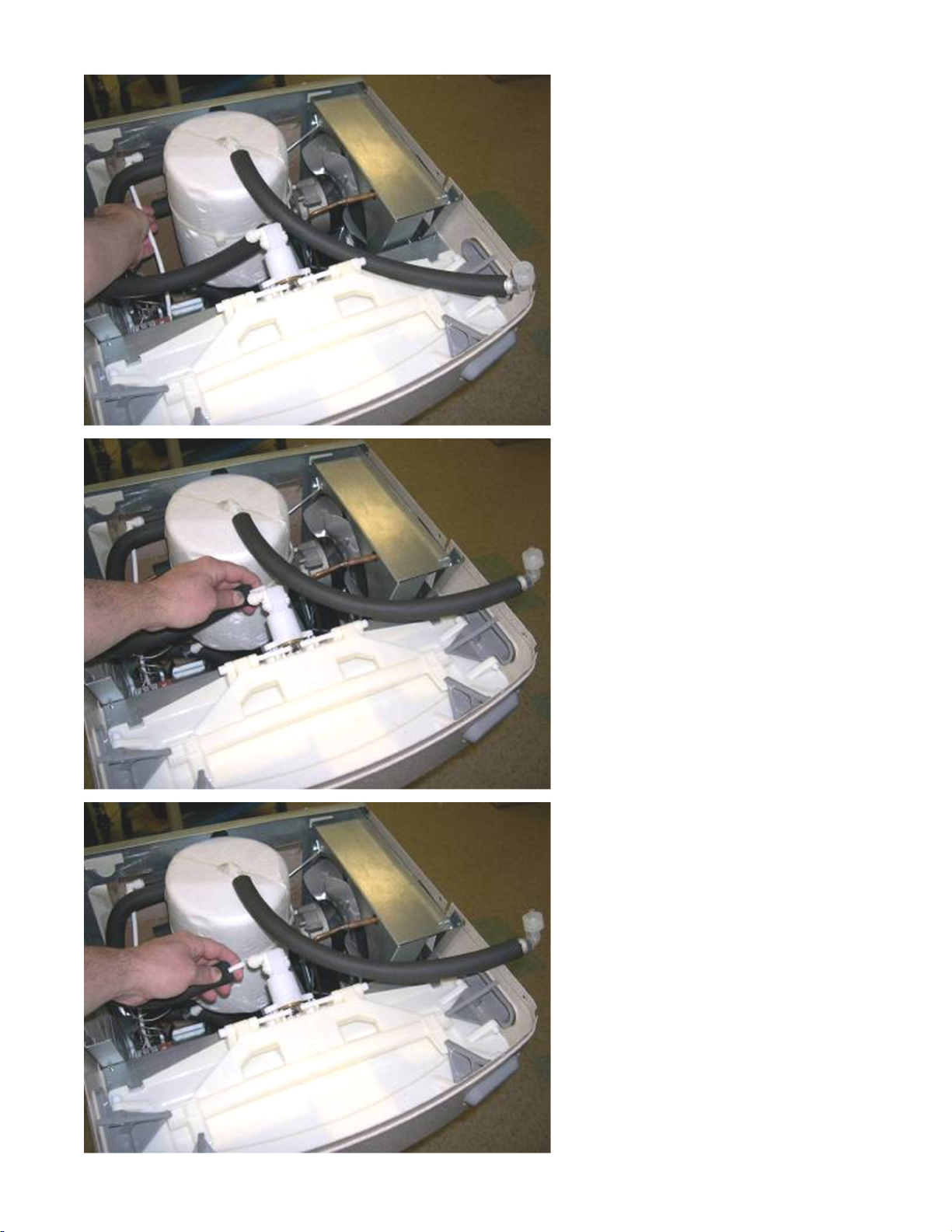

2. Disconnect tubing from the
elbow on the valve.
3. Using the 38” piece
of tubing provided,
cut 6” and install it
on the end of the
TEE. Install the
remaining tubing
onto the branch of
the TEE. Connect
the other end of the
TEE to the tank
outlet tubing (tube
that was
disconnected from
the elbow).
TEE
32” tubing
6” tubing

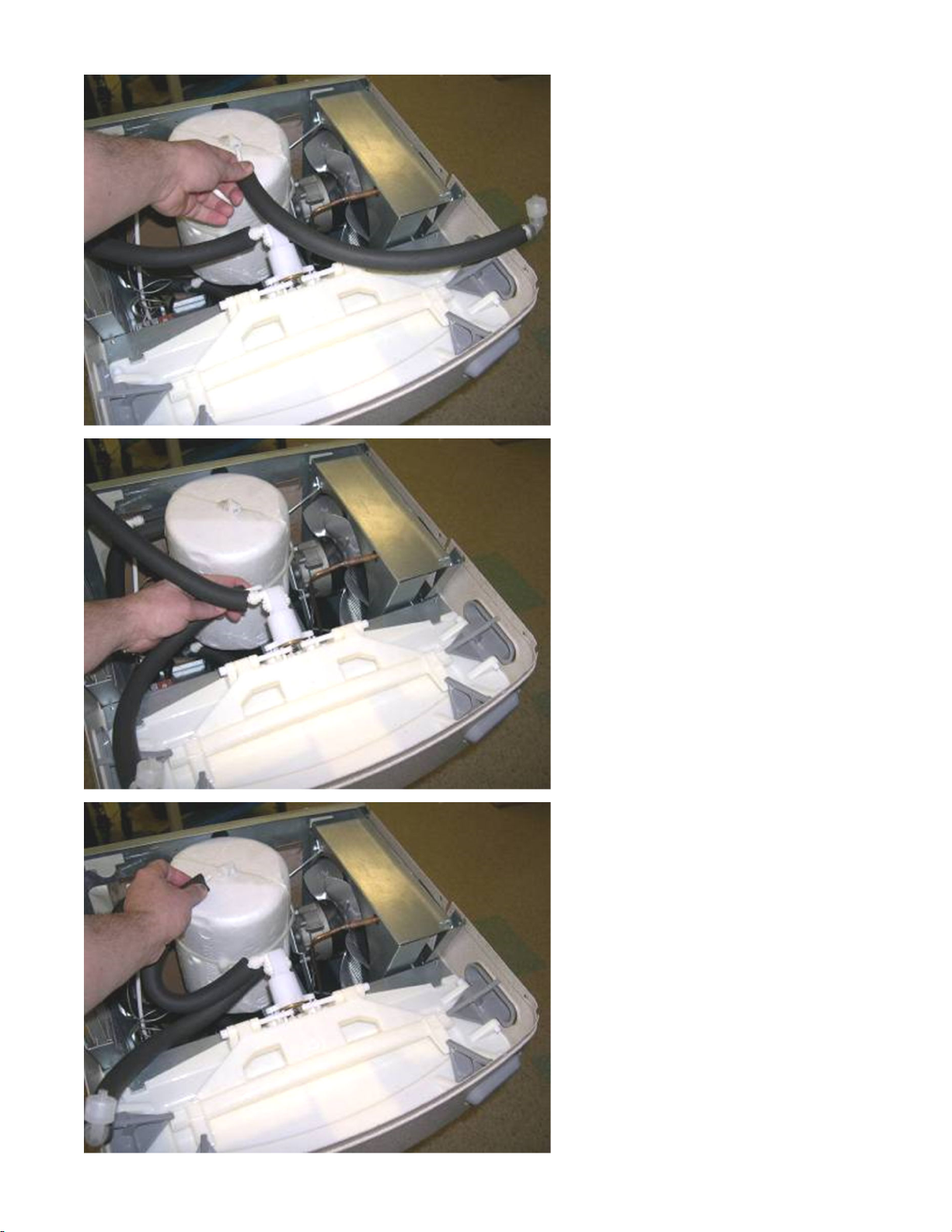

4. Route the TEE and
tubing under the
waste drain and
connect the 6” length
to the water valve
elbow.
Go to Step 5 “Final steps for both product families:”
Water
valve
elbow
12
Page 13

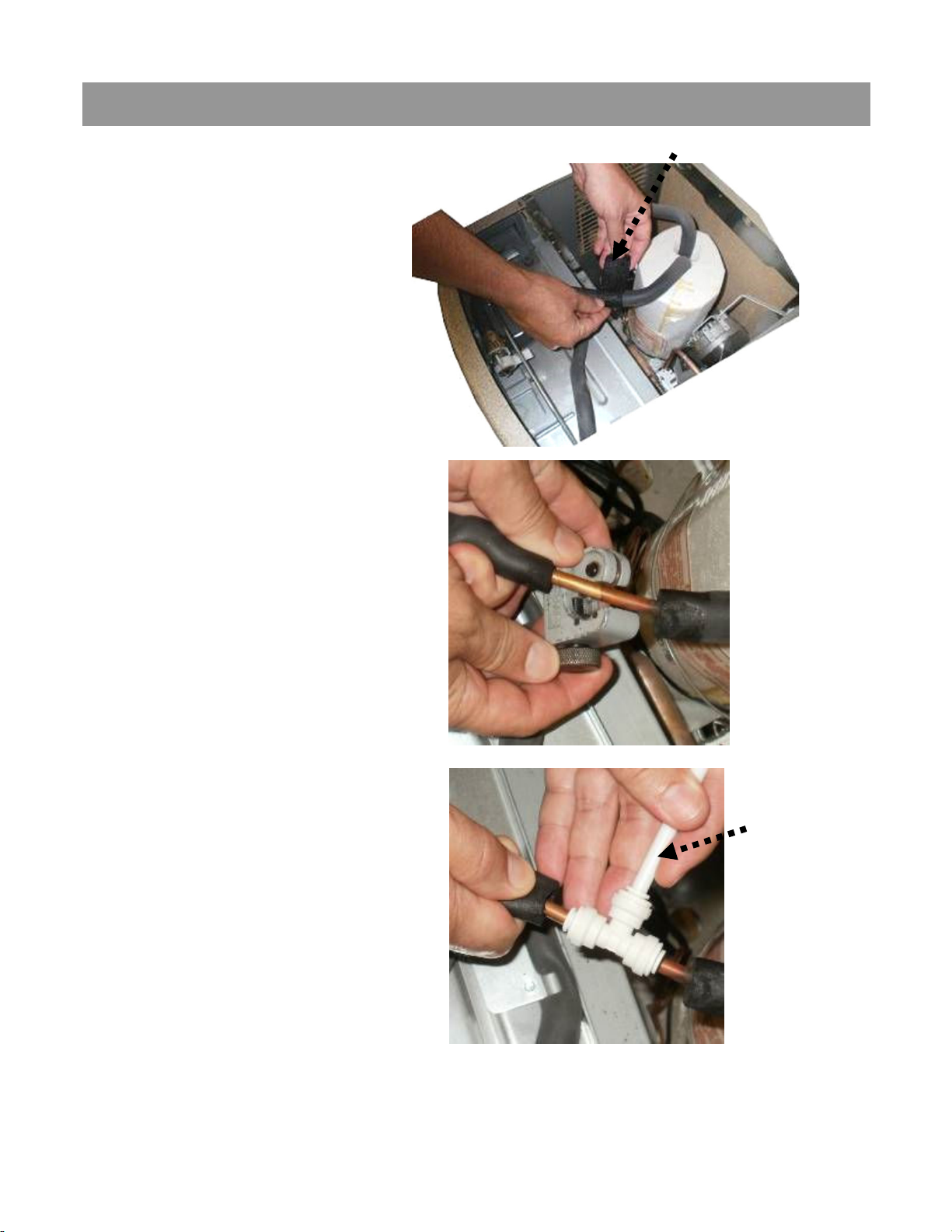

Section 3B: Installation: For the P8AM Version: Versacooler I

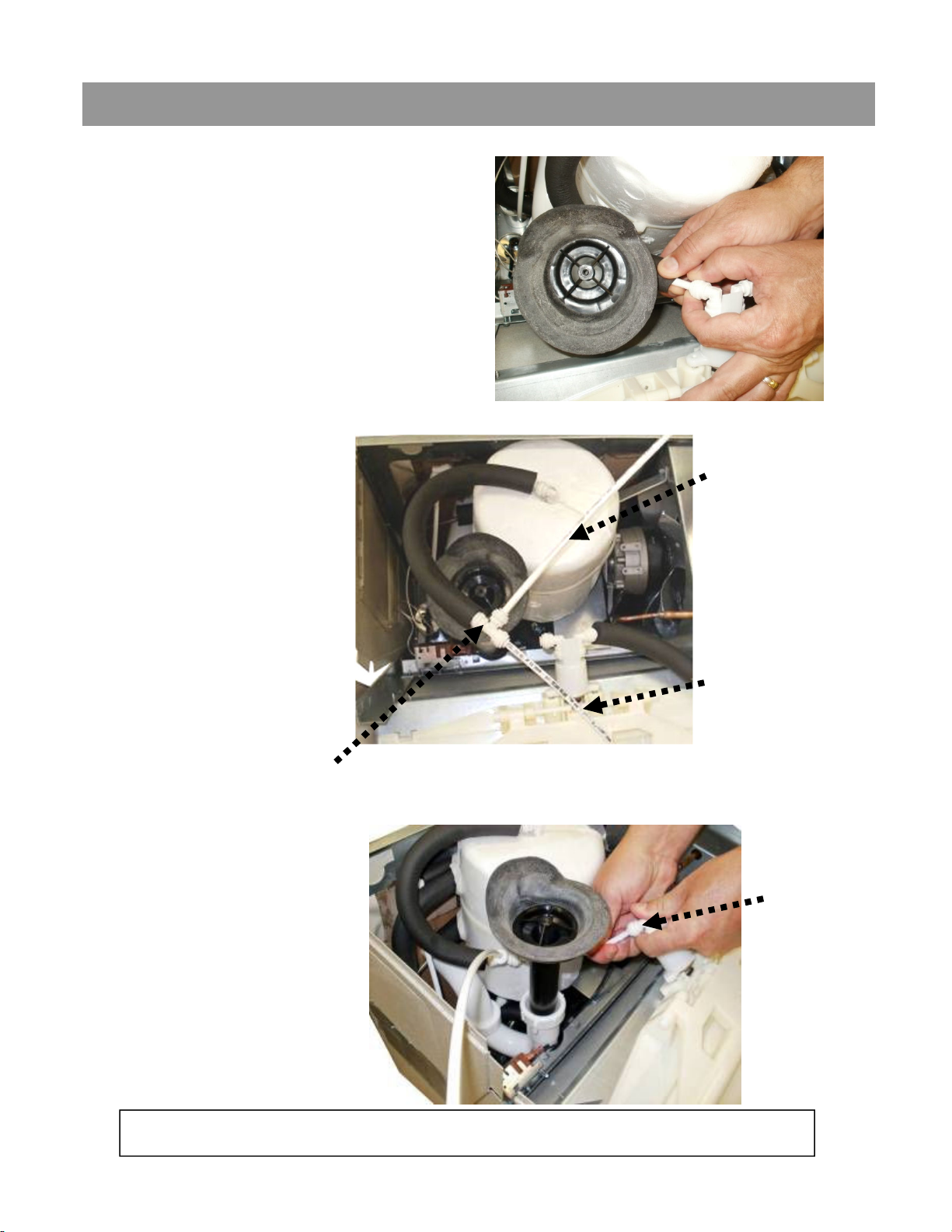

Remove tar tape
2. Remove tar tape from
the insulation on the
outlet tube.

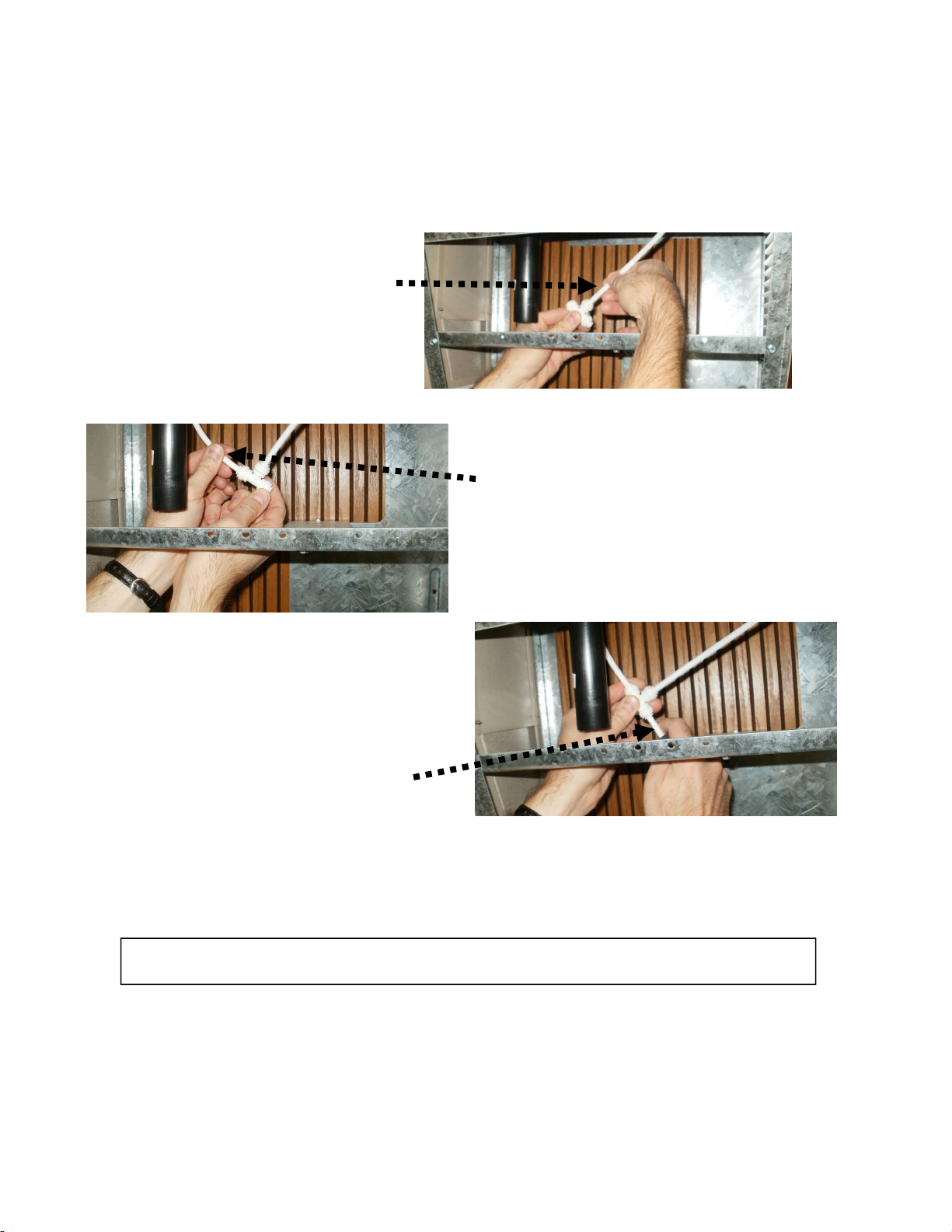

3. Pull back insulation and cut
the copper tube with a
tubing cutter. Cut where
there is at least 1 inch of
straight tubing on each side
of the cut.
4. Install TEE fitting by
connecting the copper
tubing to each end. Then
install the 32” piece of
plastic tubing to the TEE
branch.
32” plastic
tubing
(supplied)
13
Page 14
Section 3B: Installation: Final steps for both product families:
5. Feed tube up through the top and attach the top to the cooler.
To valve assembly inlet.
TIP: For the P8AM, it is easier to
connect the outlet tube to the bubbler if
the front nose is removed.
14
Page 15

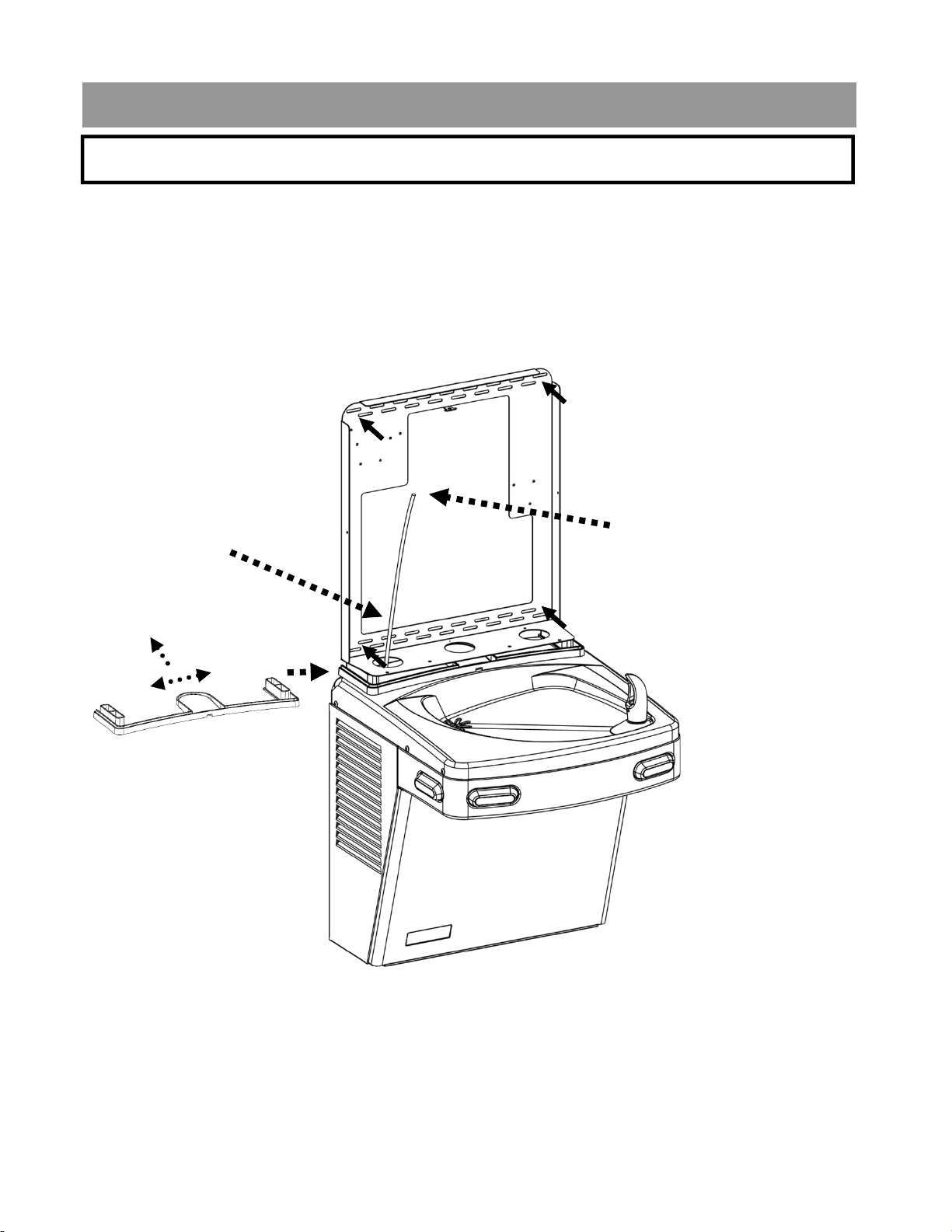

Section 3C: Installation of the Versafiller Sports Bottle Filler
C: Mounting the frame to the wall
1. Place rubber gasket on top of the cooler so it is centered left/right
and against the wall.
2. Set the wall frame onto the gasket. Center it left/right and push it against
the wall and mark hole locations for wall fasteners. The gasket will set
the frame at the proper height.
Use mounting slots that
will provide the proper
securing location.
Make sure to pull
the plastic tubing
up through the hole
in the frame.
Connects to the
valve inlet.
Rubber Gasket
3. Secure frame to the wall with fasteners (not provided). Pull plastic
tubing up through the hole in the frame.
15
Page 16
Section 3D: Installation

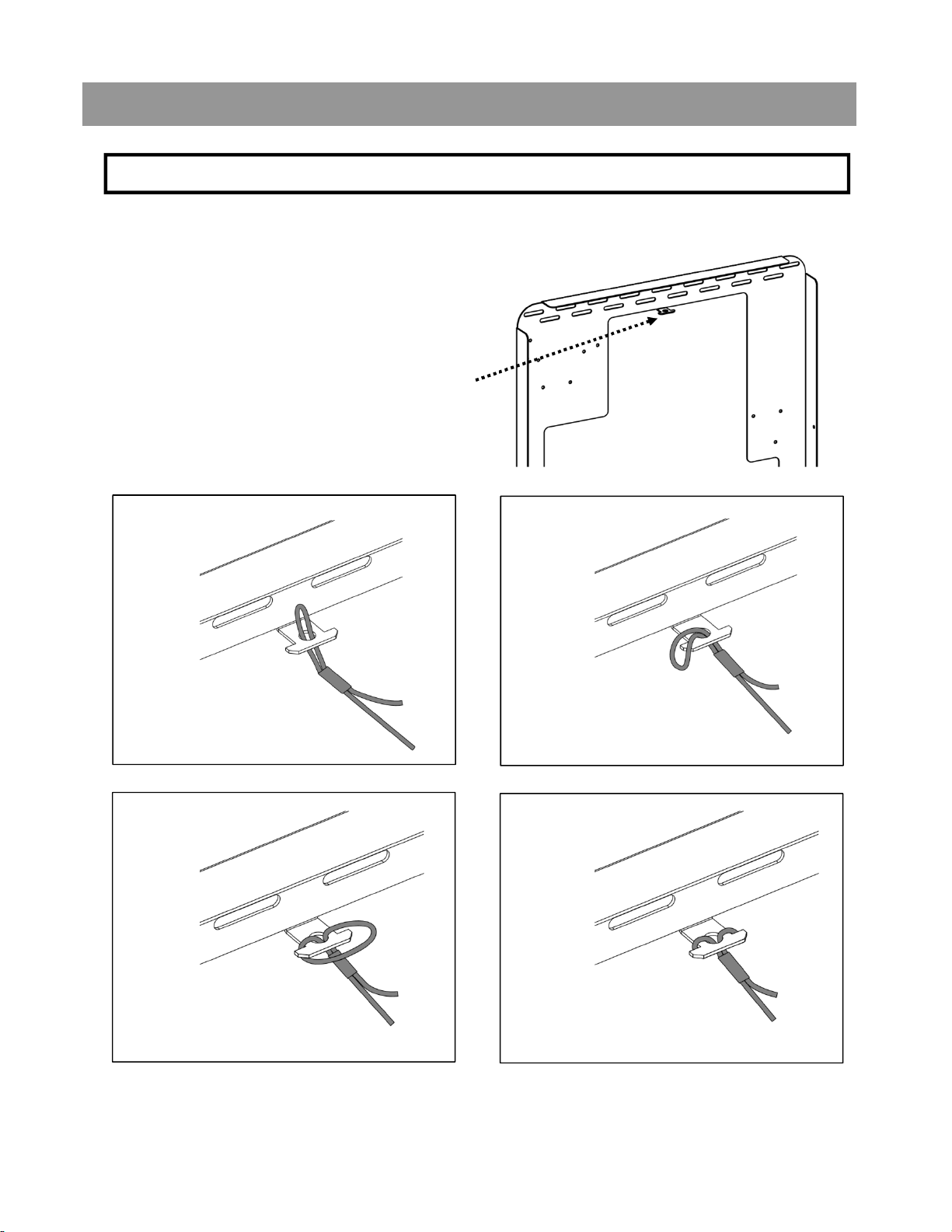

D: Attaching the Tether
3. Install bottle filler tether with the steps below.
Attach the tether line assembled to the bottle
filler dispense bracket to the cleat on the
mounting frame.
1.
Push loop through hole.
3.
2.
Put loop around one side
of the cleat.
4.
Pull loop around other
side of the cleat.
Pull tight.
16
Page 17
Section 3: Installation
4. The tether keeps the bottle filler secured to the frame when changing
the filter, if installed. Make sure the tether is installed properly to avoid
accidental damage to the unit.
17
Page 18
Section 3: Installation
5. Slide sponge tubing insulation over water line. Connect the tubing
to the INLET elbow on the back of the VersaFiller assembly.
Connect tubing to inlet
elbow on the valve
Plastic tubing
Sponge tubing
insulation
18
Page 19
Section 3: Installation

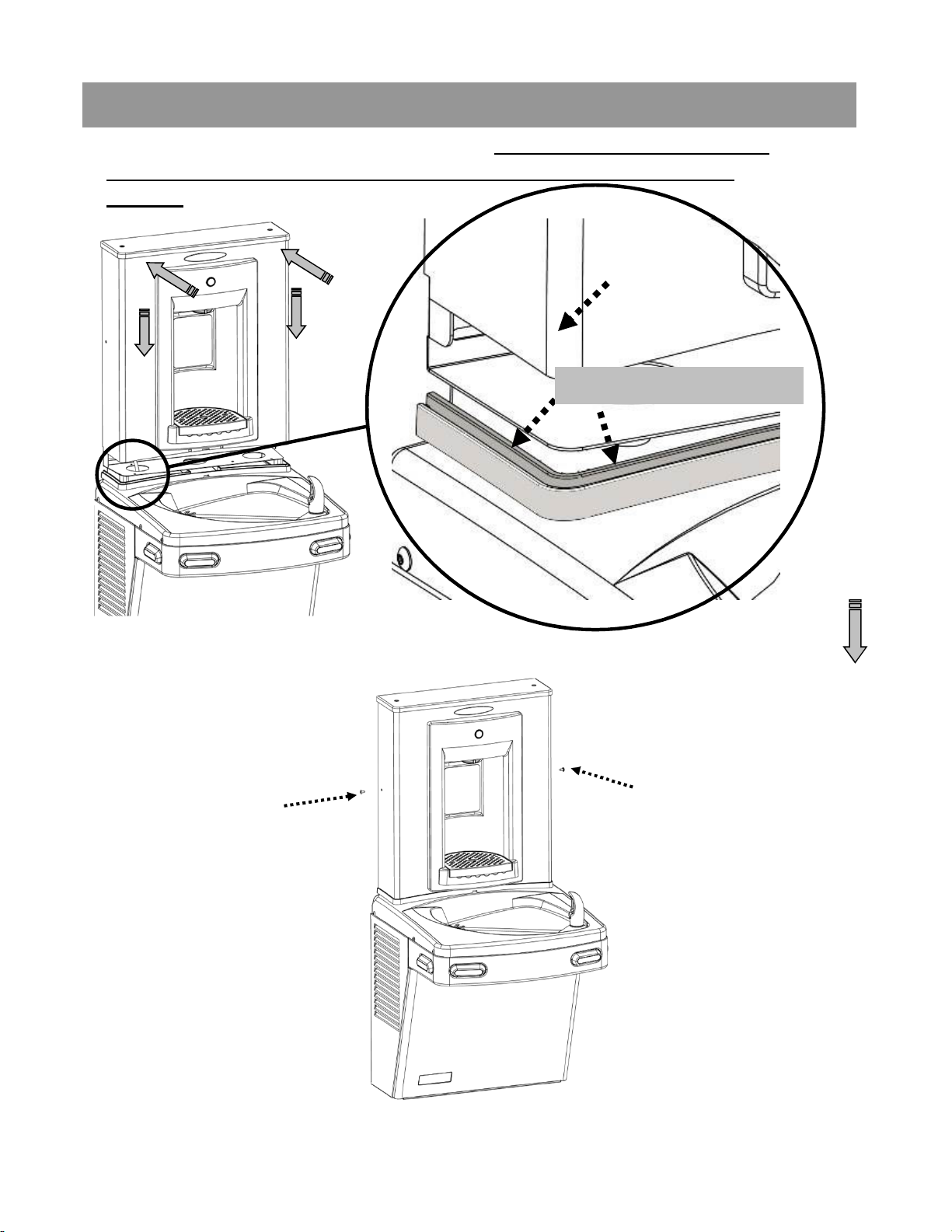

6. Set the VersaFiller cabinet into place. MAKE SURE the cabinet fits
into the groove in the rubber gasket on both sides and front of the
wrapper.
VersaFiller
cabinet
Groove in the gasket
7. Attach VersaFiller assembly and top cap to the frame using the two
(2) torx screws.
Torx screws
Torx screws
19
Page 20
Section 3: Installation

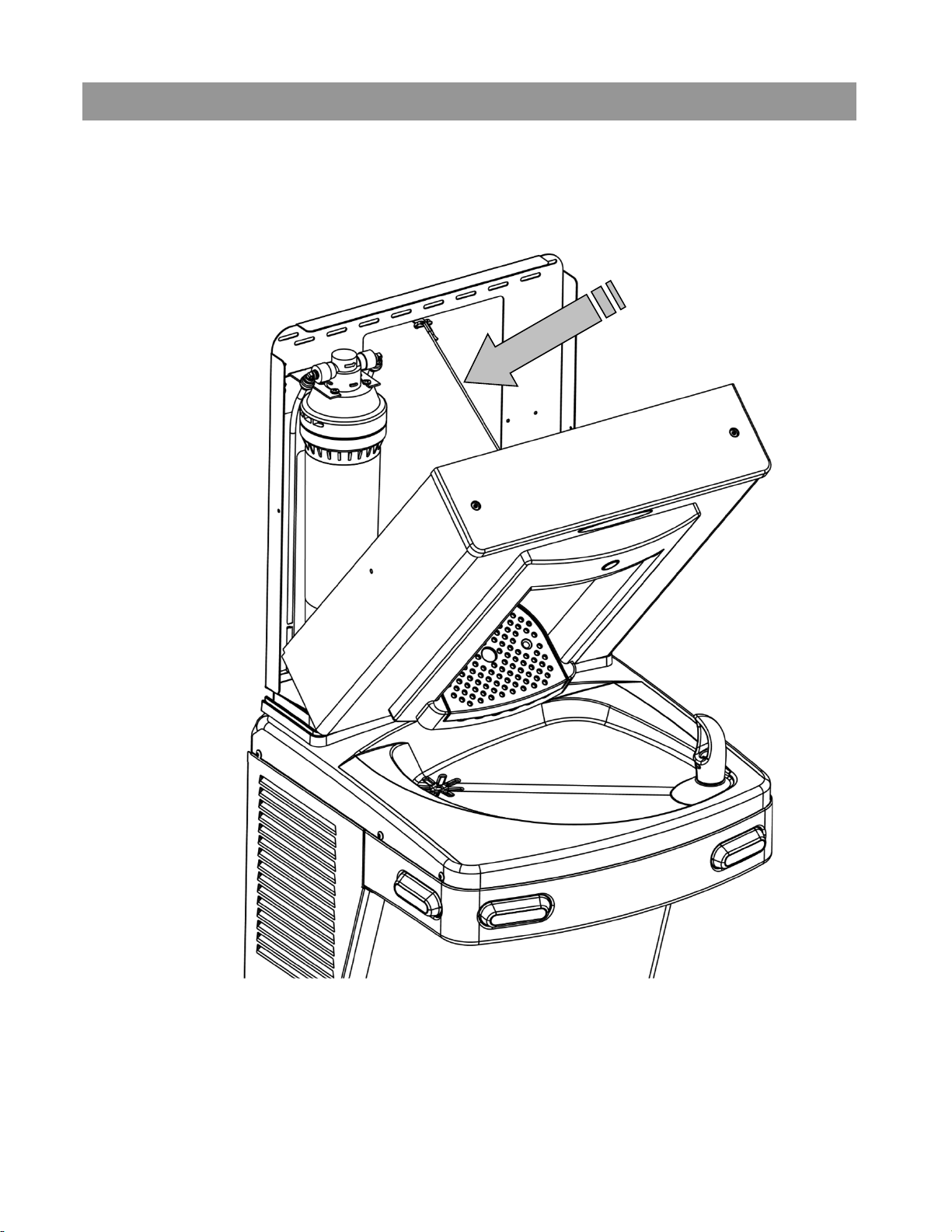

8. Turn ON water supply and check for leaks. Press the activation button
and release any trapped air from the system. Plug in the power cord and
replace the front panel IF it was removed earlier.
Press
INSTALLATION COMPLETE
20
Page 21

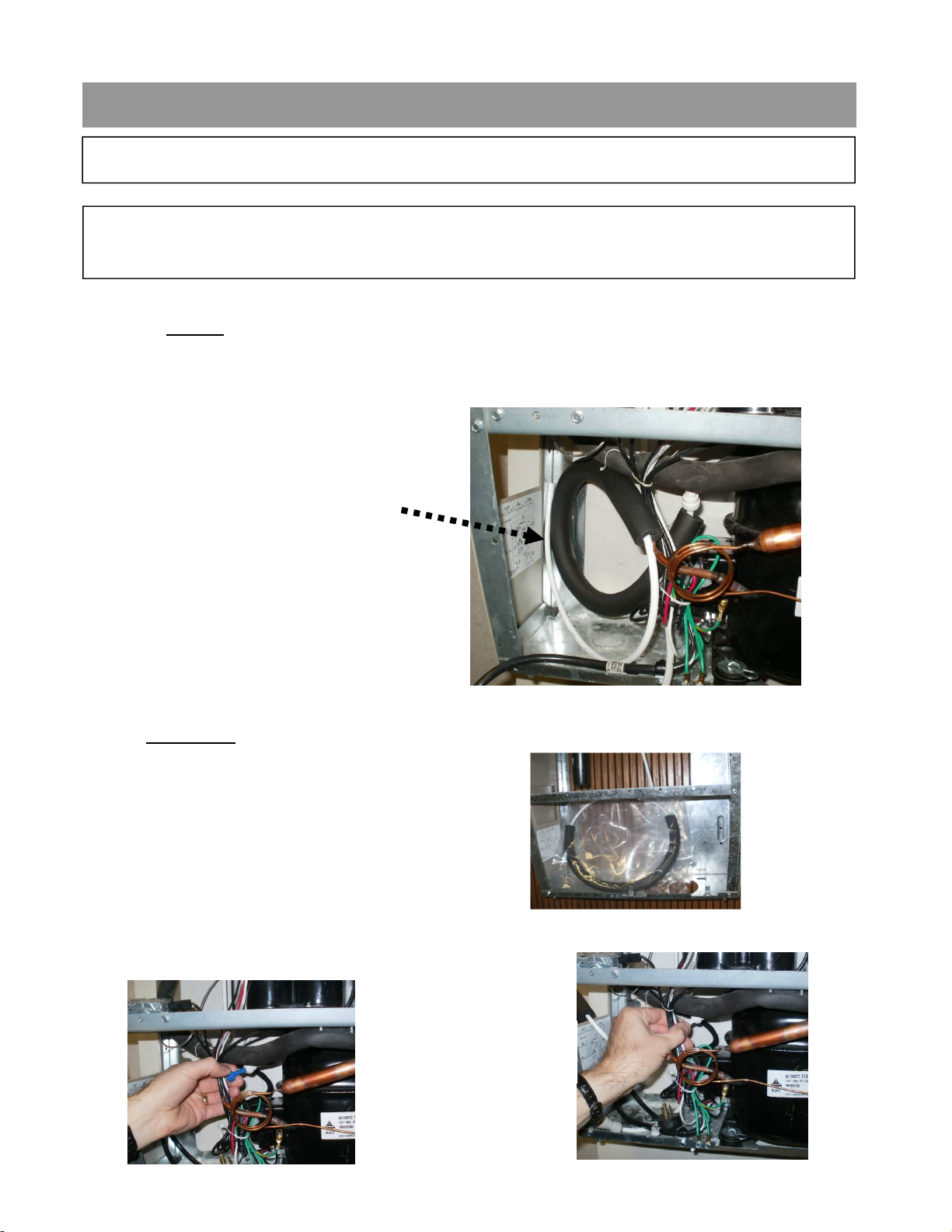

Addendum Section: Pressurizing Cooling Tank
The water should
already be turned OFF
and the power
disconnected.
Unit as it appears with
top removed
STEP 1
Unplug un-insulated water
line from water valve inlet
(JG elbow located left side
of water valve facing the
front of the cooler). Set
tubing aside (careful to not
contaminate water contact
end).
STEP 2
Unplug tubing from JG
elbow leading to
cooling tank inlet.
21
Page 22
STEP 3
Plug un-insulated tubing that
was removed in step 1 into
JG elbow leading to the
cooling tank from step 2.
STEP 4
Unplug tubing that is
connected to the
water valve outlet (JG
elbow located on the
right side of valve
facing the cooler).
STEP 5
Connect tubing
from step 4 to JG
elbow on the left
side of the valve.
22
Page 23
Step 6
Unplug JG tubing
from the cooling
tank outlet. Do
not set it down.
Step 7
Using tubing
removed in step 6,
plug into JG elbow
on the right side of
the valve. (be sure
to rout the tubing
under existing
tubing installed in
step 4 as shown)
Step 8
Using tubing that is
connected to the JG
elbow left side of
valve (done in step
4), and plug the
other end to the JG
fitting at the top of
the cooling tank.
Return to Section 3 B
“Connecting the water line”
23
Page 24

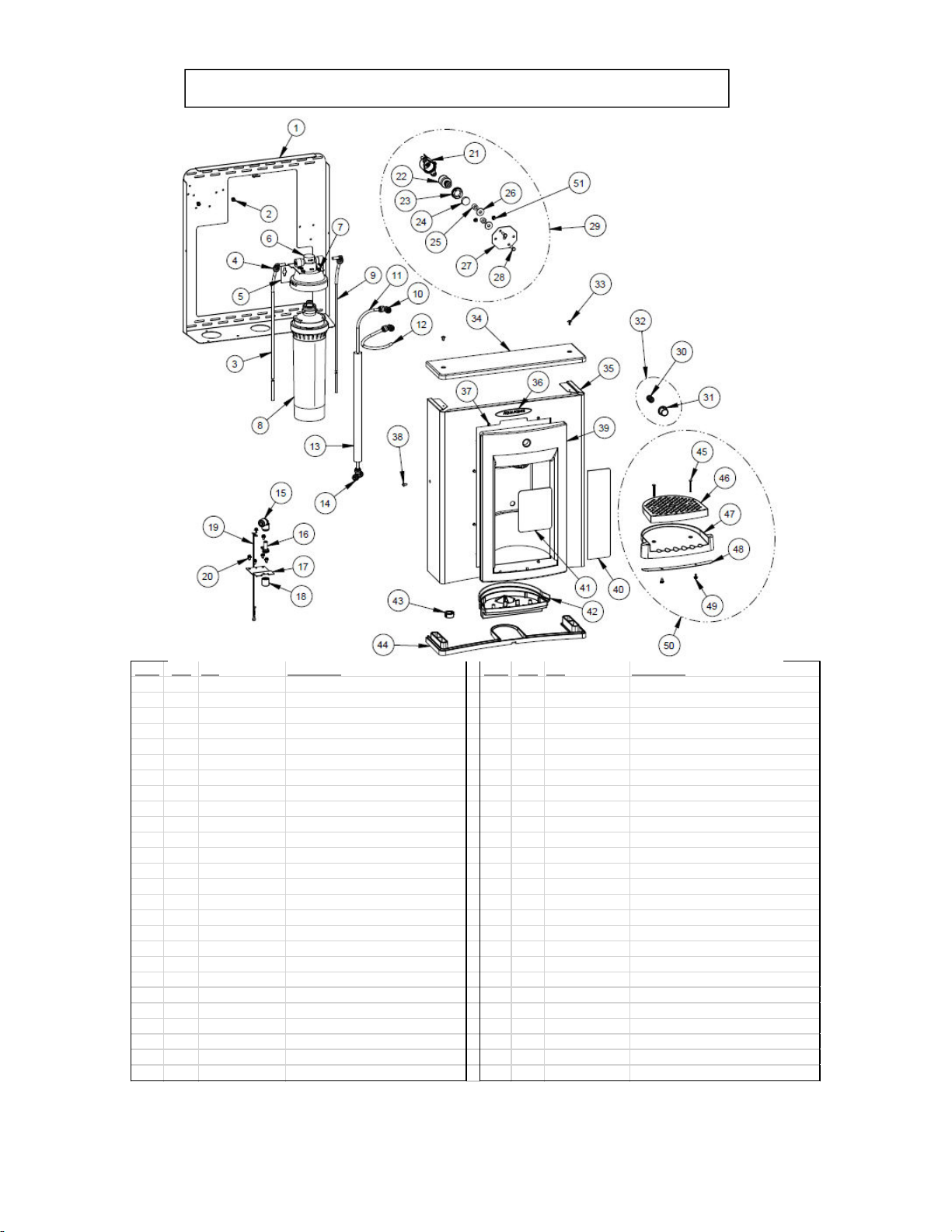

EXPLODED PARTS BREAKDOWN
029994-103
041073-001
041072-001
041071-001
030152-014 TUBE, PE CUT LENGTH WHI 48"
ITEM QTY P/N Description ITEM QTY P/N Description
1 1 036687-003 FRAME, PWFSBF-K12 27 1 036690-001 BRACKET, VALVE PWSBF
2 1 026642-004 SCREW, HEX HD TAPPING 28 2 026670-007 SCREW, HEX HD MACHINE
3 1 030152-046-SP TUBE, PE WHITE 38" 29 1 036231-001-SP VALVE ASSY., PWSBF DISPENSE
4 2
5 1
6 1
7 4 026630-022 SCREW, PAN HD TAPPING 33 2 031875-003 SCREW, TRUSS HD TAPPING TORX
8 1
9 1
10 2 028481-101 FTG, PP UNION, ELBOW WHT 0.25" 36 1 036206-005 INSERT, NAMEPLATE AQUAPOINTE
11 1 030152-046-SP TU BE, PE WHITE 38" 37 8 026642-003 SCREW, HEX HD TAPPING
12 1 030152-043 TUBE, PE WHITE 8.5" 38 2 031875-003 SCREW, TRUSS HD TAPPING TORX
13 1 017681-008 INULATION, SPONGE TUBE 19" 39 1 036190-003 ALCOVE, EBF
14 1 029199-103 FTG, PP UNION TEE WHITE 40 1 038031-007 LABEL, PANEL
15 1 028482-001 FTG, JG. REDUCING ELBOW 41 1 038031-008 LABEL, ALCOVE SENSOR
16 1 038029-001 ADAPTER, FLOW NOZZLE 42 1 036191-002 DRAIN, MSBF, SHORT
17 1 036209-003 BRACKET, DISPENSE 43 1 027189-008 BUSHING, SNAP
18 1 038032-001 FLOW NOZZLE ASSY 44 1 036689-001 GASKET, PWSBF
19 1 032459P008 LANYARD, BOTTLE FILLER 45 2 036049-002 SCREW, OVAL HD PLASTITE
20 6 026642-003 SCREW, HEX HD TAPPING 46 1 036695-001 TRAY, GRILLE DRIP
21 1 035990-001 HOLDER, CARTRIDGE STEM 47 1 036688-001 TRAY, DRIP PWSBF
22 1 029967-005 CARTRI DGE, 4.25# SPRING 48 1 036697-001 CAP, DRIP TRAY BOTTOM
23 1 A020957 NUT, RETAINI NG PLASTIC 49 2 026642-003 SCREW, HEX HD TAPPING
24 1 030172-002 PLUG, HOLE 50 1 036701-001 DRIP TRAY ASSY., SERVICE
25 2 028706-036 WASHER, SPACER, NON METAL 51 2 026642-003 SCREW, HEX HD TAPPING
26 2 016377-042 WASHER/SPACER, METAL
FTG, PP ELBOW, PLUG IN 30 1 034649-001 SPRING
BRKT, VERSAFILTER II 31 1 036194-002 BUTTON, PWSBF
FILTER HEAD, VERSAFILTER II 32 1 036702-001 BUTTON ASSY., PWSBF SERVICE
FILTER CARTRIDGE, VERSAFILTER II 34 1 036686-001 CAP, PWSBF
TUBE, PE WHITE 48.0" 35 1 036691-006 WRAPPER, PWSBF
24
Page 25
Accessories:
Vandal resistant screw kit: P/N 036704-001, includes torx bits and replacement screws for items 4 and 25.
Gasket, Sunroc/Haws : P/N 036689-101 (replaces item 35): KIT P/N 036752-001
Gasket, Adapter Elkay/Halsey Taylor P/N 041114-001
P/N 030099-412 Rev H Date: 4/2020
© 2020 LVD Acquisition, LLC
Oasis, Aqua Pointe, Versacooler and VersaFiller are registered trademarks of
LVD Acquisition, LLC.
Haws is a registered trademark of HAWS Corporation.
Elkay and Halsey Taylor are registered trademarks owned or licensed by Elkay
Sales Inc. and/or its parent Elkay Manufacturing Company
OASIS INTERNATIONAL
222 East Campus View Blvd.
Columbus, OH 43235
614-861-1350
www.oasiscoolers.com
25
Loading...
