Water Coolers
QUASAR Hands-Free Bottle Filler
UVC-LED WATER TREATMENT
Models MWEBQ, MW8EBQ, MW12EBQ, MWSMEBQ,
MWSM8EBQ, MWSM12EBQ, M8EBQ, M12EBQ, MWF2EBQ,
MW8F2EBQ, MW12F2EBQ, MWSMF2EBQ, MWSM8F2EBQ,
MWSM12F2EBQ, M8F2EBQ, M12F2EBQ
Installation Instructions
When completed, the
finished assembly will
look like this
OR
1
Page 2
Section 1: Getting Started
1. INSPECTION
Inspect the cartons and various components for evidence of rough handling and concealed damage.
Damage claims should be filed with the carrier.
2. INSTALLATION, PLUMBING & ELECTRICAL CONNECTIONS
a) Note: The following states require a licensed plumber to install cooler; AR, GA, MA, MI, OK, RI, SC,
SD, TX, VT and WI.
CA, KS, MN, NM and OR allow for a state-registered installer or contractor as well. State and local
plumbing codes may prohibit the use of saddle tapping valves for water line connection in some
applications. All connections must conform to applicable plumbing codes.
3. OVERLOAD PROTECTION (systems with chiller)
The compressor motor is equipped with an automatic reset protector which will disconnect the motor
from the line in case of overload.
4. LUBRICATION (systems with chiller)
This unit is equipped with a hermetically sealed compressor. No additional lubrication is required. The
fan motor installed on this unit seldom needs oiling. If required, a few drops of SAE 10 oil should be
used.
5. TO DISCONTINUE USE OF SYSTEMS WITH CHILLER
Drain cooler when removed from service: (1) Remove grille, (2) Close supply valve, (3) Provide
container to catch water, and remove drain plug.
6. MAINTENANCE (systems with chiller)
The only maintenance required is the removal of dirt and lint from the condenser. Inspection should be
made at 3 month intervals. Remove the grille and clean the condenser with a vacuum attachment.
WARNING
The warranty and the Underwriters' Laboratory Listing for this machine are automatically voided if this
machine is altered, modified, or combined with any other machine or device. Alteration or modification of
this machine may cause serious flooding and/or hazardous electrical shock or fire.
EXCEPT AS SET FORTH HEREIN, THE MANUFACTURER MAKES NO OTHER WARRANTY,
GUARANTEE OR AGREEMENT EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY IMPLIED
WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
2
Page 3
Section 2: Rough In Drawing
OASIS Modular Hands-Free QUASAR VersaFiller (with or without VersaFilter II and
Remedi Filter)
Models MWEBQ, MW8EBQ, MW12EBQ, MWF2EBQ, MW8F2EBQ, MW12F2EBQ
3
Page 4
Section 2: Rough In Drawing
OASIS Modular Hands-Free QUASAR VersaFiller (with or without VersaFilter II and
Remedi Filter)
Models M8EBQ, M12EBQ, M8F2EBQ, M12F2EBQ
4
Page 5
Section 2: Rough In Drawing
OASIS Modular Hands-Free QUASAR VersaFiller (with or without VersaFilter II and
Remedi Filter )
Models MWSMEBQ, MWSM8EBQ, MWSM12EBQ, MWSMF2EBQ,
MWSM8F2EBQ, MWSM12F2EBQ
5
Page 6
Section 3: Installation– Without Chiller

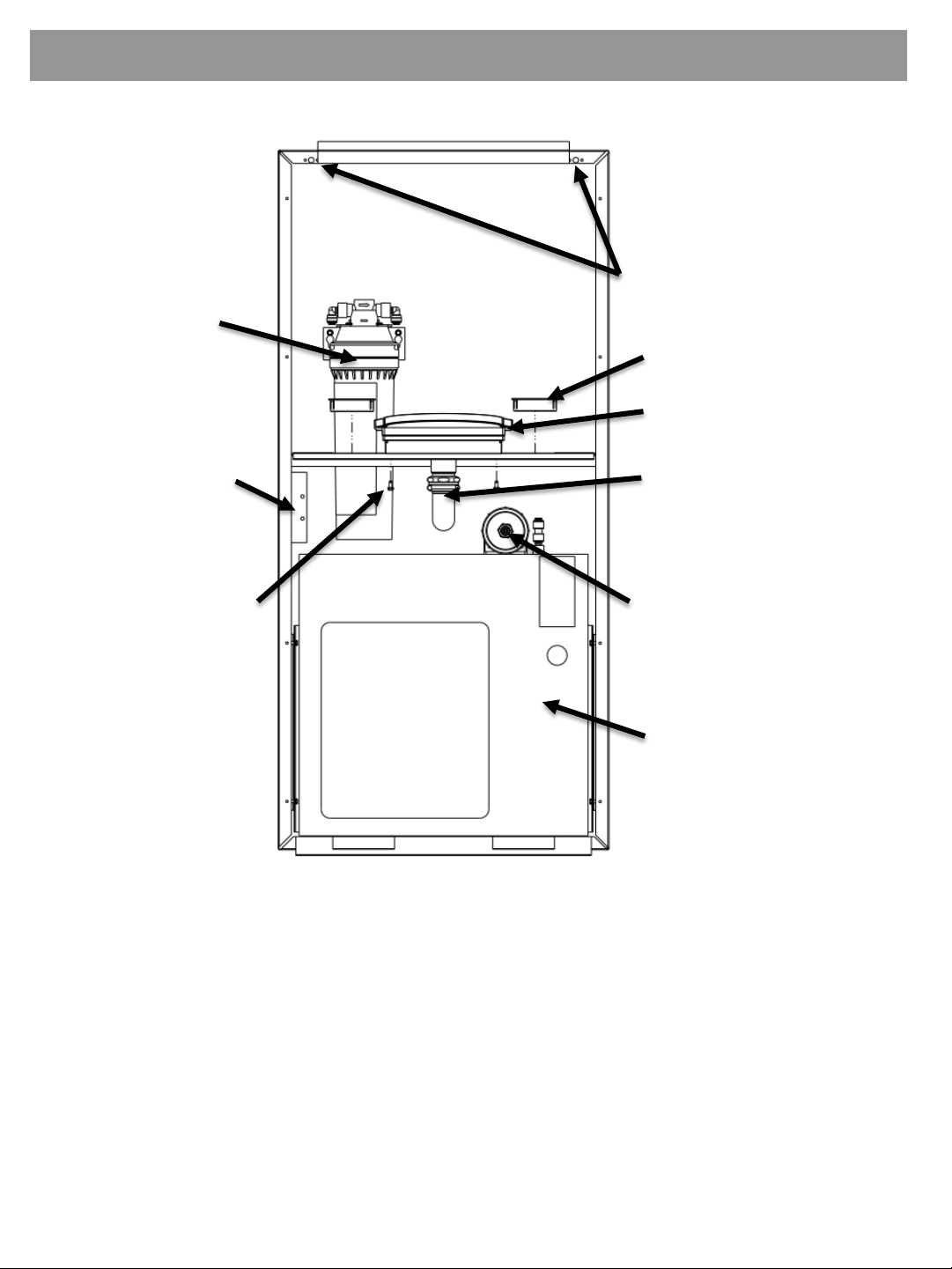

FASTENING POINTS ON FRAME (QTY.
FOUR) 5/16” MOUNTING HOLES TOP
AND BOTTOM REAR FLANGES.
2X4 JUNCTION BOX
OUT
*DRAIN ASSEMBLY
*SNAP BUSHINGS
DRAIN COMPONENTS
NOT INCLUDED
*MOUNTING SCREWS
(2 PROVIDED)
OPTIONAL VERSAFILTER II
LOCATION IF NO CHILLER
IN
STEP 1- INSTALL FRAME ASSEMBLY
A) INSTALL FRAME ASSEMBLY PER ROUGH-IN DRAWING. NOTE, IF APPLICABLE, REFER TO
TRIM BEZEL INSTALLATION INSTRUCTIONS ON PAGE 8 BEFORE CONTINUING WITH STEP 2.
NOTE THE FRONT FLANGE OF THE FRAME MUST BE FLUSH WITH THE FINISHED WALL
SURFACE UNLESS A TRIM BEZEL IS DESIRED.
B) INSTALL DRAIN ASSEMBLY
C) INSTALL SNAP BUSHINGS
D) MOUNT OPTIONAL FILTERS. WALL OPENING DEPTH MUST BE AT LEAST 5” DEEP TO
ACCOMMODATE THE VERSAFILTER II.
E) INSTALL PROVIDED STEM ELBOWS ON THE INLET AND OUTLET OF THE FILTERS.
OUT
OPTIONAL FILTER
LOCATION IF NO
CHILLER
IN
* PROVIDED WITH BOTTLE FILLER
66
Page 7
Section 3: Installation --Without Chiller

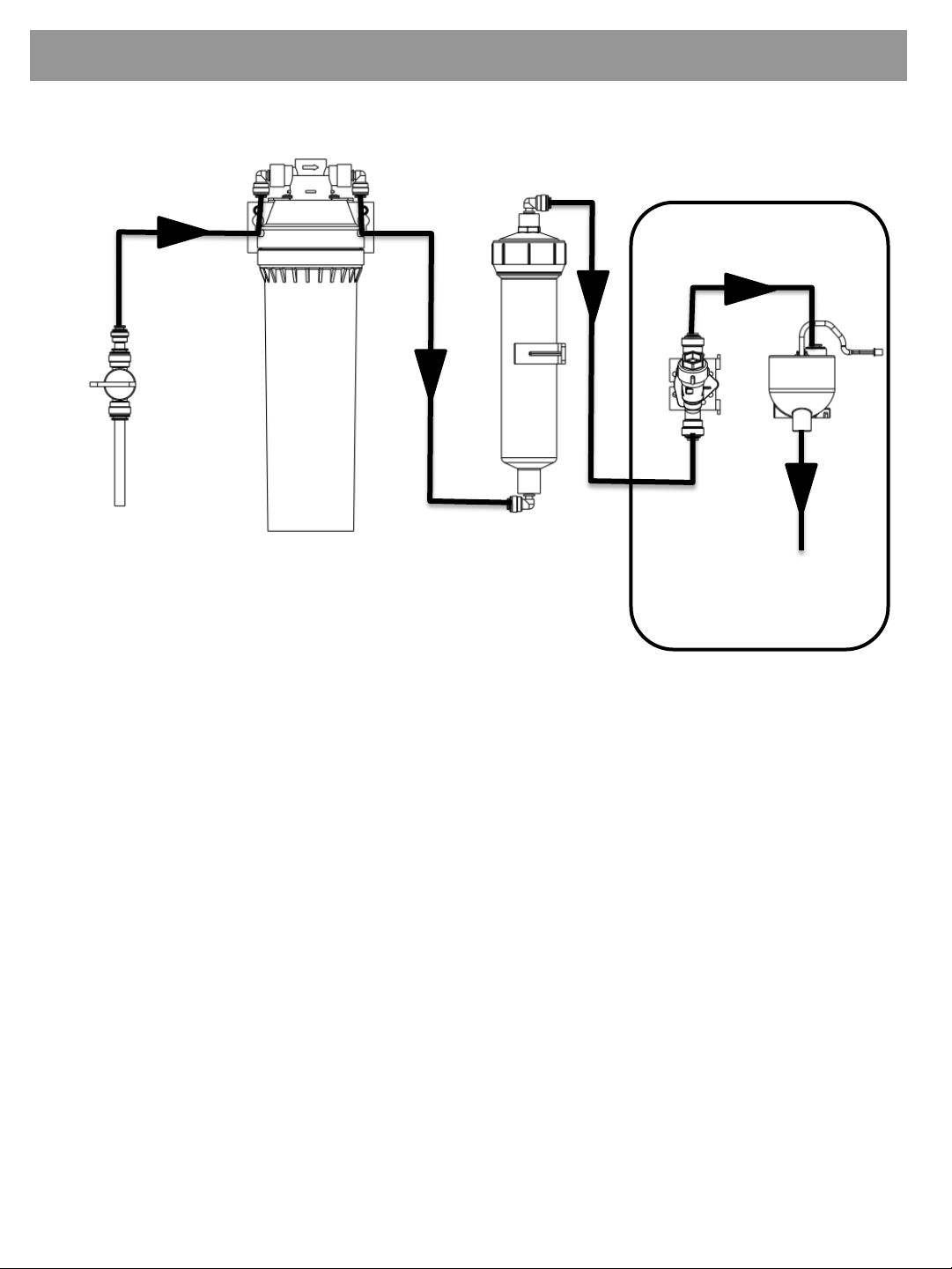

PLUMBING DIAGRAM
SOLENOID
VALVE
UV LED
INLET BALL
VALVE ASSY.
WITH STRAINER
(PROVIDED)
OPTIONAL
VERSAFILTER II
OPTIONAL
INLINE FILTER
BOTTLE FILLER
STEP 2- PLUMBING CONNECTIONS
A) PLUMBING ROUGH-IN AND WALL OPENING SHOULD BE PREPARED AS SHOWN IN THE
ROUGH-IN DRAWING. THIS DRINKING WATER COOLER IS DESIGNED TO BE OPERATED
AT A WATER SUPPLY LINE PRESSURE OF UP TO 100 PSI (690 kPa). A PRESSURE
REGULATOR MUST BE INSTALLED IN FRONT OF THE UNIT’S WATER INLET IF THE
PRESSURE (INCLUDING ANY POSSIBLE PRESSURE SPIKES) COULD EXCEED 100 PSI
(690 kPa).
B) INSTALL PROVIDED 3/8” O.D. COPPER TUBE, STRAINER, BALL VALVE, AND REDUCER TO
THE BUILDING WATER SUPPLY.
C) INSTALL TUBING AS SHOWN ABOVE.
STEP 3- ELECTRICAL CONNECTIONS
A) A 2 X 4 JUNCTION BOX IS PROVIDED FOR THE INSTALLATION OF A 115V RECEPTACLE.
THIS UNIT IS INTENDED TO BE CONNECTED TO A GROUND FAULT CIRCUIT
INTERRUPTING (GFCI) DEVICE TO MEET UL REQUIREMENTS. IT IS RECOMMENDED
THAT A FLEXIBLE CONDUIT BE USED TO SUPPLY POWER TO THE JUNCTION BOX AND
CHILLER IF USED. CHECK THE ELECTRIC CURRENT AVAILABLE. TYPE AND VOLTAGE
MUST BE THE SAME AS LISTED ON THE PRODUCT DATA PLATE.
B) AS YOU PUT THE BOTTLE FILLER PANEL ASSEMBLY IN PLACE ON THE FRAME
ASSEMBLY, FEED THE LONG GREEN GROUND WIRE AND THE TERMINALS ON THE
POWER SUPPLY CORD THROUGH THE BUSHINGS IN THE FRAME ASSSEMBLY.
C) ATTACH THE LONG GREEN GROUND WIRE TO THE FRAME ASSEMBLY JUNCTION BOX
GROUND, THEN PLUG IN THE BOTTLE FILLER POWER CORD.
77
Page 8
Section 3: Installation --Without Chiller
WALL MOUNTING FRAME SECURES INTO THE
WALL WITH THE FACE FLUSH WITH THE
FINISHED WALL.
UPPER FRONT PANEL
MOUNTS TO THE FRAME
WITH BOTTOM SCREWS
(2 PROVIDED).
TRIM BEZEL
LOWER FRONT PANEL MOUNTS TO
THE FRAME WITH BOTTOM SCREWS
OR OPTIONAL LOCKS (2 PROVIDED)
TRIM BEZEL BOTTOM PLATE
WITH SCREWS.

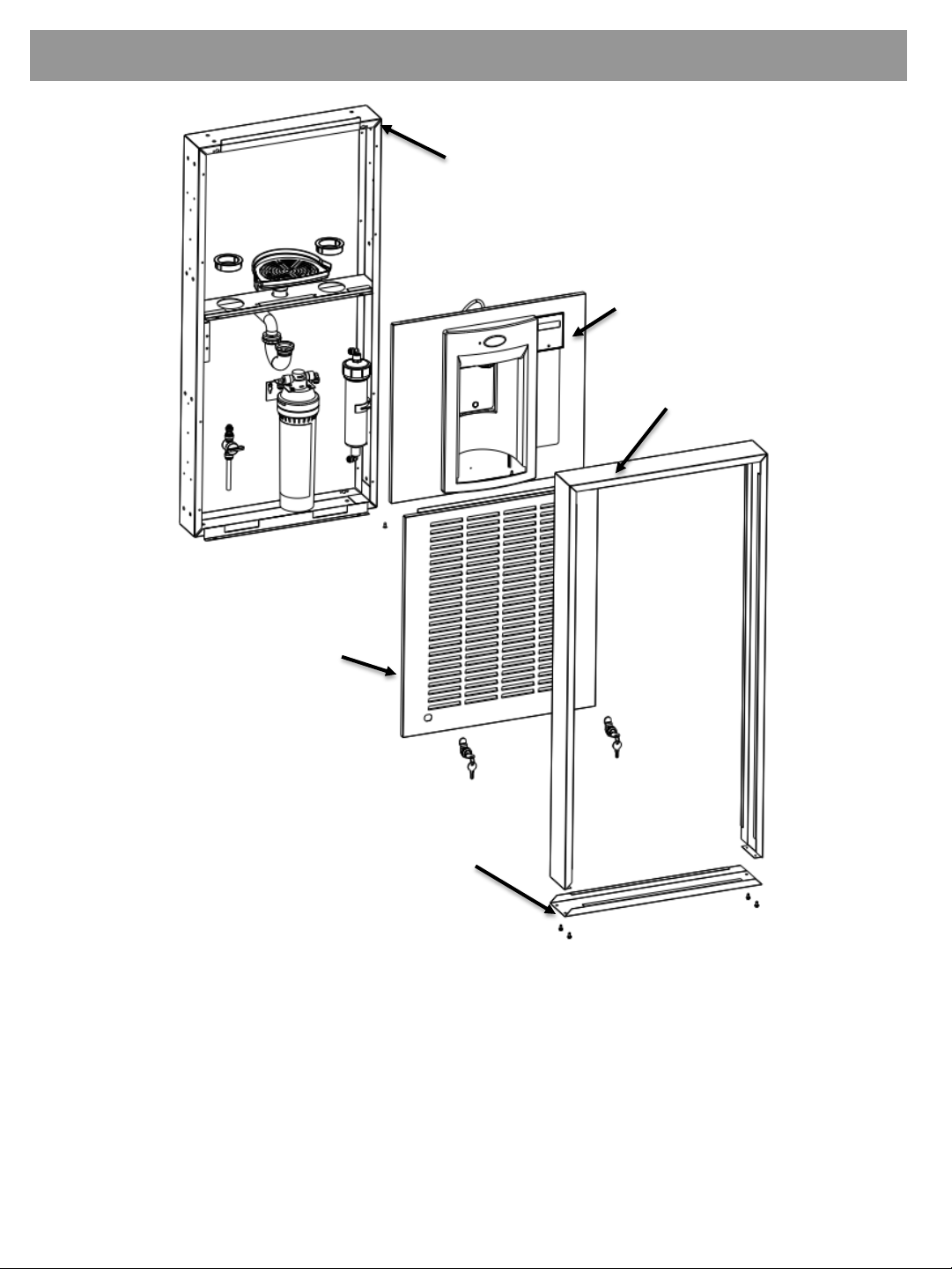

STEP 4- FINAL ASSEMBLY
A) INSTALL UPPER FRONT PANEL ASSEMBLY (SCREWS PROVIDED)
B) INSTALL LOWER FRONT PANEL USING SUPPLIED SCREWS OR LOCKS.
TRIM BEZEL INSTALLATION
A) INSTALL FRAME ASSEMBLY TO A FLAT SURFACE. USE APPROPRIATE FASTENING
HARDWARE (NOT INCLUDED) REFER TO ROUGH IN FOR CORRECT INSTALLATION
HEIGHT.
B) REMOVE BOTTOM PLATE FROM TRIM BEZEL (4 SCREWS)
C) INSTALL TRIM BEZEL TO FRAME ASSEMBLY AND REPLACE BOTTOM PLATE WITH 4
SCREWS.
88
Page 9
Section 4: Installation– With Chiller
OPTIONAL
VERSAFILTER II
LOCATION WITH
CHILLER
FASTENING POINTS ON
FRAME (QTY. FOUR) 5/16”
MOUNTING HOLES TOP AND
BOTTOM REAR FLANGES.
*SNAP BUSHINGS
*DRAIN ASSEMBLY
2X4 JUNCTON BOX
*MOUNTING SCREWS
STEP 1- INSTALL FRAME ASSEMBLY
DRAIN COMPONENTS
NOT INCLUDED
OPTIONAL FILTER
LOCATION WITH CHILLER
CHILLER
*PROVIDED WITH BOTTLE FILLER
A) INSTALL FRAME ASSEMBLY PER ROUGH IN DRAWING. NOTE, IF APPLICABLE, REFER TO
TRIM BEZEL INSTALLATION INSTRUCTIONS ON PAGE 8 BEFORE CONTINUING WITH STEP 2.
NOTE THE FRONT FLANGE OF THE FRAME MUST BE FLUSH WITH THE FINISHED WALL
SURFACE UNLESS A TRIM BEZEL IS DESIRED.
B) SECURE CRADLE MOUNTING ANGLES TO THE FRAME FLANGE USING THE SCREWS
PROVIDED. (SEE PAGE 12) DO NOT TIGHTEN THE SCREWS. SLIDE THE CRADLE BETWEEN
THE ANGLES AND ATTACH TO THE ANGLES WITH SCREWS PROVIDED. TIGHTEN ALL
SCREWS.
C) PLACE CHILLER IN FRAME CRADLE.
D) INSTALL DRAIN ASSEMBLY.
E) INSTALL SNAP BUSHINGS.
99
Page 10
Section 4: Installation --With Chiller

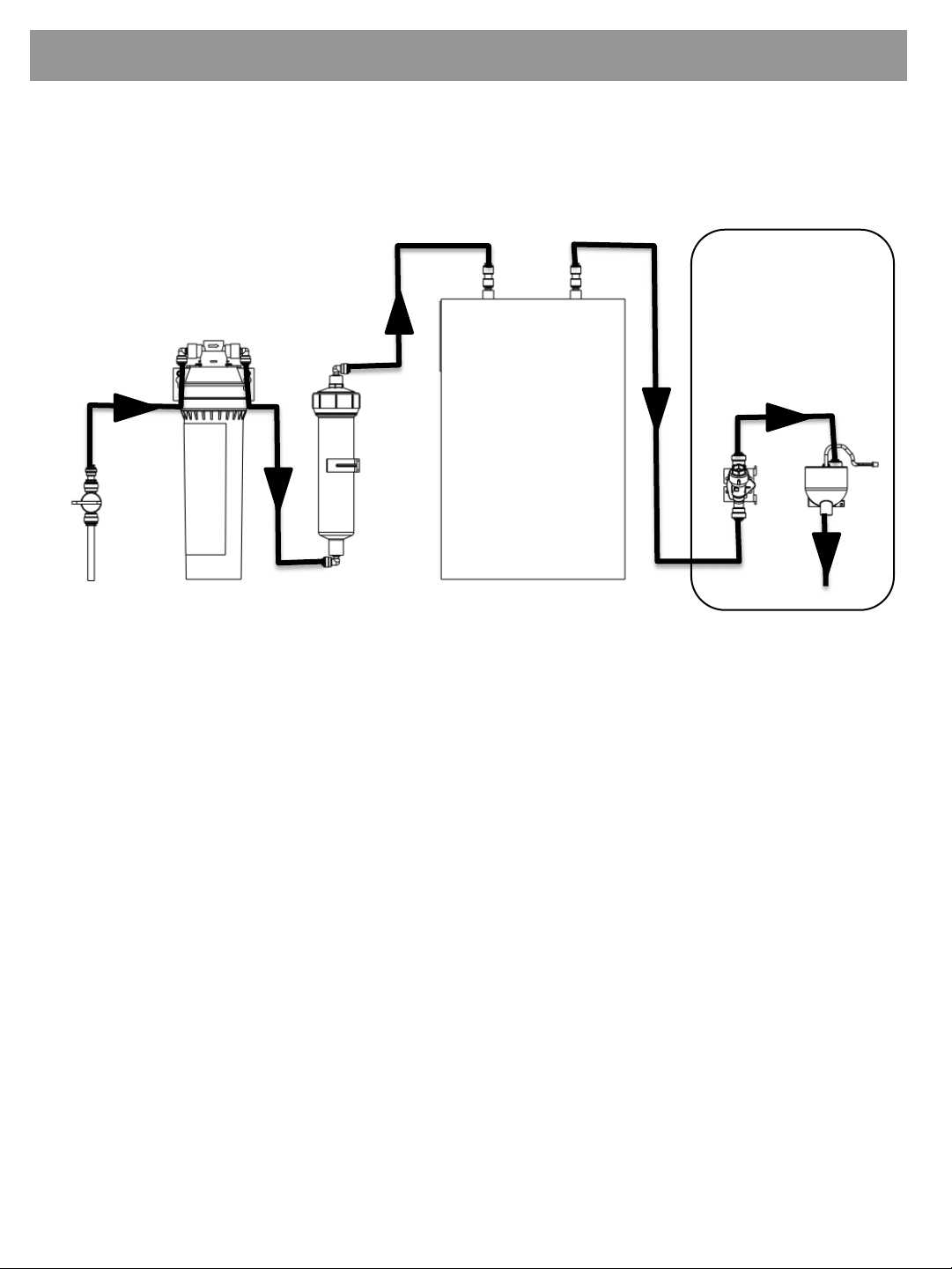

PLUMBING DIAGRAM
OPTIONAL
VERSAFILTER II
IN
BOTTLE FILLER
OUT
SOLENOID
VALVE
FRONT
INLET BALL
VALVE ASSY.
WITH
STRAINER
OPTIONAL INLINE
FILTER
CHILLER
STEP 2- PLUMBING CONNECTIONS
A) PLUMBING ROUGH-IN AND WALL OPENING SHOULD BE PREPARED AS SHOWN IN THE
ROUGH-IN DRAWING. THIS DRINKING WATER COOLER IS DESIGNED TO BE OPERATED
AT A WATER SUPPLY LINE PRESSURE OF UP TO 100 PSI (690 kPa). A PRESSURE
REGULATOR MUST BE INSTALLED IN FRONT OF THE UNIT’S WATER INLET IF THE
PRESSURE (INCLUDING ANY POSSIBLE PRESSURE SPIKES) COULD EXCEED 100 PSI
(690 kPa).
B) ASSEMBLE THE OPTIONAL INLINE FILTER CLIP TO THE CHILLER IN THE LOCATION
SHOWN ON PAGE 12.
C) INSTALL STEM ELBOWS (PROVIDED) ON THE INLINE FILTER.
D) PLACE THE INLINE FILTER IN THE CLIP AS SHOWN ON PAGE 12.
E) MOUNT THE VERSAFILTER II IN THE LOCATION SHOWN ON PAGE 9 AND PAGE 12.
F) INSTALL STEM ELBOWS (PROVIDED) ON THE VERSAFILTER II.
G) INSTALL ¼” UNION FITTINGS (PROVIDED)ON CHILLER INLET AND OUTLET.
H) INSTALL PROVIDED 3/8” O.D. COPPER TUBE, STRAINER, BALL VALVE, AND REDUCER TO
THE BUILDING WATER SUPPLY.
I) INSTALL TUBING AS SHOWN ABOVE.
J) NOTE THE TUBING FROM THE CHILLER OUTLET FITTING TO THE SOLENOID VALVE
INLET FITTING SHOULD BE INSULATED (PROVIDED). THE TUBING FROM THE SOLENOID
VALVE OUTLET FITTING TO THE UV LED INLET FITTING SHOULD ALSO BE INSULATED.
UV
LED
1010
Page 11
Section 4: Installation --With Chiller
STEP 3- ELECTRICAL CONNECTIONS
A) A 2 X 4 JUNCTION BOX IS PROVIDED FOR THE INSTALLATION OF A 115V RECEPTACLE.
THIS UNIT IS INTENDED TO BE CONNECTED TO A GROUND FAULT CIRCUIT
INTERRUPTING (GFCI) DEVICE TO MEET UL REQUIREMENTS. IT IS RECOMMENDED THAT
A FLEXIBLE CONDUIT BE USED TO SUPPLY POWER TO THE JUNCTION BOX AND CHILLER
IF USED. CHECK THE ELECTRIC CURRENT AVAILABLE. TYPE AND VOLTAGE MUST BE
THE SAME AS LISTED ON THE PRODUCT DATA PLATE.
B) AS YOU PUT THE BOTTLE FILLER PANEL ASSEMBLY IN PLACE ON THE FRAME ASSEMBLY,
FEED THE LONG GREEN GROUND WIRE AND THE TERMINALS ON THE POWER SUPPLY
CORD THROUGH THE BUSHINGS IN THE FRAME ASSSEMBLY.
C) ATTACH THE LONG GREEN GROUND WIRE TO THE FRAME ASSEMBLY JUNCTION BOX
GROUND, THEN PLUG IN THE BOTTLE FILLER POWER CORD.
1111
Page 12
Section 4: Installation– With Chiller
WALL MOUNTING FRAME SECURES INTO THE WALL
WITH THE FACE FLUSH WITH THE FINISHED WALL.
OPTIONAL
FILTER
COOLING UNIT
MOUNTING CRADLE
CRADLE MOUNTING
ANGLES (2 PROVIDED)
UPPER FRONT PANEL MOUNTS TO
THE FRAME WITH BOTTOM
SCREWS.
TRIM BEZEL (ACCESSORY ON
MWSM(F2)EBQ, MWSM8(F2)EBQ, AND
MWSM12(F2)EBQ MODELS ONLY)
OPTIONAL
FILTER
COOLING UNIT MOUNTS
INSIDE CRADLE.
LOWER PANEL MOUNTS TO THE
FRAME WITH BOTTOM SCREWS OR
OPTIONAL LOCKS (2 PROVIDED)
TRIM BEZEL BOTTOM
PLATE WITH SCREWS.
STEP 4- FINAL ASSEMBLY
A) INSTALL UPPER FRONT PANEL ASSEMBLY USING SCREWS PROVIDED.
B) INSTALL LOWER FRONT PANEL USING SCREWS OR LOCKS PROVIDED.
TRIM BEZEL INSTALLATION
A) INSTALL FRAME ASSEMBLY TO A FLAT SURFACE. USE APPROPRIATE FASTENING
HARDWARE (NOT INCLUDED) REFER TO ROUGH IN FOR CORRECT INSTALLATION
HEIGHT.
B) REMOVE BOTTOM PLATE FROM TRIM BEZEL (4 SCREWS)
C) INSTALL TRIM BEZEL TO FRAME ASSEMBLY AND REPLACE BOTTOM PLATE WITH 4
SCREWS.
1212
Page 13
Section 5: Installation– With Chiller and Fountain Connection
FASTENING POINTS ON
FRAME (QTY. 4) 5/16”
*SNAP BUSHINGS
DRAIN COMPONENTS
NOT INCLUDED.
*MOUNTING
SCREWS
(2 PROVIDED)
2 X 4
JUNCTION
BOX
MOUNTING HOLES ON TOP
AND BOTTOM REAR FLANGES.
DRAIN ASSY.
IN
OUT
OUT
INLET BALL
VALVE
ASSY., WITH
STRAINER
(PROVIDED)
IN
OPTIONAL
VERSAFILTER II
LOCATION

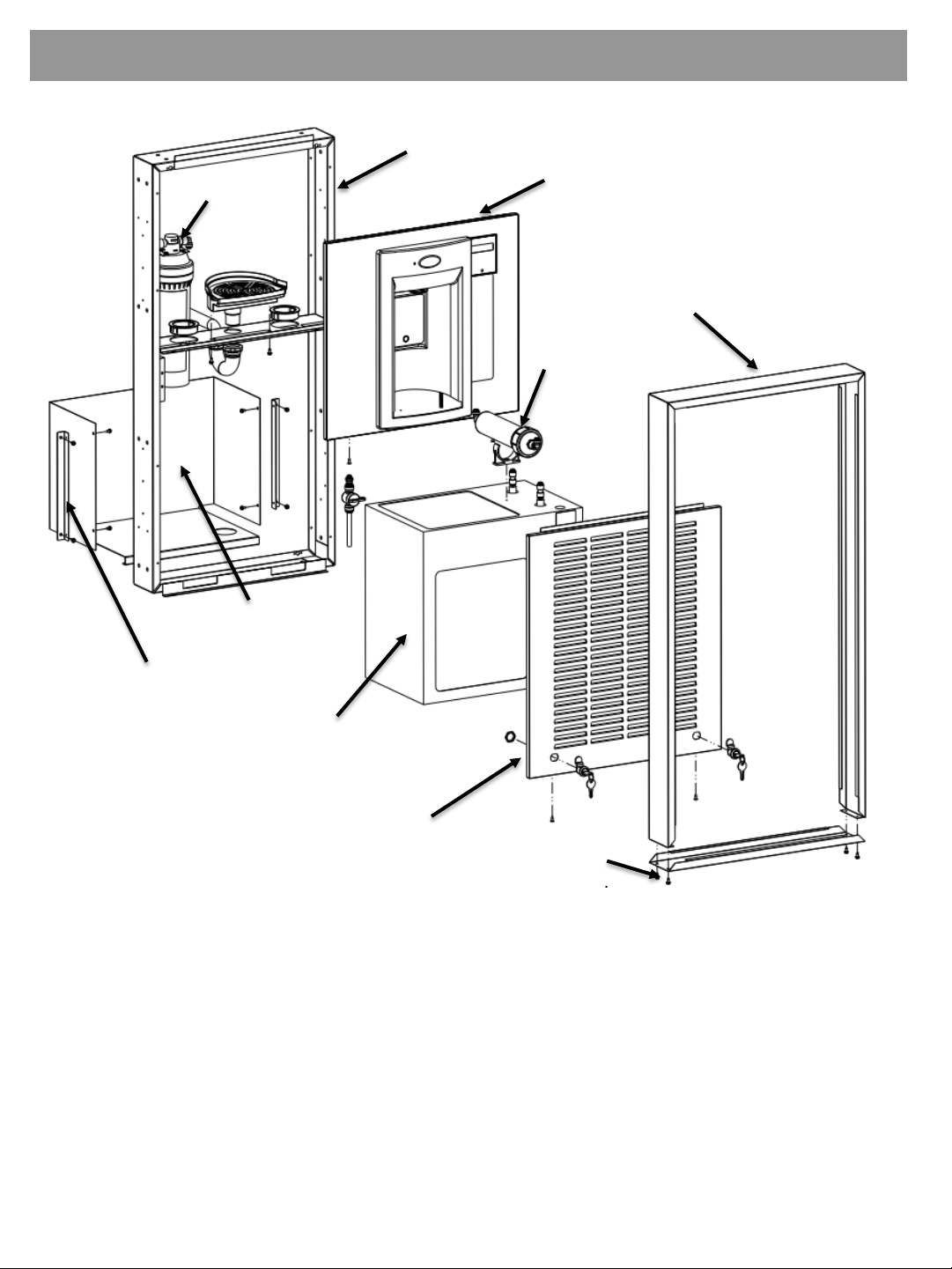

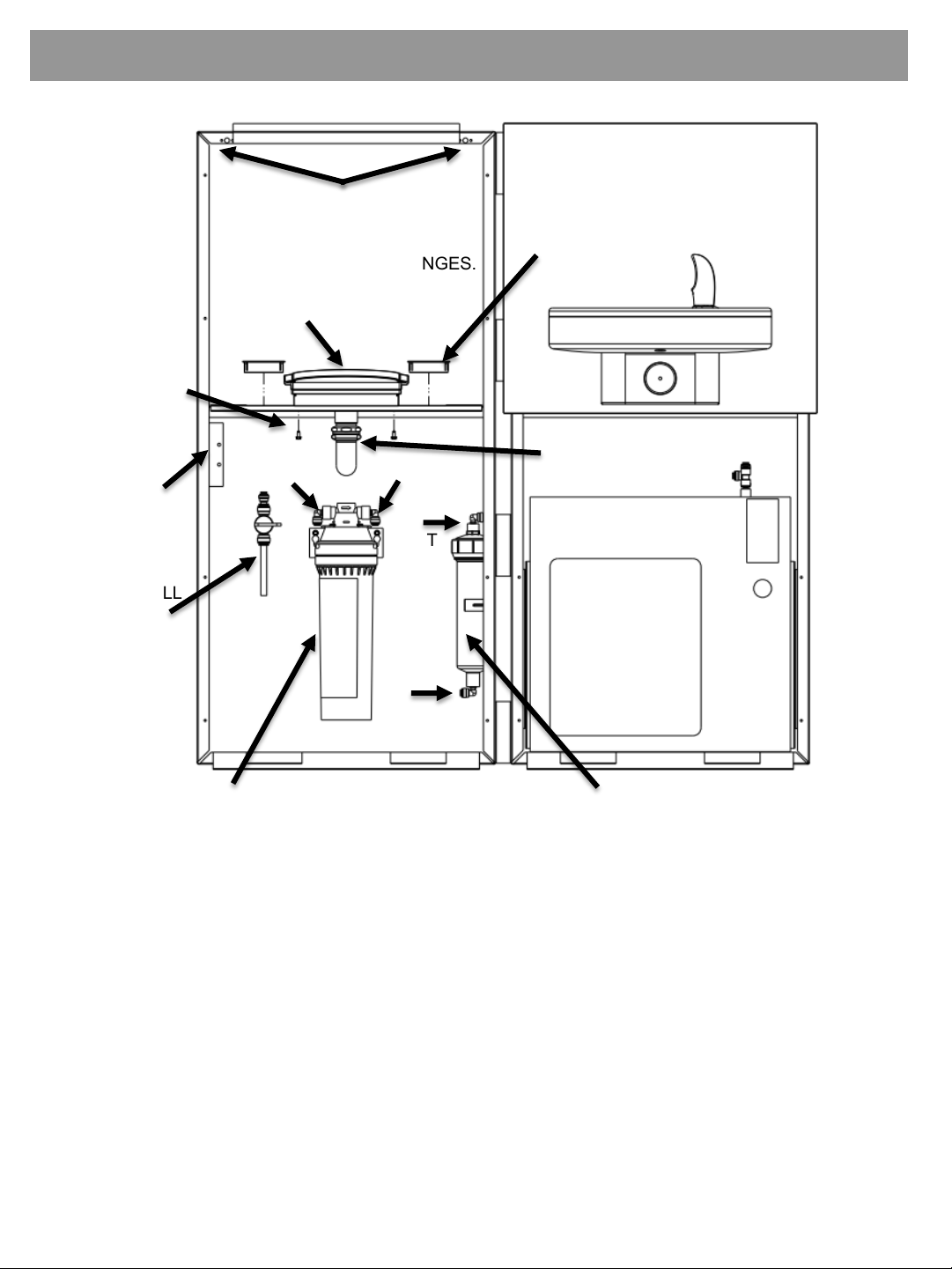

STEP 1- INSTALL LEFT FRAME ASSEMBLY
A) INSTALL FRAME ASSEMBLY PER ROUGH IN DRAWING. NOTE, IF APPLICABLE, REFER TO
TRIM BEZEL INSTALLATION INSTRUCTIONS ON PAGE 12 BEFORE CONTINUING WITH
STEP 2. NOTE THE FRONT FLANGE OF THE FRAME MUST BE FLUSH WITH THE FINISHED
WALL SURFACE. UNLESS A TRIM BEZEL IS DESIRED.
B) INSTALL DRAIN ASSEMBLY
C) INSTALL SNAP BUSHINGS
D) MOUNT OPTIONAL FILTERS. WALL OPENING DEPTH MUST BE AT LEAST 5” DEEP TO
ACCOMMODATE THE VERASAFILTER II.
OPTIONAL FILTER
LOCATION
*PROVIDED WITH BOTTLE FILLER
STEP 2- INSTALL RIGHT FRAME ASSEMBLY
A) ASSEMBLE THE RIGHT FRAME WITH THE PROVIDED MODULAR WATER COOLER AND
FOUNTAIN ASSEMBLY INSTRUCTION DOCUMENT PROVIDED.
1313
Page 14
Section 5: Installation --With Chiller and Fountain Connection

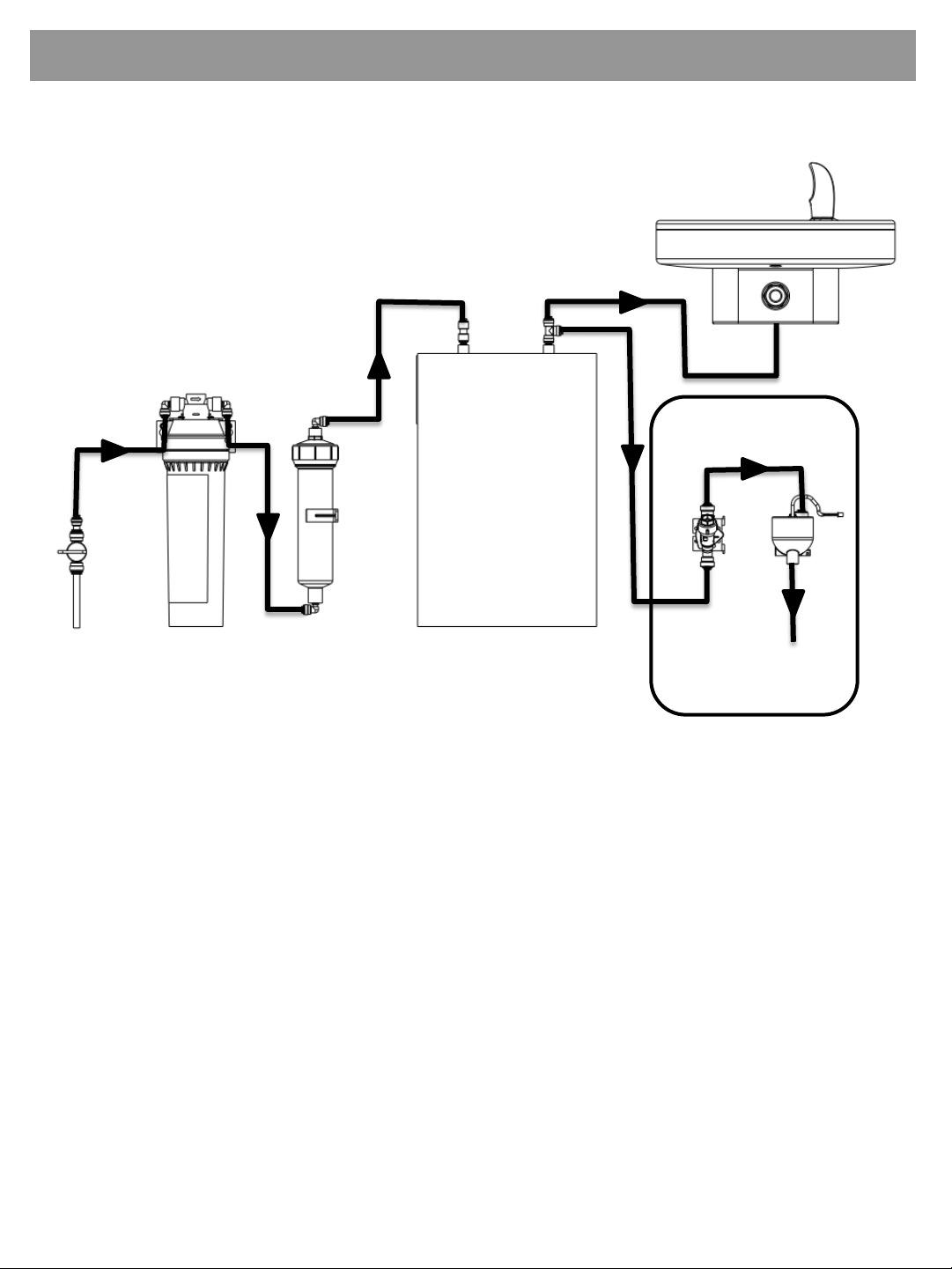

PLUMBING DIAGRAM
FOUNTAIN
OPTIONAL
VERSAFILTER II
IN OUT
UV
LED
INLET BALL
VALVE WITH
STRAINER
OPTIONAL INLINE
FILTER
SOLENOID
VALVE
FRONT
CHILLER
BOTTLE FILLER
STEP 3- PLUMBING CONNECTIONS
A) PLUMBING ROUGH-IN AND WALL OPENING SHOULD BE PREPARED AS SHOWN IN THE
ROUGH-IN DRAWING. THIS DRINKING WATER COOLER IS DESIGNED TO BE OPERATED AT A
WATER SUPPLY LINE PRESSURE OF UP TO 100 PSI (690 kPa). A PRESSURE REGULATOR
MUST BE INSTALLED IN FRONT OF THE UNIT’S WATER INLET IF THE PRESSURE (INCLUDING
ANY POSSIBLE PRESSURE SPIKES) COULD EXCEED 100 PSI (690 kPa).
B) MOUNT OPTIONAL FILTERS AS SHOWN ON PAGE 13. WALL OPENING DEPTH MUST BE AT
LEAST 5” DEEP TO ACCOMMODATE THE VERSAFILTER II.
C) INSTALL PROVIDED STEM ELBOWS ON THE INLET AND OUTLET OF THE FILTERS.
D) INSTALL PROVIDED ¼” UNION FITTING ON CHILLER INLET.
E) INSTALL PROVIDED ¼” UNION TEE FITTING ON CHILLER OUTLET.
F) INSTALL PROVIDED 3/8” O.D. COPPER TUBE, STRAINER, BALL VALVE, AND REDUCER TO THE
BUILDING WATER SUPPLY.
G) INSTALL TUBING AS SHOWN ABOVE.
H) NOTE THE TUBING FROM THE CHILLER OUTLET FITTING TO THE SOLENOID VALVE INLET
FITTING SHOULD BE INSULATED (PROVIDED). THE TUBING FROM THE SOLENOID VALVE
OUTLET FITTING TO THE UV LED INLET FITTING SHOULD BE INSULATED. THE TUBING FROM
THE CHILLER TO THE FOUNTAIN SHOULD ALSO BE INSULATED.
1414
Page 15
Section 5: Installation– With Chiller and Fountain Connection
STEP 4- ELECTRICAL CONNECTIONS
A) A 2 X 4 JUNCTION BOX IS PROVIDED FOR THE INSTALLATION OF A 115V RECEPTACLE.
THIS UNIT IS INTENDED TO BE CONNECTED TO A GROUND FAULT CIRCUIT INTERRUPTING
(GFCI) DEVICE TO MEET UL REQUIREMENTS. IT IS RECOMMENDED THAT A FLEXIBLE
CONDUIT BE USED TO SUPPLY POWER TO THE JUNCTION BOX AND CHILLER IF USED.
CHECK THE ELECTRIC CURRENT AVAILABLE. TYPE AND VOLTAGE MUST BE THE SAME AS
LISTED ON THE PRODUCT DATA PLATE.
B) AS YOU PUT THE BOTTLE FILLER PANEL ASSEMBLY IN PLACE ON THE FRAME ASSEMBLY,
FEED THE LONG GREEN GROUND WIRE AND THE TERMINALS ON THE POWER SUPPLY
CORD THROUGH THE BUSHINGS IN THE FRAME ASSSEMBLY.
C) ATTACH THE LONG GREEN GROUND WIRE TO THE FRAME ASSEMBLY JUNCTION BOX
GROUND, THEN PLUG IN THE BOTTLE FILLER POWER CORD.
STEP 5- LEFT FRAME FINAL ASSEMBLY
A) INSTALL UPPER FRONT PANEL ASSEMBLY (SCREWS PROVIDED).
B) INSTALL LOWER FRONT PANEL USING SUPPLIED SCREWS OR LOCKS.
STEP 6- RIGHT FRAME FINAL ASSEMBLY
A) ASSEMBLE THE RIGHT FRAME WITH THE PROVIDED MODULAR WATER COOLER AND
FOUNTAIN ASSEMBLY INSTRUCTION DOCUMENT PROVIDED.
1515
Page 16

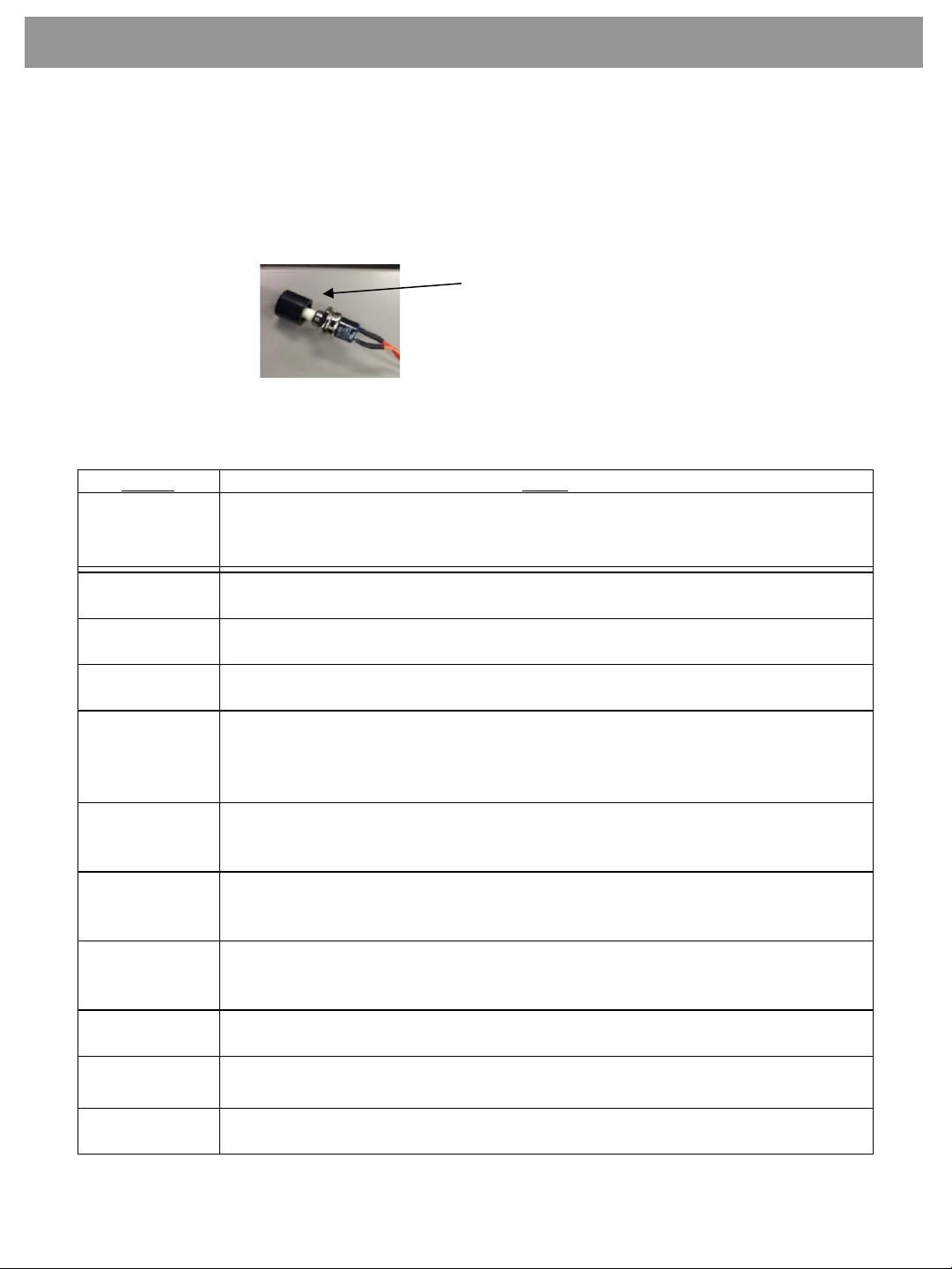

Section 6: Set-up guide for bottle filler electronics
Display Action
000000000
BOTTLES REUSED
(Home Screen)
Depress button for 3 seconds to enter into the following menu settings and make changes.
Note: at anytime it will exit menu and save settings when idle for 10 seconds (no button
press) and revert back to Home Screen.
LTR/GAL
GAL
Depress button 3 seconds to change from Gallons to Liters,
or momentary press to advance to next menu.
UNFILT/FILT?
UNFILT UNIT
Depress button 3 seconds to change from Unfiltered to Filtered unit,
or momentary press to advance to next menu.
FLOW METER?
RATE SELECTED
Depress button 3 seconds to change from Rate Selected to (Flow) Meter Enabled,
or momentary press to advance to next menu. Not included on all models.
SELECT RATE
1.2 GPM UN IT
To change flow rate, momentarily depress button to change whole gallon digit.
Hold button 3 seconds to advance to TENTHS of gallon digit.
Depress momentarily to change the digit.
Hold button 3 seconds to advance to the next menu.
RESET 00000000
GALLON CNT
[LTR COUNT]
Depress button for 3 seconds to reset Gallon or Liter count,
or momentary press to advance to next menu.
FILT CAPAC
OF 1250 GAL
[4731 LTR]
Depress button for 3 seconds to change filter capacity to 3000 GAL [11355 liters] for
Versafilter II or Galaxi green filter,
or momentary press to advance to next menu.
3 se c rul e?
0.5L
Depress button for 3 seconds to switch from 0.5L bottle to 3 sec rule,
or momentary press to advance to next menu.
(The 3 Sec rule increases the bottle count based on a 3 second dispense.)
Reset 00000000
BOT COUNT?
Depress button for 3 seconds to reset (Home Screen) BOTTLES REUSED count,
or momentary press to advance to next menu.
Bot Filler
Set_time: 20 s
Depress button for 3 seconds to change maximum dispense time to 10, 20 or 30 seconds,
or momentary press to advance to next menu.
RUN CAL
AGAIN?
Depress button 3 seconds to run calibration again,
or momentary press to advance to next menu.
Factory default program settings are:
• Units - Gallons
• Unfiltered unit
• Flow Meter = Rate Selected
• Filter Capacity = 1250 gallons [4731 liters] for a VersaFilter
Pushbutton
To chang e the p rogram set tings, follow these s teps:
• Bottle Count = 0.5L (1 Bottle)
• Flow Rate = 1.2 GPM
• 20 second maximum dispense time
•
16
Page 17

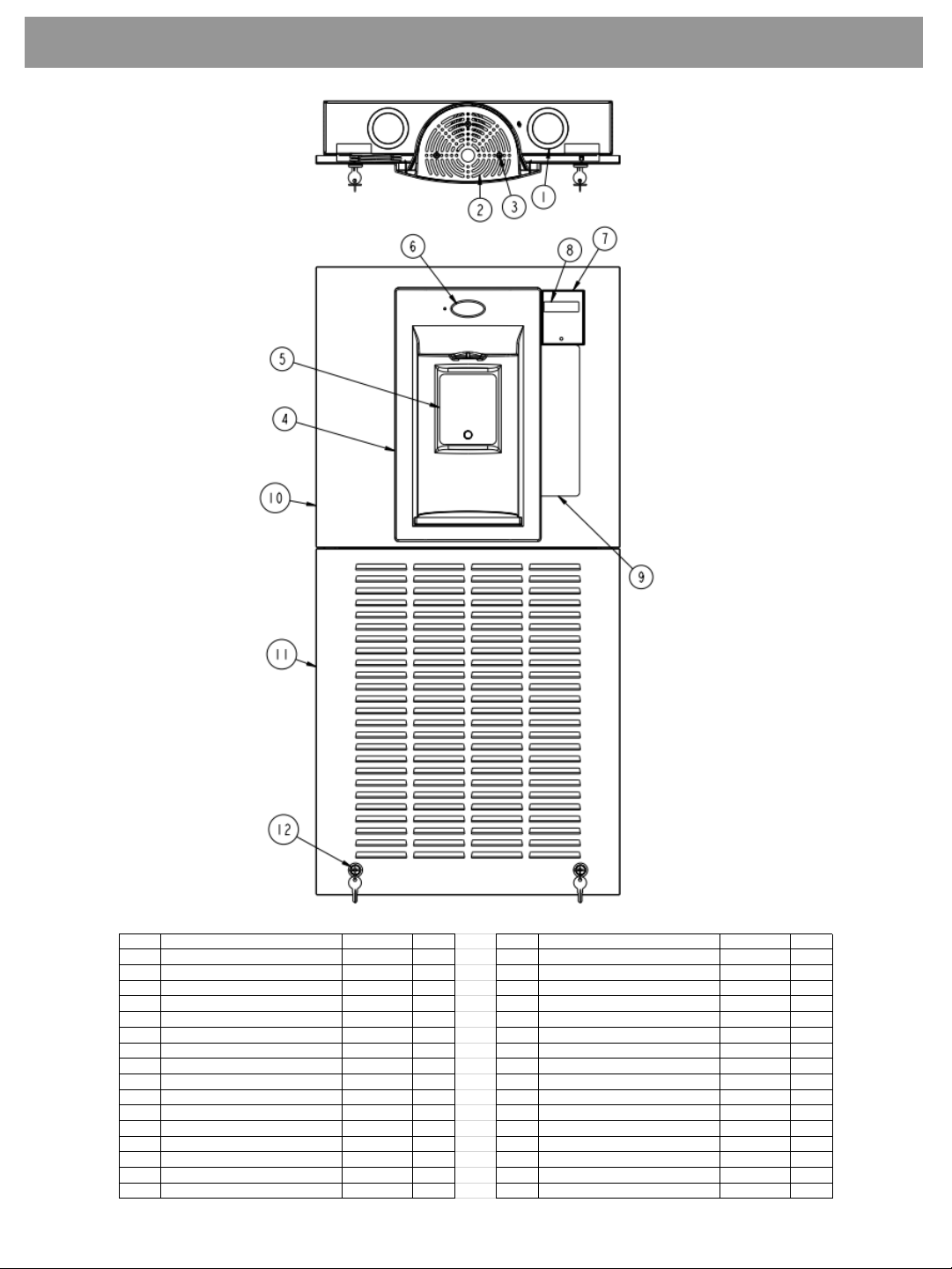

Section 7: Parts Breakdown
ITEM DESCRIPTION PART # QTY. ITEM DESCRIPTION PART # QTY.
1 BUSHING, SNAP 2.5" 027189-012 2 17 LEAD WIRE A SSY 14FF (RED) 021929-177 1
2 GRILLE, MSBF 036192-001 1 18 LEAD WIRE A SSY 6GG (GREEN) 021339-102 1
3 SCREW, FLAT HD TAPPING 026675-003 3 19 SOLENOID VALVE 12VDC 038030-002 1
4 ALCOVE, EBF, UV LED 036190-005 1 20 PCB, UV 041051-001 1
5 LABEL, ALCOVE SENSOR 038031-006 1 21 CABLE ASSY., 3 WIRE UV LED 041061-001 1
6 NAMEPLATE, OASIS 031434-014 1 22 UVC LED 9+ VISIBLE POD MODULE 041050- 002 1
7 BEZEL, LCD DISPLAY 038025-003 1 23 FTG., PP REDUCING ELBOW 029962-103 1
8 LABEL, LCD BEZEL 038031-005 1 24 LEAD WIRE ASSY BLACK 14" 017340- 483 1
9 LABEL, P ANEL, QUASA R 038031-011 1 25 LEAD WIRE ASSY RED 14" 021929-177 1
10 PANEL, EBF BOTTLE FILLER UPPER 027624-413 1 26 POWER SUPPLY, 12VDC 038036-003 1
11 PANEL, MWSBF LOWER LOUVER 027697-005 1 27 POWER ADAPTER CABLE, 18 GA. DC 041052- 001 1
12 LOCK ASSY NO CAM 031657-006 2 28 CORD ASSY., DC POWER SUPPLY 038168- 001 1
13 ELECTRONICS ASSY, IR/LCD 038026- 002 1 29 DRAIN, MSBF 036191-001 1
14 NUT, HEX NYLON 026824-026 4 30 LEAD WIRE A SSY 16GG (GREEN) 021339-177 1
15 SCREW, HEX HEAD NYLON MACHINE 038944-002 4 31 LENS, I R BOTTLE FILLER 038027-001 1
16 LEAD WIRE ASSY 14FF (BLACK) 017340-483 1
17

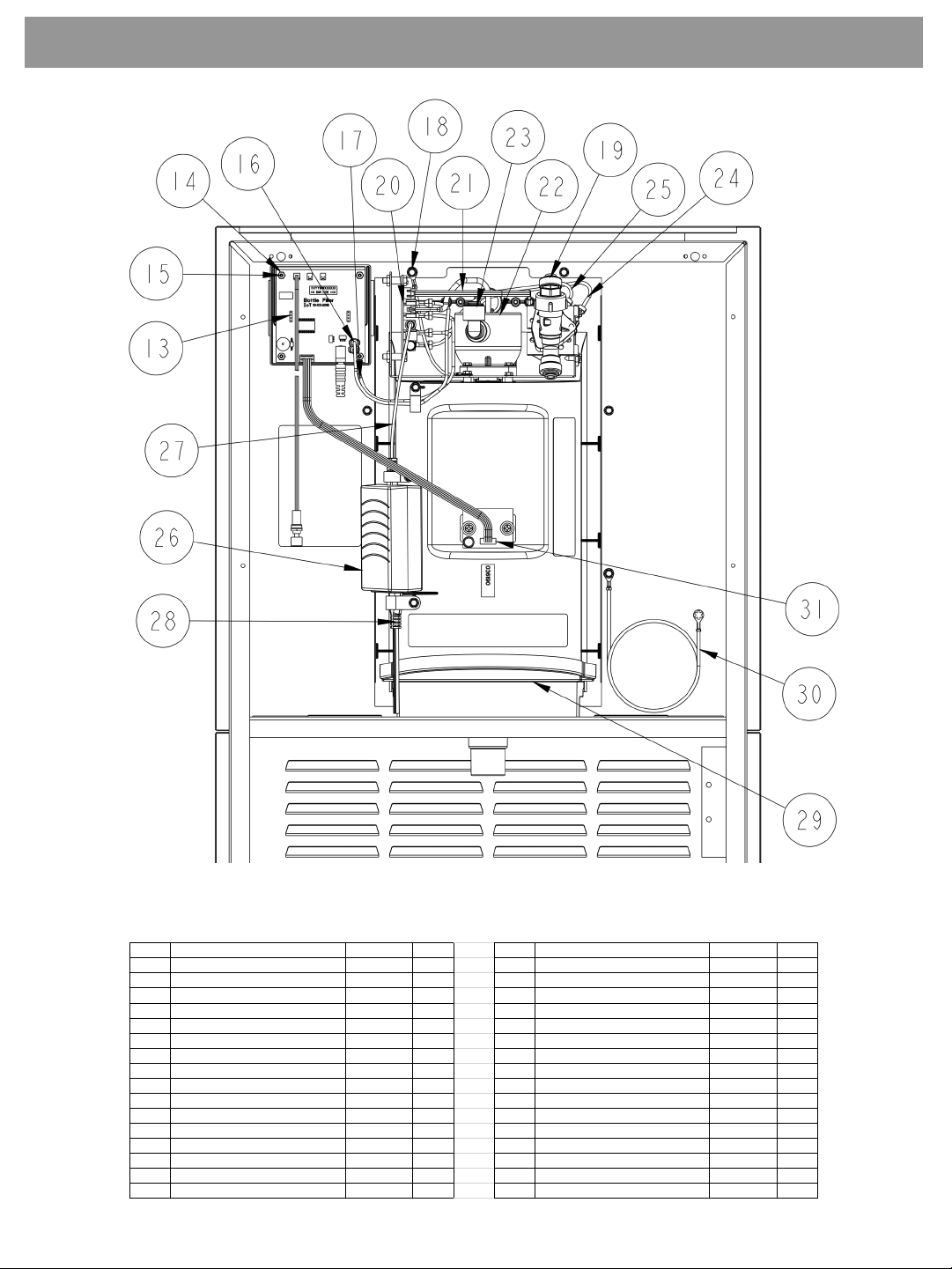

Page 18
Section 7: Parts Breakdown
ITEM DESCRIPTION PART # QTY. ITEM DESCRIPTION PART # QTY.
1 BUSHING, SNAP 2.5" 027189- 012 2 17 LEAD WIRE ASS Y 14FF (RED) 021929-177 1
2 GRILLE, MSB F 036192-001 1 18 LEAD WIRE ASS Y 6GG (GREEN) 021339-102 1
3 SCREW, FLAT HD TAPPING 026675-003 3 19 SOLENOID VALVE 12VDC 038030-002 1
4 ALCOVE, EBF, UV LED 036190-005 1 20 PCB, UV 041051-001 1
5 LABEL, ALCOVE SENSOR 038031- 006 1 21 CABLE ASSY., 3 WIRE UV LED 041061-001 1
6 NAMEPLATE, OASIS 031434- 014 1 22 UVC LED 9+ VISIBLE POD MODULE 041050- 002 1
7 BEZEL, LCD DISPLAY 038025-003 1 23 FTG., PP REDUCING ELBOW 029962-103 1
8 LABEL, LCD BEZEL 038031-005 1 24 LEAD WIRE ASSY BLACK 14" 017340-483 1
9 LABEL, PAN EL, QUASAR 038031-011 1 25 LEAD WIRE A SSY RED 14" 021929-177 1
10 PANEL, EBF BOTTLE FILLER UPPER 027624- 413 1 26 POWER SUPPLY, 12VDC 038036-003 1
11 PANEL, MWSBF LOWER LOUVER 027697-005 1 27 POWER ADAPTER CABLE, 18 GA. DC 041052- 001 1
12 LOCK ASSY NO CAM 031657-006 2 28 CORD ASSY., DC POWER SUPPLY 038168- 001 1
13 ELECTRONICS ASSY, IR/LCD 038026- 002 1 29 DRAIN, MSBF 036191-001 1
14 NUT, HEX NYLON 026824-026 4 30 LEAD WIRE AS SY 16GG (GREEN) 021339- 177 1
15 SCREW, HEX HEAD NYLON MACHINE 038944-002 4 31 LENS, I R BOTTLE FILLER 038027-001 1
16 LEAD WIRE ASSY 14FF (BLACK) 017340-483 1
18
Page 19
P/N 030099-606 Date: 10/2019
© 2019 LVD Acquisition, LLC
Oasis and Versacooler are registered trademarks of LVD Acquisition, LLC dba
Oasis International.
Haws is a registered trademark of HAWS Corporation.
Elkay and Halsey Taylor are registered trademarks owned or licensed by Elkay
Sales Inc. and/or its parent Elkay Manufacturing Company
OASIS INTERNATIONAL
222 East Campus View Blvd.
Columbus, OH 43235
614-861-1350
www.oasiscoolers.com
19
Loading...
