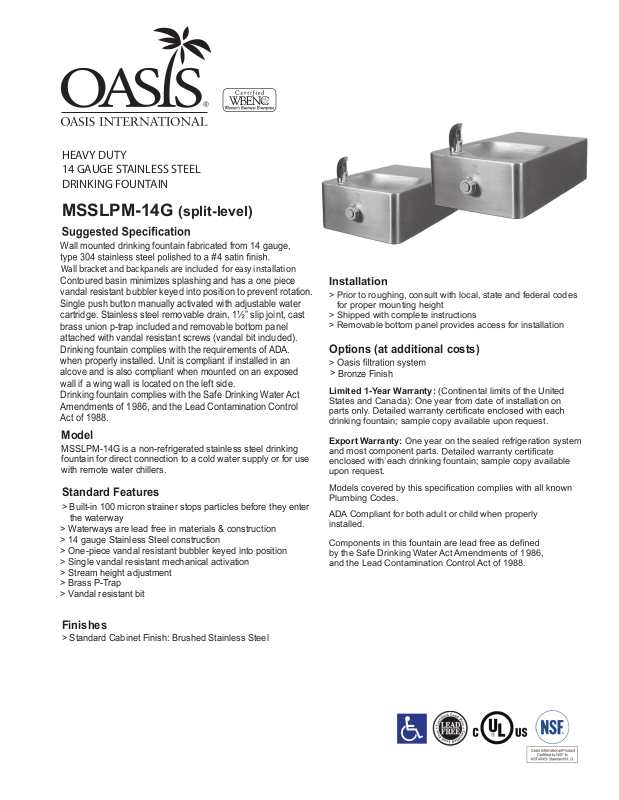

Oasis MSSLPM-14G User Manual

HEAVY DUTY
14 GAUGE STAINLESS STEEL
DRINKING FOUNTAIN

MSSLPM-14G (split-level)

Wall mounted drinking fountain fabricated from 14 gauge,

Wall bracket and backpanels are included for easy installation

Contoured basin minimizes splashing and has a one piece
vandal resistant bubbler keyed into position to prevent rotation.
Single push button manually activated with adjustable water
cartridge. Stainless steel removable drain, 1½” slip joint, cast
brass union p-trap included and removable bottom panel
attached with vandal resistant screws (vandal bit included).
Drinking fountain complies with the requirements of ADA.
when properly installed. Unit is compliant if installed in an
alcove and is also compliant when mounted on an exposed
wall if a wing wall is located on the left side.
Drinking fountain complies with the Safe Drinking Water Act
Amendments of 1986, and the Lead Contamination Control
Act of 1988.

Model

MSSLPM-14G is a non-refrigerated stainless steel drinking
fountain for direct connection to a cold water supply or for use
with remote water chillers.

Standard Features

> Built-in 100 micron strainer stops particles before they enter
the waterway

> Waterways are lead free in materials & construction
> 14 gauge Stainless Steel construction
> One-piece vandal resistant bubbler keyed into position
> Single vandal resistant mechanical activation
> Stream height adjustment
> Brass P-Trap
> Vandal resistant bit

Installation

> Prior to roughing, consult with local, state and federal codes
for proper mounting height
> Shipped with complete instructions
> Removable bottom panel provides access for installation

Options (at additional costs)

>
>

Limited 1-Year Warranty: (Continental limits of the United
States and Canada): One year from date of installation on

drinking fountain; sample copy available upon request.

Export Warranty: One year on the sealed refrigeration system
and most component parts.
enclosed with each drinking fountain; sample copy available
upon request.

Plumbing Codes.

ADA Compliant for both adult or child when properly
installed.

by the Safe Drinking Water Act Amendments of 1986,
and the Lead Contamination Control Act of 1988.

Bronze Finish

Finishes

> Standard Cabinet Finish: Brushed Stainless Steel
