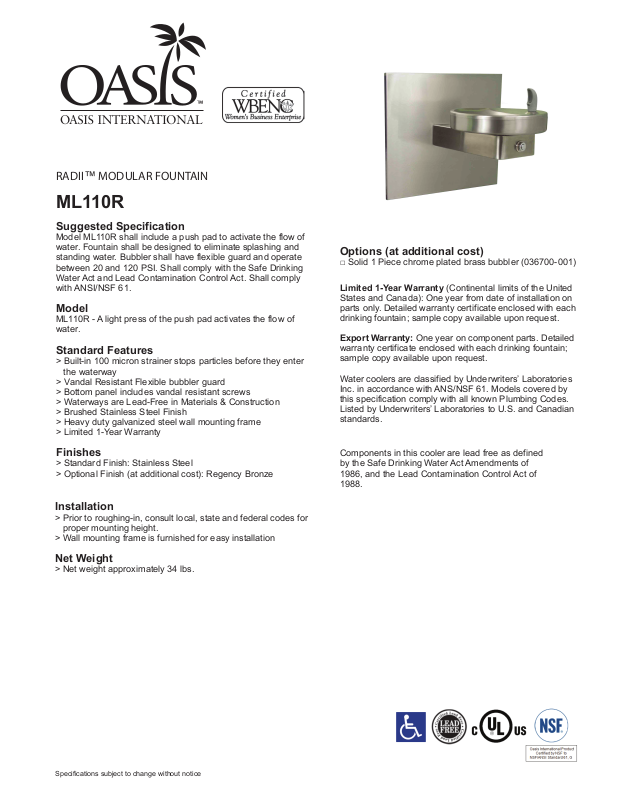

Oasis ML110R User Manual

RADII™ MODULAR FOUNTAIN

ML110R

Suggested Specification

Model ML110R shall include a push pad to activate the flow of
water. Fountain shall be designed to eliminate splashing and
standing water. Bubbler shall have flexible guard and operate
between 20 and 120 PSI. Shall comply with the Safe Drinking
Water Act and Lead Contamination Control Act. Shall comply
with ANSI/NSF 61.

Model

ML110R - A light press of the push pad activates the flow of
water.

Standard Features

> Built-in 100 micron strainer stops particles before they enter
the waterway
> Vandal Resistant Flexible bubbler guard
> Bottom panel includes vandal resistant screws
> Waterways are Lead-Free in Materials & Construction
> Brushed Stainless Steel Finish
> Heavy duty galvanized steel wall mounting frame
> Limited 1-Year Warranty

Options (at additional cost)

□ Solid 1 Piece chrome plated brass bubbler (036700-001)

Limited 1-Year Warranty (Continental limits of the United
States and Canada): One year from date of installation on
parts only. Detailed warranty certificate enclosed with each
drinking fountain; sample copy available upon request.

Export Warranty: One year on component parts. Detailed
warranty certificate enclosed with each drinking fountain;
sample copy available upon request.

Water coolers are classified by Underwriters’ Laboratories
Inc. in accordance with ANS/NSF 61. Models covered by
this specification comply with all known Plumbing Codes.
Listed by Underwriters’ Laboratories to U.S. and Canadian
standards.

Finishes

> Standard Finish: Stainless Steel
> Optional Finish (at additional cost): Regency Bronze

Installation

> Prior to roughing-in, consult local, state and federal codes for
proper mounting height.
> Wall mounting frame is furnished for easy installation

Net Weight

> Net weight approximately 34 lbs.

Components in this cooler are lead free as defined
by the Safe Drinking Water Act Amendments of
1986, and the Lead Contamination Control Act of

1988.

Specifications subject to change without notice

Form 3997 | Rev. 06/11
Oasis International | 222 East Campus View Blvd. | Columbus, OH 43235
For Customer Service and Technical Helpline assistance call: 800.950.3226

www.oas iscoole rs.com

OASIS is a registered trademark of LVD Acquisition, LLC dba Oasis International

© 2011 LVD Acquisition, LLC
