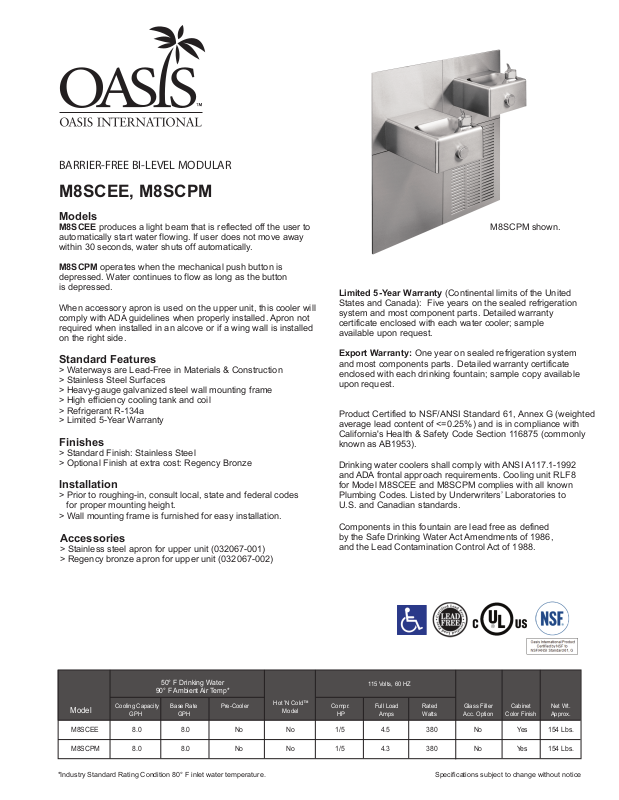

Oasis M8SCEE User Manual

BARRIER-FREE BI-LEVEL MODULAR

M8SCEE, M8SCPM

Models

M8SCEE produces a light beam that is reflected off the user to

automatically start water flowing. If user does not move away
within 30 seconds, water shuts off automatically.

M8SCPM operates when the mechanical push button is
depressed. Water continues to flow as long as the button
is depressed.

When accessory apron is used on the upper unit, this cooler will
comply with ADA guidelines when properly installed. Apron not
required when installed in an alcove or if a wing wall is installed
on the right side.

Standard Features

> Waterways are Lead-Free in Materials & Construction
> Stainless Steel Surfaces
> Heavy-gauge galvanized steel wall mounting frame
> High efficiency cooling tank and coil
> Refrigerant R-134a
> Limited 5-Year Warranty

Finishes

> Standard Finish: Stainless Steel
> Optional Finish at extra cost: Regency Bronze

Installation

> Prior to roughing-in, consult local, state and federal codes
for proper mounting height.
> Wall mounting frame is furnished for easy installation.

Accessories

> Stainless steel apron for upper unit (032067-001)
> Regency bronze apron for upper unit (032067-002)

M8SCPM shown.

Limited 5-Year Warranty (Continental limits of the United
States and Canada): Five years on the sealed refrigeration
system and most component parts. Detailed warranty
certificate enclosed with each water cooler; sample
available upon request.

Export Warranty: One year on sealed refrigeration system
and most components parts. Detailed warranty certificate
enclosed with each drinking fountain; sample copy available
upon request.

Product Certified to NSF/ANSI Standard 61, Annex G (weighted
average lead content of <=0.25%) and is in compliance with
California's Health & Safety Code Section 116875 (commonly
known as AB1953).

Drinking water coolers shall comply with ANSI A117.1-1992
and ADA frontal approach requirements. Cooling unit RLF8
for Model M8SCEE and M8SCPM complies with all known
Plumbing Codes. Listed by Underwriters’ Laboratories to
U.S. and Canadian standards.

Components in this fountain are lead free as defined
by the Safe Drinking Water Act Amendments of 1986,
and the Lead Contamination Control Act of 1988.

50° F Drinking Water

90° F Ambient Air Temp*

Model

M8SCEE 8.0 8.0 No No 1/5 4.5 380 No Yes 154 Lbs.

M8SCPM 8.0 8.0 No No 1/5 4.3 380 No Yes 154 Lbs.

*Industry Standard Rating Condition 80° F inlet water temperature.

Cooling Capacity

GPH

Base Rate

GPH

Hot ’N Cold™

Model

HP

.rpmoCrelooC-erP

115 Volts, 60 HZ

Full Load

Amps

Rated
Watts

Glass Filler
Acc. Option

Specifications subject to change without notice

Cabinet

Color Finish

Net Wt.
Approx.

Form 3774 | Rev. 06/09

Oasis International | 222 East Campus View Blvd. | Columbus, OH 43235

For Customer Service and Technical Helpline assistance call: 800.950.3226

OASIS

™

BARRIER-FREE BI-LEVEL MODULAR WATER COOLER MODELS M8SCEE, M8SCPM

www.oasiscoolers.com

OASIS is a trademark of Oasis International

2009 Oasis International
