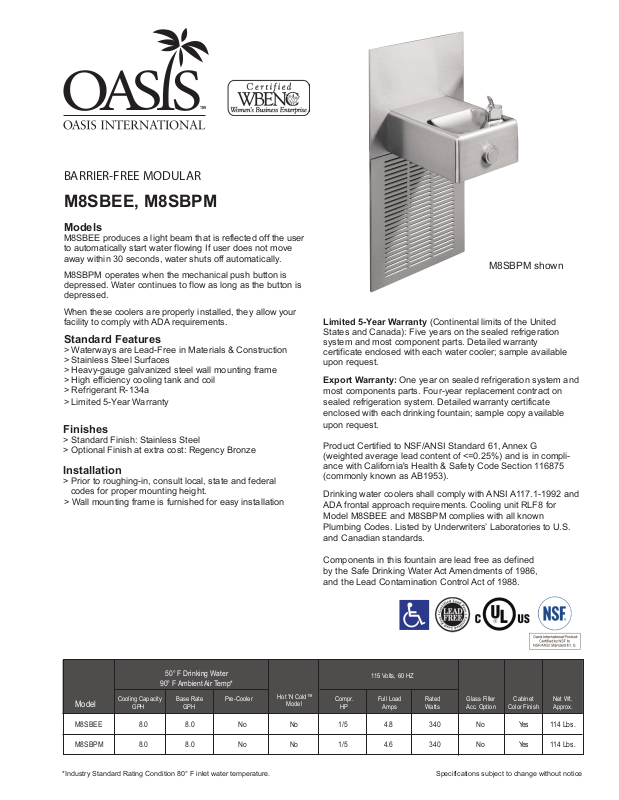

Oasis M8SBEE User Manual

BARRIER-FREE MODULAR

M8SBEE, M8SBPM

Models

M8SBEE produces a light beam that is reflected off the user
to automatically start water flowing If user does not move
away within 30 seconds, water shuts off automatically.

M8SBPM operates when the mechanical push button is
depressed. Water continues to flow as long as the button is
depressed.

When these coolers are properly installed, they allow your
facility to comply with ADA requirements.

Standard Features

> Waterways are Lead-Free in Materials & Construction
> Stainless Steel Surfaces
> Heavy-gauge galvanized steel wall mounting frame
> High efficiency cooling tank and coil
> Refrigerant R-134a

> Limited 5-Year Warranty

Finishes

> Standard Finish: Stainless Steel
> Optional Finish at extra cost: Regency Bronze

Installation

> Prior to roughing-in, consult local, state and federal
codes for proper mounting height.

> Wall mounting frame is furnished for easy installation

M8SBPM shown

Limited 5-Year Warranty (Continental limits of the United
States and Canada): Five years on the sealed refrigeration
system and most component parts. Detailed warranty
certificate enclosed with each water cooler; sample available
upon request.

Export Warranty: One year on sealed refrigeration system and
most components parts. Four-year replacement contract on
sealed refrigeration system. Detailed warranty certificate
enclosed with each drinking fountain; sample copy available
upon request.

Product Certified to NSF/ANSI Standard 61, Annex G
(weighted average lead content of <=0.25%) and is in compli­ance with California's Health & Safety Code Section 116875
(commonly known as AB1953).

Drinking water coolers shall comply with ANSI A117.1-1992 and
ADA frontal approach requirements. Cooling unit RLF8 for
Model M8SBEE and M8SBPM complies with all known
Plumbing Codes. Listed by Underwriters’ Laboratories to U.S.
and Canadian standards.

Components in this fountain are lead free as defined
by the Safe Drinking Water Act Amendments of 1986,
and the Lead Contamination Control Act of 1988.

50° F Drinking Water

90° F Ambient Air Temp*

Model

M8SBEE 8.0 8.0 No No 1/5 4.8 340 No Yes 114 Lbs.

M8SBPM 8.0 8.0 No No 1/5 4.6 340 No Yes 114 Lbs.

*Industry Standard Rating Condition 80° F inlet water temperature.

Cooling Capacity

GPH

Base Rate

GPH

Hot ’N Cold™

Model

HP

.rpmoCrelooC-erP

115 Volts, 60 HZ

Full Load

Amps

Rated
Watts

**Specifications subject to change without notice

Glass Filler
Acc. Option

Cabinet

Color Finish

Net Wt.
Approx.

Form 3777 | Rev. 06/09

Oasis International | 222 East Campus View Blvd. | Columbus, OH 43235

For Customer Service and Technical Helpline assistance call: 800.950.3226

OASIS

™

BARRIER-FREE MODULAR WATER COOLER MODELS M8SBEE, M8SBPM

www.oasiscoolers.com

OASIS is a trademark of Oasis International

2009 Oasis International
