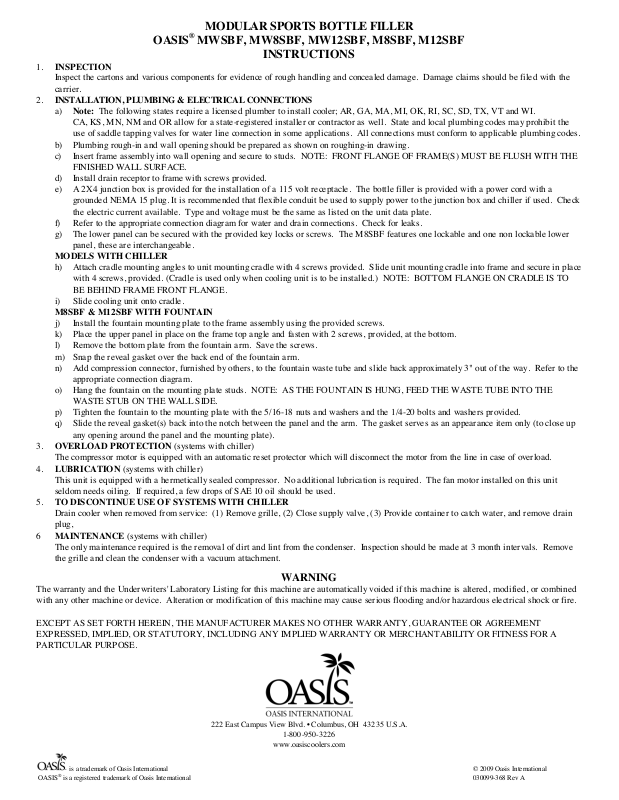

Oasis M12SBF Installation Manual

MODULAR SPORTS BOTTLE FILLER

OASIS® MWSBF, MW8SBF, MW12SBF, M8SBF, M12SBF

INSTRUCTIONS

1. INSPECTION
Inspect the cartons and various components for evidence of rough handling and concealed damage. Damage claims should be filed with the

carrier.

2. INSTALLATION, PLUMBING & ELECTRICAL CONNECTIONS
a) Note: The following states require a licensed plumber to install cooler; AR, GA, MA, MI, OK, RI, SC, SD, TX, VT and WI.

CA, KS, MN, NM and OR allow for a state-registered installer or contractor as well. State and local plumbing codes may prohibit the
use of saddle tapping valves for water line connection in some applications. All connections must conform to applicable plumbing codes.

b) Plumbing rough-in and wall opening should be prepared as shown on roughing-in drawing.
c) Insert frame a ss embly into wall opening and secur e to studs. NOTE: FRONT FLANGE OF FRAME(S) MUST BE FLUSH WITH THE

FINISHED WALL SURFACE.

d) Install drain receptor to frame with scre ws provided.
e) A 2X4 junction box is provided for the instal lation of a 115 volt receptacle. The bottle filler is provided with a power cord with a

grounded NEMA 15 plug. It is recommended that flexible conduit be used to supply power to the junction box and chiller if used. Check
the electric current available. Type and voltage must be the same as listed on the unit data plate.

f) Refer to the appropriate connection diagram for water and drain connections. Check for leaks.
g) The lower panel can be secured with the provided key locks or screws. The M8SBF featu res one l ock able and one non lockable lower

panel, these are interchangeable.

MODELS WITH CHILLER

h) Attach cradl e mounting angles to unit mounting cradle with 4 screws provided. Slide unit mounting cradle into frame and secure in place

with 4 screws, provided. (Cradle is used only when cooling unit is to be installed.) NOTE: BOTTOM FLANGE ON CRADLE IS TO
BE BEHIND FRAME FRONT FLANGE.

i) Slide cooling unit onto cradle.

M8SBF & M12SBF WITH FOUNTAIN

j) Install the fountain mount in g plate to the frame assembly using the provided screws.
k) Place the upper panel in place on the frame top angle and fasten with 2 screws, provided, at the bottom.
l) Remove the bottom plate from the fountain arm. Save the screws.
m) Snap the reveal gasket over the back end of the fountain arm.
n) Add compression connector, furnished by other s, to the fountain waste tube and slide back approximately 3" ou t of t he way. Refer to t he

appropriate connection diagram.

o) Hang the fountain on the mounting plate studs. NOTE: AS THE FOUNTAIN IS HUNG, FEED THE WASTE TUBE INTO THE

WASTE STUB ON THE WALL SIDE.

p) Tighten the fountain to the mounting plate with the 5/16-18 nuts and washers and the 1/4-20 bolts and washers provided.
q) Slide the reveal gasket(s) back into the notch between the panel and the arm. The gasket serves as an appearance item only (to close up

any opening around the panel and the mounting plate).

3. OVERLOAD PROTECTION (systems with chiller)

The compressor motor is equipped with an automatic reset protector which will disconnect the motor from the line in case of overload.

4. LUBRICATION (systems with chiller)

This unit is equipped with a hermetically sealed compressor. No additional lubrication is required. The fan motor installed on this unit

seldom needs oiling. If required, a few drops of SAE 10 oil should be used.

5. TO DISCONTINUE USE OF SYSTEMS WITH CHILLER

Drain cooler when removed from service: (1) Remove grille, (2) Close supply valve, (3) Provide container to catch water, and remove drain

plug,

6 MAINTENANCE (systems with chiller)

The only maintenance required is the removal of dirt and lint from the condenser. Inspection should be made at 3 month intervals. Remove
the grille and clean the condenser with a vacuum attachment.

The warranty and the Underwriters' Laboratory Listing for this machine are automatically voided if this machine is altered, modified, or combined
with any other machine or device. Alteration or modification of this machine may cause serious flooding and/or hazardous electrical shock or fire.

EXCEPT AS SET FORTH HEREIN, THE MANUFACTURER MAKES NO OTHER WARRANTY, GUARANTEE OR AGREEMENT
EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.

WARNING

222 East Campus View Blvd. • Columbus, OH 43235 U.S.A.

is a trademark of Oasis International © 2009 Oasis International

OASIS® is a registered trademark of Oasis International 030099-368 Rev A

1-800-950-3226

www.oasiscoolers.com

Bottle Filler Assembly with Chiller

WALL MOUNTING FRAME
SECURES INTO WALL
WITH FACE FLUSH WITH
FINISHED WALL

UV KIT (ACCESSORY)
(SEE STEP 9)

UPPER FRONT PANEL
MOUNTS TO FRAME
WITH BOTTOM SCREWS

SECURE CRADLE MOUNTING ANGLE TO
FRAME FLANGE USING SCREWS PROVIDED.
DO NOT TIGHTEN SCREWS. SLIDE CRADLE
BETWEEN ANGLES AND ATTACH TO ANGLES
WITH SCREWS PROVIDED. TIGHTEN ALL SCREWS.

COOLING UNIT
MOUNTING CRADLE

CRADLE MOUNTING
ANGLES
(2 PROVIDED)

COOLING UNIT (OPTIONAL)
MOUNTS INSIDE CRADLE

LOWER FRONT PANEL
MOUNTS TO FRAME
WITH BOTTOM SCREWS
OR OPTIONAL LOCKS
(2 PROVIDED)

OPTIONAL FILTER
(SEE STEP 6)

TRIM BEZEL (ACCESSORY)
(SEE STEP 11)
