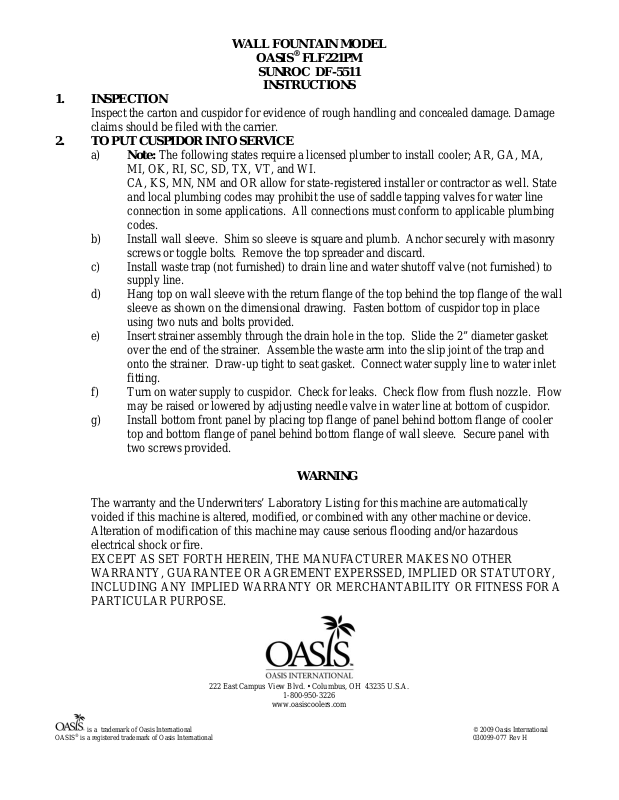

WALL FOUNTAIN MODEL

OASIS® FLF221PM

SUNROC DF-5511

INSTRUCTIONS

1. INSPECTION

Inspect the carton and cuspidor for evidence of rough handling and concealed damage. Damage
claims should be filed with the carrier.

2. TO PUT CUSPIDOR INTO SERVICE

a) Note: The following states require a licensed plumber to install cooler; AR, GA, MA,

MI, OK, RI, SC, SD, TX, VT, and WI.
CA, KS, MN, NM and OR allow for state-registered installer or contractor as well. State
and local plumbing codes may prohibit the use of saddle tapping valves for water line
connection in some applications. All connections must conform to applicable plumbing
codes.

b) Install wall sleeve. Shim so sleeve is square and plumb. Anchor securely with masonry

screws or toggle bolts. Remove the top spreader and discard.

c) Install waste trap (not furnished) to drain line and water shutoff valve (not furnished) to

supply line.

d) Hang top on wall sleeve with the return flange of the top behind the top flange of the wall

sleeve as shown on the dimensional drawing. Fasten bottom of cuspidor top in place
using two nuts and bolts provided.

e) Insert strainer assembly through the drain hole in the top. Slide the 2” diameter gasket

over the end of the strainer. Assemble the waste arm into the slip joint of the trap and
onto the strainer. Draw-up tight to seat gasket. Connect water supply line to water inlet
fitting.

f) Turn on water supply to cuspidor. Check for leaks. Check flow from flush nozzle. Flow

may be raised or lowered by adjusting needle valve in water line at bottom of cuspidor.

g) Install bottom front panel by placing top flange of panel behind bottom flange of cooler

top and bottom flange of panel behind bottom flange of wall sleeve. Secure panel with
two screws provided.

The warranty and the Underwriters’ Laboratory Listing for this machine are automatically
voided if this machine is altered, modified, or combined with any other machine or device.
Alteration of modification of this machine may cause serious flooding and/or hazardous
electrical shock or fire.
EXCEPT AS SET FORTH HEREIN, THE MANUFACTURER MAKES NO OTHER
WARRANTY, GUARANTEE OR AGREMENT EXPERSSED, IMPLIED OR STATUTORY,
INCLUDING ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.

WARNING

222 East Campus View Blvd. • Columbus, OH 43235 U.S.A.

is a trademark of Oasis International © 2009 Oasis International

®

OASIS

is a registered trademark of Oasis International 030099-077 Rev H

1-800-950-3226

www.oasiscoolers.com
