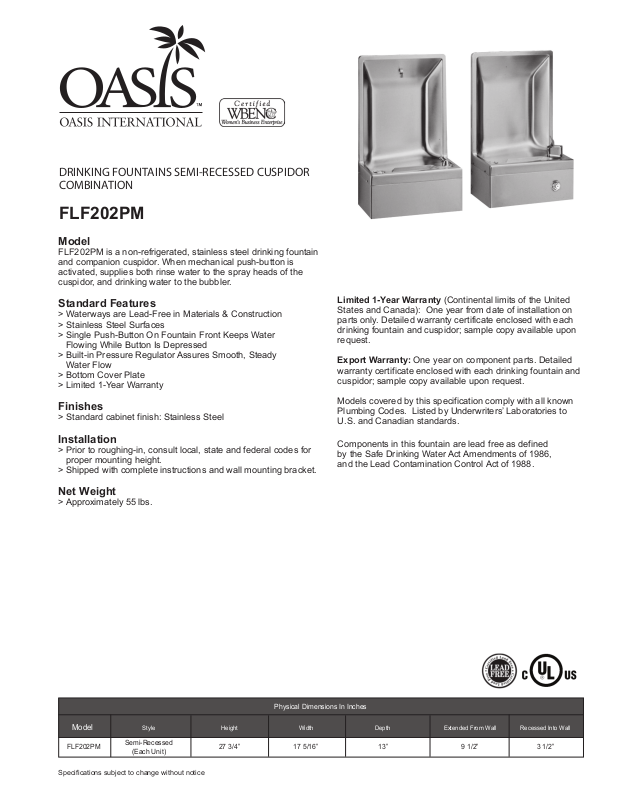

Oasis FLF202PM User Manual
DRINKING FOUNTAINS SEMI-RECESSED CUSPIDOR
COMBINATION
FLF202PM
Model
FLF202PM is a non-refrigerated, stainless steel drinking fountain
and companion cuspidor. When mechanical push-button is
activated, supplies both rinse water to the spray heads of the
cuspidor, and drinking water to the bubbler.
Standard Features
> Waterways are Lead-Free in Materials & Construction
> Stainless Steel Surfaces
> Single Push-Button On Fountain Front Keeps Water
Flowing While Button Is Depressed
> Built-in Pressure Regulator Assures Smooth, Steady
Water Flow
> Bottom Cover Plate
> Limited 1-Year Warranty
Finishes
> Standard cabinet finish: Stainless Steel
Installation
> Prior to roughing-in, consult local, state and federal codes for
proper mounting height.
> Shipped with complete instructions and wall mounting bracket.
Net Weight
> Approximately 55 lbs.
Limited 1-Year Warranty (Continental limits of the United
States and Canada): One year from date of installation on
parts only. Detailed warranty certificate enclosed with each
drinking fountain and cuspidor; sample copy available upon
request.
Export Warranty: One year on component parts. Detailed
warranty certificate enclosed with each drinking fountain and
cuspidor; sample copy available upon request.
Models covered by this specification comply with all known
Plumbing Codes. Listed by Underwriters’ Laboratories to
U.S. and Canadian standards.
Components in this fountain are lead free as defined
by the Safe Drinking Water Act Amendments of 1986,
and the Lead Contamination Control Act of 1988.
Model
FLF202PM
**Specifications subject to change without notice
Style Height Width Depth Extended From Wall Recessed Into Wall
Semi-Recessed
(Each Unit)
Physical Dimensions In Inches
27 3/4” 17 5/16” 13” 9 1/2” 3 1/2”
Form 3835 | Rev. 06/11
Oasis International | 222 East Campus View Blvd. | Columbus, OH 43235
For Customer Service and Technical Helpline assistance call: 800.950.3226
OASIS
™
SEMI-RECESSED CUSPIDOR COMBINATION MODEL FLF202PM
www.oasiscoolers.com
OASIS is a registered trademark of LVD Acquisition, LLC dba Oasis International
A WBENC - Certied Women’s Business Enterprise
© 2011 LVD Acquisition, LLC
