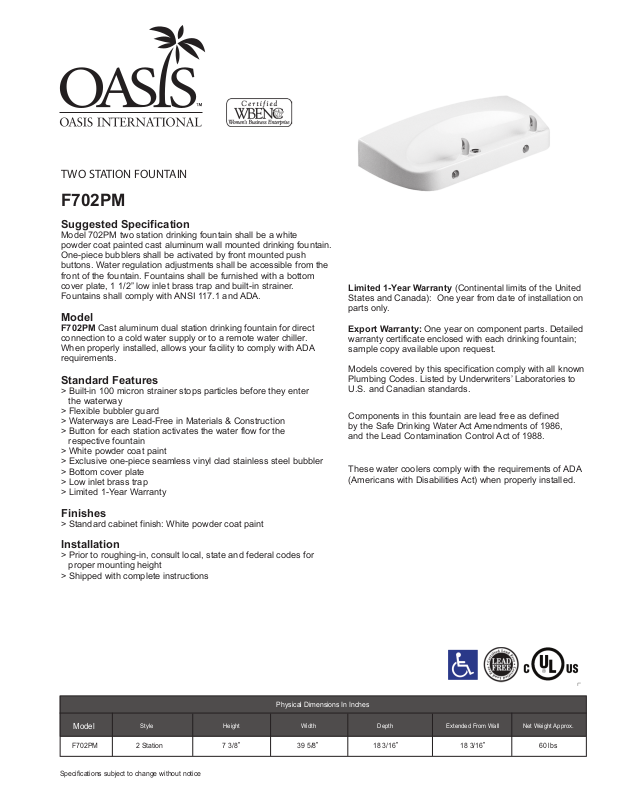

Oasis F702PM User Manual

TWO STATION FOUNTAIN
F702PM
Suggested Specification
Model 702PM two station drinking fountain shall be a white powder coat painted cast aluminum wall mounted drinking fountain. One-piece bubblers shall be activated by front mounted push buttons. Water regulation adjustments shall be accessible from the front of the fountain. Fountains shall be furnished with a bottom cover plate, 1 1/2” low inlet brass trap and built-in strainer. Fountains shall comply with ANSI 117.1 and ADA.
Model
F702PM Cast aluminum dual station drinking fountain for direct
connection to a cold water supply or to a remote water chiller. When properly installed, allows your facility to comply with ADA requirements.
Standard Features
> Built-in 100 micron strainer stops particles before they enter the waterway > Flexible bubbler guard > Waterways are Lead-Free in Materials & Construction > Button for each station activates the water flow for the respective fountain > White powder coat paint > Exclusive one-piece seamless vinyl clad stainless steel bubbler > Bottom cover plate > Low inlet brass trap > Limited 1-Year Warranty
Limited 1-Year Warranty (Continental limits of the United States and Canada): One year from date of installation on parts only.
Export Warranty: One year on component parts. Detailed warranty certificate enclosed with each drinking fountain; sample copy available upon request.
Models covered by this specification comply with all known Plumbing Codes. Listed by Underwriters’ Laboratories to U.S. and Canadian standards.
Components in this fountain are lead free as defined by the Safe Drinking Water Act Amendments of 1986, and the Lead Contamination Control Act of 1988.
These water coolers comply with the requirements of ADA (Americans with Disabilities Act) when properly installed.
Finishes
> Standard cabinet finish: White powder coat paint
Installation
> Prior to roughing-in, consult local, state and federal codes for proper mounting height > Shipped with complete instructions
Physical Dimensions In Inches
Model
F702PM 2 Station 7 3/8
Specifications subject to change without notice
Style Height Width Depth Extended From Wall Net Weight Approx.
39 5/8
18 3/16
18 3/16
60 lbs
Form 3945 | Rev. 06/11
Oasis International | 222 East Campus View Blvd. | Columbus, OH 43235
For Customer Service and Technical Helpline assistance call: 800.950.3226
OASIS
TWO STATION DRINKING FOUNTAIN MODEL F702PM
www.oasiscoolers.com
OASIS is a registered trademark of LVD Acquisition, LLC dba Oasis International
A WBENC - Certied Women’s Business Enterprise
