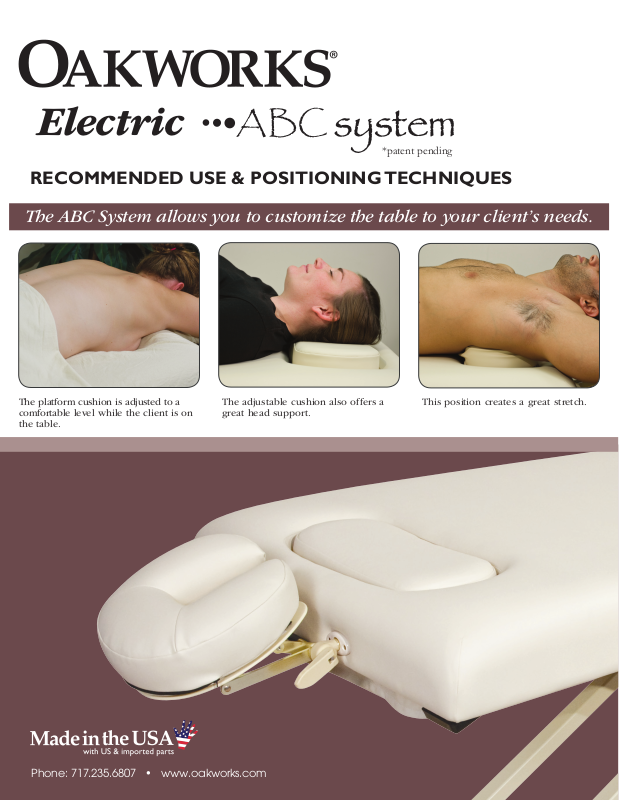

Oakworks Powered ABC User Manual

Electric

*patent pending

RECOMMENDED USE & POSITIONING TECHNIQUES

The ABC System allows you to customize the table to your client’s needs.

The platform cushion is adjusted to a
comfortable level while the client is on
the table.

The adjustable cushion also offers a
great head support.

This position creates a great stretch.

Phone: [phone] • www.oakworks.com

GETTING TO KNOW YOUR TABLE

ABC cushion

& bladder

Electrically controlled
hand valve to lower
cushion

Electrically controlled

hand valve to raise

cushion

ABC bag

Adjustable face
rest & platform

CUSHION, BLADDER & BAG

The cushion which you rest
upon is a padded platform and
it is attached to an inflatable
bladder. The flexible cushion
offers sternum support. The
inflatable bladder allows you
to change the height over a

large range and is attached
to a hose system. It sits inside a sewn bag which
supports the bladder.

ADJUSTING THE HEIGHT OF THE CUSHION

The height of the
cushion is electrically
controlled by two
hand valves.

The one on the left
lowers the cushion.

The one on the right
raises the cushion.

TO LOWER THE CUSHION

Press the left hand valve up.

This opens the bladder and
allows air to escape. Air is released
automatically by the weight of the
client or by pressing down slightly
on the cushion with your hand.

ATTACHING THE FACE REST

Use of the special face rest platform with shortened
dowels requires attachment with a Velcro® support strap
to insure the face rest does not pull out. To attach the
Adjustable face rest, insert the dowels into the holes
on the end of the table. Wrap the Velcro® strip that is
attached to the table around the horizontal bar on the
face rest as shown to secure into place. Attach crescent
to top of platform. Follow face rest instructions to make
further adjustments.

TO RAISE THE CUSHION

Press the right hand valve up.

CAUTION: Do not over inflate
the bladder. Over inflation will
damage the bladder.

MAXIMUM HEIGHT OF PAD
ABOVE TOP = 5 INCHES
