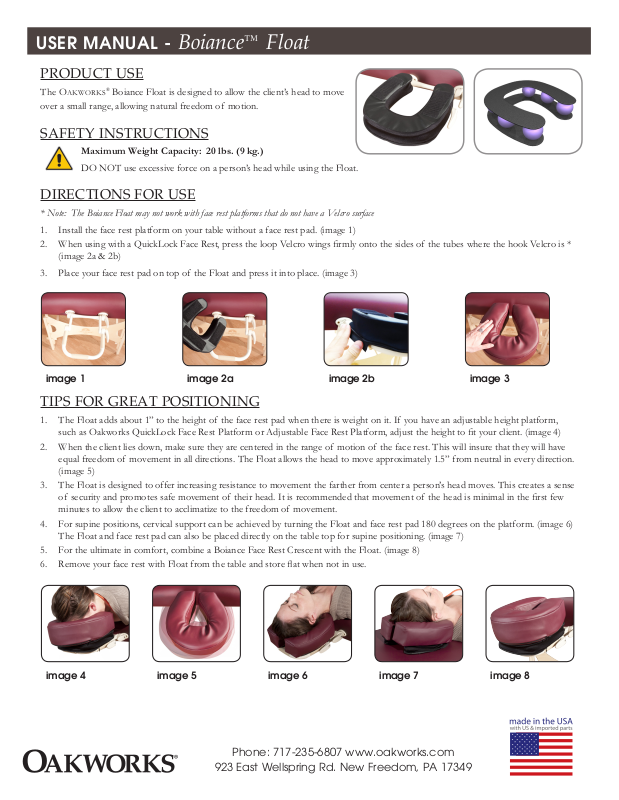

USER MANUAL - Boiance

™

Float

PRODUCT USE

The Oak wOr ks® Boiance Float is designed to allow the client’s head to move

over a small range, allowing natural freedom of motion.

SAFETY INSTRUCTIONS

Maximum Weight Capacity: 20 lbs. (9 kg.)

DO NOT use excessive force on a person’s head while using the Float.

DIRECTIONS FOR USE

* Note: The Boiance Float may not work with face rest platforms that do not have a Velcro surface

1. Install the face rest platform on your table without a face rest pad. (image 1)

2. When using with a QuickLock Face Rest, press the loop Velcro wings rmly onto the sides of the tubes where the hook Velcro is *
(image 2a & 2b)

3. Place your face rest pad on top of the Float and press it into place. (image 3)

image 1 image 2a image 3 image 2b

TIPS FOR GREAT POSITIONING

1. The Float adds about 1” to the height of the face rest pad when there is weight on it. If you have an adjustable height platform,

such as Oakworks QuickLock Face Rest Platform or Adjustable Face Rest Platform, adjust the height to t your client. (image 4)

2. When the client lies down, make sure they are centered in the range of motion of the face rest. This will insure that they will have
equal freedom of movement in all directions. The Float allows the head to move approximately 1.5” from neutral in every direction.
(image 5)

3. The Float is designed to offer increasing resistance to movement the farther from center a person’s head moves. This creates a sense

of security and promotes safe movement of their head. It is recommended that movement of the head is minimal in the rst few

minutes to allow the client to acclimatize to the freedom of movement.

4. For supine positions, cervical support can be achieved by turning the Float and face rest pad 180 degrees on the platform. (image 6)
The Float and face rest pad can also be placed directly on the table top for supine positioning. (image 7)

5. For the ultimate in comfort, combine a Boiance Face Rest Crescent with the Float. (image 8)

6. Remove your face rest with Float from the table and store at when not in use.

image 4 image 5 image 6

Phone: [phone] www.oakworks.com

923 East Wellspring Rd. New Freedom, PA 17349

image 7

image 8

USER MANUAL - Boiance

™

Float Cont...

CARE, CLEANING & DISINFECTION

1. Store the Float at and without signicant weight on it. Excessive weight or storage at an angle can lead to
damage of the Float.

2. Do not allow the Float to experience freezing temperatures. The spheres are lled with water.

3. Do not immerse the Float in water or cleaning uids. The fabric cover is removable and can be washed at low
temperatures without bleach. Air dry.

4. Use appropriate sterilized eld materials to isolate the patient from the Float. This also minimizes cleaning and

disinfecting procedures. Use a 10% sodium hypochlorite (bleach) solution or Recommended Disinfectants on all surfaces.
Follow the directions on the disinfectant and wipe off excess.

Recommended Disinfectants

Protex, MadaCide, Accell TB, Virox

Note: Damage caused by unapproved substances will not be covered under the warranty.

®

SPECIFICATIONS

Dimensions (X Y Z) 9-1/2” x 9-1/2” x 2” (4cm x 4cm x 1cm)

Maximum Weight Rating 20 lbs. (9 kg)

Temperature: 50°F (10°C) to 100°F (38°C)

Environmental Conditions

Humidity: 20% to 60% RH
Atmospheric Pressure: 98 to 105 kPa

MAINTENANCE & SERVICE

• Periodically check the oat for damage or non-uniformity

REPLACEMENT PARTS

• PN 71797: Boiance Float

X

Z

Y

Phone: [phone] www.oakworks.com

923 East Wellspring Rd. New Freedom, PA 17349

Part No. MMINML0016 Rev. A
