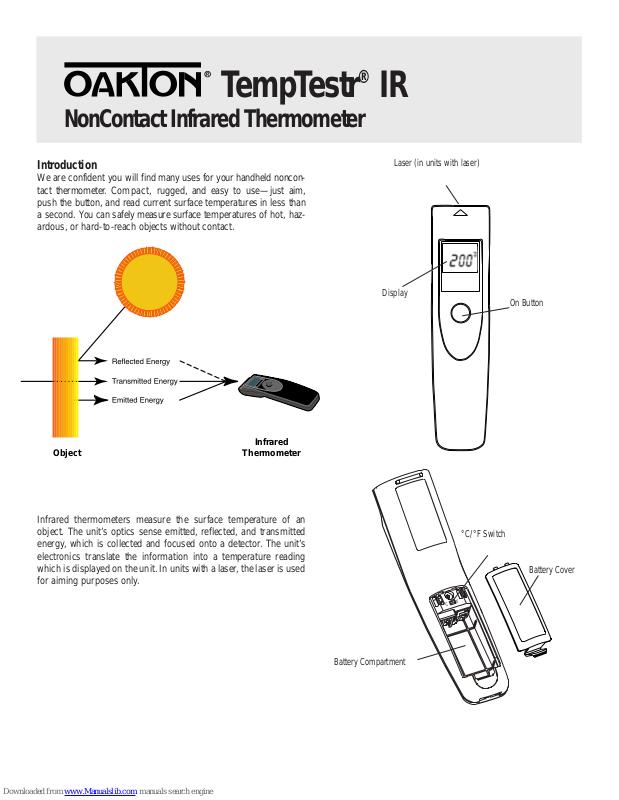

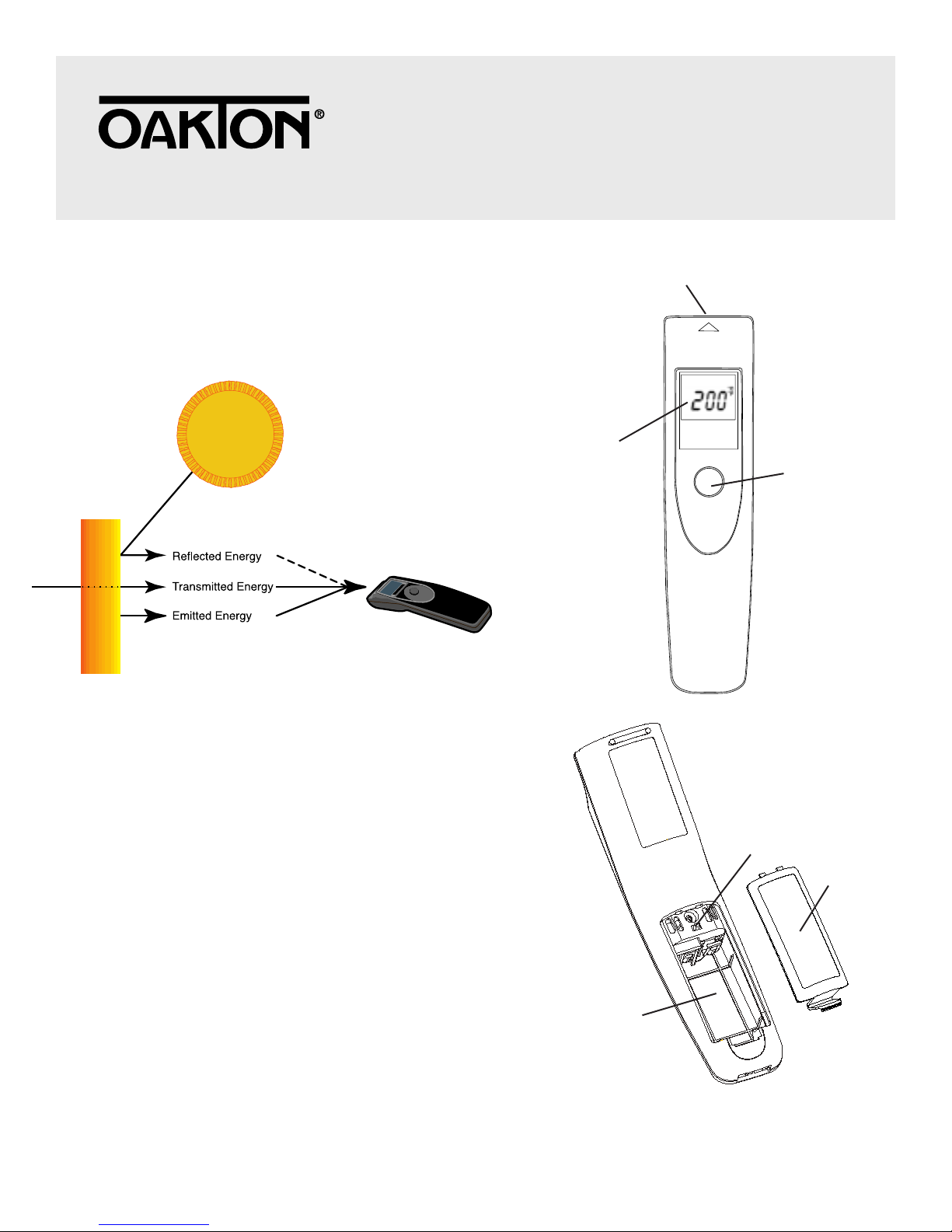

Infrared thermometers measure the surface temperature of an
object. The unit’s optics sense emitted, reflected, and transmitted
energy, which is collected and focused onto a detector. The unit’s
electronics translate the information into a temperature reading
which is displayed on the unit. In units with a laser , the laser is used
for aiming purposes only.
Object
Infrared
Thermometer
TempTestr
®
IR
NonContact Infrared Thermometer
C
F
On Button
Display
Laser (in units with laser)
Battery Compartment
°C/°F Switch
Battery Cover
Introduction
We are confident you will find many uses for your handheld noncontact thermometer. Compact, rugged, and easy to use—just aim,
push the button, and read current surface temperatures in less than
a second. You can safely measure surface temperatures of hot, hazardous, or hard-to-reach objects without contact.
Page 2
C
F
9v
Battery

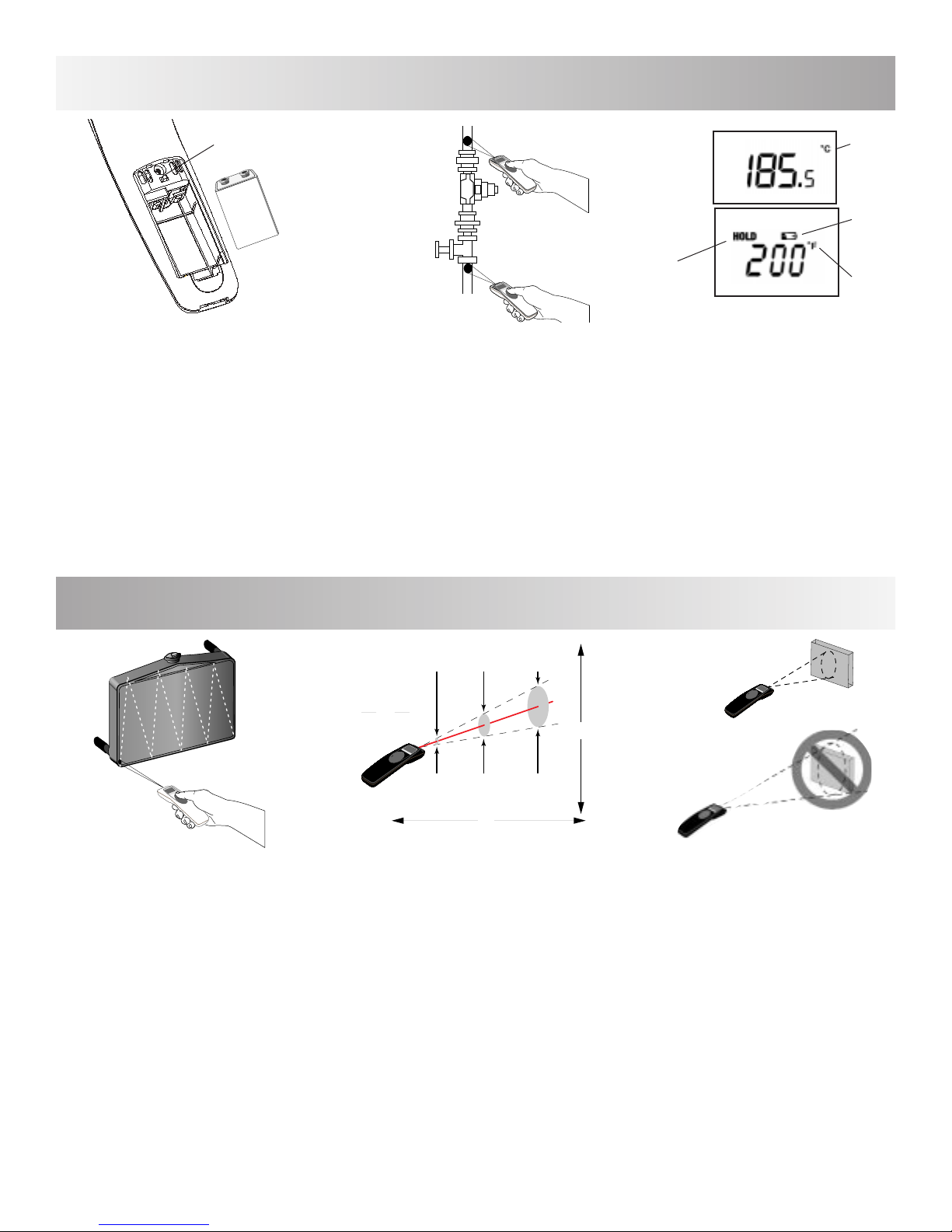

How to Operate the Unit
°C/°F and Battery
To switch between Celsius or Fahrenheit,
open the battery cover and push switch (A)
to select C or F. When necessary, replace the
9v battery as shown in diagram.
Operating the Unit
To measure a temperature, point unit
at object and push button. Be sure to
consider distance-to-spot size ratio
and field of view. If the unit is equipped
with a laser, use the laser only for aiming. See How to Accurately Measure
Temperatures.
Display
The LCD displays the current temperature in
Celsius (A) or Fahrenheit (B). The unit will
hold the reading for 7 seconds after button
is released; the word HOLD appears (C).
The presence of the battery icon indicates a
low battery (D).
C
A
D
B
A
25mm @
150mm
50mm @
300mm
100mm @
600mm
1" @6"2" @
12"
4" @
24"
D
S
D
S
6
1
=
Locating a Hot Spot
To find a hot spot aim the thermometer outside the area of interest, then scan across
with an up and down motion until you locate
the hot spot.
Distance & Spot Size
As the distance (D) from the object
increases, the spot size (S) of the area
measured by the unit becomes larger.
Field of View
Make sure that the target is larger than the
unit’s spot size. The smaller the target, the
closer you should be to it. When accuracy is
critical, make sure the target is at least
twice as large as the spot size.
Nominal spot size at 90% energy
How to Accurately Measure Temperatures
Page 3
Care and Maintenance
Cautions
All models should be protected from the
following:
▲ EMF (electro-magnetic fields)
from arc welders, induction heaters
▲ Static electricity
▲ Thermal shock (caused by large
or abrupt ambient temperature
changes—allow 30 minutes for
unit to stabilize before use)
▲ Do not leave the unit on or near
objects of high temperature.
LASER RADIATION - DO
NOT STARE INTO BEAM
OUTPUT < 1mW
WAVELENGTH 630-670 nm
CLASS II LASER PRODUCT
AVOID EXPOSURE LASER RADIATION IS
EMITTED FROM THIS
APERATURE.
CAUTION
COMPLIES WITH
FDA 21 CFR
SUBCHAPTER J
Warning
Do not point laser directly at eye or
indirectly off reflective surfaces.
Troubleshooting/ D épannage / Resolución de problemas
CLASS II (FDA)
Code/Code/Código Problem/Problème/Problema Action/Action/Acción
– – – (on display) Target temperature is over or under range Select target within specifications
Battery icon flashes Low battery Replace battery
Blank display Dead battery Replace battery
Laser doesn’t work Low or dead battery Replace battery
RADIACION LASER – EVITE
EXPONER LA VISTA
SALIDA < 5mW
LONGITUD DE ONDA 630-670 nm
PRODUCTO LASER CLASE IIa
`
PELIGRO
POR ESTA ABERTURA
SE EMITE RADIACION
LASER. EVITE
EXPONER LA VISTA.
CUMPLE CON LAS
NORMAS FDA 21 CFR
SUB CAPITULO J
LASER LIGHT
DO NOT STARE INTO BEAM
CLASS 2 LASER
LASERLIGHT
NICHT IN DEN STRAHL
BLICKEN
LASER KLASSE 2
RAYONNEMENT LASER
NE PAS EXPOSER L'OEIL
AU RAYON LASER
LASER DE CLASSE 2
RAYO LASER
NO FIJAR LA VISTA
EN EL RAYO
LASER CLASE 2
<1mW/630–670nm
IEC 825/93
CLASS II (IEC)

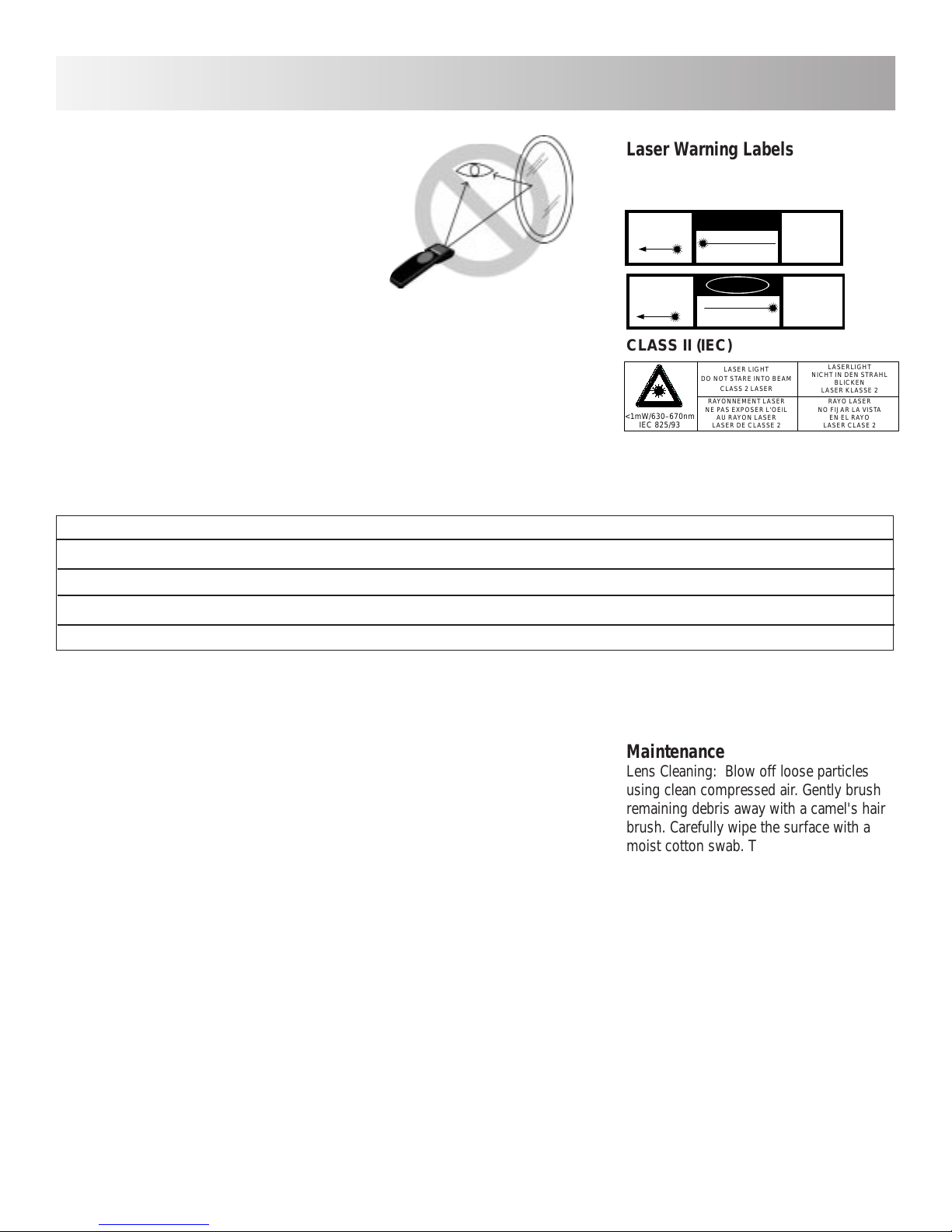

Laser Warning Labels
Maintenance
Lens Cleaning: Blow off loose particles
using clean compressed air. Gently brush
remaining debris away with a camel's hair
brush. Carefully wipe the surface with a
moist cotton swab. The swab may be
moistened with water. NOTE: DO NOT
use solvents to clean the plastic lens.
Case Cleaning: Use soap and water on a
damp sponge or soft cloth.
NOTE: DO NOT submerge the unit in water.
Reminders
■ Not recommended for use in measuring
shiny or polished metal surfaces
(stainless steel, aluminum, etc.).
See Emissivity.
■ The unit cannot measure through
transparent surfaces such as glass.
It will measure the surface temperature
of the glass instead.
■ Steam, dust, smoke, etc., can obstruct
accurate measurement.
Emissivity
Most organic materials and painted
or oxidized surfaces have an
emissivity of 0.95 (pre-set in the unit).
Inaccurate readings will result from
measuring shiny or polished metal
surfaces. To compensate, cover the
surface to be measured with masking
tape or flat black paint. Allow time for
the tape to reach the same temperature as the the material underneath it.
Measure the temperature of the tape
or painted surface.
Page 4
CE Certification
This instrument conforms to the following standards:
• EN50081-1:1992, Electromagnetic Emissions
• EN50082-1:1992, Electromagnetic Susceptibility
Tests were conducted using a frequency range of 27–500
MHz with the instrument in three orientations. The average
error for the three orientations is ±1.0°C at 3 v/m throughout the spectrum. However, between 230 MHz and 500
MHz at 3 v/m, the instrument may not meet its stated
accuracy.
CREAM
MILK
MILK
CREAM
MILK
MILK

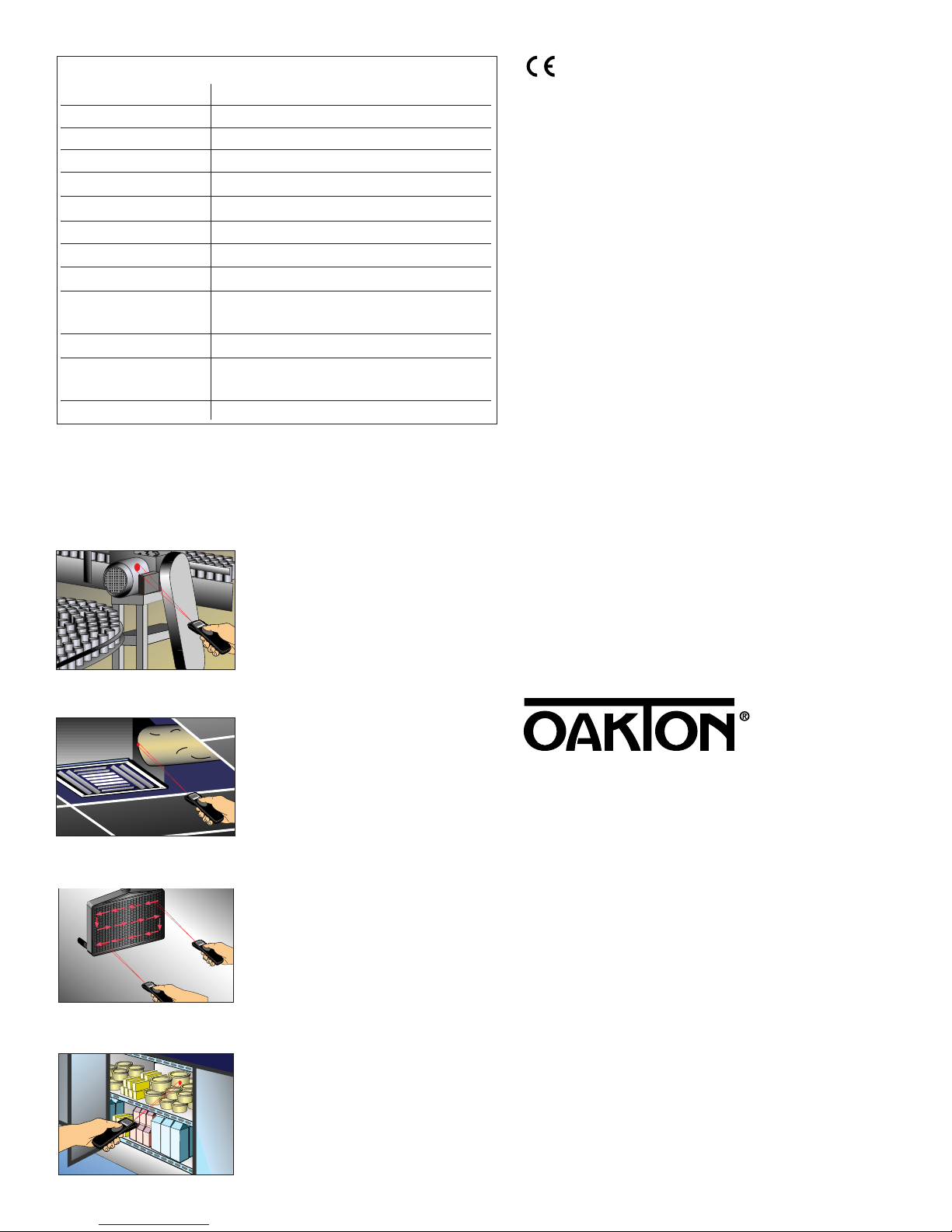

SPECIFICATIONS
Temperature range -18 to 260°C (0 to 500°F)
Accuracy ±2% or ±2°C (±3°F) at 25°C (77°F)
Repeatability ± 2% of reading, or ±2°C (±3°F)
Response time 500 mSec, 95% response
Spectral response 8–18 µm
Emissivity pre-set 0.95
Ambient operating range 0 to 50°C (32 to 120°F)
Relative humidity 10–95% RH noncondensing, @ up to 30°C (86°F)
Storage temperature -25° to 65°C (-13° to 150°F) without battery
Weight / Dimensions 227 g/0.5 lb;
184 x 45 x 38 mm (7.25 x 1.75 x 1.5 in)
Power 9V Alkaline or NiCad battery
Battery life (Alkaline) All Models: 80 hrs
Laser Models: 23 hrs @ 50% use with laser
Distance to Spot Size 6:1
Uses for your Noncontact Infrared Thermometer
Specifications subject to change without notice.
■
Check for hot spots in electrical
panels and circuit breakers,
generators and gearboxes
Industrial/Electrical
Heating and Air Conditioning
■ Check and monitor supply and
return registers, air stratification
and duct leakage
Automotive Diagnostics
■ Check cylinder heads, heating &
cooling systems, and scan radiators
for blockage
Food Safety
■ Monitor temperatures for HACCP
requirements during receiving,
storage and preparation
Warranty
We warrant this product to be free from significant
deviations in material and workmanship for a period of
one year from date of purchase. If repair or adjustment is
necessary and has not been the result of abuse or misuse
within the one year period, please return, freight prepaid,
and correction will be made without charge. Out of
warranty products will be repaired on a charge basis.
Return of Items
Authorization must be obtained from your OAKTON
Distributor before returning items for any reason. When
applying for authorization, please include data regarding
the reason the items are to be returned. NOTE: We reserve
the right to make improvements in design, construction,
and appearance of products without notice.
Contact your OAKTON distributor for more information.
