Use with type J, K or T
thermocouple probes

offers wide –418 to 2501°F
(–250 to 1372°C ) range

Type J (iron-constantan)

wide range; use in reducing
environments

Type K (chromel-alumel)

widest range; use in oxidizing
environments

Type T (copper -constantan)

best accuracy; good for ambient and
sub-freezing measurements

Standard mini-connector

use with many widely available probes
or order from our selection

All push button operation

for fast, easy use—no trimpots to adjust!

Compact size

fits right in your pocket—take your
OAKTON Temp meter anywhere!

°C/°F selectable
Minimum and maximum

temperature display

Displays highest/lowest temperature since
meter was switched on,or use Min/Max Hold
Mode to continuously update lowest/highest
temperature

Temperature offset
calibration adjustment

push-button adjustment for fine-tuning
factory calibration

Hold function

freezes measurements for convenient
reading and recording

Auto-off function

turns off meter after 17 minutes of
non-use to save batteries

Optional protective boot

protects meter; features a built-in stand

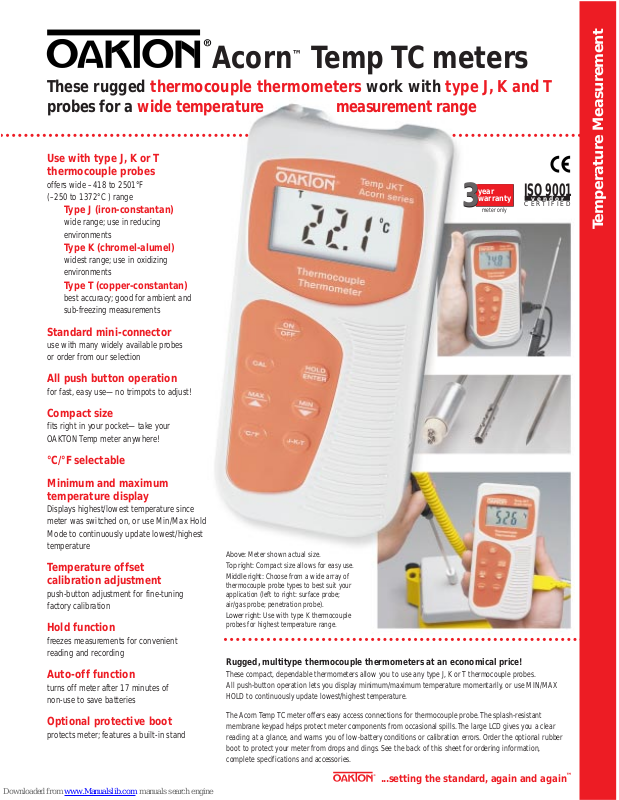

Acorn™Temp TC meters

These rugged thermocouple thermometers work with type J, K and T
probes for a wide temperature measurement range

Temperature Measurement

Rugged, multitype thermocouple thermometers at an economical price!

These compact,dependable thermometers allow you to use any type J,K or T thermocouple probes.
All push-button operation lets you display minimum/maximum temperature momentarily,or use MIN/MAX
HOLD to continuously update lowest/highest temperature.

The Acorn Temp TC meter offers easy access connections for thermocouple probe.The splash-resistant
membrane keypad helps protect meter components from occasional spills. The large LCD gives you a clear
reading at a glance,and warns you of low-battery conditions or calibration errors.Order the optional rubber
boot to protect your meter from drops and dings.See the back of this sheet for ordering information,
complete specifications and accessories.

™

Above:

Meter shown actual size.

Top right:

Compact size allows for easy use.

Middle right:

Choose from a wide array of
thermocouple probe types to best suit your
application (left to right: surface probe;
air/gas probe; penetration probe).

Lower right:

Use with type K thermocouple

probes for highest temperature range.

ISO 9001

v e n d o r

CERTIFIED

year
warranty

3

3

...setting the standard, again and again

meter only

Printed in the U.S.A. 8/01 OAKTON TM Reg.#1,692,543. We reserve the right to make changes, improvements and modifications to products shown.
All prices subject to change without notice.OAKTON Instruments are available only through authorized OAKTON distributors.

General Applications: Ideal for any application that requires measuring/monitoring the temperature of any liquid, solid, semisolid or gel.
Food Processing/Agricultural Applications: Use as a practical substitute for glass thermometers where the danger of product

contamination exists.Use with a penetration probe for insertion into semisolids like fruits, semifrozen foods or soil.

Industrial Applications: Use in photo developing, chemical and plating industries, and all applications requiring temperature measurement.
Laboratory Applications: Monitor heating or cooling samples and reagents.
Educational Applications: An ideal student thermometer—select °C or °F with the push of a button, and avoid dangers from

broken glass or mercury spillage.
HVAC Applications: Use Min/Max feature to monitor heating and cooling efficiency,flue gas temperatures,boiler water, heater jacket

temperatures,inlet and outlet water heater temperatures,etc.

• ORDER FROM •

Optional rubber boot offers sturdy

protection for meter and acts as meter

stand for benchtop use.

Large Custom LCD for
clear and easy readings.

Splash-resistant membrane keypad

helps protect components.

• Applications •

• Specifications •

• Ordering Information •

Easy access connection for
thermocouple miniconnector.

ACORN™Temp TC thermocouple meters

ACORN™Temp TC Meters

All meters include operating instructions and batteries.Temperature probe not included, order separately. Shipping weight: 1.0 lb (0.5 kg).

WD-35627-00 Temp TC meter
WD-35627-02 Temp TC meter with protective boot
WD-35627-05 Temp TC meter with general purpose type K thermocouple probe (WD-08439-62), 4.5"L with 5-ft coiled cable.

Temp range:–418 to 1650°F (–250 to 899°C).Response time:30 seconds (in liquids)

WD-35627-80 Protective rubber boot for Temp TC meter,encases meter in sturdy rubber to protect it from drops and dings.

Also features meter stand for convenient tabletop use.Shipping weight:0.5 lbs (0.2 kg)

WD-09376-00 Replacement batteries, 1.5 V AAA. 12/pack

Bulletin TEMP B3 R1

Calibration: factory calibrated, push-button offset adjustment
Input connector: standard miniconnector
Display: single line LCD
Operating T emperature:0 to 50°C
Power: 4 x 1.5 V AAA batteries >200 hours continuous use (included)
Probe: use any type J,K or T thermocouple probe with mini-connector

(not included)

Dimensions:

Meter: 5.5" x 2.7" x 1.3" (14 x 7 x 3.5 cm)
Boxed: 9.25” x 6.5" x 3.0" (23.5 x 16.5 x 7.5 cm)

Weight: Meter only: 0.9 lb (0.4 kg); Boxed: 1 lb (0.5 kg)

Type J:–200 to 1000°C/–328 to 1832°F;

Range Type K:–250 to 1372°C/–418 to 2501°F;

Type T: –250 to 400°C/–418 to 752°F

Resolution

0.1° from –99.9°C to 299.9°C / °F
1° outside this range

±0.25% of reading plus 1°C / 2°F
Accuracy below –99.9°C / °F,
(meter only) ±0.25% of reading plus 0.5°C / 0.9°F

above –99.9°C / °F

Catalog Number Probe type Temperature range Response time

General purpose probes.

WD-08517-55 J –90 to 760°C / –310 to 1400°F 15 seconds (in liquids)
WD-08516-55 K –250 to 899°C / –418 to 1500°F 15 seconds (in liquids)
WD-08500-55 T –250 to 400°C / –418 to 752°F 15 seconds (in liquids)

Penetration probes.Use for penetrating soft or semisoft materials.

WD-08517-65 J –90 to 760°C / –310 to 1400°F 25 seconds (in liquids)
WD-08516-65 K –250 to 899°C / –418 to 1500°F 25 seconds (in liquids)
WD-08500-65 T –250 to 400°C / –418 to 752°F 25 seconds (in liquids)

Air/gas probes. Feature a perforated shield to minimize error from radiated heat.

WD-08517-75 J –90 to 760°C / –310 to 1400°F 225 seconds at 5 m/s airflow
WD-08516-75 K –250 to 899°C / –418 to 1500°F 225 seconds at 5 m/s airflow
WD-08500-75 T –250 to 400°C / –418 to 752°F 225 seconds at 5 m/s airflow

Surface probes. Use for surfaces as hot plates,furnaces and molds.Exposed junction is isolated from 316 SS shaft

and aluminum housing with ceramic support.

WD-08517-60 J –90 to 760°C / –310 to 1400°F 30 seconds
WD-08516-60 K –250 to 899°C / –418 to 1500°F 30 seconds
WD-08500-60 T –250 to 400°C / –418 to 752°F 30 seconds

Thermocouple Probes

All probes listed below include an integral handle and a 5-ft coiled cable with a miniconnector.
General purpose and penetration probes feature a grounded junction for fast response.Shpg wt 0.2 lb (0.1 kg)

See bulletin TEMP B1 for information on OAKTON ACORN thermistor and RTD thermometers.

NIST-Traceable Calibration and Certificates are available;

please contact your authorized OAKTON distibutor for more information.
