A quick guide to your
Xda Orbit
Contents
Section 1
Getting started 2
Install the memory card
and SIM card 2
Insert the memory
and SIM cards 3
Install and charge the battery 4
Turn on and set up
for the first time 6
Check the battery power 7
Enter your PIN 7
Synchronise with your
PC or laptop 8
Section 2
Using your Xda Orbit 12
Mobile phone 12
A world of connections 12
Internet and messaging 13
Video, pictures and audio 13
Setting up ISP
email accounts 14
Set up a POP3/IMAP4
email account 14
Microsoft Direct Push Email 15
In the Box 16
A tour of your Xda Orbit 20
Status indicators 28
Section 3
Help and troubleshooting 32
General questions 34
2
3
2. Insert the memory*
and SIM cards
Now gently slide both the memory
SD card and the SIM card into
their holders, with their gold
contacts facing down.
(The cut-off corner of the SIM
card should mirror the corner
in the SIM card slot).
Press down the memory card
holder to close and lock it in
place. Then close the SIM card
holder and slide it upwards to
lock it in place.
Finally replace both the battery
(see instructions in the next
section) and the battery cover.
* There is no memory card contained in the standard box.
Getting started
1. Install the memory
card and SIM card
Firstly, make sure your Xda Orbit
is turned off before you install any
cards. Then remove the battery
by sliding the battery cover latch.
You’ll find this at the bottom of
your Xda Orbit. If the battery is
inside, simply remove it with your
finger by lifting the upper right
side of the battery slot.
Slide the SIM card holder
downward to unlock it, then
lightly flip it open. Then open
the memory card holder.
4
5
Top Tip: Some batteries
perform best after several
full charge and discharge
cycles. There’s two ways to
charge the battery:
– you can connect your
Xda Orbit directly to an
electrical outlet using
the AC adapter
– you can plug the sync
cable to the USB port
on your PC and to the
sync connector on your
Xda Orbit.
3. Install and charge
the battery
You will receive the new
batteries partially charged. But
before you start using your Xda
Orbit, you will need to install and
fully charge the battery.
To install the battery, remove the
battery cover first and insert the
battery. The gold connectors on
the battery should meet with the
row of connectors on the left
side of the battery slot. Insert the
left side of the battery first, then
gently push it down into place
(there will be a small click as it is
locked into position) and replace
the battery cover.
Lights on the LED indicator on
your Xda Orbit will show the
battery status:
When your Xda Orbit is off a
solid amber light shows when
it is charging
When your Xda Orbit is on, a
solid amber light and a charging
icon on the Today screen will
show when it is charging
After the battery has been fully
charged, a green light and full
battery icon appears on the
Today screen.
6
7
5. Check the battery power
Tap the battery level icon
on the Today screen. The power
settings screen will open and
display the current battery
power level.
A warning message will show
if the battery power is very
low. If you see this, you should
immediately save your data by
synchronising with your PC, or
back-up data on a secondary
storage card, and then turn off
your Xda Orbit. Do not restart
it until you have connected it
to the power adapter.
Press power again to turn off
your Xda Orbit.
6. Enter your PIN
When your Xda Orbit restarts,
it may ask you to enter the PIN
for your SIM.
Tap in your PIN and select Enter.
If you’re an O2 Ireland customer,
please enter the PUK code
supplied with your SIM or call
Customer Service on 1909
4. Turn on and set up
for the first time
Turn on your Xda Orbit by
pressing the power button on
the right-hand edge.
A welcome screen will appear.
It will prompt you to Tap
the screen to set up your
Xda Orbit. You can do this
by following the on-screen
instructions.
Your Xda Orbit will start to set
itself up and add applications
supplied by O2. After about
two minutes, you’ll see a
customisation screen which lets
you tailor some options on your
Xda Orbit. These are:
Basic: configures your
connection settings and adds extra
touches so that your Xda is even
easier to use. We recommend you
to use this setting as standard.
Corporate: a tailored solution
from O2. No settings or O2
enhancements are installed –
this option is only available if
your Xda Orbit is supplied by
your IT manager.
Now choose your country and
connection settings.
Tap OK to complete your set
up. Your Xda Orbit will then
restart itself.
8
9
Top tip: you’ll block your SIM
card if you enter the wrong
PIN three times. This means
you won’t be able to make
or receive any calls, texts or
picture messages.
Don’t worry – you can easily
sort this out by contacting
your service provider. They’ll
unblock it for you right away.
7. Synchronise with your
PC or laptop
Microsoft® ActiveSync® lets you
synchronise information on your
Xda Orbit with your PC such as
Inbox, Calendar, contacts and
tasks within Microsoft Outlook®.
The software is already installed
on your Xda Orbit but you will
need to install it on your PC if
you haven’t already.
To do this, insert the Getting
Started CD included in your
Xda Orbit box into the CD drive
of your PC and follow the simple
on-screen wizard.
When it’s installed just connect
the USB cable to your PC and
start synchronising.
Now that you’re set up,
let’s get going!
Section 2
12
13
Internet and messaging
Use Outlook Mobile to send and
receive emails with attachments,
keep track of meetings and
events and keep in sync with
Outlook on your PC.
You can also get real time access*
to email using Microsoft Direct
Push Email if your company has
Microsoft Exchange 2003 or
above. This means you can get up
to the minute access to your Inbox,
Contacts and Calendar.
You can download, view and
edit email attachments using
mobile versions of Microsoft
Office applications such as
Word, Excel and Powerpoint.**
And create and send picture
messages or text your contacts
for a fast response.
The Internet Explorer Mobile
gives you fast connection to the
Internet. Do your banking, check
stock prices or catch up with the
day’s news.
Video, pictures and audio
Take detailed pictures or shoot
video with sound. The Xda Orbit
has a high-resolution camera
built-in with flash, and a clear,
high-quality colour screen.
Your Xda Orbit also comes with
FM Radio on board. Plug your
headphones in (they act as an
antenna) and simply select Start
> FM Radio to start listening.
* Subject to coverage and your company’s IT infrastructure, permissions and policies.
** Applies to read only for Powerpoint.
Mobile phone
Use your Xda Orbit just like a
mobile phone to keep in contact,
get in touch with the office or
send text and picture messages.
A world of connections
Xda Orbit supports GPRS and
Wireless LAN so there’s a choice
of connecting to the Internet at a
range of speeds. Just choose the
network that works best wherever
you are. Bluetooth™ means you’re
wire free and can use your Xda
with car kits and headsets.
Your Xda Orbit comes with GPS
(Global Positioning System)
built in. That means that you
can enjoy a wide variety of GPS
services, the most widely known
are Satellite Navigation, Friend
Finder and Find My Nearest.
If you have purchased the
Satellite Navigation solution
with your Xda Orbit, refer to
the instruction manual in the
additional pack. If you would
like to purchase the Satellite
Navigation pack for your Xda
Orbit, please speak to O2.
Using your Xda Orbit
14
15
Microsoft Direct Push Email
Xda Orbit is powered by Windows
Mobile, a pocket-sized version
of Microsoft Windows. It has
all the features of a top of the
range PDA and mobile phone,
and also gives you real-time
access to your Inbox, Calendar,
Contacts synchronised on your
device automatically over the air
with your email account.*
To receive real-time access to
your Outlook files, your company
needs to be running Microsoft
Exchange Server 2003 Service
Pack 2 with your Xda Orbit
which has the latest Windows
Mobile 5.0 software.
Your IT department will need to
enable wireless services on the
Exchange Server and also set up
relevant IT security policies and
permissions such as password
requirements.
To find out how to use Microsoft
Direct Push Email with your O2
Xda Orbit go to our website:
www.o2.co.uk/xda
Setting up ISP
email accounts
The email Setup Wizard
makes it easy and simple to
set up your Outlook email
and POP3/IMAP4 accounts.
Set up ISP email accounts
using email Setup Wizard
1. Tap Start > Messaging.
2. Tap Menu > Tools >
New Account to access
the email Setup Wizard.
3. The email Setup Wizard
guides you step-by-step
through the setup process
Set up a POP3/IMAP4
email account
You can set up a POP3 or IMAP4
email account if you have an
email account with an Internet
service provider (ISP) or an
account that you access using a
VPN server connection (typically
a work account).
1. Tap Start > Messaging.
2. Tap Menu > Tools >
New Account.
3. On the first email Setup
screen, select Other (POP3/
IMAP) from the Your email
provider list, then tap Next.
4. On the next screen, enter your
email address, and tap Next.
Auto configuration will help
you download necessary email
server settings.
5. Once Auto configuration
has finished, tap Next.
6. Enter your name (the
name you want displayed
when you send email) and
your password.
Top Tip: Select the Save
password check box if you
want to save your password.
*Subject to your company’s IT infrastructure, permissions and policies.
16
17

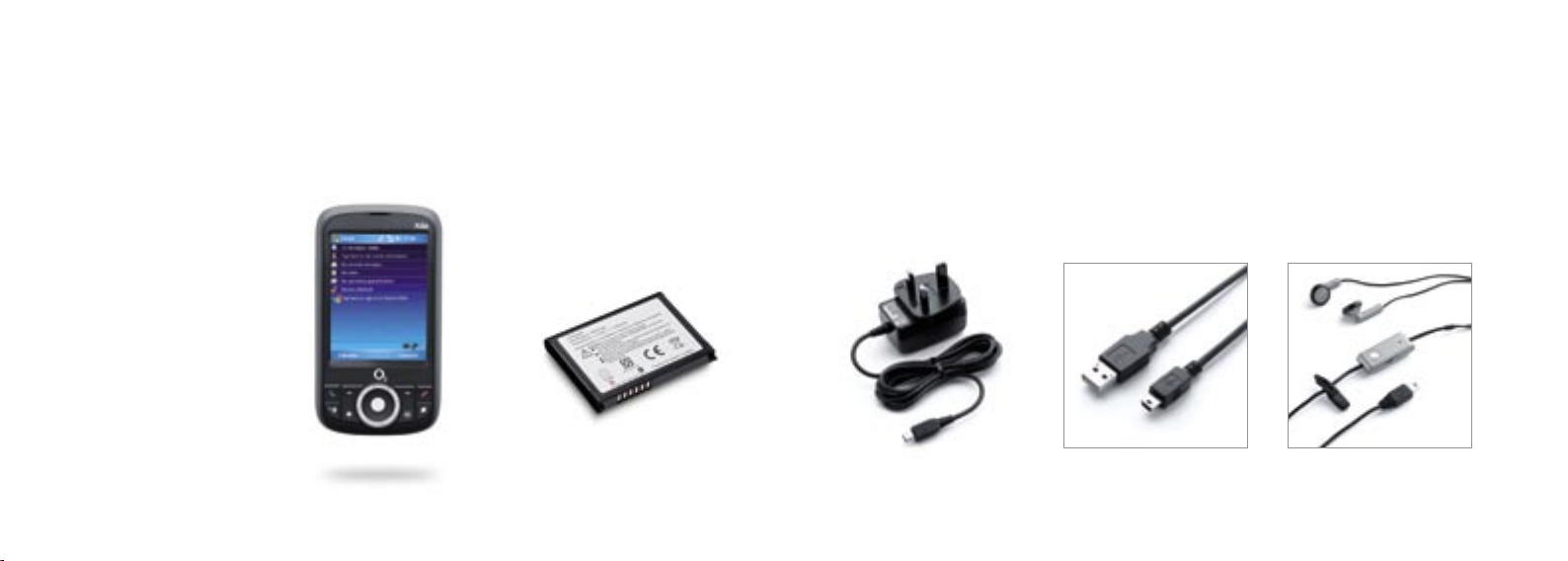

AC Adapter
for recharging your Xda battery.
Connection cable
to connect your Xda to a
PC for synchronising data
and charging.
Hands-free stereo headset
make sure you connect this
headset when you use the
FM Radio as it uses the headset
as an antenna.
In the Box
Xda Orbit
your all in one phone
and GPS PDA
Xda Orbit battery
to power your Xda
18
19
Microsoft Windows Mobile
Getting Started CD
including Microsoft Outlook
2002 and Microsoft Active Sync
v4.2 applications
Applications CD
including GPRS monitor,
Clearview PDF Viewer
and Wireless USB Modem
drivers applications
O2 may change the contents of the Xda Orbit box in the future.
The images here are purely to illustrate what’s in the box, the actual contents may look slightly different.
Quick Start Guide
this booklet
Microsoft Windows Mobile
5.0 user guide
Warranty card for Europe
20
21

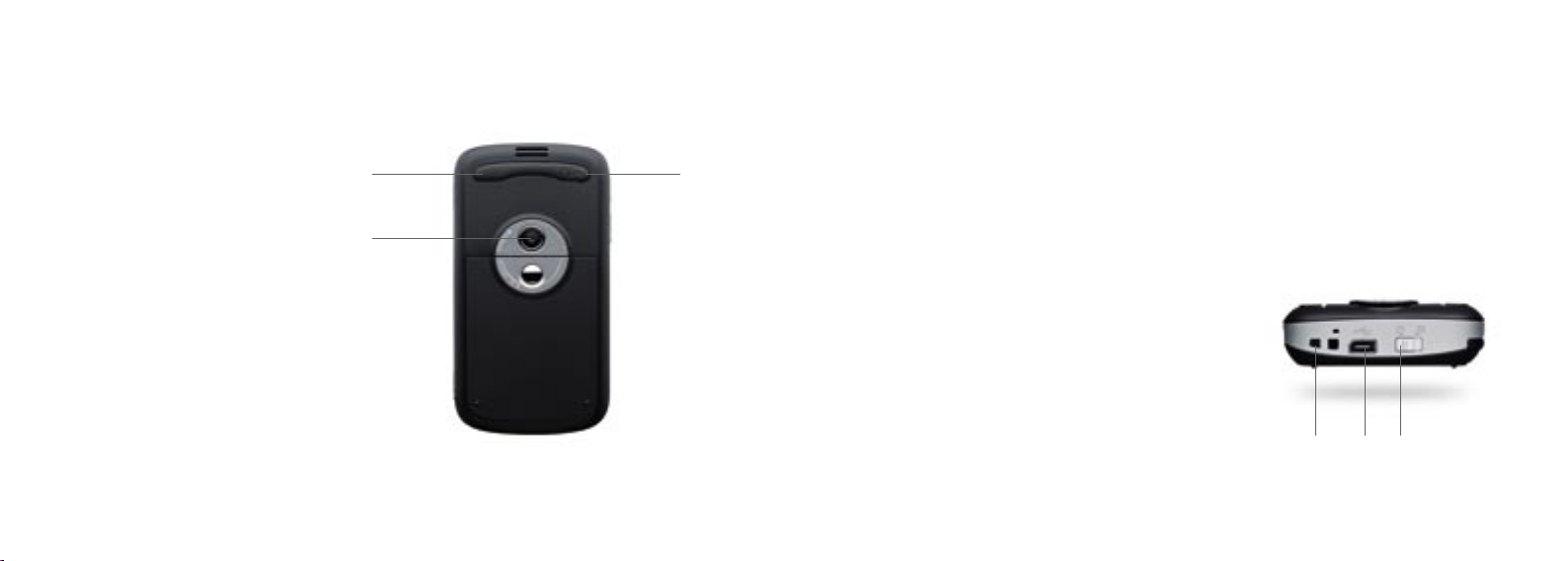

2. Notification light
on right
This bi-colour LED shows green
and amber lights for GSM/GPRS
standby, message, and network
status. It will also let you know
the status of the battery.
3. Left and right soft keys
Press to execute the command
shown in the label above
the button.
4. Talk button
Press to answer an incoming
call or dial a number.
5. GPS button
Press to access messages or launch
the GPS software if installed.
6. Start button
Press to open the Start menu.
7. Trackball
Roll up, down, left, or right
to move through menus
and programme instructions.
Press the trackball to carry
out the selection.
Use the trackball as a shutter
release when using the camera.
Use the trackball to move
around a GPS map when
using the GPS software.
8. OK button
Press to confirm your data entries
or to exit the existing programme.
9. End button
Press to end a call or return
to the Today screen.
10. Internet Explorer button
Press to launch Internet
Explorer Mobile.
A tour of your Xda Orbit
1
1. Notification lights
on left
This LED light indicates
the following:
• a blinking blue light will show
when Bluetooth is poweredup and ready to transmit
radio frequency signal
• a blinking green light for
Wi-Fi status
• alternate blinking lights
display when both Bluetooth
and Wi-Fi are enabled
• an amber light indicates the
GPS status
2
3
4
5
9
10
6 87
22
23
14. Battery cover
Slide it out to access the
battery compartment.
15. Stylus
You can use the stylus to write,
draw or select items on the
touch screen.
15
14
11. Touch screen
Tap the screen with the stylus
to write, draw or select.
12. Track wheel
You can turn this clockwise
or counterclockwise to move
through items on the screen
or in a menu.
Use it for zooming when you use
the camera or the GPS software.
13. Status Indicators
The Today screen displays
important information, such as
upcoming appointments and
status indicators. Some of the
status icons that you may see
on your Xda Orbit are listed
on pages 28–29
12
11
13
24
25
19. Power button
Press power to turn off the display
temporarily. This will switch it to
Sleep mode. You can still receive
calls and messages when your
Xda Orbit is in Sleep mode.
Press and hold for about five
seconds to turn off the power
completel y. This makes all
the funct ions, including the
phone, unavailable.
20. Camera button
Press to launch the camera and
press again to take a photo or
video clip, depending on the
specified capture mode.
19
20
16. Voice command button
Press to start Voice Speed Dial;
press and hold to record a
voice note.
17. Volume slider
Slide it up or down to adjust the
speaker volume.
Slide it up or down to adjust the
earpiece volume during a call.
18. Reset button
Press the Reset button with the
stylus to soft-reset your Xda Orbit.
16
17
18
26
27
24. Strap holder
This lets you attach a strap for
carrying your Xda Orbit.
25. Sync connector/
earphone jack
Use this connector to synchronise
data by connecting the provided
USB Sync cable or to recharge
the battery via the provided
AC adapter. You can also use the
USB stereo headset for handsfree conversation or to listen to
FM radio and audio media. The
stereo headset acts as an antenna.
26. Battery cover latch
Slide this latch to release the
battery cover.
2524 26
21. Car antenna connector
You can connect your Xda Orbit
to the car antenna to boost your
reception while in the car.
22. GPS antenna connector
You can connect an external
GPS antenna to get a better
GPS signal.
23. Camera
Use the c amera to take still
photos and record video clips.
21 22
23
28
29
Status icon Meaning
No SIM card inserted
Battery is fully charged
Battery power is very low
Battery charging
Device is locked
Device is unlocked
Bluetooth headset detected
QuickGPS update notification
GPRS Monitor currently active
Serial USB connection active
The USB to PC icon*
Status icon Meaning
ActiveSync notification
Wi-Fi function enabled, but the Xda Orbit is
not yet connected to a wireless network
Wireless network(s) detected
Connecting to wireless network
(arrows moving);
Connected to wireless network
Synchronising via Wi-Fi
Vibration mode
Sound on
Sound off
Alarm
*The USB to PC icon appears on the Today screen when you are connected to your computer with a serial USB connection.
For more information about USB to PC, refer to the user manual.
Status indicators
Status icon Meaning
New email or text messages;
SMS notification of voicemail
New multimedia (MMS) message
New MSN message
There are more notifications.
Tap the icon to view all.
Speakerphone on
Dialing while no SIM card is inserted
Voice call in progress
Calls are forwarded
Call on hold
Missed call
Maximum signal strength
Status icon Meaning
No signal
Phone is turned off
No phone service
Searching for phone service
GPRS available
GPRS connecting
GPRS in use
Roaming
Connection is active
Connection is not active
Synchronisation in progress
Synchronisation error
Section 3
32
33
Help and troubleshooting
Help online
Need technical help with your
Xda Orbit? Send an email to
our support team:
(UK) o2datasupport@o2.com
(EIRE) support@o2.ie
We will try to get back to you
within 24 hours or on the next
business day.
Talk to us
Your service provider will be
able to help if you have any
general questions about your
Xda Orbit, questions about
charges on your account or
activation of O2 services.
You’ll find their contact details
printed on your monthly bill.
If you’re a corporate customer,
we recommend you contact your
internal help desk.
34
35
What are the maximum
speeds of GPRS?
In GPRS mode, Xda Orbit
supports a maximum download
speed of up to 53kbps and an
upload speed of up to 26kbps.
How do I turn the phone
off and go into PDA mode?
Tap the antenna icon at the top
of the screen and select Turn on
flight mode.
Why when I press the
GPS button does it take
me to messages?
If the GPS Satellite Navigation
software has not been installed this
button will default to messages.
To install the software, follow
the installation instructions in
the GPS pack.
When I’m overseas, why
do I see a white triangle
at the top of the screen?
The triangle means you’re
roaming on a foreign network
and roaming charges apply.
Can I use software
designed for the previous
Xda series or Windows
Mobile® 2003 with my
Xda Orbit?
Xda Orbit uses Microsoft
Windows Mobile 5.0 as the
core system. Applications
written for the Xda II family
(such as IIs or IIi) may not work
correctly. You should contact the
software vendor to check if the
application will work correctly
with Windows Mobile 5.0.
Can I receive phone calls or
text messages while using
the internet or synchronising
email on my Xda Orbit?
You can make and receive phone
calls when using Wireless LAN.
If you’re actively using your
connection in GPRS mode, your
phone calls will be forwarded
based on your settings – the
default is to divert to voicemail
(if it’s set up) or another number.
However, you can make and
receive calls if your GPRS is idle.
General questions
36
Can I close applications
using one of the buttons?
Press the End call key, or tap
the X in the top right corner
of the ap plication.
How can I display my
own number?
Choose Start > Programs >
SIM Manager > Tools > List of
Own Numbers. Tap number 1
in the list. Tap in your name and
mobile number. Tap Change.
Tap OK to exit. If you choose
Phone > Menu > Options,
you’ll see your number.
How can I delete email
from my ISP mail server?
By default, your Xda will only
download a copy of the email
from your mailbox. To delete
them from your mailbox, select
Start > Messaging > Inbox
> Menu > Tools > Options >
Storage. Change the Empty
deleted items dropdown box
to Immediately.
The next time you synchronise
with your mailbox, the emails
should be deleted. However, your
Internet Service Provider (ISP) may
not support this service.
TOP TIP: To find out
more you can check out
the latest “Frequently
Asked Questions” at
www.o2.co.uk/xda
o2.co.uk
O2 (UK) Limited, 260 Bath Road, Slough, Berks, SL1 4DX.
Registered in England No.1743099. Registered office as above.
© O2 (UK) Limited 2001-2006. Correct at time of going to press (10/06)
The Bluetooth ® word and logos are owned by the Bluetooth SIG, Inc.
Windows Mobile is a trade mark or registered trade mark of Microsoft Corporation
in the United States and/or other countries.
O2BU032N LN 1006.
Loading...
