A quick guide to your Xda
®
IQ
Contents
Section 1
Getting started 2
Remove the rear cover 2
Insert your SIM card 2
Insert the battery and
replace the cover 3
Charge the battery 4
Turn on and set up
for the fi rst time 4
Enter your PIN 6
Synchronise with your PC 7
Section 2
Using it 10
Work more conveniently 10
Mobile phone 10
Internet and messaging 10
Video and pictures 10
A world of connections 10
A tour of your Xda IQ 12
In the box 16
Section 3
Help and troubleshooting 22
General questions 24
Getting started
1. Open the rear cover
Remove the rear cover by placing
the phone in one hand with the
keypad facing down in the palm
of your hand. Press down on the
back cover with your other hand
and slide it open in the direction
of the arrow.
2. Insert your SIM card
Open the SIM card door on the
lower right. Insert the SIM card
into the door with its gold-plated
contacts facing down. Close the
door and press down to lock it.
Please be careful not to force any
of the SIM reader components,
as this may cause damage.
It doesn’t take much pressure
to insert the SIM correctly.
2 3
3. Insert the battery
and replace the cover
Carefully connect the battery
so the gold contacts connect
with the row of connectors
on the top left hand side of
the Xda IQ (just below the
camera lens). You can only fi t
the battery one way and you
shouldn’t need to use force.
Gently press the battery down
to secure it (there’ll be a small
click as it’s locked into place).
Slide the battery cover towards
the camera lens then lightly snap
into place.
Smart IQ: it’s a good
idea to charge the battery
for at least eight hours
before you use your
Xda IQ for the fi rst time.
4. Charge the battery
You need to charge the battery
fully before using your Xda IQ
for the fi rst time.
Connect the AC charger to your
Xda IQ and plug it into the wall.
We recommend you use the
AC adaptor the fi rst time you
charge your Xda IQ, and not the
PC synchronisation cable.
A solid amber light shows
your Xda IQ is being charged.
This light will turn green when
the battery is fully charged.
4 5
5. Turn on and set up
for the fi rst time
Turn on your Xda IQ by pressing
the power button on the top
left-hand edge.
Your Xda IQ will start to set itself
up and add settings supplied by O
.
2
Smart IQ: you’ll block
your SIM card if you
enter the wrong PIN
three times. This means
you won’t be able to
make or receive any
calls, texts or picture
messages. Don’t worry
– you can easily sort this
out by contacting your
service provider. They’ll
unblock it for you
right away.
6. Enter your PIN
When your Xda IQ restarts,
it may ask you to enter the
PIN for your SIM. All new
connections to O
PIN on their SIM.
Tap in your PIN and select Enter.
If you’re an O2 Ireland customer,
please enter the PUK code
supplied with your SIM or call
Customer Service on 1909.
have a
2
6 7
7. Synchronise with your PC
Because your Xda IQ is designed
to complement your PC as a
smartphone, you can work with
the same information in both
places. You can synchronise
your Xda IQ with Microsoft®
Outlook® on your PC. This will
let you keep a copy of your
address book, appointments
and emails on both your Xda IQ
and computer. Whenever you
add appointments or write
emails on your phone, you
can copy them across to your
PC each time you connect.
This way, you’ll always have a
back up copy of your information.
To synchronise your Xda IQ
with your Windows PC,
you need to install Microsoft
ActiveSync® 4.1. You’ll fi nd
ActiveSync on the Getting
Started CD in your Xda IQ box,
along with a copy of Microsoft
Outlook 2002 and a single
PC licence.
After you’ve installed ActiveSync,
connect the USB cable to your
PC and Xda IQ, then follow
the on-screen instructions to
get synchronised.
Now you’re set up,
let’s get going.
Section 2
W
a
d
m
o
t
M
• Windows Mobile 5.0 Smartphone Edition • 110 grams • 2.2” QVGA, 64k transfl ective colour backlit LCD • 64MB Flash ROM 64MB RAM • TI OMAP 850, 200MHz • Up to 4 hours talk time • Up to 150 hours standby time • GSM/GPRS Quad-band (850/900/1800/1900) • Mini SD slot •
LAN 802.11b • GPRS class 10 • Speakerphone • Video and MP3 playback • Bluetooth 2.0 and Infrared and Mini USB Connector • 2.5mm Audio Connector • Voice dialling and voice recorder • Integrated 1.3 mega pixel camera • Microsoft Pocket Outlook (Inbox, Contacts, Calendar, T
2.2” QVGA, 64k transfl ective colour backlit LCD • 64MB Flash ROM 64MB RAM • TI OMAP 850, 200MHz • Up to 4 hours talk time • Up to 150 hours standby time • GSM/GPRS Quad-band (850/900/1800/1900) • Mini SD slot • Wireless LAN 802.11b • GPRS class 10 • Speakerphone • Vi
MP3 playback • Bluetooth 2.0 and Infrared and Mini USB Connector • 2.5mm Audio Connector • Voice dialling and voice recorder • Integrated 1.3 mega pixel camera • Microsoft Pocket Outlook (Inbox, Contacts, Calendar, Tasks)• Windows Mobile 5.0 Smartphone Edition • 110 gra
2.2” QVGA, 64k transfl ective colour backlit LCD • TI OMAP 850, 200MHz • Up to 4 hours talk time • Up to 150 hours standby time • GSM/GPRS Quad-band (850/900/1800/1900) • Mini SD slot • Wireless LAN 802.11b • GPRS class 10 • Speakerphone • Video and MP3 playback • Blueto
and Infrared and Mini USB Connector • 2.5mm Audio Connector • Voice dialling and voice recorder • Integrated 1.3 mega pixel camera • Microsoft Pocket Outlook (Inbox, Contacts, Calendar, Tasks)• Windows Mobile 5.0 Smartphone Edition • 110 grams • 2.2” QVGA, 64k transfl ec
colour backlit LCD • 64MB Flash ROM 64MB RAM • TI OMAP 850, 200MHz • Up to 4 hours talk time • Up to 150 hours standby time • GSM/GPRS Quad-band (850/900/1800/1900) • Mini SD slot • Wireless LAN 802.11b • GPRS class 10 • Speakerphone • Video and MP3 playback • Bluet
and Infrared and Mini USB Connector • 2.5mm Audio Connector • Voice dialling and voice recorder • Integrated 1.3 mega pixel camera • Microsoft Pocket Outlook (Inbox, Contacts, Calendar, Tasks)• Windows Mobile • 110 grams • 2.2” QVGA, 64k transfl ective colour backlit LCD •
Flash ROM 64MB RAM • TI OMAP 850, 200MHz • Up to 4 hours talk time • Up to 150 hours standby time • GSM/GPRS Quad-band (850/900/1800/1900) • Mini SD slot • Wireless LAN 802.11b • GPRS class 10 • Speakerphone • Video and MP3 playback • Bluetooth 2.0 and Infrared and
Using it
Work more conveniently
The Xda IQ is one of the most
powerful connected handhelds
available. It gives you more
control over the way you
work – and where you work.
It keeps you in touch wherever
you go. You can access contact
information, browse the web,
send emails, track appointments
and much more.
Mobile phone
Make and receive calls to keep
in contact. Get in touch with the
offi ce, or send text messages.
Internet and messaging
Use Outlook Mobile to send
and receive emails with
attachments, keep track of
meetings and events, and
keep in sync with Outlook
on your PC. Compose and
send picture messages or
text your contacts for a
speedy response.
Internet Explorer Mobile gives
you fast connection to the
Internet. Do your banking,
check your market prices or
catch up with the day’s news.
Video and pictures
Take detailed pictures or
shoot video with sound.
The Xda IQ has a high-resolution
camera and a clear high-quality
colour screen.
A world of connections
With onboard support for
GPRS and Wireless LAN,
you have several ways of
connecting to the Internet
at a range of speeds. Just
choose what suits you and
your location. Bluetooth
means you’re wire free
and can use your Xda IQ
with car kits and headsets.
Status Meaning
icon
Battery is fully charged
Battery is only 20% full
You’ll need to charge it soon
Battery is nearly empty
Battery is empty
You’re connected to a foreign network
(you’re roaming)
You’re in an area of GPRS coverage
You are connecting/connected to GPRS
Battery is being charged
Speakerphone is active
You’ve missed a call
Status Meaning
icon
Searching for an accessible Wireless LAN hotspot
Connected to a Wireless LAN hotspot
New instant message in MSN Messenger
New email, text or picture message(s)
Phone is on with strong coverage
Coverage is average
Coverage is poor
Phone is searching for a network to connect to
Phone is switched off
There’s no network available to connect to,
or no SIM in your Xda
10
15
In the box
Xda IQ
your all-in-one phone
and hand-held PC
16
Xda IQ case
to protect and carry your phone
Xda IQ battery
to power your phone
Microsoft Windows Mobile
Getting Started CD
including ActiveSync and
Outlook 2002
Xda® IQ
Portions © 2005
®
ActiveSync® 4.1 Connectivity
6
9
H
1
0
0
4
5
-
1
e
6
M
V
®
Outlook® 2002
0
0
2
/
2
A
.
r
17
Microsoft Corporation.
All rights reserved
5
Getting Started CD
with Windows Mobile™ software
Includes Microsoft
Software and Microsoft
Application CD
ClearVue Document Suite,
Wireless Modem USB Driver
Xda® IQ
Application CD
ClearVue Document Suite
Wireless Modem USB Driver
6
5
9
0
H
0
2
2
0
/
0
2
3
A
8
.
-
r
1
e
0
M
V

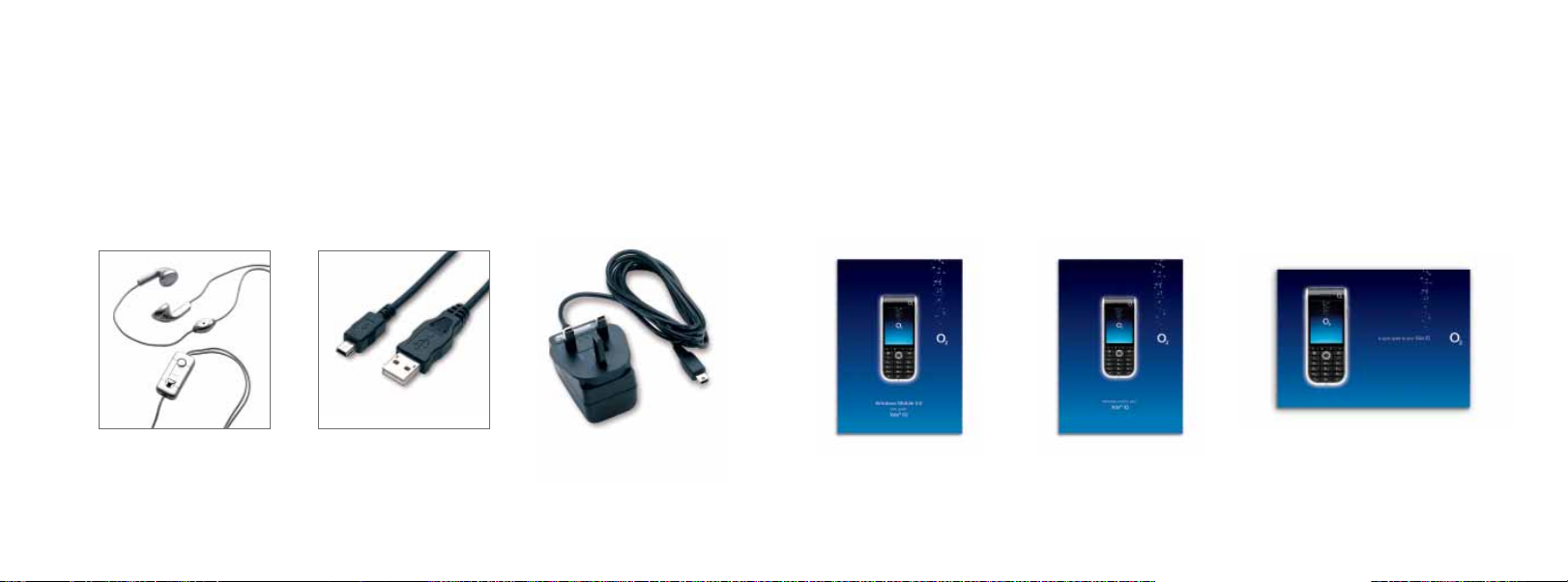

Handsfree stereo headset
