O2 Xda Graphite E2695, Xda Graphite User Manual

Download

User Manual

Xda Graphite

E2695

First edition

January 2007

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of O2 (UK) Limited (“OO2 (UK)”).”).

The Bluetooth® trademark is owned by Bluetooth SIG, Inc The Java™ and all Java-based marks are either trademarks or registered trademarks of Sun Microsystem, Inc Product warranty or service will not be extended if: (1) the product is repaired, modiﬁed or altered, unless such repair,

modiﬁcation or alteration is authorised in writing by O

(UK); or (2) the serial number of the product is defaced or; or (2) the serial number of the product is defaced or

missing. O2 (UK) PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,(UK) PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,

INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL O2 (UK), ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF O2 (UK) HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN(UK) HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR INHAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY O2 (UK). O. O2 (UK) ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR(UK) ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS ORASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Microsoft®, ActiveSync™, Outlook®, Pocket Outlook®, Windows®, and the Windows® logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or in other countries. Microsoft products are licensed to OEMs by Microsoft Licensing, Inc., a wholly owned subsidiary of Microsoft Corporation.

Safety Information

Speciﬁc Absorption Rate (SAR)

Your O2 Xda Graphite has been designed, manufactured and tested not to exceed the limits for exposure to electromagnetic ﬁelds recommended by the Council of the European Union. These limits are part of comprehensive guidelines developed by independent scientiﬁc organisations.

European standards provide for the amount of radio frequency electromagnetic energy absorbed by the body when using a phone to be measured by reference to the Speciﬁc Absorption Rate (SAR). The SAR limit for the general public is currently 2 watts per kilogram averaged over 10 grams of body tissue.

The maximum SAR value for the O2 Xda Graphite is 0.878 W/kg @10g (CE).0.878 W/kg @10g (CE).

Phone care

You should never attempt to open the phone casing. There are no user-serviceable parts inside and you might

damage sensitive electronic circuits and components. Unauthorised disassembly will void the warranty.

You should never leave your phone in the window of your car or otherwise expose it to strong sunlight or excessive heat for a prolonged period. This may damage it.

You should never handle your phone with wet hands or expose it to moisture or liquids of any kind. Continuous changes from a cold to a warm environment may lead to condensation inside the phone, resulting in corrosion and possible damage.

If you pack your phone in your suitcase during travel, beware of damage. Cramming a suitcase may crack the LCD display. Remember to switch off your wireless connections during air travel.

As with all other radio devices, touching the built-in antenna area during telephone conversation may impair the quality and lead to shorter standby time due to increased power consumption.

The battery

Your phone is equipped with a high-performance Li-Ion battery. Optional battery types may be available; check with your local retailer. Observe the maintenance guidelines and your battery should give you a long service life.

• At the beginning of the battery’s life, fully charge and discharge (let it go ﬂat) three times.

• Do not overcharge the Li-Ion battery, as this can result in a reduction in battery performance and lifespan. The recommended maximum charge time is 2.5 hours.

Avoid repeated short charging. It is preferable to let the battery go ﬂat and then recharge it completely.

• Avoid charging in strong heat or extreme cold. Ambient room temperature is preferable. The battery has its optimum performance in an ambient temperature of +5 °C to +50 °C.

• Do not store a battery near a ﬁre or heat source.

• Use only the battery approved by the manufacturer.

• Never replace the battery with a non-approved battery.

• Never soak the battery in water or any other ﬂuid.

• Never try to open the battery as it contains substances that might be harmful if swallowed or allowed to come into contact with unprotected skin.

• Never short-circuit the battery, as it may overheat and cause a ﬁre. Keep it away from jewellery and other metal objects.

• Never dispose of the battery in a ﬁre. It could explode and release harmful substances into the environment.

• Never dispose of the battery with your regular household waste. Take it to a hazardous material collection point.

The charger

• Use only the charger supplied with your phone.

WARNING!

There is a risk of explosion if the battery is replaced by an incorrect type.

• Never pull the charger cord to release it from the mains – pull the charger itself.

Memory card

• Do not remove or insert a memory card or turn off the handset while data on the card is being edited.

• Do not touch the metal terminals with your hands or metal objects.

• Do not bend the memory card or subject it to violent impact. Keep it away from water and high temperatures.

• Keep all memory cards out of reach of small children.

• Do not short circuit the contact points or expose it to liquids or moisture. When not in use, keep it in the antistatic container it came in.

• Do not use force when inserting or handling the card, and do not expose it to excessive heat or strong magnetic ﬁelds.

Cleaning and storing

• Your phone should always be handled with care and protected from dirt, dust and dampness. To avoid scratches, never place your phone face down.

• If cleaning is necessary, switch the phone off and wipe carefully with a soft, slightly damp (not wet) cloth. Use a cotton swab to clean the camera lens. Allow the phone to dry completely before switching it on. Never use solvents for cleaning.

• Never expose your phone to moisture or liquids of any kind.

• Do not paint your phone or otherwise block the keypad, microphone or earpiece function, i.e. with stickers.

WARNING!

Failure to follow these instructions may lead to serious personal injury and possible property damage.

Driving safety

• Never use a handheld phone while driving. Use hands-free car kits or alternative handsfree accessories.

• For safety, we recommend the use of a cradle while using any form of handsfree accessory.For safety, we recommend the use of a cradle while using any form of handsfree accessory.

• While driving, we recommend that you use voicemail whenever possible, and that you listen to your messagesWhile driving, we recommend that you use voicemail whenever possible, and that you listen to your messages when you are not in the car. If you must make a handsfree call when driving, keep it brief.

• An airbag inﬂates with great force. Do not place objects, including both installed or portable wirelessAn airbag inﬂates with great force. Do not place objects, including both installed or portable wireless equipment, in the area over the airbag or in the airbag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inﬂates, serious injury could result.

Electronic devices

Most modern electronic equipment is shielded from RF energy.

However, certain electronic equipment may not be shielded against the RF signals from your Pocket PC phone.

Pacemakers

To avoid potential interference, the Health Industry Manufacturers’ Association recommends that a minimum separation of six (6”) inches be maintained between a phone and a pacemaker.

These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research.

If you have a pacemaker:

• Always keep your phone more than six inches from your pacemaker when turned on.

• Do not carry your phone in a breast pocket.

• Use the ear opposite the pacemaker to minimize the potential for interference.

• If you have any reason to suspect that interference is taking place, turn your phone off immediately.

Hearing aids

Some digital phones may interfere with some hearing aids. In the event of such interference, call O2 Customer Service to discuss alternatives.

Other medical devices

If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information.

Turn your phone off in healthcare facilities when any regulations posted in these areas instruct you to do so.

Hospitals or healthcare facilities may be using equipment that could be sensitive to external RF energy.

Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment added to your vehicle.

Posted facilities

Turn your phone off where posted notices so require.

Magnetic media

Magnetic ﬁelds generated by Smartphone may damage data on magnetic storage media, such as credit cards, computer discs or tapes. Do not place your phone next to such media.

You should never expose your Smartphone to strong magnetic ﬁelds as this may cause temporary malfunction.

Other Safety Guidelines

Aircraft

Regulations prohibit using your phone while in the air. Switch off your phone before boarding an aircraft or turn off the wireless connections.

Blasting areas

To avoid interfering with blasting operations, turn your phone off when in a ‘blasting area’ or in areas posted: ‘Turn off two-way radio.’ Obey all signs and instructions.

Potentially explosive environments

Turn your phone off when in any area with a potentially explosive environment and obey all signs and instructions.

Sparks in such areas could cause an explosion or ﬁre resulting in bodily injury or even death.

Areas with a potentially explosive environment are often, but not always, clearly marked. They include fuelling areas such as gas stations, below decks on boats, fuel or chemical transfer or storage facilities, vehicles using liquiﬁed petroleum gas (such as propane or butane), areas where the air contains chemicals or articles, such as grain, dust, or metal powders, and any other area where you would normally be advised to turn off your vehicle’s engine.

Choking

Keep your phone away from children as the SIM card and other small parts present a choking hazard.

Cautions

Your Smartphone is a high quality piece of equipment. Before operating, read all instructions and cautionary markings on (1) AC Adapter (2) Battery and (3) Product Using Battery.

• Do not use this equipment in an extreme environment where high temperature or high humidity exists.

• Do not abuse the equipment. Avoid striking, shaking or giving it a shock. When not using the unit, lay it down to avoid possible damage due to instability.

• Do not expose this equipment to rain or spilled beverages.

• Do not use unauthorised accessories.

• Do not disassemble the phone or its accessories. If service or repair is required, return the unit to an authorized service center. If the unit is disassembled, a risk of electric shock or ﬁre may result.

• Do not short-circuit the battery terminals with metal items.

About this guide

This document is provided as a user guide to the O2 Xda Graphite and to this system only. O2 Xda Graphite is a trademark of the O2 group of companies.

Mandatory statements

We hereby declare that the O2 Xda Graphite is in conformity with all essential requirements of Directive 1999/5/EC.

Year of Manufacturing: 2006

Notices

Regulatory Notices

Intended for use in the European Union.

Products with CE marking comply with the R&TTE directive (99/5/EC), the EMC directive (89/366/ECC), and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Norms (in parentheses are the equivalent international standards).

EN 301 908 Electromagnetic compatibility and Radio spectrum Matters (ERM); Base Stations (BS) and User Equipment (UE)

for IMT-2000 third generation cellular networks.

EN 301 489-24 Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC)

standard for radio equipment and services; part 24: Speciﬁc conditions for IMT-2000 CDMA direct spread (UTRA) for mobile and portable (UE) radio and ancillary equipment.

EN 60950-1 (IEC 60950-1) Safety of Information Technology Equipment.

ETSI EN 301 511 Global system for mobile communications (GSM); harmonised EN for mobile stations in the GSM 900 and

GSM 1800 bands, covering essential requirements of article 3.2 of the R&TTE directive (1995/5/EC).

ETSI EN 301 489-1 Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC)

standard for radio equipment and services; Part 1: Common technical requirements.

ETSI EN 301 489-7 Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility

(EMC) standard for radio equipment and services; Part 7: Speciﬁc conditions for mobile and portable radio and ancillary equipment of digital cellular radio telecommunication systems (GSM and DCS).

ETSI EN 301 489-17 Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic

Compatibility (EMC) standard for radio equipment and services; Part 17: Speciﬁc conditions for 2.4 GHz wideband transmission systems and 5 GHz high performance RLAN.

ETSI EN 300 328 Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems;

data transmissions equipment operating in the 2.4GHz ISM band and using spread spectrum modulation techniques.

ANSI/IEEE C.95.1-1992 Speciﬁc absorption rate in mobile phone emission conditions for body health

EN50360, EN50361, EN50371 for SAR

Contents

O2 Xda Graphite speciﬁcations ..................................................................................................................17

Package contents ...................................................................................................................................... 18

Chapter 1 Getting Started .............................................................................................................................................19

1.1 Getting to know your O2 Xda Graphite ..........................................................................................20

Front Features ................................................................................................................................. 20

Back Features ..................................................................................................................................21

Side Features ...................................................................................................................................22

Bottom Features ..............................................................................................................................22

1.2 Getting your device ready ............................................................................................................... 23

Installing the SIM/USIM card and the battery ................................................................................... 23

Installing and removing a microSD card ........................................................................................... 24

Charging the battery ....................................................................................................................... 25

1.3 Starting up ...................................................................................................................................... 26

Powering your device ...................................................................................................................... 26

1.4 The Home screen ...........................................................................................................................27

Status indicator icons .......................................................................................................................28

Start menu ...................................................................................................................................... 29

Quick List ........................................................................................................................................ 30

Chapter 2 Using Call features .......................................................................................................................................31

2.1 Making a call ................................................................................................................................. 32

Calling from the Home screen ......................................................................................................... 32

Calling a Contacts entry .................................................................................................................. 33

Calling a number from the Call History list ....................................................................................... 33

Calling using speed dial ...................................................................................................................34

Making emergency calls .................................................................................................................. 35

Making international calls ................................................................................................................35

2.2 Making and receiving a video call ...................................................................................................36

2.3 Responding to a call ........................................................................................................................ 36

2.4 Options during a call ......................................................................................................................37

Managing multiple calls ................................................................................................................... 38

Chapter 3 Synchronising with ActiveSync ....................................................................................................................39

3.1 Microsoft ActiveSync™ ..................................................................................................................... 40

3.2 Installing ActiveSync™ on your PC .................................................................................................... 41

3.3 Connecting your Smartphone to a PC .............................................................................................42

3.4 Creating a partnership .................................................................................................................... 42

3.5 Synchronising with a PC .................................................................................................................. 43

Changing information to synchronise .............................................................................................. 43

Using USB sync cable ....................................................................................................................... 44

Using Bluetooth® .............................................................................................................................44

3.6 Synchronising with an Exchange Server ...........................................................................................45

3.7 Creating a synchronisation schedule ................................................................................................46

3.8 Remote synchronisation ..................................................................................................................47

Chapter 4 Managing Your Smartphone ....................................................................................................................... 48

4.1 Personalising your Smartphone ....................................................................................................... 49

Settings screens ............................................................................................................................... 49

Personalising your Home screen .......................................................................................................50

Setting the date, time, and alarm .................................................................................................... 50

Changing regional settings ..............................................................................................................51

Changing proﬁle settings ................................................................................................................51

Customising sounds for ring tones ..................................................................................................52

Entering your contact information ................................................................................................... 53

4.2 Improving performance ...................................................................................................................53

Changing accessibility settings .......................................................................................................... 53

Changing power settings .................................................................................................................54

4.3 Turning on/off wireless mode .......................................................................................................... 54

4.4 Keeping your Smartphone secure ....................................................................................................57

Locking the keys and multimedia player controls ............................................................................. 57

Locking the SIM/USIM card .............................................................................................................. 57

Locking your Smartphone ................................................................................................................ 58

Controlling outgoing calls ...............................................................................................................59

Blocking incoming/outgoing calls ....................................................................................................59

4.5 Setting network options .................................................................................................................. 60

4.6 Restarting your Smartphone ............................................................................................................60

4.7 Resetting your Smartphone .............................................................................................................60

4.8 Adding and removing programs ...................................................................................................... 61

4.9 Managing and backing up ﬁles ....................................................................................................... 62

Using File Explorer .......................................................................................................................... 63

Chapter 5 Getting Connected ...................................................................................................................................... 65

5.1 Connecting to the Internet ..............................................................................................................66

Dial-up connection .......................................................................................................................... 66

GPRS, Proxy, and VPN connections ..................................................................................................67

GPRS connection .............................................................................................................................67

Proxy connection .............................................................................................................................67

VPN connection ............................................................................................................................... 67

Changing option settings ................................................................................................................ 68

Adding a URL exception .................................................................................................................. 68

5.2 Using your Smartphone as an external modem ...............................................................................69

Setting up a USB connection ........................................................................................................... 69

5.3 Using Internet Explorer Mobile ........................................................................................................71

Launching the Internet Explorer .......................................................................................................71

5.4 Using Bluetooth® ...........................................................................................................................73

Setting the Bluetooth® mode ...........................................................................................................73

Creating a Bluetooth® partnership ................................................................................................... 74

Pairing with a Bluetooth headset ..................................................................................................... 74

Chapter 6 Messaging ..................................................................................................................................................... 77

6.1 Entering text and numbers ..............................................................................................................78

Using Multipress mode ....................................................................................................................79

Using T9 mode ................................................................................................................................79

Using Numeric mode .......................................................................................................................80

6.2 Setting up accounts ........................................................................................................................ 82

6.3 Managing accounts ........................................................................................................................83

6.4 Text and e-mail messages ................................................................................................................ 84

Downloading e-mail messages ........................................................................................................85

Synchronising e-mail messages .......................................................................................................86

6.5 MMS messaging ............................................................................................................................. 87

Accessing MMS ...............................................................................................................................87

Editing MMS settings ......................................................................................................................87

Composing and sending an MMS message .....................................................................................87

6.6 Using Pocket MSN ..........................................................................................................................90

Using MSN Messenger ....................................................................................................................90

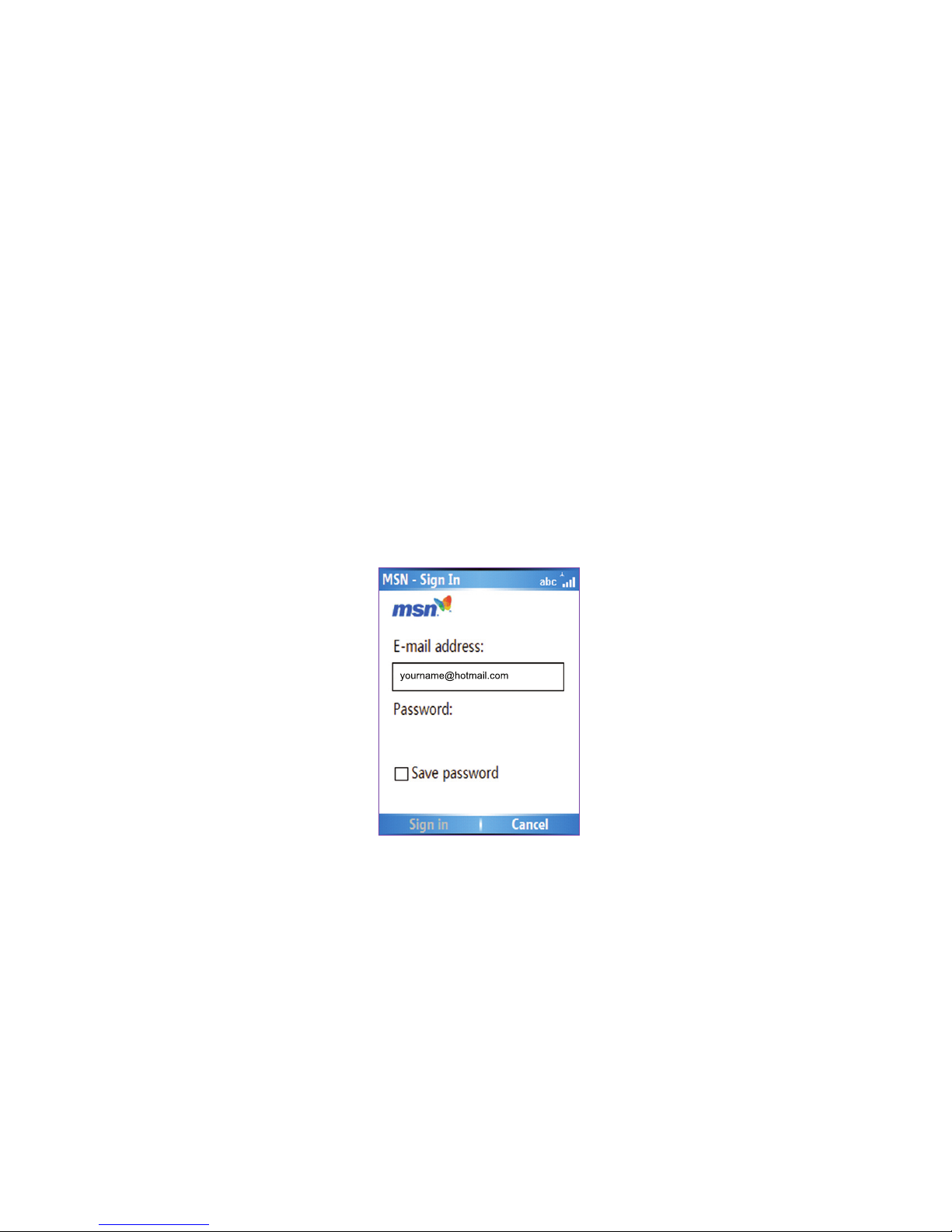

Using MSN Hotmail ......................................................................................................................... 92

Chapter 7 Organising Your Life .................................................................................................................................... 93

7.1 Using Contacts ...............................................................................................................................94

Viewing Contacts ............................................................................................................................ 94

Managing your SIM/USIM contacts ..................................................................................................96

Accessing SIM Manager ..................................................................................................................96

7.2 Using Calendar .............................................................................................................................. 98

Scheduling an appointment ............................................................................................................ 98

Viewing an appointment ................................................................................................................ 99

Viewing your schedule ................................................................................................................... 99

7.3 Using Tasks ...................................................................................................................................100

7.4 Using Voice Notes .........................................................................................................................101

Chapter 8 Multimedia .................................................................................................................................................102

8.1 Working with pictures and videos ................................................................................................. 103

Using Pictures and Videos .............................................................................................................. 103

8.2 Listening to music and watching videos ........................................................................................106

Windows Media Player screens ......................................................................................................106

Playing media ﬁles .........................................................................................................................107

Playback screen options ................................................................................................................. 108

Playback controls ........................................................................................................................... 109

8.3 Using Java (MIDlet Manager) ........................................................................................................110

Instaling Java MIDlets directly from the Internet .............................................................................110

Instaling Java MIDlets from a PC ....................................................................................................110

Running Java MIDlets .................................................................................................................... 111

Chapter 9 Voice Command ......................................................................................................................................... 112

9.1 Using the Cyberon® Voice Commander .........................................................................................113

9.2 Using the VocabSetting ................................................................................................................ 117

9.3 Using the Digit Trainer ..................................................................................................................118

Chapter 10 O2 Features and Applications ....................................................................................................................119

10.1 O2 Installation Type ......................................................................................................................120

10.2 Task Manager ..............................................................................................................................120

10.3 File Viewer Applications ............................................................................................................... 121

Word Viewer .................................................................................................................................122

PDF Viewer ....................................................................................................................................122

PPT Viewer .................................................................................................................................... 122

Excel Viewer ...................................................................................................................................122

10.4 Download Agent .........................................................................................................................123

Index ..................................................................................................................................................................... 124

O2 Xda Graphite speciﬁcations

ITEM SPECIFICATIONS

Processor Intel PXA270 416MHz

Operating system Microsoft® Windows Mobile™ 5.0 (Smartphone)

Network system UMTS (3GPP Band I), Tri-Band GSM (900/1800/1900), GPRS class 10

Memory 128MB Flash ROM

64MB SDRAM

LCD Screen 2.2”, QVGA (240 x 320), 65K color TFT LCD

Expansion slot One slot for a micro SD card

Connectivity Bluetooth® v2.0 / USB v1.1 (Client + Host) /WiFi (wireless LAN) supported

Audio 2.5 mm stereo earphone / microphone jacks, built-in speakerphone

Dimensions 109.5 mm x 46 mm x 18 mm

Weight 105 grams (with battery)

Battery 1100mAh rechargeable Lithium-Ion

Battery life Standby time: Up to 180 hours (GSM)* / up to 220 hours (WCDMA)*

Talk time: 5 hours (GSM)* / 4 hours (WCDMA)*

Audio/Video Music formats accepted: MP3, WMA, WAV, AMR-NB, and A/V Streaming supported

Internet browsing HTTP and WAP2.0

Messsaging SMS, MMS 1.2 and E-mail

Ringtones 40 channels polyphonic ringer & MP3

* The actual performance is dependent on multiple factors, including network environment and usage behavior.

Package contents

IMPORTANT To avoid damaging your Smartphone and its accessories, it is recommended

that you operate this unit within a temperature range of 0 ~ 40 oC (68 ~ 86

F) and 50% humidity.

• AC adapter

• Battery

• Stereo headset with microphone

• O2 Xda Graphite

• Getting Started CD

• User Manual

• Quick Start Guide

• Application CD

• USB sync cable

Chapter 1

Getting started

1.1 Getting to know your O2 Xda Graphite

1.2 Getting your device ready

1.3 Starting Up

1.4 The Home Screen

Front features

FEATURE

1. Earpiece receiver

Allows you to listen to incoming/outgoing calls.

2. Power On/Off button / LED indicator

Allows you to turn your 02 Xda Graphite ON/OFF. It also indicates the status of your battery, signal/network, Bluetooth, WLAN. See the LED indicator table for more information.

3. Front camera lens

Allows you to make yourself visible when making video calls.

4. LCD Screen

Displays the menu, current time, battery power, signal strength, and current proﬁle.

5. Left and Right Soft keys

The Left and Right Soft keys perform the command indicated above the button. The Left Soft key unlocks the keypad, just press this button and then the Asterisk (*) key .

6. Back key

Takes you back to the previous screen. When in the message text mode, this key clears a text or character.

7. Home key

Takes you to the Home screen.

LED INDICATOR STATUS

Static orange Battery is charging.

Static green Battery is fully charged.

Flashing green Signal/network detected.

Flashing blue Bluetooth is set to “On”

or “Discoverable.”

Flashing red Event alarm/notiﬁcation

1.1 Getting to know your O2 Xda Graphite

FEATURE

8. End key

Ends a call. Press and hold to lock the keypad.

9. Call key

Answers a call or dial a number. Press twice to redial last number. Long press to enable the speakerphone during an active call.

10. 5-way joystick

Push left, right, up, and down to scroll through the menu ﬁles, program icons, and folders.

Press to launch a chosen program, list the contents of a folder, or open a ﬁle.

11. Keypad

Alphanumeric keys enter numbers and texts.

Asterisk (*) key enables you to switch between cases (upper/lower cases) and caps lock within a text messaging mode. In a text ﬁeld, press and hold to display an entire list of input mode to make a selection.

In a text ﬁeld, press this key to enter zero (0). Press

and hold to enter a plus sign (+) for making international calls.

In a text ﬁeld, press to enter a space. Press and

hold to access the symbols menu.

Back features

FEATURE

12. Speakerphone

Enables you to listen to music or to talk over the phone handsfree.

13. Camera lens

This 2.0 megapixel camera comes with ﬁx focus lens and ﬂash light features.

14. Back cover

Covers the internal components such as the battery.

FEATURE

15. Camera button

Launches the camera functions.

16. Volume button

Adjusts the volume of your phone.

17. Mini-USB sync/power connector

Synchronises data in your phone with your PC or charges your battery.

18. Microphone

Use to make or receive phone calls, say voice commands, and record sounds or voice.

19. Earphone jack

Insert a headphone to listen to music or to use your phone hands-free.

Side features

Bottom features

1.2 Getting your device ready

Installing the SIM/USIM card and the battery

The mobile service operator provides you with a Subscriber Identity Module (SIM)/Universal Subscriber Identity Module (USIM) card that stores your mobile phone number, phone book entries, and SMS/MMS messages. Install the SIM/USIM card before you install the battery.

NOTE

Read the SIM/USIM card documentation before removing the SIM/USIM card.

To install the SIM/USIM card

1. Press down the back cover release latch (A) and slide it open in the direction of the arrow as shown.

2. Lift and remove the battery.

3. Insert the SIM/USIM card into the card slot with the contacts area facing down.Insert the SIM/USIM card into the card slot with the contacts area facing down.

To insert the battery

1. Align the gold metal contacts on the battery with the contacts on the phone.

2. Slide the back cover into your phone.Slide the back cover into your phone.lide the back cover into your phone.

Installing and removing a microSD card

To install / remove a microSD card

1. Remove the back cover and the battery.

2. The microSD card slot is located above the SIM card slot. Slide the metallic part of the slot to the left, and ﬂip it open.

3. To install a microSD card: With the manufacturer’s label side face up, and the barcode number side face down, slide the card gently into the microSD card slot.

To uninstall a microSD card: Slide the microSD card out.

4. Flip the metallic part of the cover back into its position, and slide it to the right to secure it.

5. Put back the battery and the back cover.

Label side

CAUTION A microSD card ﬁts only in one orientation. DOA microSD card ﬁts only in one orientation. DO

NOT force the card into the slot!

Charging the battery

Before using the Smartphone for the ﬁrst time, fully charge the battery for about eight hours. You can charge the battery whether the phone is on or off.

For battery power indicators, refer to “Status indicator icons” in 1.4 Home screen.

To charge the battery

1. Connect the AC adapter to a power source.

2. Connect the power cable plug to the mini USB sync and the power connector.

NOTE The power LED lights up orange to

indicate that the battery is charging and turns to green when the battery is fully-charged.

1.3 Starting up

Powering your device

To turn ON your Smartphone

1. Press and hold the Power button for about three seconds until the display turns on.

2. If you are asked for a Personal Identiﬁcation Number (PIN) code, enter the code, then press . The main display shows the idle screen.

3. Enter your PIN code (if necessary) and press Done.

Wait for your operator and Microsoft screens to load.

To turn OFF your Smartphone

Do one of the following:

• Press and hold the Power button for about three seconds until the display turns off.

• Press and quickly release the Power button and select

Power off from the Quick List screen.

1.4 The Home screen

The Home screen automatically displays when you turn on your phone or leave it idle. Scrolling to any one of the items and pressing opens the associated program.

NOTE Pressing at any time takes you back to the Home screen.

To customise the Home screen (layout, color scheme, background image), press

Start > Settings > Home Screen.

Time/Date

Your next appointment

Select and press to open Calendar

Your service provider

Select and press to open Wireless Manager

Number of unread text messages

Select and press to open Messages

Current ring tone and volume proﬁle

Select and press to change the proﬁle

Most recently-used programs

Status indicators

Left soft key command

Press the Left soft key to launch the Start menu, which displays all the installed programs

Right soft key command

Press the Right soft key to open Contacts

Network signal strength

Power status

NOTE Actual status indicator icons may vary from the ones represented in this guide.

Status indicator icons

Below is the list of common status indicators and their meanings.

New e-mail, text or picture message

Battery level Pocket MSN chat is online

New voice mail Sound OFF Pending alarm

New instant message Sound ON

Bluetooth headset connected with sound

Calls are forwarded

Building connection to GPRS

Bluetooth headset connected

Call on hold GPRS available Bluetooth enabled

Missed call Connected via GPRS

Roaming. This appears only if you have international roaming feature.

Speakerphone is active Signal strength WLAN active

Vibrate mode is on No cellular phone service

Searching for WLAN connection

Low battery No signal WLAN connected

Battery charging

Searching for phone network connection

3G active

Battery full Pocket MSN service notice No SIM installed

Start menu

Your Smartphone comes with pre-installed programs accessible from the Start menu.

To use the Start menu

1. On the Home screen, press Start.

2. Do one of the following:

• Scroll to a program using the navigation keypad and press .

• Press the corresponding number on the alphanumeric keypad. For example, press 1 to open Internet Explorer and 9 to open

Settings.

You can use ActiveSync to download programs from the Internet and add these programs to your phone.

To remove programs, use File Explorer (Start > More

> File Explorer) or Remove Programs (Start > Settings > Remove Programs).

Displays the next page of programs

Press to open Settings

Press to open Internet Explorer

NOTE A removed program can only be reinstalled by a hard reset. To perform a hard reset,

push the joystick up and press the power key simultaneously while the phone is off. The screen will prompt you for conﬁrmation. Hard-resetting will reset the device to its factory default settings and ALL DATA WILL BE LOST.

Quick List

The Quick List provides you with a list of commonly-used commands.

To use the Quick List

1. Press and quickly release the Power button to display the Quick List.

NOTE: If you press and hold too long, the phone will be powered off.

2. To select a command, scroll through the list and press . You can also press the corresponding number on the keypad.

3. To return to the Home screen, press Cancel.

COMMAND DESCRIPTION

Power off Turns off the phone.

Wireless Manager Turns on/off all wireless capabilities.

Key lock

Locks the keypad. To unlock the keypad, press Unlock, and then press .

Device lock Select how soon your phone will lock after the last key press.

Normal / Silent / Meeting / Outdoor / Automatic / Headset / Car / Speakerphone

Select to make one of these proﬁles the current one. A check indicates the current proﬁle.

Chapter 2

Using Call features

2.1 Making a call

2.2 Making and receiving a video call

2.3 Responding to a call

2.4 Options during a call

2.1 Making a call

Calling from the Home screen

To call from the Home screen

1. On the Home screen, enter the phone number you want to call.

If you entered the wrong number, press to delete the last digit; press

and hold to delete all digits.

2. Once you have entered the number, press to make the call.

3. Press to end the call.

NOTE As you enter a phone number, the Smartphone searches Contacts, Call History, and

the Speed Dial lists to ﬁnd a matching name or number. Use the Up/Down navigationUp/Down navigation keys to select a name or number on the list.

To redial the last number called, press twice.

Calling a Contacts entry

To call a Contacts entry

1. On the Home screen, press Contacts.

2. Use the Up/Down navigation keys to select the contact name to call.

TIP To narrow your search, enter the ﬁrst few letters of the contact’s name.

3. Press or to make the call.

NOTE By default, the contact’s mobile telephone number is dialled ﬁrst when you make a

call from Contacts unless you specify otherwise.

To change the default number for a Contact

1. On the Home screen, press Contacts.

2. Select the contact whose default phone number you want to change.

3. Use the Left/Right navigation keys to change the default number. The letter to the right of the contact’s name indicates the default number — m (mobile), w (work), or h (home).

Calling a number from the Call History list

To make a call from the Call History list

1. On the Home screen, press or press Start > Call History.

2. Select the number or name to call, and press or .

Calling using speed dial

You can create speed dials for frequently-called phone numbers or accessed items. You may choose Speed Dial entries from 2-99. Speed Dial 1 is reserved for voice mail access. You can create a Speed Dial for a phone number, a program on the Start menu, an e-mail address, or a URL address that is stored in your phone’s Contacts.

NOTE Assign a speed dial key to a phone number before using the speed dial feature. Create a speed dial only for a phone number, e-mail address, or Web page address

that is stored in your phone’s Contacts. You cannot create a speed dial for a contact stored in the SIM card.

To create a speed dial for a phone number, an e-mail address, or a URL address

1. On the Home screen, press Start > Contacts.

2. Select a contact and press to view the contact details.

3. Select the phone number, e-mail address, or URL address you want to assign a speed dial. Press Menu

> Add to Speed Dial.

4. Enter appropriate details in Name, Value, and Keypad assignment . In Keypad assignment, use the Left/Right navigation keys to select, or press to view the full list of choices.

5. Press Done.

NOTE To quit at any time during this process, press Menu > Cancel.

To make a call using speed dial

On the keypad, press and hold the speed dial’s assignment. If the keypad assignment consists of two digits, press the ﬁrst digit then press and hold the second digit.

To create a speed dial for an item on the Start menu

1. On the Home screen, press Start.

2. Select an item and press Menu > Add Speed Dial.

4. Enter the appropriate details in Name, Value, and Keypad assignment . In Keypad assignment, use the Left/Right navigation keys to select, or press to view the full list of choices.

5. Press Done.

Making emergency calls

You can call emergency service numbers even when you have locked the SIM card or your phone.

To place an emergency call

Enter the emergency number, and press Send.

Making international calls

To make international calls, you must ﬁrst enter the international preﬁx (+), followed by the country code and the rest of the phone number.

To place an international call

1. Press and hold on the keypad to enter a plus sign.

2. Enter the phone number with the country code, the area code, and the phone number. Press .

2.2 Making and receiving a video call

Your device allows you to make and receive calls with live images.

To make a video call

1. On the Home screen, press Contacts.

2. Select a contact.

3. Press Menu > Video Call.

To answer a video call

To answer a video call, press Answer or .

To ignore a video call

To ignore a video call, press Ignore or .

2.3 Responding to a call

When you receive a call, the screen displays the caller’s name and phone number. If the caller is not in your Contacts list, the screen displays the number only. When you receive a phone call, you have the option to answer or to ignore it.

To answer a call

Press Answer or .

To ignore a call

Press Ignore or .

NOTE Selecting Ignore or will send the caller to your voice mailbox if it is enabled.

If it is not, the caller will hear a busy tone.

2.4 Options during a call

Below are the options during or for making a call. Some of these options are available only when multiple calls are in progress or during a conference call.

IN-CALL MENU OPTION DESCRIPTION

Hold Places the active call on hold.

Unhold Activates the call that is on hold.

Mute Switches off the microphone for the active call (you can hear the caller but

the caller cannot hear you).

Unmute Turns the microphone back on for the active call.back on for the active call.for the active call.

Speakerphone On/Off Activates/deactivates the speakerphone.

NOTE: You can also press and hold during an active call.

Conference Joins together all existing calls if you have subscribed to this service.

Turn Hands-free On/Off Activates/deactivates the hands-free function. This function is only available

if your phone has been conected to a hands-free kit. When activated, the call will be redirected to the hands-free kit, allowing you to talk using the remote earphone/microphone set.

Contacts Opens the Contacts list.

Save to contact Saves the current phone call number.

View Calendar Opens the Calendar program.

Call History Opens the Call History list.

Managing multiple calls

To answer another call

1. Press Answer to place the ﬁrst call on hold and answer the second call.

2. To end the second call and return to the ﬁrst call, press .

To hold a call to make a second call

1. Press Menu > Hold to place the ﬁrst call on hold and call a second number. After ﬁnishing the second call, press to take you back to the ﬁrst call.

To switch between calls

To switch between two calls, press Swap.

To set up a conference call

With multiple calls in progress, press Menu > Conference.

NOTE Make sure that the Conference function is available in your SIM/USIM card. Inquire from

your mobile service operator about this function.

Chapter 3

Synchronising with ActiveSync

3.1 Microsoft ActiveSync

3.2 Instaling ActiveSync on your PC

3.3 Connecting your Smartphone to a PC

3.4 Creating a partnership

3.5 Synchronising with a PC

3.6 Synchronising with an Exchange Server

3.7 Creating a synchronisation schedule

3.8 Remote synchronisation

3.1 Microsoft ActiveSync

™

With ActiveSync™, you can synchronise the data on your PC with that on your Smartphone. Synchronisation compares the data on your phone with your PC and updates both with the most recent information. You can also use synchronisation to add new programs to your phone.

Before you can synchronise your phone with your PC, you need to:

1. Install ActiveSync™ on your PC.

2. Connect your phone to the PC.

3. Create a partnership between the two devices.

NOTES For more information about synchronisation, see the ActiveSync Help on your PC.

If you cannot successfully establish connection, check http://www.microsoft.com/ windowsmobile/help/activesync/default.mspx for help.

3.2 Installing ActiveSync™ on your PC

The ActiveSync™ program is pre-installed in your Smartphone. To synchronise the data in your phone with your PC, you must also install ActiveSync™ on your PC. Install ActiveSync™ from the Getting Started

CD included in your product package.

NOTE Before starting the ActiveSync™ installation, make sure that you have Microsoft® Outlook®

installed on your PC. If you do not have Outlook, install the Microsoft® Outlook® from the Getting Started CD. If you have Outlook 98 or Outlook 2000 installed, you are encouraged to update to the Outlook bundled in the Getting Started CD.

IMPORTANT Do not connect your phone to your PC until you have finished installing

ActiveSync.

To install ActiveSync™ on your PC

1. Place the Getting Started CD into your PC’s CD drive and follow the installation instructions.

2. Click Start Here to display the Overview screen.

3. If you have not installed Outlook, install it now. Click Install Outlook and follow the screen instructions to complete the installation.

4. Click Install ActiveSync, then follow the onscreen instructions to complete the installation.

3.3 Connecting your Smartphone to a PC

To connect your phone to a PC

1. Connect the end of the USB sync cable to the mini USB/ power connector at the bottom of your phone and the other end to a USB port on your PC.

2. ActiveSync will autostart when it detects your phone, and

the Smartphone Sync Setup Wizard launches.

3.4 Creating a partnership

The wizard guides you in creating a partnership. In the Sync

Setup Wizard, you can:

• Create a synchronisation relationship between your PC and your phone.

• Conﬁgure an Exchange Server connection to synchronise directly with your phone. Before doing this, obtain the name of the Exchange Server, and the domain

name from your administrator.

• Choose the information types (Calendar, Contacts, Tasks, Outlook E-mail, Favorites) to synchronise.

When you ﬁnish the wizard, ActiveSync™ automatically synchronises your phone. Once synchronisationautomatically synchronises your phone. Once synchronisationsynchronises your phone. Once synchronisation is completed, you can disconnect your phone from your PC. After the ﬁrst synchronisation, your selected information from your PC will appear in your phone.

3.5 Synchronising with a PC

Changing information to synchronise

By default, ActiveSync does not automatically synchronise all Outlook information. You can use ActiveSync options to turn synchronisation for speciﬁc information types on and off:

1. On the Home screen, press Start > ActiveSync.

2. Press Menu > Options.

3. Do one or more of the following:

• Select the check box for the items you want to synchronise.

• Clear the check box for any items you do not want to synchronise.

• To customise synchronisation of a PC, select the PC name then press Menu > Settings.

• To customise synchronisation of a particular type of information, select the information type then press Settings.

• To stop synchronising with a PC completely, select the PC name and press Menu > Delete.

NOTE E-mails can be synchronised with only one PC.

Using USB sync cable

When you connect your phone to the PC, ActiveSync automatically detects it and starts synchronising.automatically detects it and starts synchronising. detects it and starts synchronising.

1. Connect your phone to a PC using the USB sync cable.

2. ActiveSync should automatically detect it and start synchronising. If not, on the Home screen, pressActiveSync should automatically detect it and start synchronising. If not, on the Home screen, pressautomatically detect it and start synchronising. If not, on the Home screen, pressdetect it and start synchronising. If not, on the Home screen, press

Start > ActiveSync.

3. Press Sync to start synchronising.

4. Press Stop to stop synchronisation before it completes.

Using Bluetooth

You can synchronise your phone with a PC using local wireless technologies such as Bluetooth®.

To synchronise using Bluetooth

1. Follow the instructions in ActiveSync Help on the PC for conﬁguring Bluetooth on your PC to support ActiveSync.

2. On the Home screen, press Start > ActiveSync.

3. Press Menu > Connect via Bluetooth. Ensure that the phone and PC are within close range.

NOTE If this is the ﬁrst time you have connected to this PC using Bluetooth, you must

complete the Bluetooth wizard on the phone and set up a Bluetooth partnership with the PC before synchronising. For more information about setting up a Bluetooth partnership, see “Creating a Bluetooth partnership” in 5.4 Using Bluetooth.

4. Press Sync.

5. When ﬁnished, press Menu > Disconnect. To preserve battery power, turn off Bluetooth.

3.6 Synchronising with an Exchange Server

To set up an Exchange Server connection, you need to obtain the name of the server and the server domain name from your service provider or system administrator. You must also know your Exchange user name and password.

NOTE Before you change synchronisation settings on the phone, disconnect it from your

PC.

1. From the Home screen, press Start > ActiveSync > Menu > Add Server Source.

2. In Server address, enter the name of the server running Exchange Server, and press Next.

3. Enter your user name, password, and domain name, and press Next. If you want the phone to save your password, select the Save password check box.

4. Select the check boxes for the information types you want to synchronise with the Exchange Server.

5. To change available synchronisation settings, select the information type, and press Menu >

Settings.

6. To change the rules for resolving synchronisation conﬂicts, Menu > Advanced.

7. Press Finish.

3.7 Creating a synchronisation schedule

You can create a schedule for automatically synchronising information in your Smartphone with your PC or with Microsoft® Exchange Server.

NOTE Before changing the synchronisation settings on your Smartphone, disconnect it

from your PC.

To schedule synchronisation

From the Home screen, press Start > ActiveSync > Menu > Schedule.

TO SYNC DO THIS

Automatically as items arrive Under Peak times, select As items arrive. When mail volume is high, it is

recommended to synchronise at regular intervals. Under Off-peak times, select As items arrive. This can be more cost-efﬁcient

than synchronising on a regular schedule when mail volume is low.

When you are working, or e-mail volume is high

Select an appropriately frequent interval in the Peak times list.

When e-mail volume is low Select a longer interval or As items arrive in the Off-peak times list.

While roaming Select the Use above settings while roaming check box. To minimise

roaming charges, clear the check box, and synchronise manually while roaming.

When you press Send in Messaging on the phone

Select the Send outgoing items immediately check box.

NOTE To change peak time settings, press Menu > Peak Times.

3.8 Remote synchronisation

Remote synchronisation is synchronising your phone over a wireless connection instead of using a direct local connection to a PC. Synchronising remotely with your PC may depend on your network conﬁguration. For example, you may need to set up a virtual private network (VPN) connection.

To synchronise remotely, you need to set up a connection ﬁrst and then conﬁgure your phone. For more information on remote synchronisation, see the ActiveSync Help guide.

Chapter 4

Managing your Smartphone

4.1 Personalising your Smartphone

4.2 Improving performance

4.3 Turning ON/OFF wireless mode

4.4 Keeping your Smartphone secure

4.5 Setting network options

4.6 Restarting your Smartphone

4.7 Resetting your Smartphone

4.8 Adding and removing programs

4.9 Managing and backing up ﬁles

4.1 Personalising your Smartphone

Settings screens

You can view and change the settings in your Smartphone. This includes changing the Home screen layout, adding your own ring tone, and setting options for received calls, call forwarding or call waiting.received calls, call forwarding or call waiting.calls, call forwarding or call waiting.

On the Home screen, press Start > Settings to display the Settings screen.

NOTE Selecting More from the Settings screen will display a second screen of Settings

options.

Personalising your Home screen

To personalise your Home screen

1. From the Home screen, press Start > Home Screen.

2. Make your changes and press Done.

To personalise the Home screen with your own image

1. From the Home screen, press Start > More > Pictures & Videos.

2. Select an image to use as background image and press .

3. Press Menu > Use as Home Screen.

4. Use the Left/Right navigation keys to select the display area and press Next.

5. Use the Left/Right navigation keys to adjust the transparency and press Finish.

Setting the date, time, and alarm

To set the date and time

1. From the Home screen, press Start > Settings > Clock and Alarm > Date and Time.

2. Enter the correct information and press Done.

To set an alarm

1. From the Home screen, press Start > Settings > Clock and Alarm > Alarm.

2. Enter the correct information and press Done.

Changing regional settings

To change regional settings

1. From the Home screen, press Start > Settings > More > Regional Settings.

2. In Language, select your preferred language for the phone interface and menus.

3. In Locale, select your current location. The Locale option automatically changes the format of the remaining options, such as date, time, and currency, to reﬂect those used in that locale.

4. Press Done after you have ﬁnished making changes.

NOTE To activate the new language settings, turn the phone off and then back on.

Changing proﬁle settings

A proﬁle determines how you get notiﬁed of events such as incoming calls, upcoming appointments, and new messages. Your current proﬁle is displayed on the Home screen.

To quickly change the current proﬁle

To quickly switch to a different proﬁle, press and quickly release the Power Button and scroll to the desired proﬁle in the Quick List screen and press Select. To open the second page of the Quick List screen for more proﬁle options, select More.

NOTE When proﬁle is set to Automatic, your phone will automatically switch to Silent

mode whenever you have a meeting set up in Calendar.

To modify a proﬁle

1. From the Home screen, press Start > Settings > Proﬁles.

2. Scroll to the proﬁle you want to change, press Menu, and select Edit.

3. Change the settings and press Done.

NOTE To restore a proﬁle’s default settings, press Menu > Reset to default.

Customising sounds for ring tones

Use Sounds settings to customise the sounds for ring tones, notiﬁcations, reminders, alarm clock, alert, and key tones. The phone comes with 20 pre-installed polyphonic ring tones to choose from.

To change the sound

1. From the Home screen, press Start > Settings > Sounds.

2. Select the item for which you want to change the sound.

3. Do one of the following:

• Scroll left/right to select a different sound.

• Press to open the full list of sounds available for that event.available for that event.for that event.

To use your own sound

1. Locate the sound ﬁle on your PC.

NOTE The ﬁle must be in .wav, .mid, .wma, or .mp3 format..wav, .mid, .wma, or .mp3 format..

2. Connect your phone to the PC.

3. Open ActiveSync on your PC and click Explore.

4. Go to the Application Data\Sounds folder in your phone. Copy and paste the ﬁle from your PC.

5. From the Home screen, pressthe Home screen, pressHome screen, press Start > Settings > Sounds.

6. Highlight the item to customise and scroll left/right to ﬁnd the sound ﬁle.

Entering your contact information

The Owner Information screen is for entering and displaying personal information such as your name, phone number, and e-mail address. Entering this information is recommended as it makes it easy to contact you in case of loss.

To enter owner information

1. From the Home screen, press Start > Settings > More > Owner Information.

2. Enter your details and press Done.

4.2 Improving performance

Changing accessibility settings

To change accessibility settings

1. From the Home screen, press Start > Settings > More > Accessibility.

2. You may set your preferences for the following:

System font size: Set the font size displayed on your phone. Multipress time out: Set the duration to wait between key presses when entering text in Multipress

mode.

Conﬁrmation time out: Set the delay before an unconﬁrmed action times out. In-call alert volume: Set the volume for incoming call or receiving new message alerts while you are

on the phone.

3. Press Done when ﬁnished.

Changing power settings

Use Power Management to check the battery level and to conﬁgure power-saving settings, such as backlight and display time-outs.

1. From the Home screen, press Start > Settings > Power Management. The ﬁrst item shown is the Main battery indicator, which indicates how

much battery power is left. This item is not adjustable.

2. You may set your preferences for the following: Backlight time out on battery: Set the duration for the phone to be idle

before the backlight turns off.

In Backlight time out on AC: Set the duration for the phone to be idle

before the backlight turns off when using AC power.

Display time out: Set the time limit for the phone to be idle before the

screen turns off.

3. Press Done when ﬁnished.

4.3 Turning on/off wireless mode

Your Smartphone’s Wireless Manager allows you to enable or disable a wireless connection.

To launch the Wireless Manager

1. Do one of the following:

• Press and quickly release the Power button to display the Quick List screen. Select Wireless

Manager.

• Press Start > Settings > Connections > Wireless Manager.

To enable/disable Wireless LAN

1. Launch the Wireless Manager.

2. Select Wireless LAN and press .

3. Press Settings > Wi-Fi Settings.

2. Select the connection you want to enable/disable.

NOTE When a connection is enabled, the select button is light green. When disabled, the

select button is grey.

To enable/disable Bluetooth

1. Launch the Wireless Manager.

2. Select Bluetooth and press .

3. To set your Bluetooth connection, press Settings > Bluetooth Settings. Set your Bluetooth connection to On, Discoverable, or Off. Setting your Bluetooth to Discoverable makes your phone visible to other devices. Press the joystick left and right to toggle among the choices.

TO DO THIS

Search for another Bluetooth device

Press Menu > Devices > New. Your phone will auto-search for a Bluetooth device.

Edit a device’s settings Press Menu > Devices > Edit. Select device to edit and make the changes.

Delete a device Press Menu > Devices > Delete. Select the device. Press Yes to conﬁrm

deletion.

TO DO THIS

Add a new WLAN device Select New. Provide the necessary info such as Network name and type. Press

Done.

Edit or delete a WLAN device Select the WLAN device to edit or delete. To edit, press Menu > Edit. To

delete, press Menu > Delete.

Conﬁgure network key Select to open the WLAN device settings in edit mode. Press Menu >

Network Key. Select the required authentication and data encryption modes,

and enter the network key. Press Connect when done.

To enable/disable phone networks

NOTE Enabling phone connection will allow you to use your phone device in either GSM

or WCDMA mode.

1. Launch the Wireless Manager.

2. Select Phone and press .

3. Press Settings > Phone Settings. Select your phone connection. Press Done when ﬁnished.

To turn off all wireless connections

NOTE Turn off all wireless connections when on an aircraft or in a hospital. You will not be

able to make calls or send messages/emails but will still be able to use the organiser functions of your phone.

1. Launch the Wireless Manager.

2. Select All Wireless Off and press .

4.4 Keeping your Smartphone secure

To customise your phone’s level of security such as locking the keys, the SIM/USIM card, or the entireyour phone’s level of security such as locking the keys, the SIM/USIM card, or the entire level of security such as locking the keys, the SIM/USIM card, or the entire phone.

Locking the keys and multimedia player controls

To lock the keys

Do one of the following:

• Press and quickly release the quickly release the Power button to display the Quick List screen and select Key

lock.

• Press and hold and hold to lock the keys.

To unlock the keys

Press Unlock and .

Locking the SIM/USIM card

Locking the SIM/USIM card prevents unauthorised use of your phone, but you will still be able to make emergency calls. When you turn on the phone, you will be asked to enter your PIN1 password.

To lock the SIM/USIM card and set the PIN

1. From the Home screen, press Start > Settings > Security > Enable SIM PIN.

2. Enter the password (SIM card’s PIN1), and press Done.

Once the PIN is enabled, you will be asked to enter the PIN whenever you turn your phone on.

To unlock the SIM/USIM card

1. From the Home screen, press Start > Settings > Security > Disable SIM PIN.

2. Enter the password (SIM/USIM card’s PIN1), and press Done.

To change the PIN

1. From the Home screen, press Start > Settings > Security > Change SIM PIN.

2. Enter the original PIN1 code.

3. Enter and conﬁrm the new PIN, and then press Done.

NOTE You can only change the PIN when SIM PIN is enabled.

To change PIN2

1. From the Home screen, press Start > Settings > Security > Change PIN2.

2. Enter the original PIN2 code (SIM card’s PIN2).

3. Enter and conﬁrm the new PIN2, and then press Done.

Locking your Smartphone

To lock your Smartphone

1. Do one of the following:

• From the Home screen, press Start > Settings > Security > Device Lock.

• Press and quickly release the Power button to display the Quick List screen and select Device

lock.

2. Select the Prompt if device unused for check box by pressing .

3. Scroll down to the ﬁeld below and select the duration for the phone to be inactive before it locks automatically.

4. In Password type, select the type of password.

5. Enter and conﬁrm your password, and then press Done.

Controlling outgoing calls

Fixed dialing allows you to restrict your outgoing calls to selected phone numbers, if supported by your SIM card. You need the PIN2 code for this function. When this function is active, you can only call those phone numbers that are in your ﬁxed dialing list. Call barring, on the other hand, blocks certain types of call. Before you can use it, you must set up a Fixed dialling list.

1. From the Home screen, press Start > Settings > Phone > Fixed Dialing.

2. Select Enable ﬁxed dialing by pressing and then press Done.

3. Enter your SIM PIN2, and press Done. Once ﬁxed dialing has been turned on, you can begin to store ﬁxed dialing numbers.

4. Press Menu > Edit Numbers.

5. Press Menu > Add and enter the phone number to add to your ﬁxed dialing list.

6. Press Done.

7. Repeat steps 2~6 to add more numbers.

Blocking incoming/outgoing calls

Emergency calls can still be made with Call Barring on.

NOTE Check with your mobile service operator for the Call Barring service and to get the

network code.

1. From the Home screen, press Start > Settings > Phone > Call Barring.

2. In Block incoming calls, select Off, When roaming, or All calls.

3. In Block outgoing calls, select Off, Int’l except to home, Int’l calls, or All calls.

4. Press Done.

5. Enter your network code obtained from your mobile service provider and press Done.

4.5 Setting network options

To change the phone network, press Start > Settings > Phone > GSM/3G Networks. You may choose

GSM, 3G or Automatic, which automatically detects your network every time you power on your

phone.

NOTE To apply the network changes, turn your phone off and then turn back on.

4.6 Restarting your Smartphone

You may sometimes need to restart your phone such as when a program is not performing properly, or the phone does not respond to key presses.

To restart the phone

1. Remove the battery.

2. Reinsert the battery and turn on your phone.

4.7 Resetting your Smartphone

Resetting your phone will remove all the data from memory and restore the phone back to its factory default settings.

NOTE When you reset your phone, all the data you have entered in RAM will be erased,

including all ﬁles, system settings, and additional programs you have installed.

To reset your Smartphone

1. From the Home screen, press Start > More > Accessories > Default Settings.

2. Enter 1234 and press OK.

The phone will restart automatically after it has been reset.

4.8 Adding and removing programs

You can use ActiveSync to add programs to your phone or add a program directly from the Internet.

To add programs

1. Download the program to your PC.

2. Read the installation instructions or documentation that comes with the program. Many programs provide special installation instructions.

3. Connect your phone to the PC.

4. Double-click the *.exe ﬁle.

• If the executable ﬁle is an installation wizard, follow the instructions on the screen. Once the program

has been installed on your PC, the wizard will automatically transfer the program to your phone.

• If an installation wizard does not start, you will see an error message stating that the program is

valid but that it is designed for a different type of PC. You will need to copy this program to your phone. If you cannot ﬁnd any installation instructions for the program, use ActiveSync to copy the program ﬁle to the Program Files folder on your phone.

To remove a program

Programs that come with the phone cannot be removed.

1. From the Home screen, press Start > Settings > Remove Programs.

2. Scroll to the program to remove.

3. Press Menu > Remove.

WARNING A removed program can only be reinstaled by a hard reset. To perform a hard

reset, push the joystick up and press the power key simultaneously while the phone is off. The screen will prompt you for conﬁrmation. Hard-resetting will reset the device to its factory default settings and ALL DATA WILL BE LOST.

4.9 Managing and backing up ﬁles

To manage your ﬁles, you can use the File Explorer or a storage card (micro SD card) on your Smartphone,or a storage card (micro SD card) on your Smartphone,Smartphone, or the ActiveSync on your PC.

You can back up ﬁles to your PC using ActiveSync or copy ﬁles to a storage card on your phone. You can also efﬁciently manage your ﬁles and folders using the File Explorer program on your phone. Changes you make to the information on one PC will not affect the information on the other PC. If you want to automatically update information on both your phone and PC, synchronise the information instead. For more information about copying and synchronising ﬁles, see the ActiveSync Help guide on your PC.

To copy a ﬁle using ActiveSync

Copying a ﬁle results in separate ﬁle versions in your phone and your PC. Because the ﬁles are not synchronised, changes made to one ﬁle will not affect the other.

1. Connect your phone to your PC.

2. In ActiveSync, click Explore.

3. Select the ﬁle you want to copy on your phone or PC.

4. Do one of the following:

• From your PC, right-click the ﬁle, and click Copy. Right-click the desired folder on your phone, and click Paste.

NOTE To copy ﬁles to a storage card, insert a micro SD card (see 1.2 Installing and

removing a micro SD card). You can play MP3 and other media ﬁles directly from

a micro SD card inserted into your phone.

• From your phone, right-click the ﬁle and click Copy. Right-click the desired folder on your PC, and click Paste.

Using File Explorer

File Explorer allows you to manage the ﬁles and folders on your phone just like you do on your PC.

To start File Explorer

• On the Home screen, press Start > More > File Explorer.

Once in the File Explorer application, you can do the following:

TO DO THIS

Create a new folder Press Menu > Edit > New Folder. Enter a name for the new folder and

press .

Rename a ﬁle or folder Select the ﬁle or folder that you want to rename, and press Menu > Edit >

Rename.

Delete a ﬁle or folder Select the ﬁle or folder that you want to delete, and press Menu > Edit >

Delete.

Beam a ﬁle Select the ﬁle that you want to send. Press Menu > Beam. Select the device

you want to send to and press Beam.

Send a ﬁle by e-mail Select the ﬁle to send, press Menu > Send > Outlook E-mail. The Outlook

E-mail screen will launch with the selected ﬁle already attached.

TO DO THIS

Display information about a ﬁle or folder

Select the ﬁle or folder, and press Menu > Properties.

Sort ﬁles and folders Press Menu > Sort By, and select a sort option.

Move a ﬁle or folder from one location to another

Select the ﬁle or folder that you want to move. Press Menu > Edit > Cut. Navigate to the new location and press Menu > Edit > Paste.

Duplicate a ﬁle or folder Select the ﬁle or folder that you want to duplicate. Press Menu > Edit >

Copy. Navigate to the new location and press Menu > Edit > Paste.

Chapter 5

Getting connected

5.1 Connecting to the Internet

5.2 Using your phone as an external modem

5.3 Using Internet Explorer Mobile

5.4 Using Bluetooth

5.1 Connecting to the Internet

You can set up an Internet or a network connection to do activities such as browse the Internet or intranet, send and receive emails and instant messages, and synchronise information using ActiveSync.

With an active connection, you can browse the web, download e-mails, chat using MSN Messenger, or synchronise wirelessly with the server. Check with your Internet Service Provider to see if a connection has already been set up for you, and if over-the-air conﬁguration is supported.

To connect to the Internet

On the Home screen, press Start > Settings > Connections to launch the Connections screen. Connections settings allow you to set up Dial-up, Virtual Private Network (VPN), Bluetooth, Proxy, and General Packet Radio Service (GPRS) connections, so you can connect to the Internet or your corporate network.

Dial-up connection

To create a Dial-up connection

Every network connection is different. You should gather all the relevant information or network settings before starting this process.

1. On the Home screen, press Start > Settings > Connections > Dial-up.

2. Press Menu > Add.

3. Enter the appropriate information.

NOTE In Connects to, select The Internet to connect directly to the Internet; Work

to connect to your corporate network; WAP Network to connect to a Wireless Application Protocol network; or Secure WAP Network to connect to secure WAP sites, such as a bank.

4. Press Done.

GPRS, Proxy, and VPN connections

You can create GPRS, Proxy, and VPN connections using the same procedure as that for a Dial-up connection.

GPRS connection

GPRS is a high-speed transmission through the mobile phone network, which provides permanent online connection. To use GPRS to connect to the network, you need to apply for GPRS service with your Internet Service Provider (ISP).

Proxy connection

If you are connected to your ISP or private network during synchronisation, your Smartphone should download the proper proxy settings from your PC. If these settings are not on your PC or need to be changed, ask your ISP or network administrator for the proxy server name, server type, port, type of Socks protocol used, and your user name and password. A proxy connection is used to access the Internet using an existing connection to your corporate network.

VPN connection

A VPN connection helps you to securely connect to servers, such as a corporate network, using an existing Internet connection. Ask your network administrator for your user name, password, domain name, TCP/IP settings, and host name or IP address of the VPN server.

Changing option settings

The Options screen enables you to specify the number of redial attempts, time to wait before disconnecting, and how your phone connects to the network.

To access the Options screen

1. From the Home screen, press Start > Settings > Connections.

2. Press Menu > Advanced > Menu > Options.

Adding a URL exception

Some companies use periods in their intranet URLs (for example, intranet.companyname.com). A Work URL exception tells Internet Explorer Mobile to look on the Work network to ﬁnd the URL instead of searching the Internet.

To add a URL exception

1. From the Home screen, press Start > Settings > Connections.

2. Press Menu > Advanced > Menu > Work URL Exceptions.

3. Press Menu > Add.

4. In URL Pattern, enter the URL, and press Done.

NOTE Separate multiple URLs with a semicolon (;).

You should not create URL exceptions for URLs on the Internet.

5.2 Using your Smartphone as an external modem

Modem Link allows you to use your Smartphone as an external modem for your PC or another device, such as a PDA, using a USB connection.

Setting up a USB connection

To set up a USB connection

1. Make sure that your phone is not connected to another device and ActiveSync is disabled on your

PC. On your ActiveSync in your PC, go to File > Connection Settings and deselect the Allow USB

connections checkbox.

2. To set up a GPRS connection, enter the Access point name you obtained from your Internet Service

Provider

3. From the Home screen, press Start > More > Accessories > Modem Link.

4. In Connection, select USB.

5. Connect your Smartphone to the PC using the USB sync cable.

6. Press Activate then press Done.

7. Insert the Getting Started Disk into the CD-ROM drive of your PC. The installation of the USB driver

will start automatically. If needed, click Browse and choose the CD drive and root folder where the modem driver is located on the CD.

8. Click Next and wait for the installation to complete.

9. Press Finish.

10. On your PC, click Start > Control Panel > Network Connections > Create a new connection.

11. In the New Connection Wizard, select these items for the following successive Wizard pages:

WIZARD PAGE OPTION TO SELECT/ACTION TO DO

Network Connection Type [Connect to the Internet]

Getting Ready [Set up my connection manually]

Internet Connection [Connect using a dial-up modem]

Note: In the succeeding pages, type the name of your ISP, and the phone

number *99#.

Connection Availability [Anyone’s use] or [My use only]

Internet Account Information Type the ISP account name and password

NOTE Click Next to go through the pages in the New Connection Wizard.

12. Click Finish to complete the setup.

NOTE In the dialler, click Disconnect before deactivating the phone or unplugging the

USB cable. To deactivate the modem link, press Start > More > Accessories > Modem Link > Deactivate.

5.3 Using Internet Explorer Mobile

You can use Internet Explorer Mobile to browse mobile favorites and channels that have been downloaded to your device without connecting to the Internet. You can also connect to the Internet through an ISP or a network connection to browse the Web.

NOTE Make sure that you have set up your Smartphone’s connection. See 5.1 Connecting

to the Internet.

Launching the Internet Explorer

To launch the Internet Explorer

From the Home screen, press Start > Internet Explorer.

With Internet Explorer Mobile, the Favorites list is displayed as the main screen instead of a home page, so you can easily go to your favorite Web sites. You can add your frequently-visited Web sites to this list.

TO DO THIS

Change connection options 1. Press Menu > Options > Connections.

2. Do one of the following:

• To allow Internet Explorer to select network settings, select

Automatically detect settings.

• To manually choose network settings, in Select network, select the network to which Internet Explorer should connect.

View your Favorites list From any Web page, press Favorites.

Go to a Web page In Internet Explorer, press Address Bar. Enter the Web page address and

press Go.

Go to a Web page in the History list

Press Menu > History. Select a Web page, and click Go.

TO DO THIS

Clear history, cookies, or temporary ﬁles

Press Menu > Tools > Options > Memory.

Add a Web page to the Favorites list

From the Web page that you want to add, press Menu > Add to Favorites.

Change the size of text on Web pages

Press Menu > Zoom and select the size you want.

Show or hide pictures on Web pages

Press Menu > View > Show Pictures. A check mark next to Show Pictures indicates that pictures will be displayed on Web pages.

View a page in full screen mode Press Menu > View > Full Screen.

Exit full screen mode Press one of the soft keys, and then press Menu > View > Full Screen to

cancel the selection.

Change Web page display options

Press Menu > View. Select one of the display options.

Create a new folder in Favorites Press Favorites > Menu > Add Folder.

Move a favorite to a folder Press Favorites. Select the favorite to move. Press Menu > Edit. Under

Folder, scroll to the folder to which you want to move the favorite and press Done.

Send a link via e-mail Go to the Web page you want to send and press Menu > Tools > Send Link

via E-mail. Select SMS or Outlook E-mail or MMS.

5.3 Using Bluetooth

Bluetooth® is a short-range wireless communications technology that allows you to communicate with other devices such as headsets, printers, PCs, GPS receivers, and other users’ mobile devices. Devices with Bluetooth® capabilities can exchange information without requiring a physical connection. Unlike infrared, you do not need to line up devices to exchange information through Bluetooth®. The devices only need to be within a range of about 10 meters (30 feet) in an open space environment. You can even beam information to a device in a different room, as long as it is within the speciﬁed range.

Setting the Bluetooth® mode

To set the Bluetooth® mode

1. To enable the Bluetooth® connection, do one of the following:

•. From the Home screen, pressFrom the Home screen, press Start > Settings > Connections > Bluetooth.

•. Press and quickly release the Power button to display the Quick List screen. Select•. Press and quickly release the Power button to display the Quick List screen. Select Wireless

Manager > Settings > Bluetooth Settings.

2. Select On, Off, or Discoverable, and press Done.

BLUETOOTH MODE DESCRIPTION

On The Bluetooth radio is turned on and you can use Bluetooth features.

Off The Bluetooth radio is turned off. You might want to turn the radio off at times to

conserve battery power, or in situations where radio use is prohibited, like on airplanes and in hospitals.

Discoverable The Bluetooth radio is turned on, and other Bluetooth devices within range (about 10

meters) can detect your phone.

Creating a Bluetooth® partnership

Before your phone can communicate with another device, you need to create a partnership between your phone and the other Bluetooth-enabled device. Your phone can create partnerships with up to ten Bluetooth devices.

To create a Bluetooth® partnership

1. Ensure that the two devices are within close range and that both Bluetooth-enabled devices are discoverable.

2. On the Home screen, press Start > Settings > Connections > Bluetooth.

3. Press Menu > Devices > Menu > New. Your phone searches for and displays the list of Bluetooth-and displays the list of Bluetooth-Bluetooth- enabled devices.

4. Select the device with which you want to create a Bluetooth partnership, and press Next.

5. Enter a Passkey between 1 to 16 characters, and press Next.

6. Enter the same Passkey on the other device.

NOTE Once you create a partnership, the devices does not need to be discoverable to beam

information between them; Bluetooth needs only to be turned on.

Pairing with a Bluetooth® headset

1. On the Home screen, press Start > Settings > Connections > Bluetooth and set Bluetooth on your phone to Discoverable.

2. Turn on your Bluetooth headset and bring it to within 30 meters of your Smartphone.

3. Put your Bluetooth headset into pairing mode. Refer to your Bluetooth headset’s user manual for instructions.

4. On your phone, press Menu > Devices > Menu > New.

5. Select the Bluetooth headset on the Add Devices list and press Next.

6. Enter the passkey provided in the headset user manual. The phone will now pair with the headset.

TO DO THIS

Beam information using Bluetooth

Make sure that Bluetooth is turned on and that the device that you want to beam to is discoverable. Select the item that you want to beam and press Menu > Beam [item]. Select the Bluetooth device to which you want to beam the item and press Beam.

Accept a Bluetooth partnership

Make sure that Bluetooth is turned on and that your phone is discoverable. When prompted to accept a Bluetooth partnership with the other device, press Yes. In

Passkey, enter a Passkey between 1 to 16 characters, and press Next. You must enter

the same Passkey as that used on the device requesting the Bluetooth partnership.

Receive beamed information

On the Home screen, press Start > Settings > Connections > Beam. Select Receive

incoming beams.

Do the following:

• To receive beams by using Bluetooth, ensure Bluetooth is turned on and that your phone is discoverable and within close range.

Press Done.

Rename a Bluetooth device

On the Home screen, press Start > Settings > Connections > Bluetooth > Menu >

Devices. Select the Bluetooth device to rename and press Menu > Edit. Enter a new

display name for the Bluetooth device, and press Next. Press Done when you are ﬁnished.

Synchronise using Bluetooth

On the Home screen, press Start > ActiveSync > Menu > Connect via Bluetooth. See “Using Bluetooth” in 3.5 Synchronising with a PC for more information.

End a Bluetooth partnership

On the Home screen, press Start > Settings > Connections > Bluetooth > Menu >

Devices. Select the Bluetooth device and press Menu > Delete.

Specify a folder for received images from the Image server
